Kenmore
Gas Range

Model # 1037385004 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037385004 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Drawer Guide 97820
#132

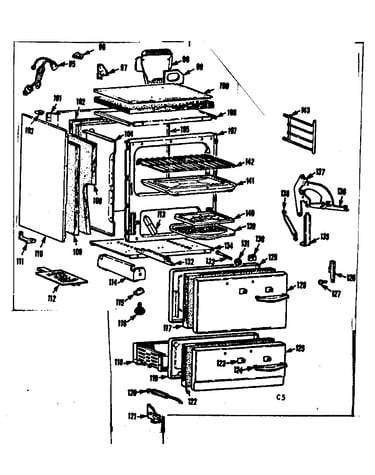

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Trim Clip 70588
#13

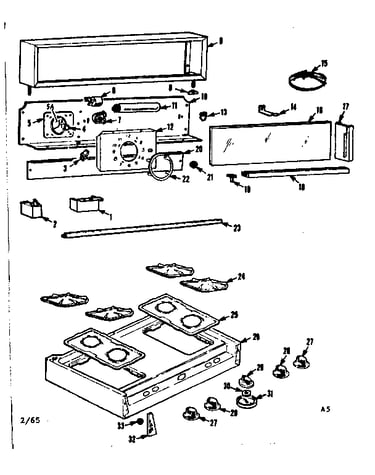

Backguard & main top diagram

Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Door Arm 97758
#136

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Push Switch 89977
#7

Backguard & main top diagram

Push switch

Part #89977

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 97756
#137

Body section diagram

Door hinge

Part #97756

The manufacturer no longer makes this part, and there's no substitute part

Tubing 7/16 109625
#49

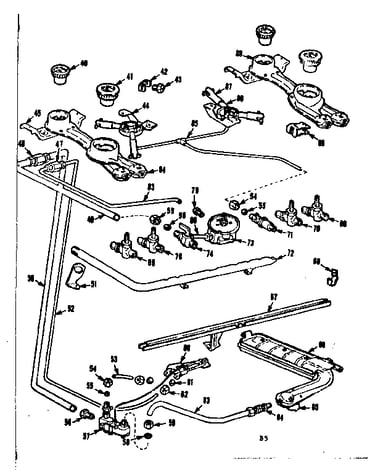

Burner section diagram

Tubing 7/16

Part #109625

The manufacturer no longer makes this part, and there's no substitute part

Backguard 108974
#9

Backguard & main top diagram

Backguard

Part #108974

The manufacturer no longer makes this part, and there's no substitute part

Clock Motor 95210

#NI

All parts diagram

Clock motor

Part #95210

The manufacturer no longer makes this part, and there's no substitute part

Extension 108978
#20

Backguard & main top diagram

Extension

Part #108978

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 112169
#15

Backguard & main top diagram

Wire harness

Part #112169

The manufacturer no longer makes this part, and there's no substitute part
