Model # 7906409130B Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 7906409130B electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for7906409130B Ranges
- #15

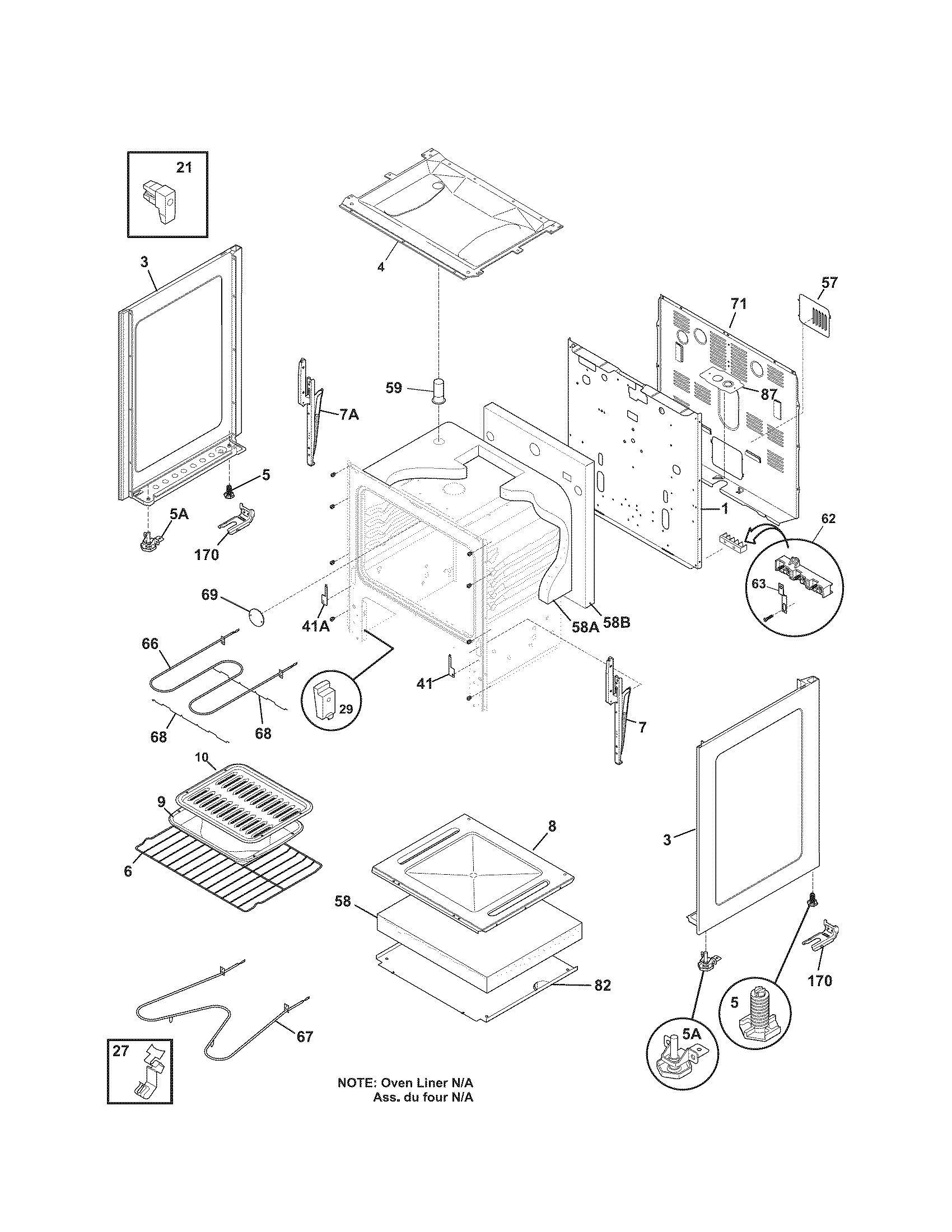

Body diagram
Appliance light bulb, 40-wattPart #316538901
Replaced by #316538904
?Manufacturer substitutionThis part replaces 316538901. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #27

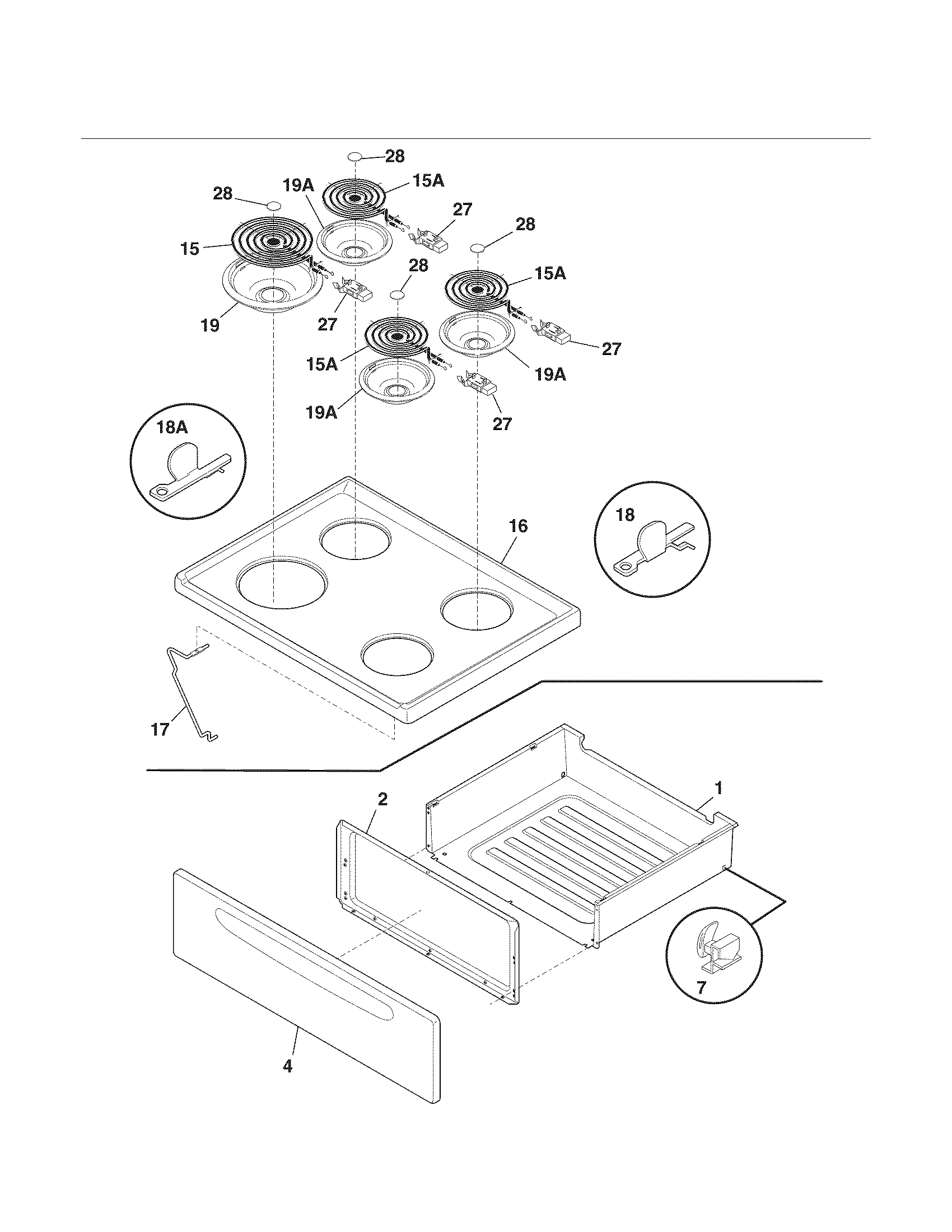

Top/drawer diagram
BlockPart #5303912666
Replaced by #5303935058
?Manufacturer substitutionThis part replaces 5303912666. Substitute parts can look different from the original.$9.24 |10% OFF Phone Price : $10.24In Stock - #19A
Top/drawer diagram
Range drip pan, 6-in (chrome)Part #316048414
$10.03 |17% OFF Phone Price : $12.03In Stock - #66

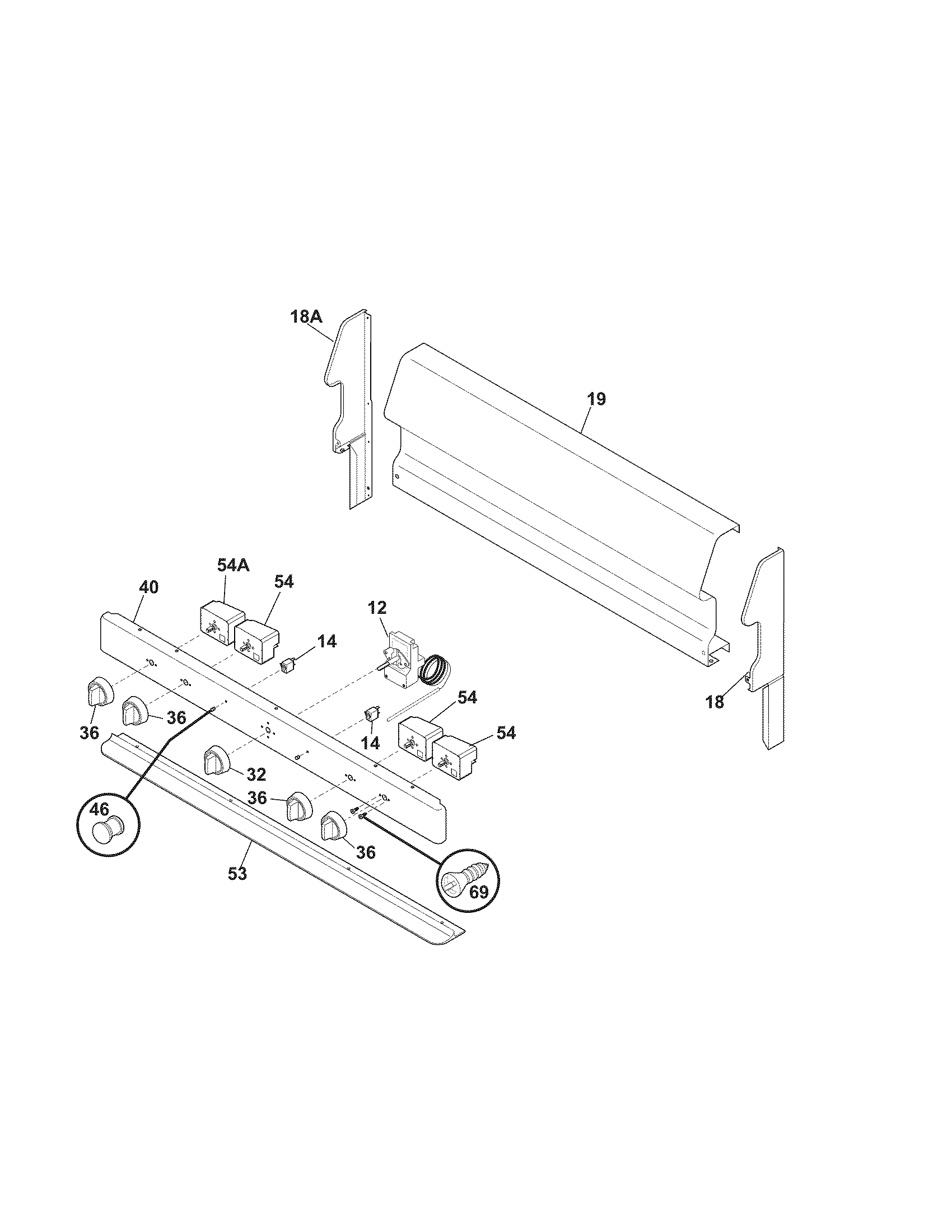

Body diagram
Frigidaire range broil elementPart #316203200
$101.01 |11% OFF Phone Price : $113.01In Stock - #NI
Body diagram
Range screwPart #316021108
Replaced by #131243700
?Manufacturer substitutionThis part replaces 316021108. Substitute parts can look different from the original.$55.42In Stock - #10B

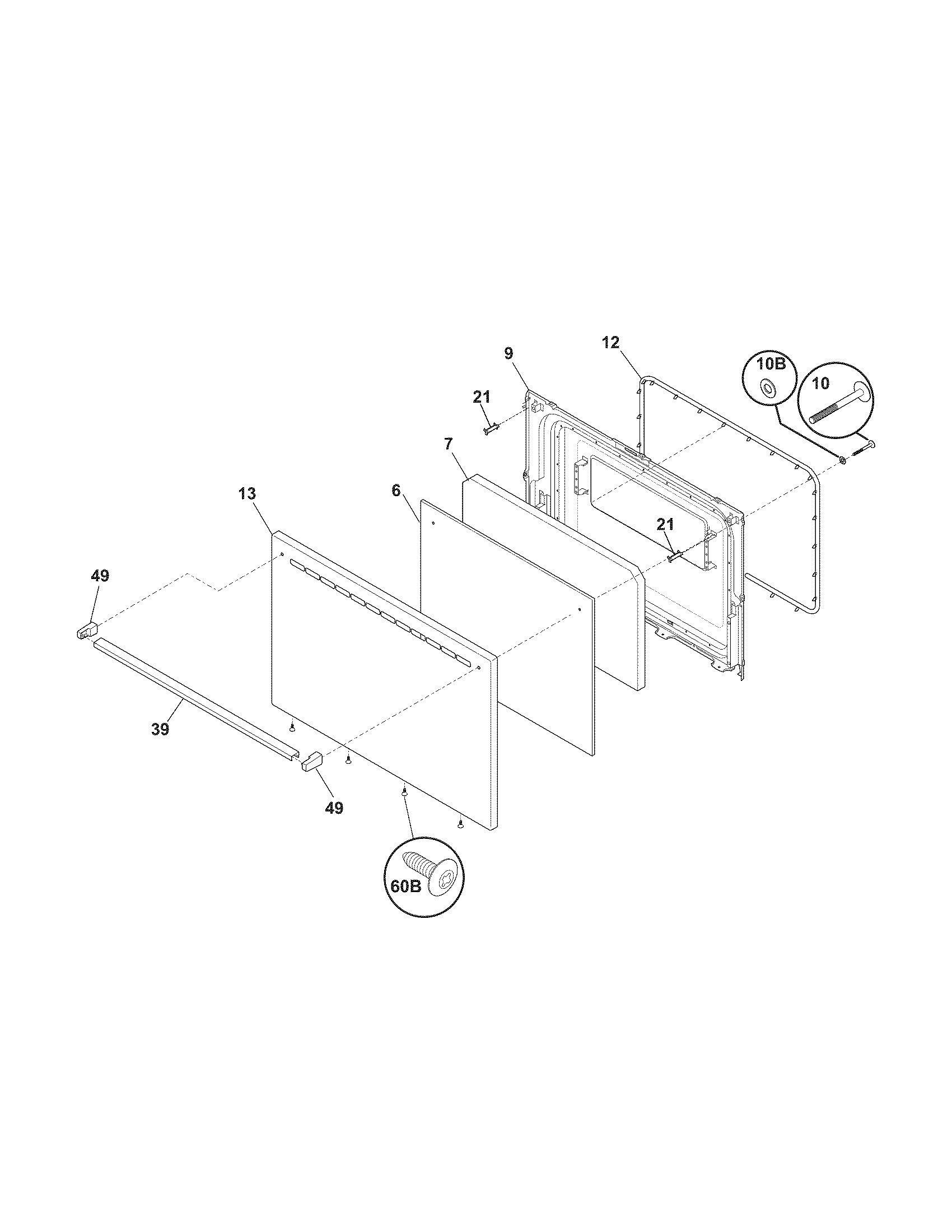

Door diagram
Range washerPart #316008401
$13.71 |13% OFF Phone Price : $15.71In Stock - #14
Body diagram
Range light socketPart #316116400
$43.02 |12% OFF Phone Price : $49.02In Stock - #29
Body diagram
Range drawer glide, frontPart #316407301
Replaced by #807047102
?Manufacturer substitutionThis part replaces 316407301. Substitute parts can look different from the original.This item is not returnable$11.63 |15% OFF Phone Price : $13.63In Stock - #60B
Door diagram
Range screwPart #316021110
Replaced by #316021109
?Manufacturer substitutionThis part replaces 316021110. Substitute parts can look different from the original.$14.46 |12% OFF Phone Price : $16.46In Stock - Range hex head screw, #8-18 x 3/8-in
Part #316021105
Replaced by #316021109
?Manufacturer substitutionThis part replaces 316021105. Substitute parts can look different from the original.$14.46 |12% OFF Phone Price : $16.46In Stock
