Model # GCRI3058ADB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire GCRI3058ADB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

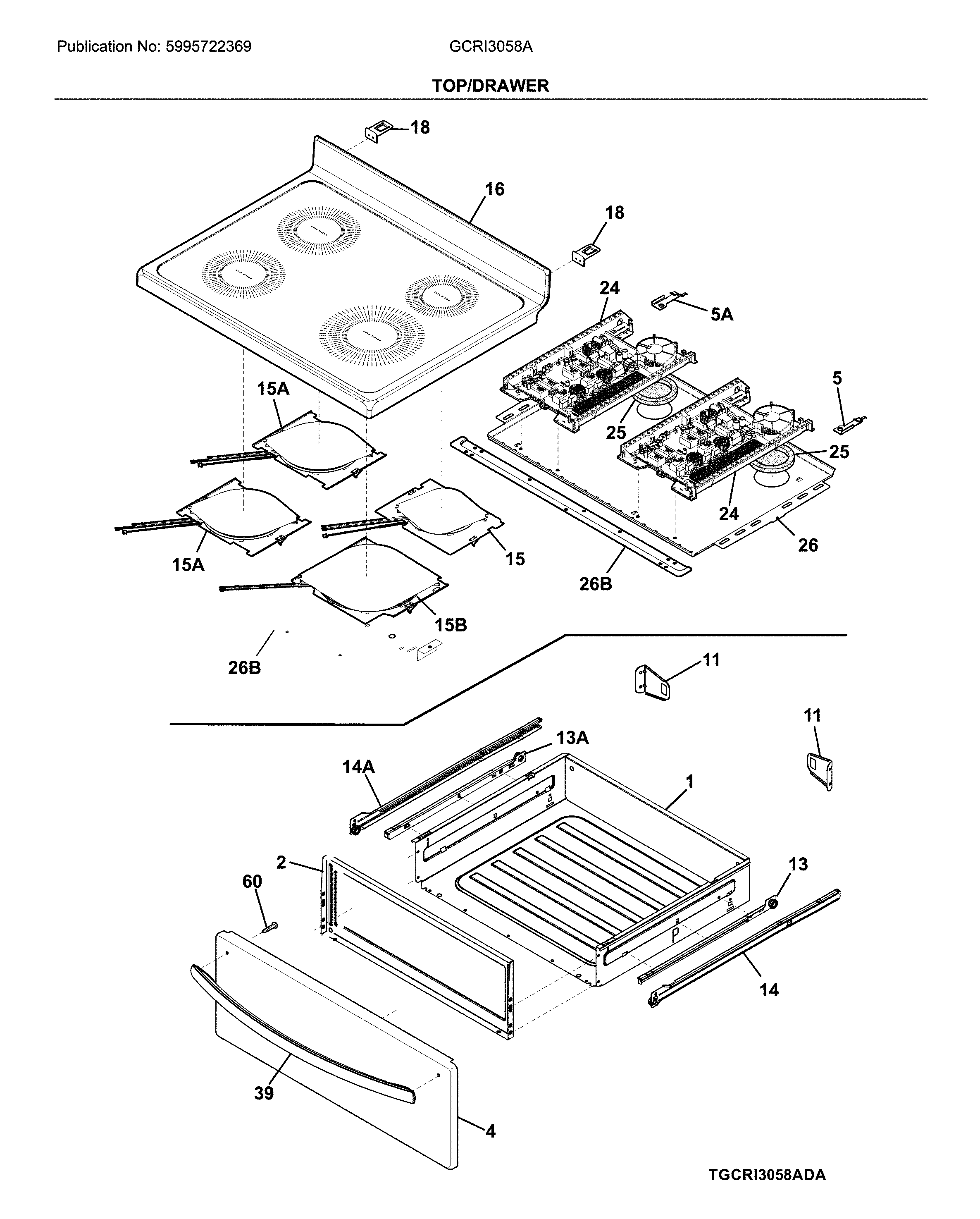

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Frigidaire Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

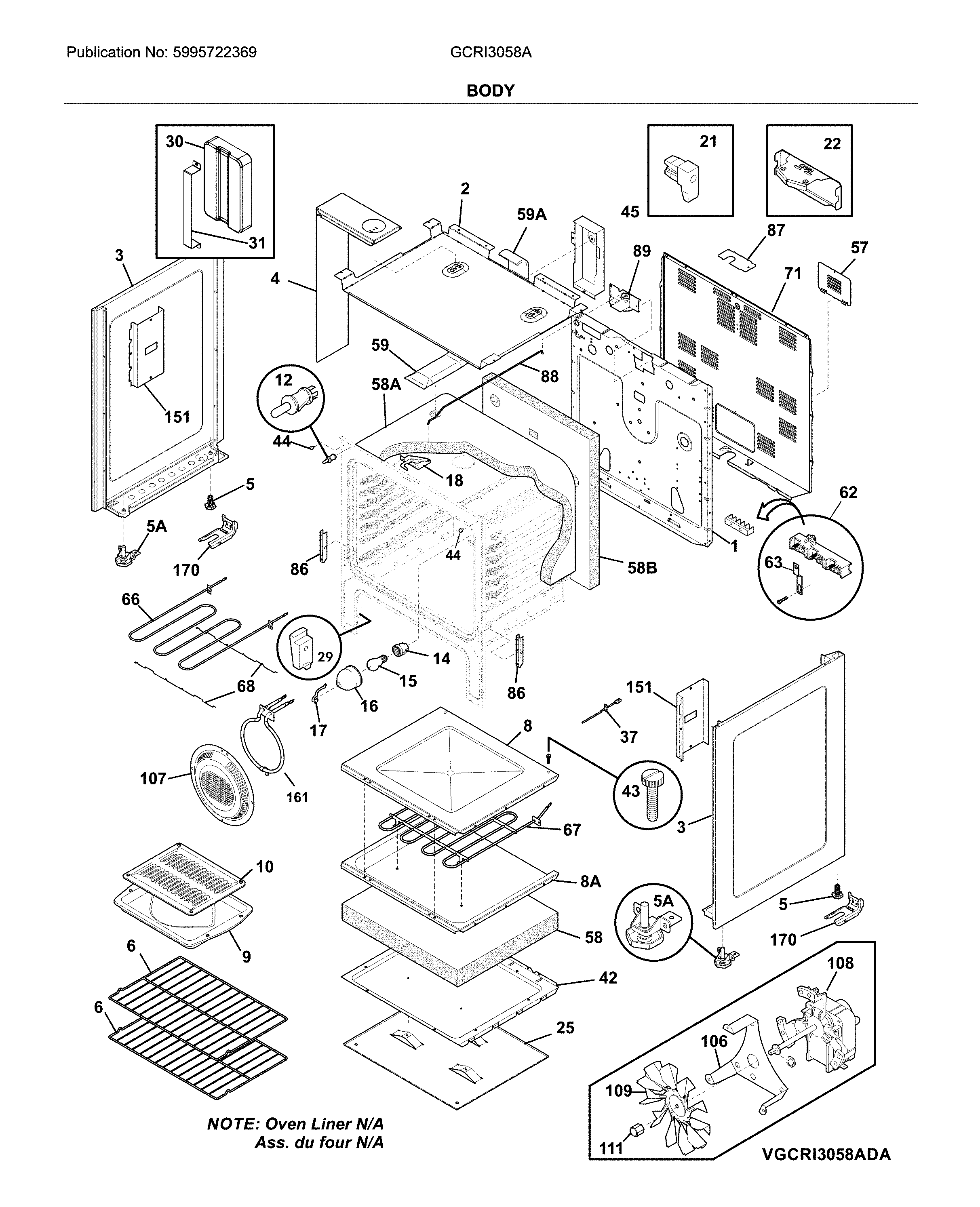

Body diagram

Frigidaire range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$34.04 |
15% OFF Phone Price : $40.04
In Stock
Range Oven Light Bulb (replaces 241555401, 316538901) 316538904
#15

Body diagram

Range oven light bulb (replaces 241555401, 316538901)

Part #316538904

BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Oven Door Inner Glass 316117502
#8

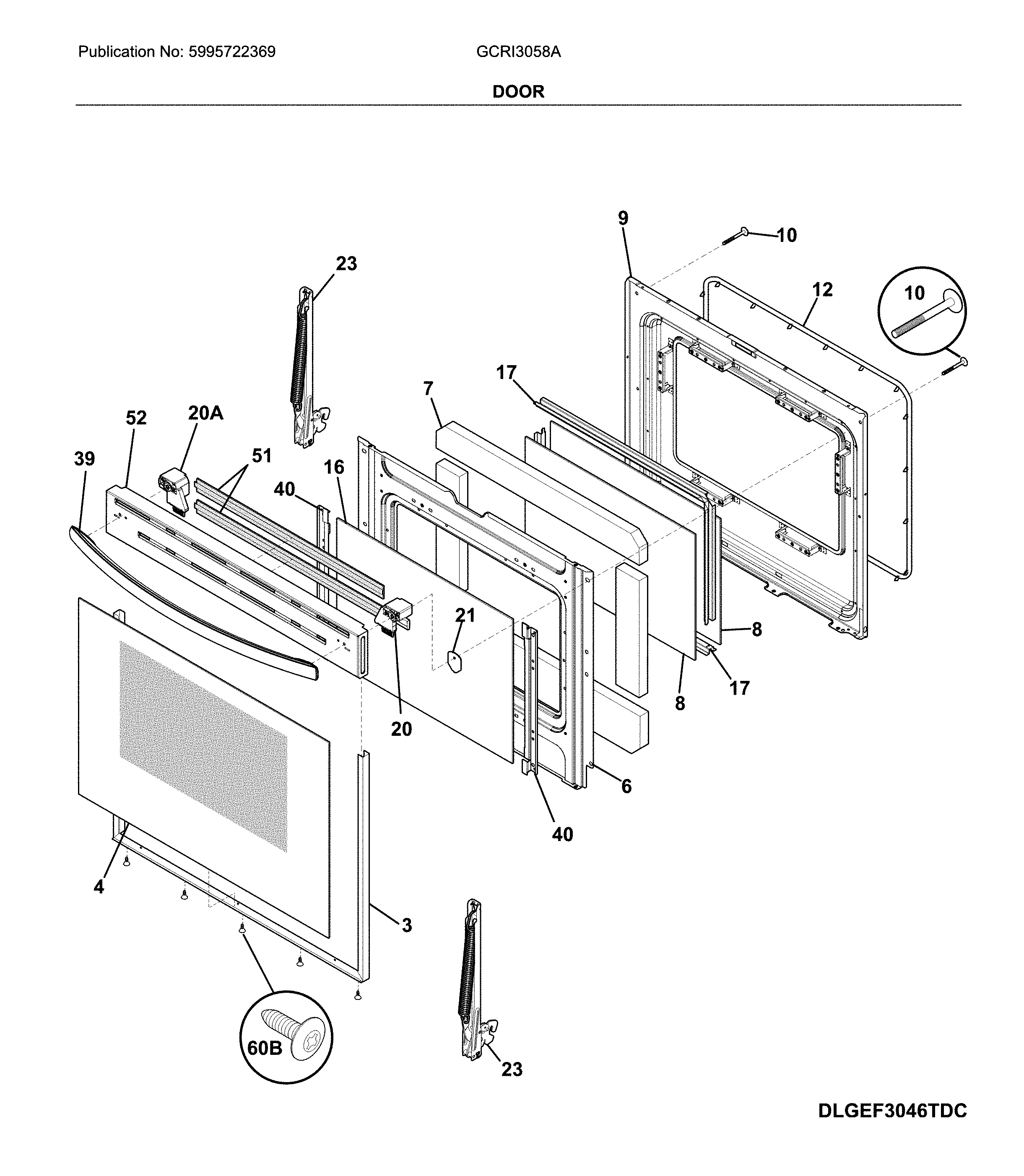

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Oven Relay Control Board 5304516862
#97

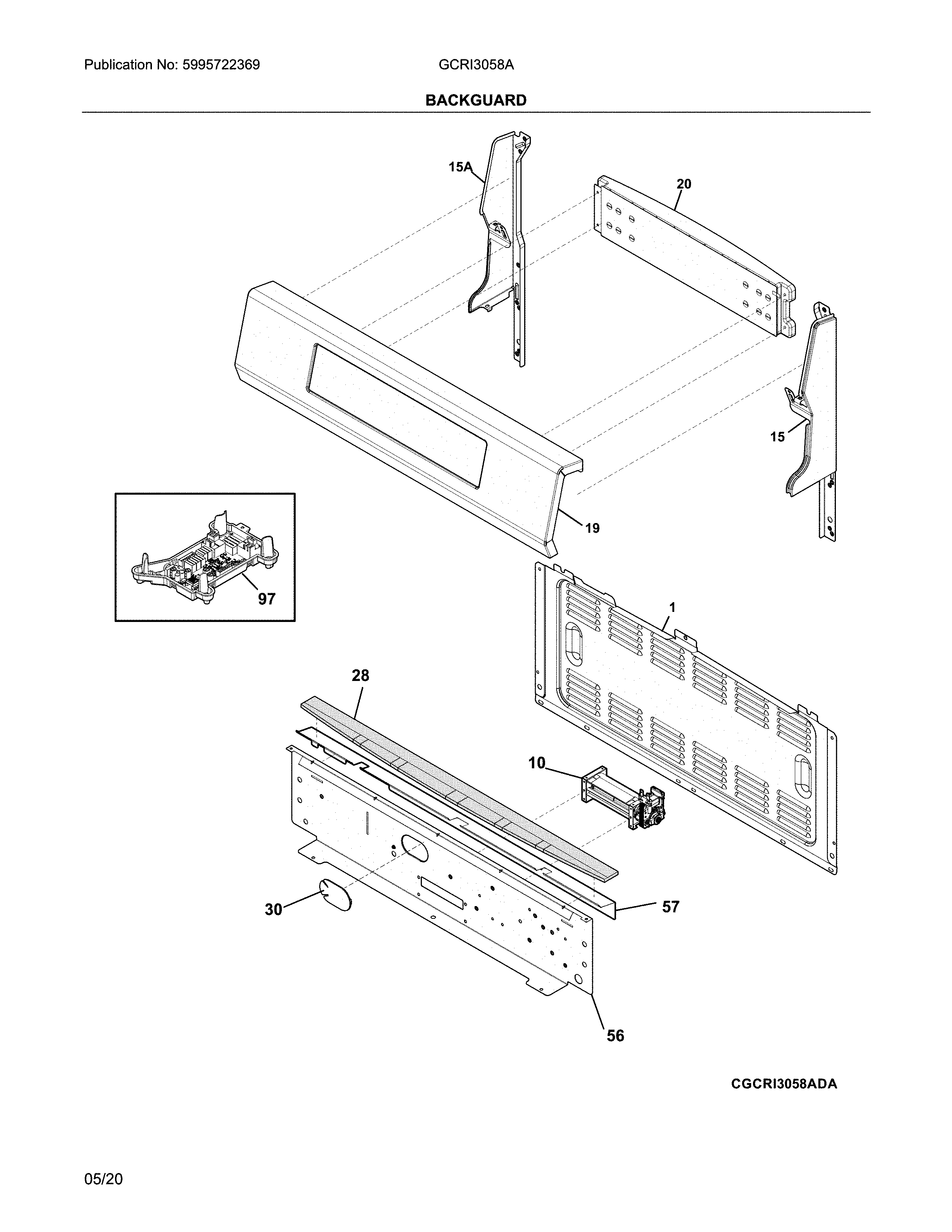

Backguard diagram

Range oven relay control board

Part #5304516862

BEST SELLER
This item is not returnable
$201.89 |
6% OFF Phone Price : $213.89
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Frigidaire Range Bake Element (replaces 316206000) 316413800
#67

Body diagram

Frigidaire range bake element (replaces 316206000)

Part #316413800

BEST SELLER
$159.09 |
7% OFF Phone Price : $171.09
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Convection Fan Motor (replaces P316415800) 316256100
#108

Body diagram

Range convection fan motor (replaces p316415800)

Part #316256100

$158.58 |
7% OFF Phone Price : $170.58
In Stock
Tappan Range Broil Element Support (replaces 316404000) 316404002
#68

Body diagram

Tappan range broil element support (replaces 316404000)

Part #316404002

This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Range Oven Door Trim Kit (black) (replaces 5303935245, 5303935317, 5303935397) 5303935377
#3

Door diagram

Range oven door trim kit (black) (replaces 5303935245, 5303935317, 5303935397)

Part #5303935377

$47.29 |
11% OFF Phone Price : $53.29
In Stock
