Model # C222 Official Jenn-Air electric cooktop

Here are the diagrams and repair parts for Official Jenn-Air C222 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Clip 700834
Clip

Part #700834

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 700834. Substitute parts can look different from the original.
BEST SELLER
$67.72 |
8% OFF Phone Price : $73.72
In Stock
Infinite Switch 703147
#2

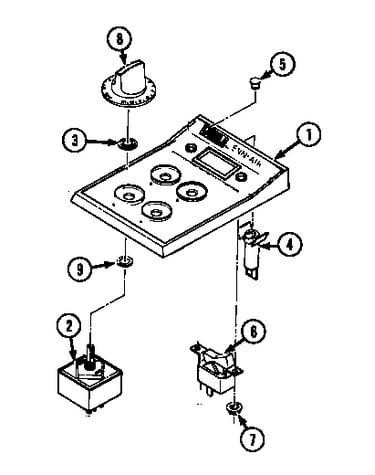

Escutcheon assembly diagram

Infinite switch

Part #703147

Replaced by #W11120795

?
Manufacturer substitution
This part replaces 703147. Substitute parts can look different from the original.
$59.94 |
9% OFF Phone Price : $65.94
In Stock
Screw 707341
#12

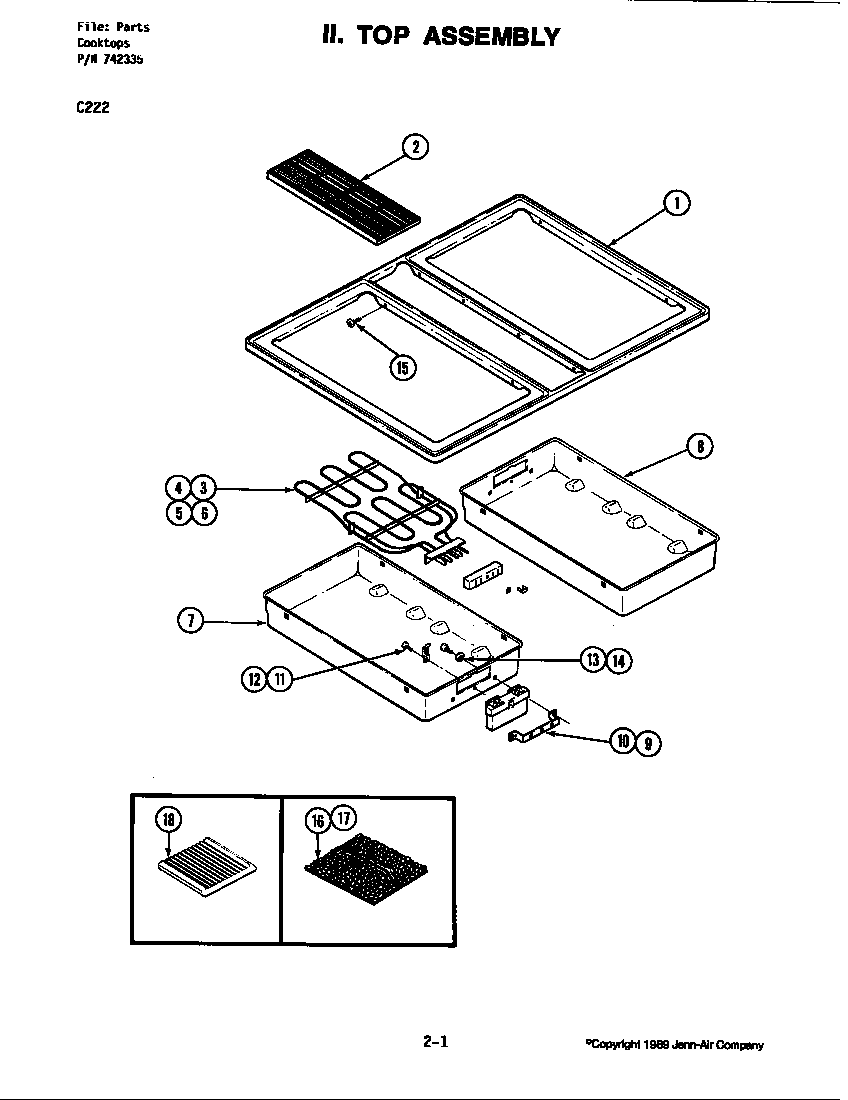

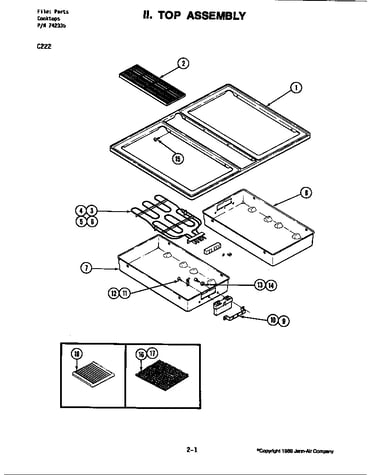

Top assembly diagram

Screw

Part #707341

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 707341. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Receptacle 702434
#9

Top assembly diagram

Receptacle

Part #702434

Replaced by #WPY702434

?
Manufacturer substitution
This part replaces 702434. Substitute parts can look different from the original.
$43.33 |
12% OFF Phone Price : $49.33
In Stock
Complete Element 700531
#3

Top assembly diagram

Complete element

Part #700531

Replaced by #WP5700M426-60

?
Manufacturer substitution
This part replaces 700531. Substitute parts can look different from the original.
$186.67 |
6% OFF Phone Price : $198.67
In Stock
Terminal Block 708730
#4

Top assembly diagram

Terminal block

Part #708730

Replaced by #WPY708730

?
Manufacturer substitution
This part replaces 708730. Substitute parts can look different from the original.
$39.54 |
13% OFF Phone Price : $45.54
In Stock
Screw 707113
#11

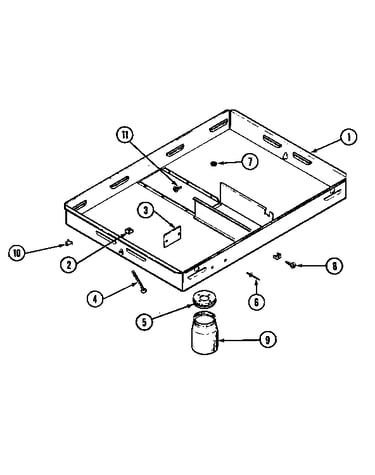

Burner box diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 707172
Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Magic Chef Cooktop Grill Rock Plate Support 700819
#17

Top assembly diagram

Magic chef cooktop grill rock plate support

Part #700819

$33.59 |
15% OFF Phone Price : $39.59
In Stock
Screw 701379
#20A

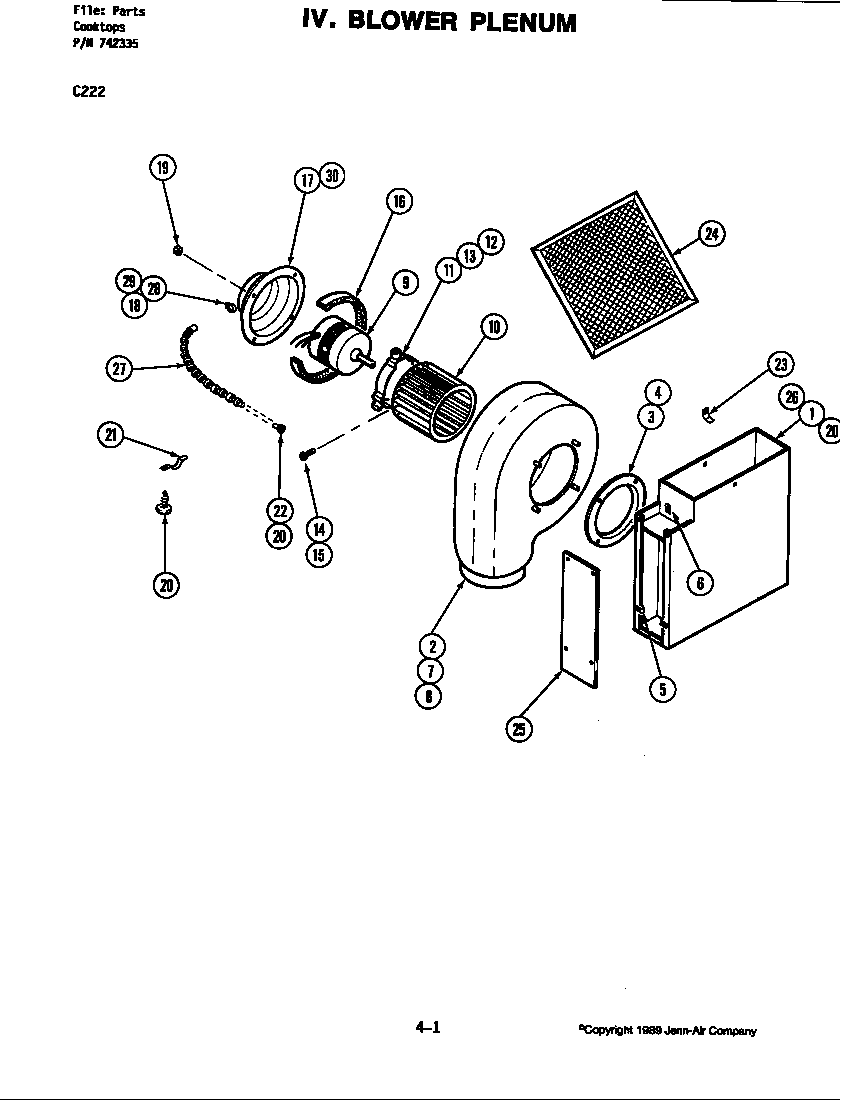

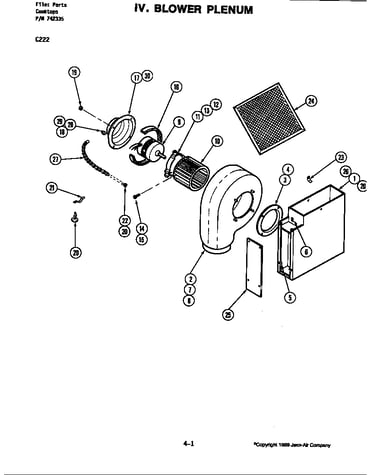

Blower plenum diagram

Screw

Part #701379

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 701379. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
