GE
Electric Cooktop

Model # JP655SM2SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP655SM2SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Halogen Element WB30T10127
#56

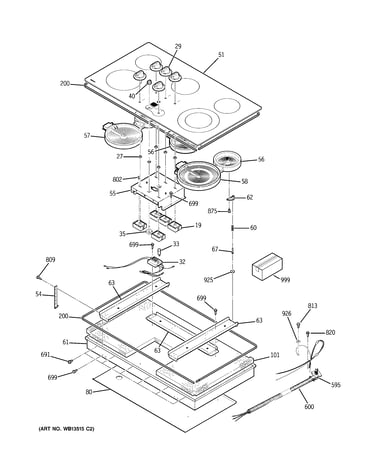

Control panel & cooktop diagram

Halogen element

Part #WB30T10127

Replaced by #WB30T10145

?
Manufacturer substitution
This part replaces WB30T10127. Substitute parts can look different from the original.
BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Halogen Element WB30T10128
#57

Control panel & cooktop diagram

Halogen element

Part #WB30T10128

Replaced by #WB30T10132

?
Manufacturer substitution
This part replaces WB30T10128. Substitute parts can look different from the original.
BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Halogen Element WB30T10125
#56

Control panel & cooktop diagram

Halogen element

Part #WB30T10125

Replaced by #WB30T10129

?
Manufacturer substitution
This part replaces WB30T10125. Substitute parts can look different from the original.
BEST SELLER
$112.74 |
10% OFF Phone Price : $124.74
In Stock
Screw WH02X0930
#875

Control panel & cooktop diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Knob (replaces Wb03t10221) WB03T10272
#40

Control panel & cooktop diagram

Range surface burner knob (replaces wb03t10221)

Part #WB03T10272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Range Dual Radiant Surface Element WB30T10122
#58

Control panel & cooktop diagram

Range dual radiant surface element

Part #WB30T10122

$121.14 |
9% OFF Phone Price : $133.14
In Stock
Cooktop Burner Knob WB03T10271
#29

Control panel & cooktop diagram

Cooktop burner knob

Part #WB03T10271

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cooktop Burner WB64T10044
#61

Control panel & cooktop diagram

Cooktop burner

Part #WB64T10044

$61.48
In Stock
Washer WB01K5117
#925

Control panel & cooktop diagram

Washer

Part #WB01K5117

Replaced by #WB1K5117

?
Manufacturer substitution
This part replaces WB01K5117. Substitute parts can look different from the original.
$8.11
In Stock
