Snapper
Gas Walk-Behind Mower

Model # 7800266 Official Snapper 21" variable-speed mower

Here are the diagrams and repair parts for Official Snapper 7800266 21" variable-speed mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

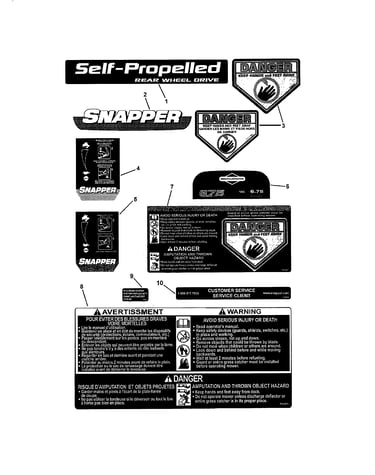

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 432 parts  |
Fln 5/16-18 7091601
Fln 5/16-18

Part #7091601

Replaced by #703409

?
Manufacturer substitution
This part replaces 7091601. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Lawn Mower Cable 7101399
#25

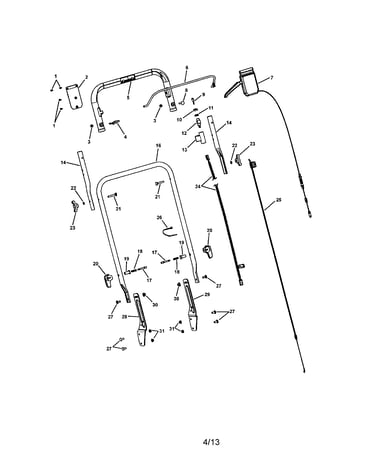

Handles/controls diagram

Lawn mower cable

Part #7101399

Replaced by #7101399YP

?
Manufacturer substitution
This part replaces 7101399. Substitute parts can look different from the original.
This item is not returnable
$31.78 |
16% OFF Phone Price : $37.78
In Stock
Hcln 3/8 7091585
#12

Front & rear wheels diagram

Hcln 3/8

Part #7091585

Replaced by #703347

?
Manufacturer substitution
This part replaces 7091585. Substitute parts can look different from the original.
This item is not returnable
$8.69
In Stock
Wheel 7500647
#8

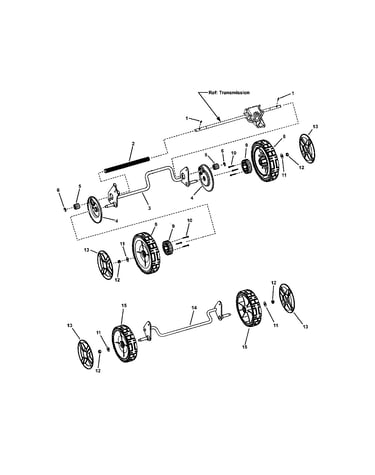

Front & rear wheels diagram

Wheel

Part #7500647

Replaced by #7500647YP

?
Manufacturer substitution
This part replaces 7500647. Substitute parts can look different from the original.
$65.69 |
8% OFF Phone Price : $71.69
In Stock
Blade 7100242
#15

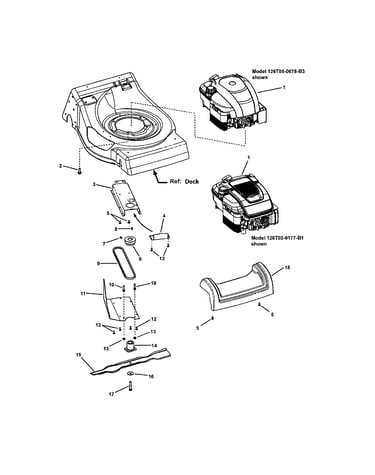

Engine & blade diagram

Blade

Part #7100242

Replaced by #7100242AYP

?
Manufacturer substitution
This part replaces 7100242. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$36.69 |
14% OFF Phone Price : $42.69
In Stock
Hwst, 3/8c X 7090324
#2

Engine & blade diagram

Hwst, 3/8c x

Part #7090324

Replaced by #704000

?
Manufacturer substitution
This part replaces 7090324. Substitute parts can look different from the original.
$9.17
In Stock
Lawn Mower Cable 7101400
#25A

Handles/controls diagram

Lawn mower cable

Part #7101400

Replaced by #7101400YP

?
Manufacturer substitution
This part replaces 7101400. Substitute parts can look different from the original.
$42.51
In Stock
Spring 722503
#9

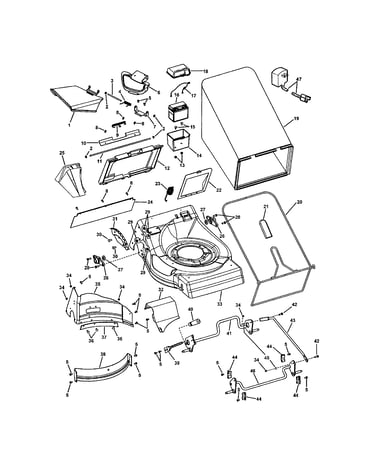

Deck diagram

Spring

Part #722503

Replaced by #166X33MA

?
Manufacturer substitution
This part replaces 722503. Substitute parts can look different from the original.
$12.71
In Stock
Wire Harness 7101504
Wire harness

Part #7101504

Replaced by #7101504YP

?
Manufacturer substitution
This part replaces 7101504. Substitute parts can look different from the original.
$65.11
In Stock
Nut 2860694
Nut

Part #2860694

Replaced by #703463

?
Manufacturer substitution
This part replaces 2860694. Substitute parts can look different from the original.
$7.60
In Stock
