Whirlpool
Top-Mount Refrigerator

Model # WRT138FFDM03 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRT138FFDM03 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

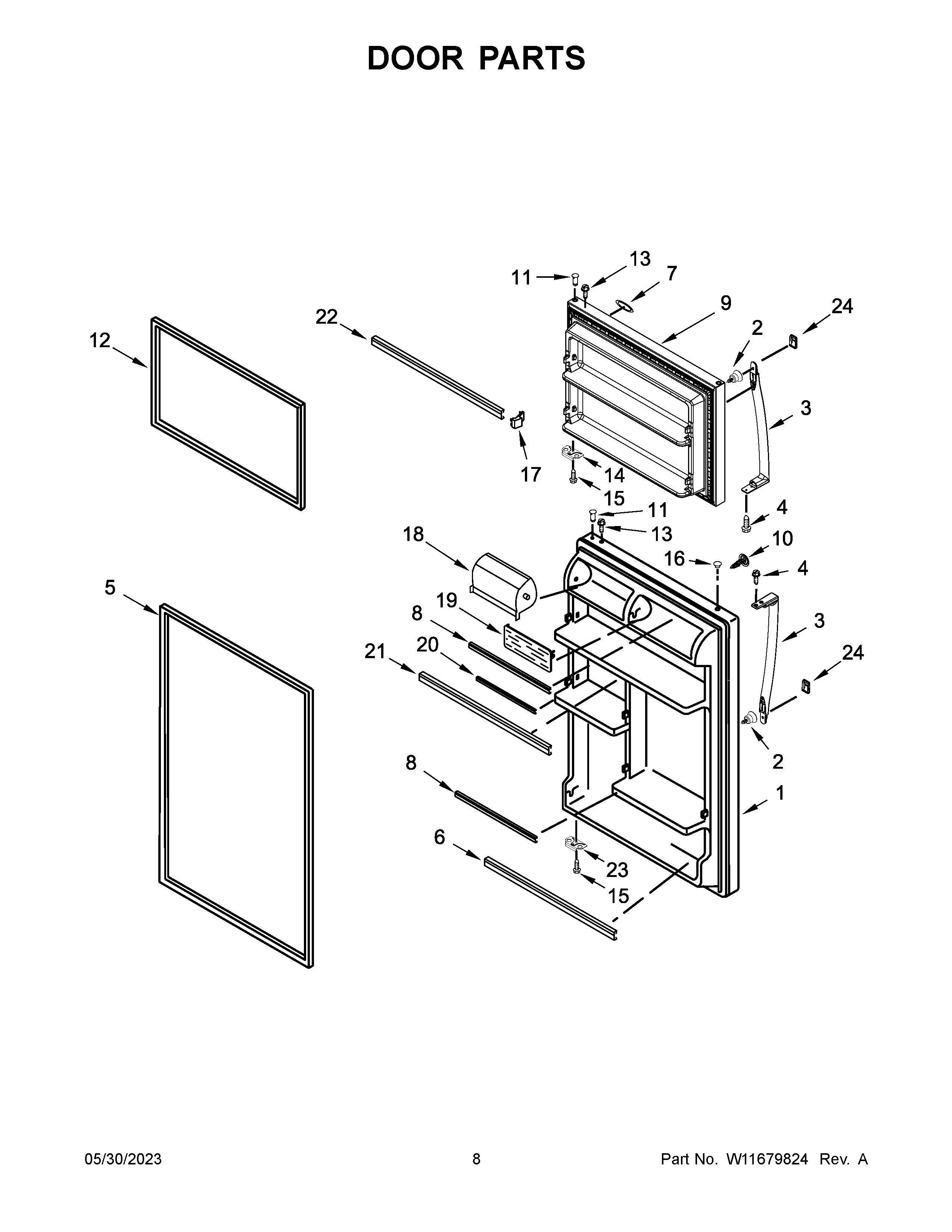

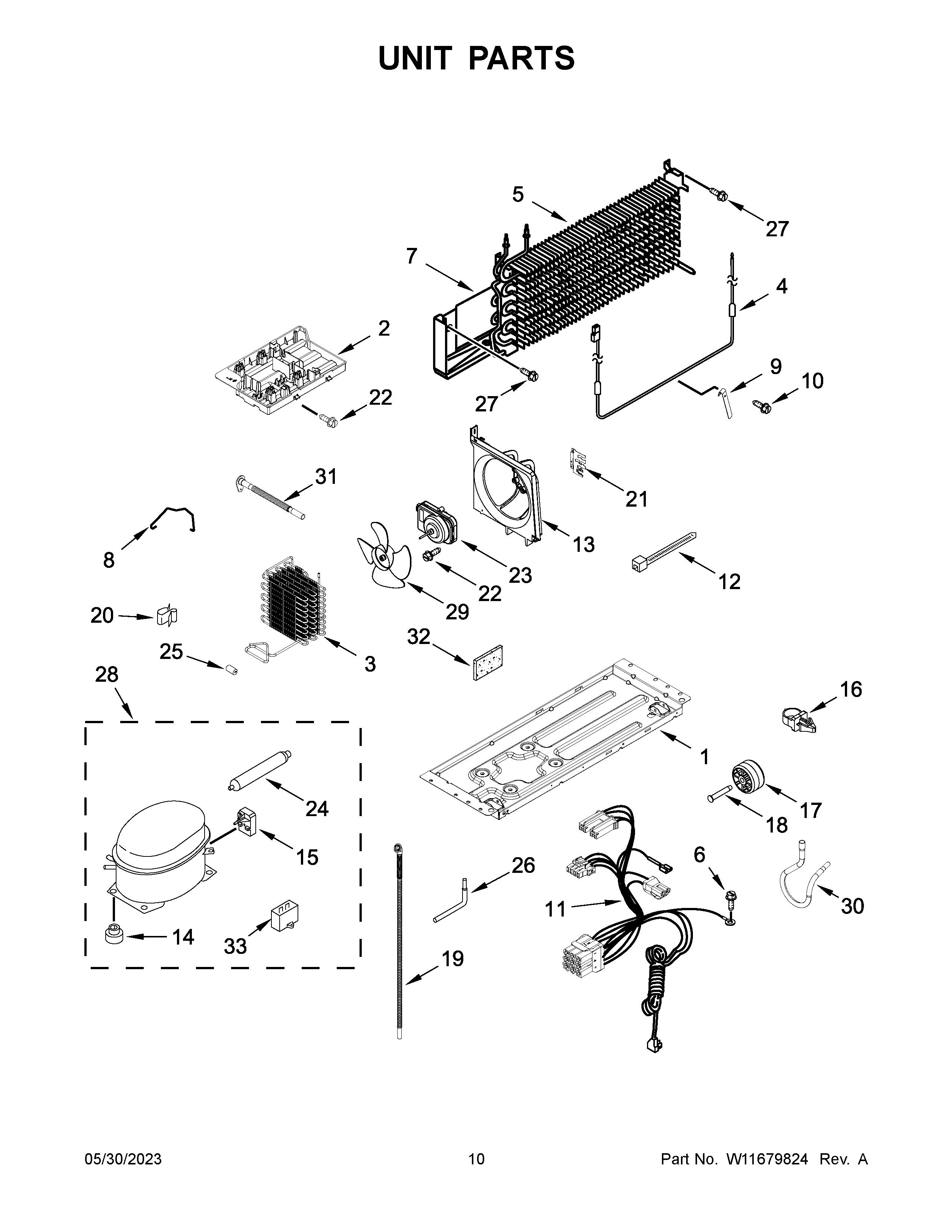

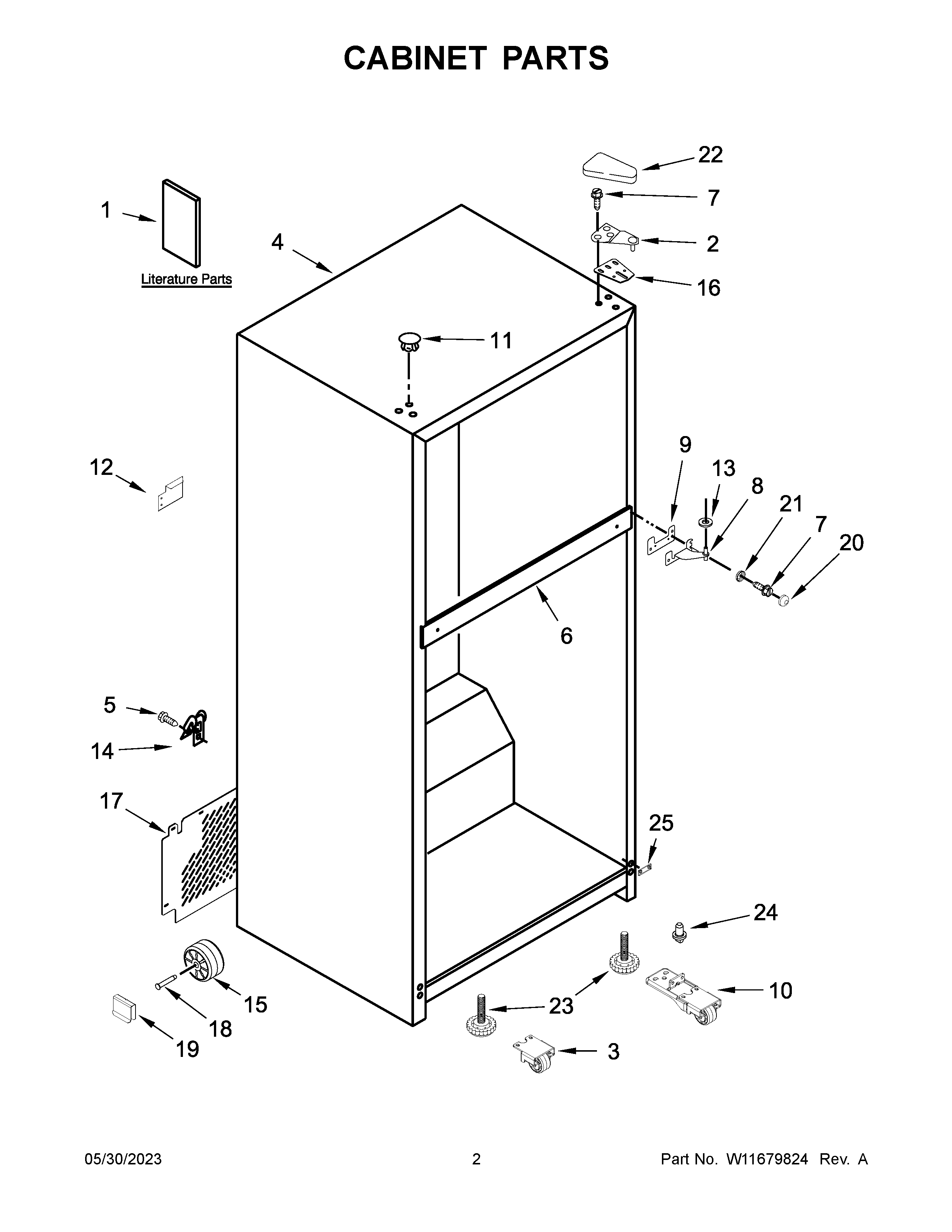

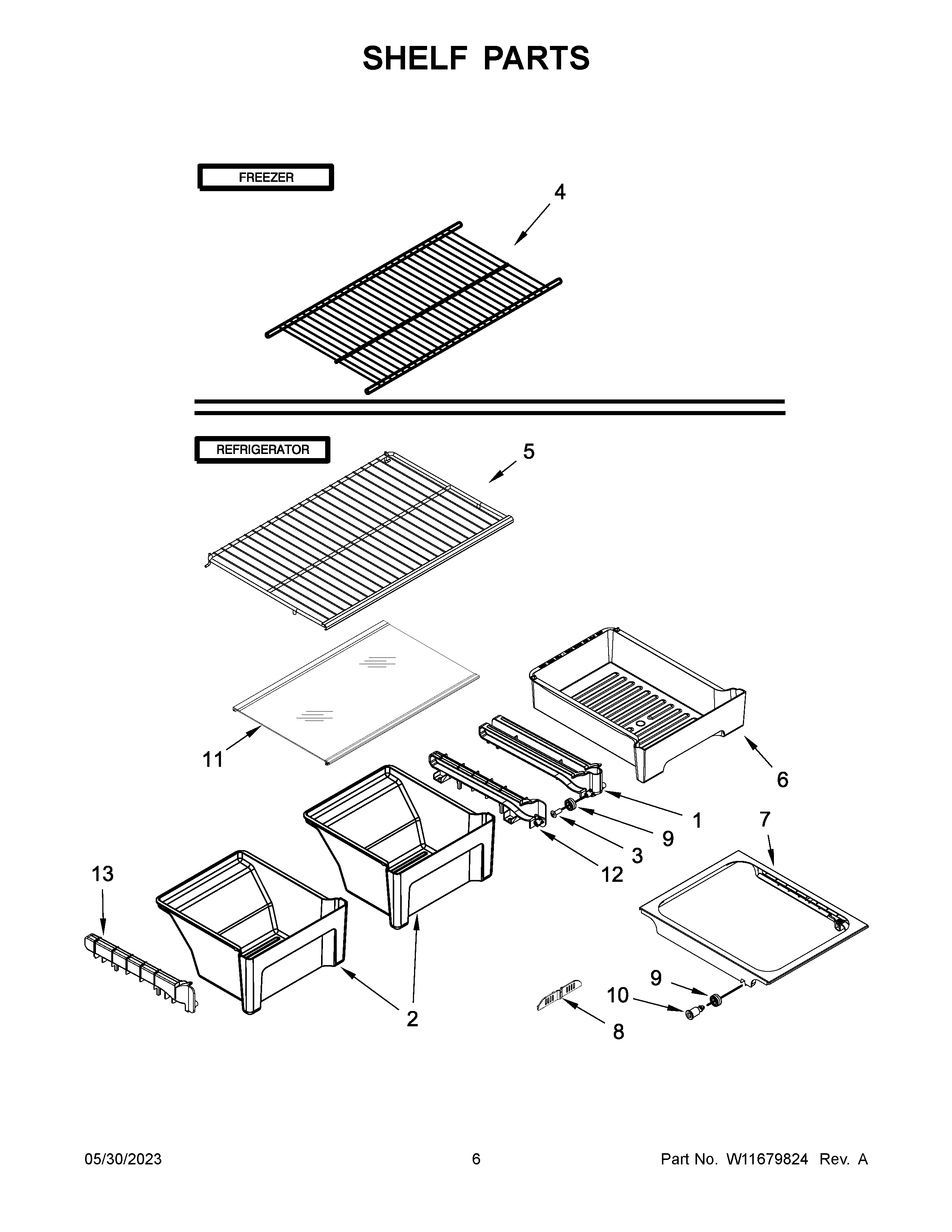

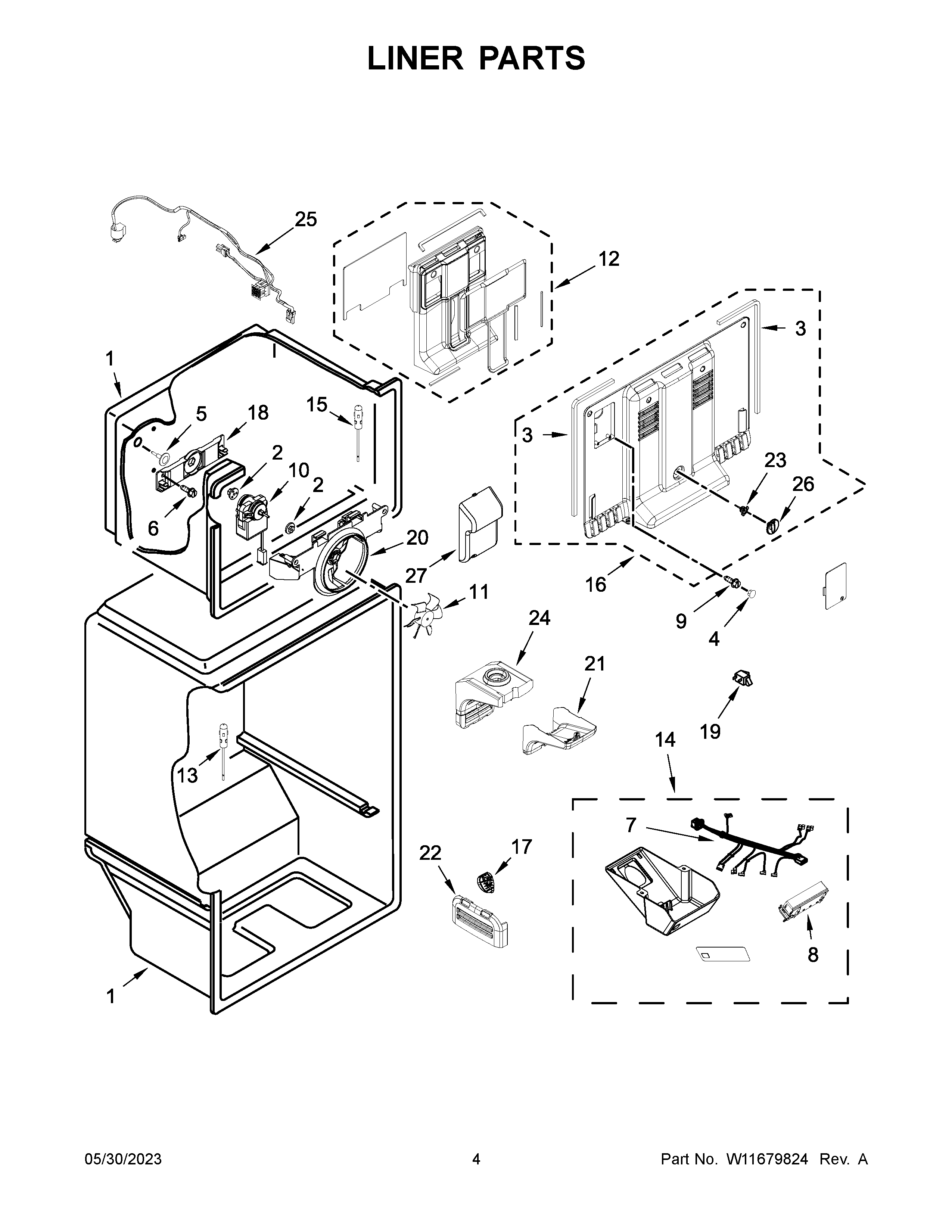

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Refrigerator Thermistor W10384183
Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Motor 2315539
Refrigerator evaporator fan motor

Part #2315539

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
BEST SELLER
$54.64 |
10% OFF Phone Price : $60.64
In Stock
Refrigerator Start Relay W10197428
Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$52.44 |
10% OFF Phone Price : $58.44
In Stock
Refrigerator Evaporator Fan Blade 2163777
Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Drier Tube W10805035
Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Screw 489357
Refrigerator screw

Part #489357

Replaced by #WP489357

?
Manufacturer substitution
This part replaces 489357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Thermistor, Refrigerator W11108173
Thermistor, refrigerator

Part #W11108173

Replaced by #W11438736

?
Manufacturer substitution
This part replaces W11108173. Substitute parts can look different from the original.
BEST SELLER
$46.67 |
11% OFF Phone Price : $52.67
In Stock
Refrigerator Screw 489478
Refrigerator screw

Part #489478

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489478. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cond Fan,mla W10909387
Cond fan,mla

Part #W10909387

Replaced by #W11127829

?
Manufacturer substitution
This part replaces W10909387. Substitute parts can look different from the original.
BEST SELLER
$103.13 |
10% OFF Phone Price : $115.13
In Stock
Refrigerator Door Shelf Trim End Cap 2156003
Refrigerator door shelf trim end cap

Part #2156003

Replaced by #WP2156003

?
Manufacturer substitution
This part replaces 2156003. Substitute parts can look different from the original.
BEST SELLER
$11.39 |
15% OFF Phone Price : $13.39
In Stock
