Model # 51SSA0113 Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 51SSA0113 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Condenser Coil (4) (ac) 51ssa0103 51SS-680-020

#65C

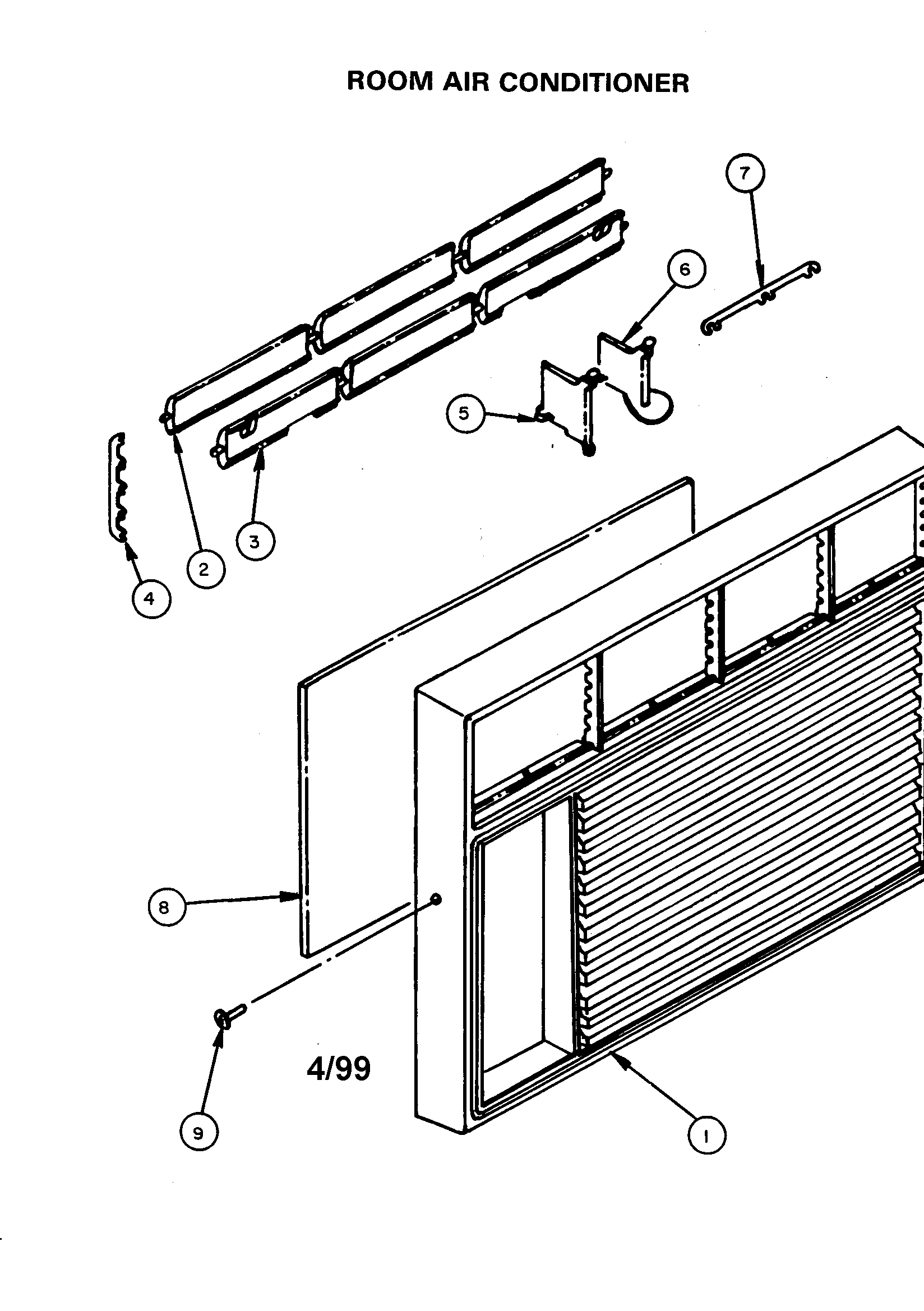

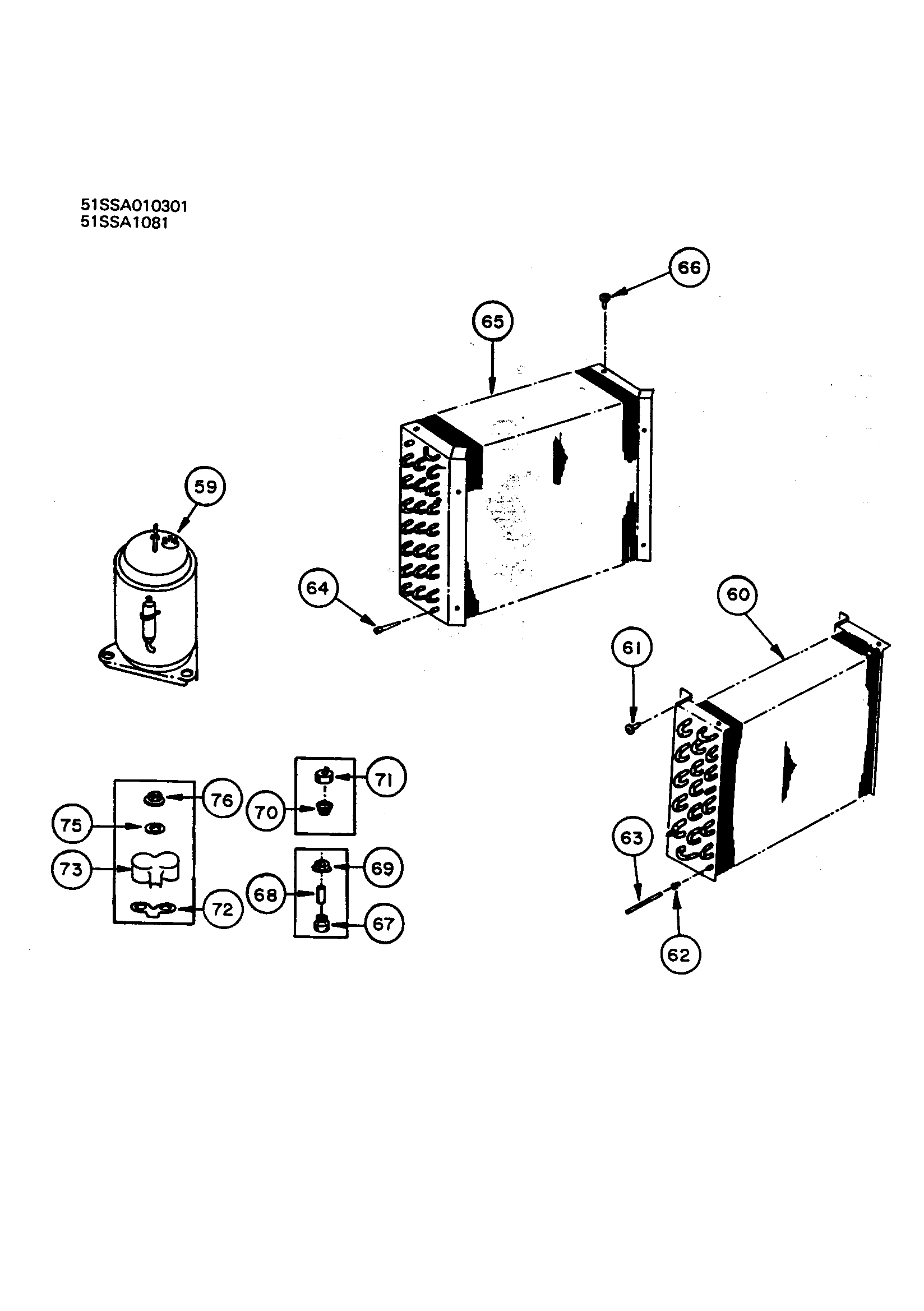

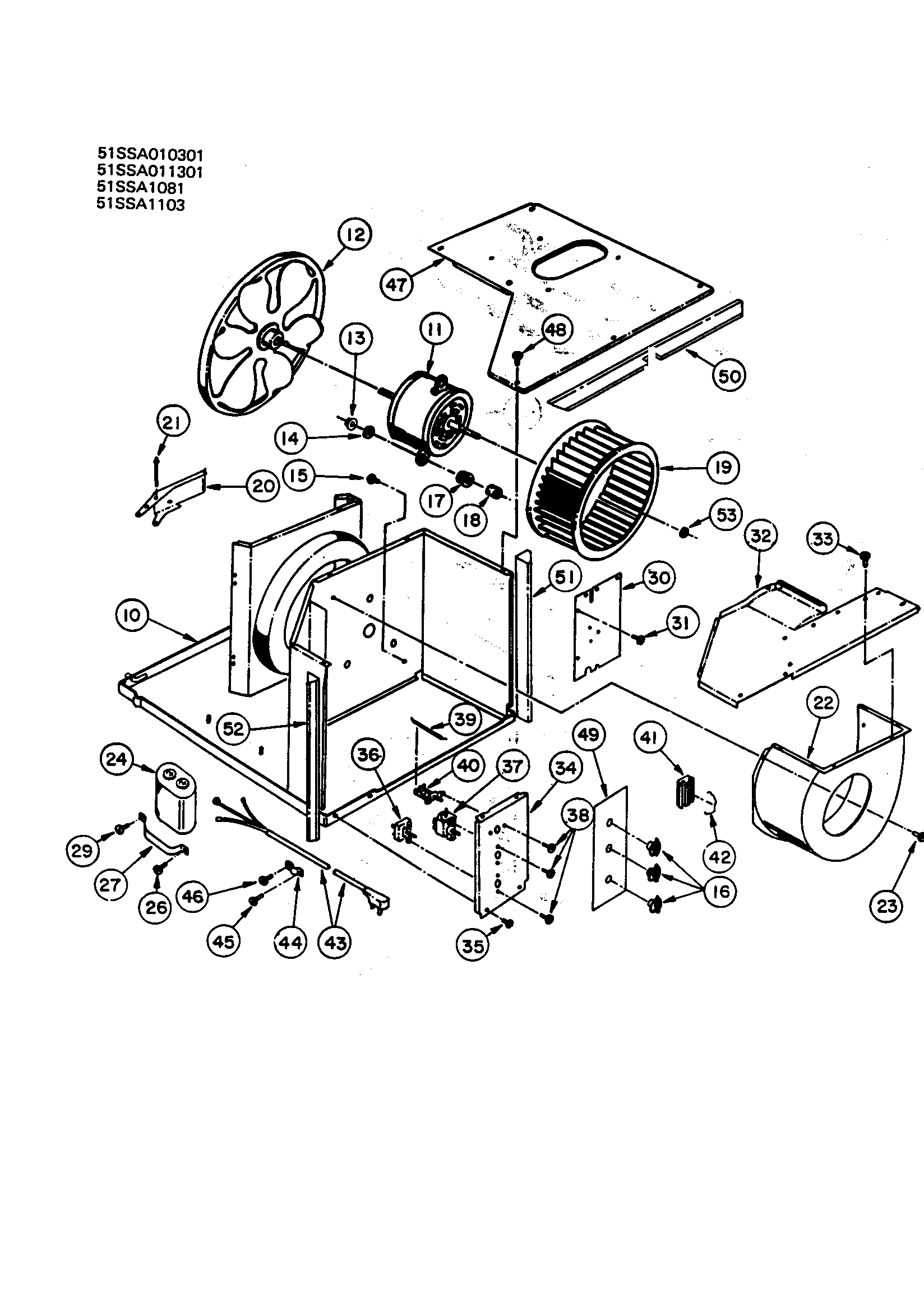

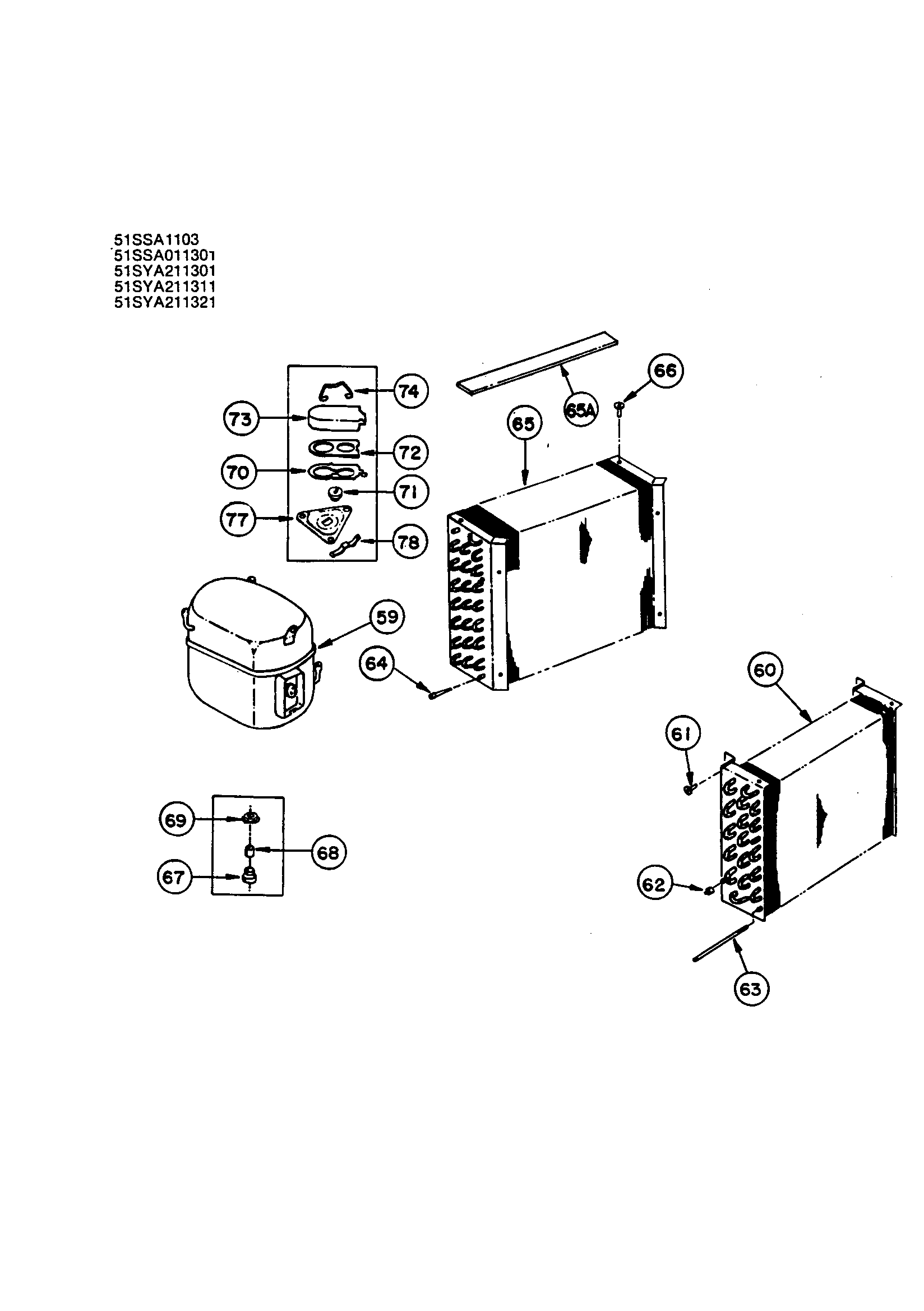

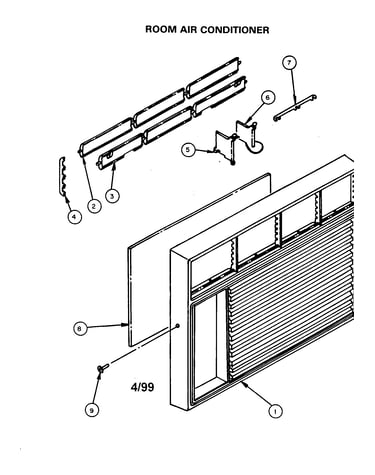

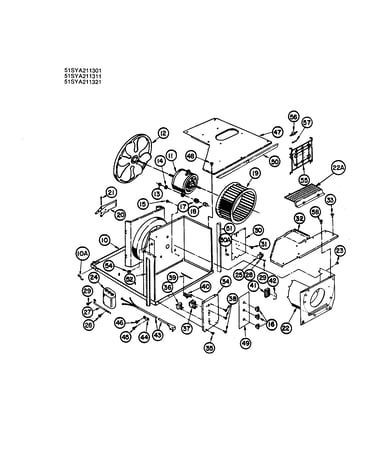

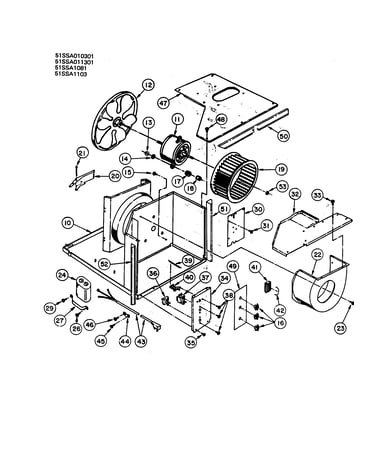

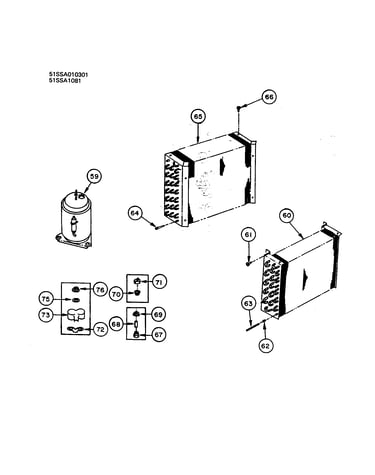

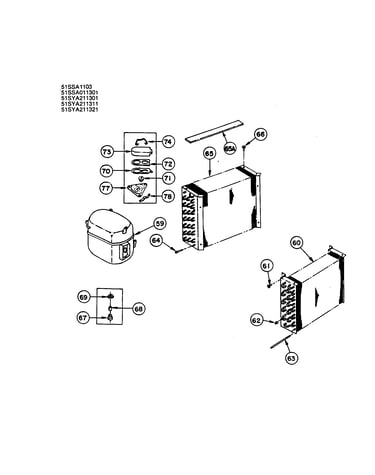

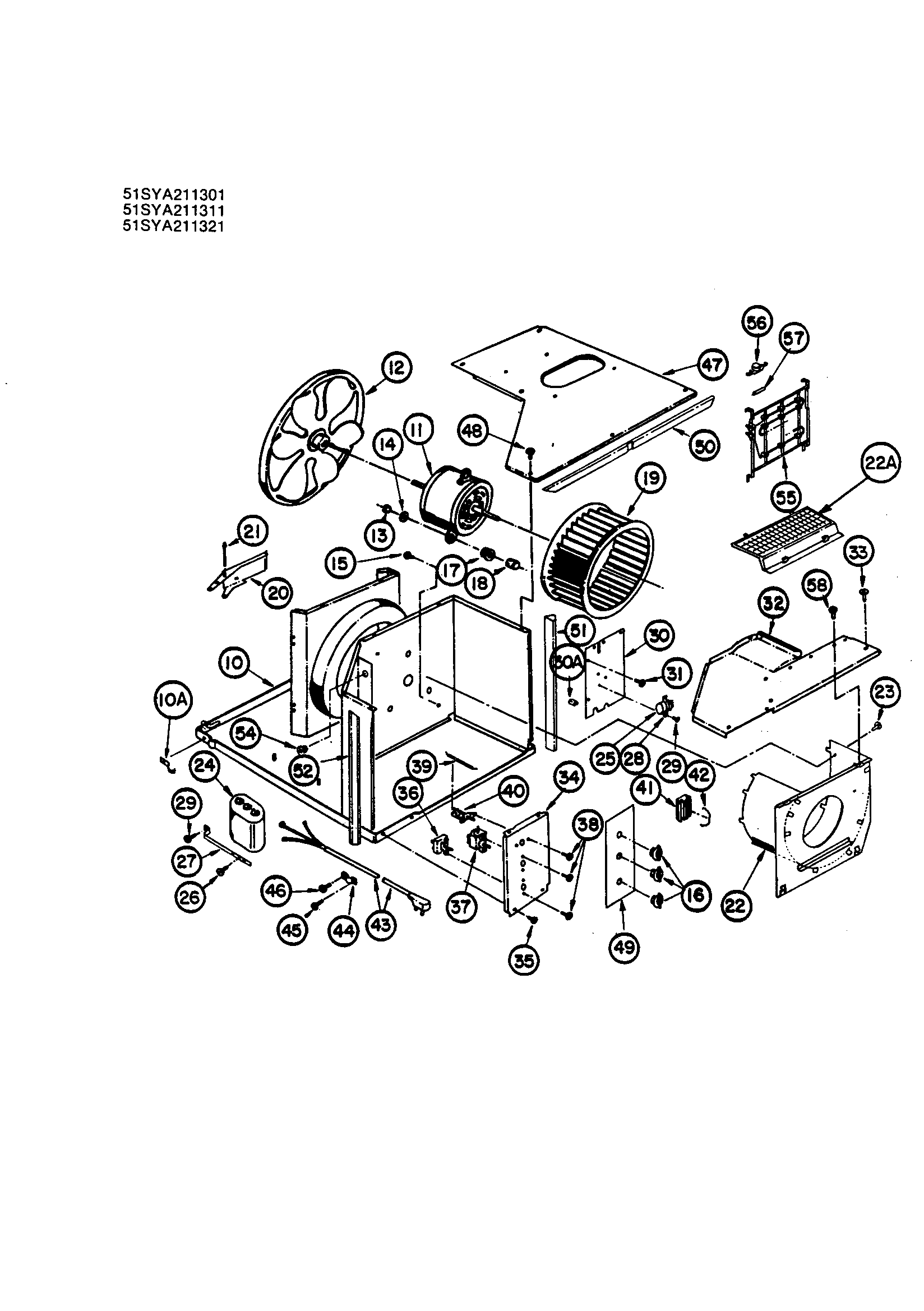

All parts diagram

Condenser coil (4) (ac) 51ssa0103

Part #51SS-680-020

The manufacturer no longer makes this part, and there's no substitute part

Compressor (nps) 51ssa0103 51SS-640-300

#59

All parts diagram

Compressor (nps) 51ssa0103

Part #51SS-640-300

The manufacturer no longer makes this part, and there's no substitute part

Switch Rotary - 5 Position (ac) (51ssa0103, 51ssa0113, 51ssa1081, 51ssa1103) 51SS680007

#36

All parts diagram

Switch rotary - 5 position (ac) (51ssa0103, 51ssa0113, 51ssa1081, 51ssa1103)

Part #51SS680007

The manufacturer no longer makes this part, and there's no substitute part

Cover (unit) Duct (ns) 51SS680033

#47

All parts diagram

Cover (unit) duct (ns)

Part #51SS680033

The manufacturer no longer makes this part, and there's no substitute part

Panel (control Mounting) (ns) 51sya211311,321 (ns) 51ssa0103, 51sya2113) 51SS680030

#34

All parts diagram

Panel (control mounting) (ns) 51sya211311,321 (ns) 51ssa0103, 51sya2113)

Part #51SS680030

The manufacturer no longer makes this part, and there's no substitute part

Panel (escutcheon) Decorative Control (ns) (51ssa0103, 51ssa0113, 51ssa1081, 51ssa1103) 51SS680026

#49

All parts diagram

Panel (escutcheon) decorative control (ns) (51ssa0103, 51ssa0113, 51ssa1081, 51ssa1103)

Part #51SS680026

The manufacturer no longer makes this part, and there's no substitute part

Door (mechanism) (ns) 51SS680032

#40

All parts diagram

Door (mechanism) (ns)

Part #51SS680032

The manufacturer no longer makes this part, and there's no substitute part

Guard (blower) (51sya211321) (ns) (51sya2113) 51SS680055

#22A

All parts diagram

Guard (blower) (51sya211321) (ns) (51sya2113)

Part #51SS680055

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (single) 5mfd; 370v (fan) (ac) (51sya2113) HC91CA005

#25A

All parts diagram

Capacitor (single) 5mfd; 370v (fan) (ac) (51sya2113)

Part #HC91CA005

The manufacturer no longer makes this part, and there's no substitute part

Motor (ac) (51ssa1081) 51SS680014

#11A

All parts diagram

Motor (ac) (51ssa1081)

Part #51SS680014

The manufacturer no longer makes this part, and there's no substitute part
