Amana
Countertop Microwave

Model # AMC5101AAW Official Amana microwave

Here are the diagrams and repair parts for Official Amana AMC5101AAW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Switch 3405-001042
#7

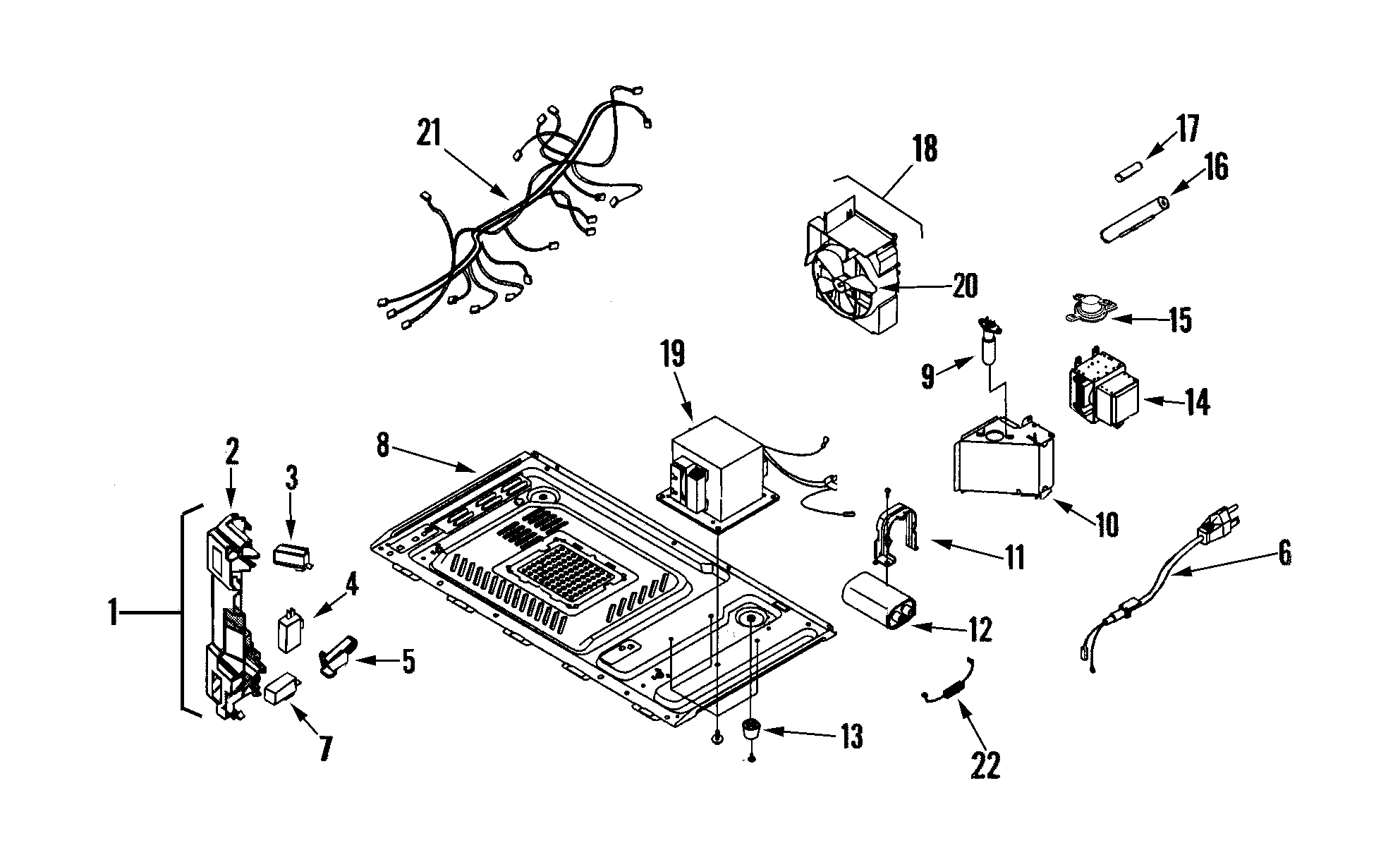

Internal controls/latch asy./base diagram

Switch

Part #3405-001042

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
BEST SELLER
$18.27 |
10% OFF Phone Price : $20.27
Back Order
Microwave Glass Turntable Tray DE74-20015G
#1

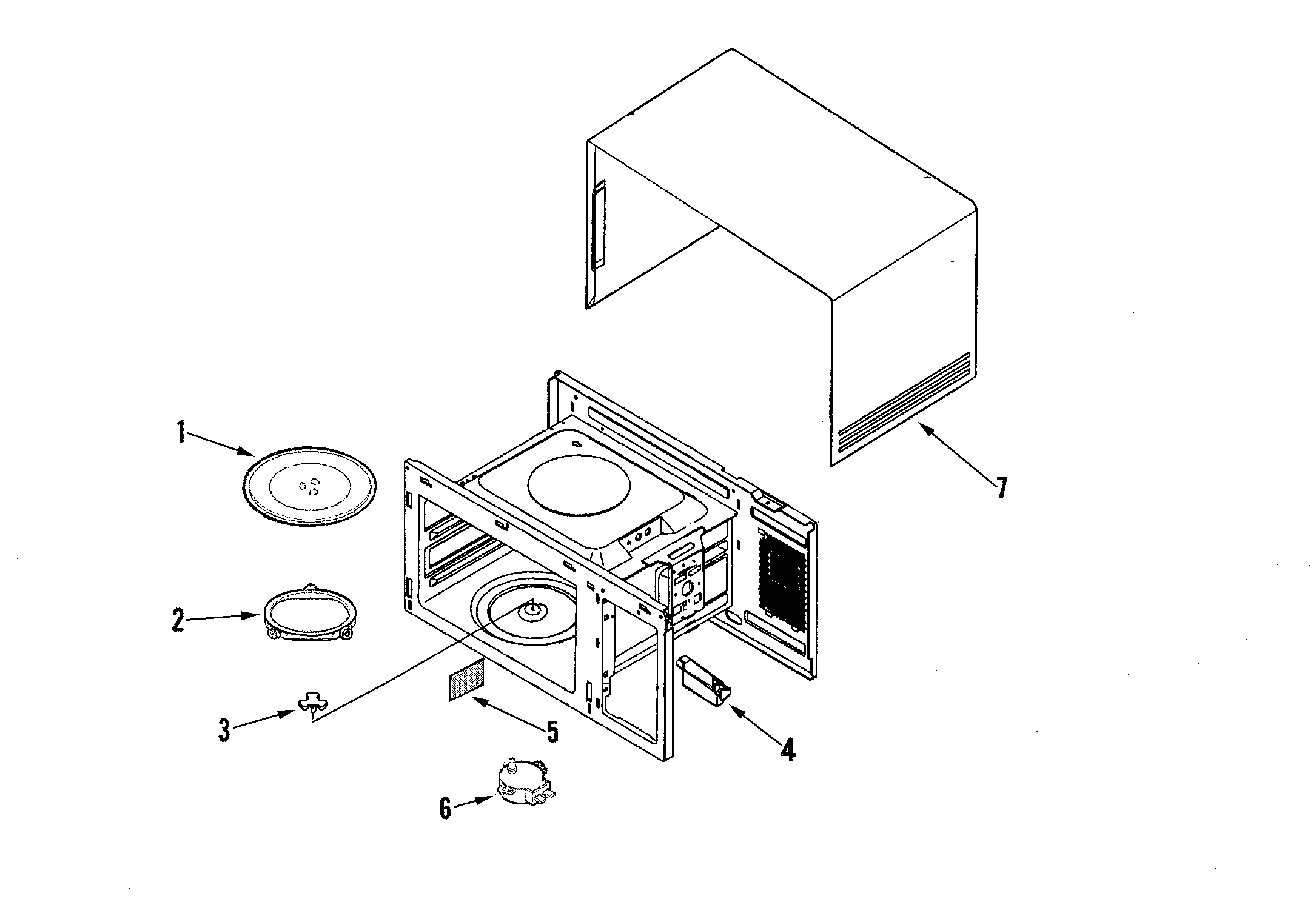

Body/cavity diagram

Microwave glass turntable tray

Part #DE74-20015G

Replaced by #DE74-20015G

?
Manufacturer substitution
This part replaces DE74-20015G. Substitute parts can look different from the original.
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Lever DE66-00088A
#5

Internal controls/latch asy./base diagram

Lever

Part #DE66-00088A

$16.94
In Stock
Fan Blade DE31-90057A
#20

Internal controls/latch asy./base diagram

Fan blade

Part #DE31-90057A

This item is not returnable
$3.29
In Stock
Button DE67-00099E
#5

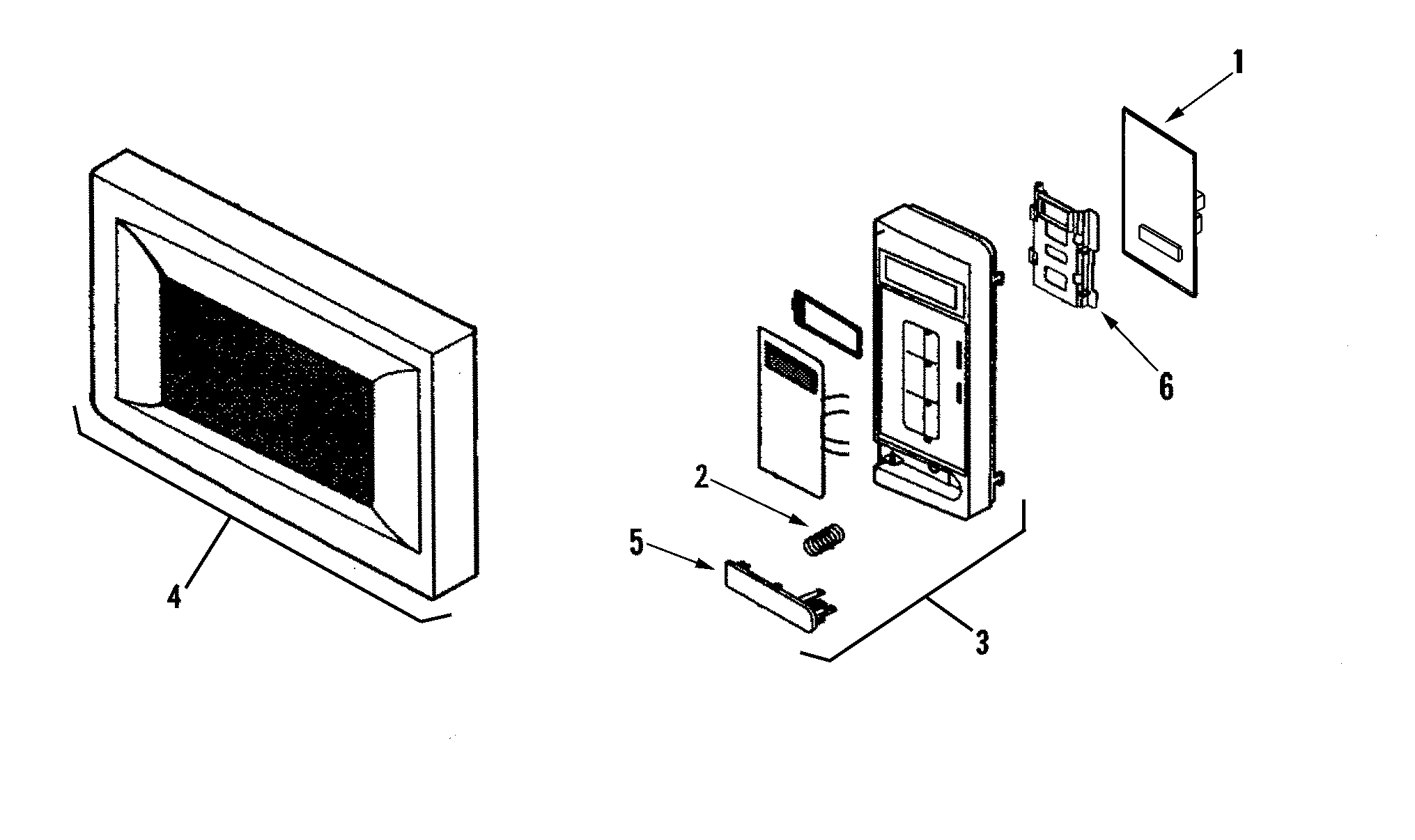

Control panel/door assembly diagram

Button

Part #DE67-00099E

$34.71
In Stock
Microwave Door Interlock Switch, Upper 3405-001055
#7A

Internal controls/latch asy./base diagram

Microwave door interlock switch, upper

Part #3405-001055

$11.29 |
15% OFF Phone Price : $13.29
In Stock
Microwave Light Bulb 4713-001102
#9

Internal controls/latch asy./base diagram

Microwave light bulb

Part #4713-001102

This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Button DE67-00099F
#5A

Control panel/door assembly diagram

Button

Part #DE67-00099F

$7.59
In Stock
Diode DE91-70063A
#22

Internal controls/latch asy./base diagram

Diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Fuse 3601-001198
#17

Internal controls/latch asy./base diagram

Microwave fuse

Part #3601-001198

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 3601-001198. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
