Model # 128802-1519-23 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 128802-1519-23 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

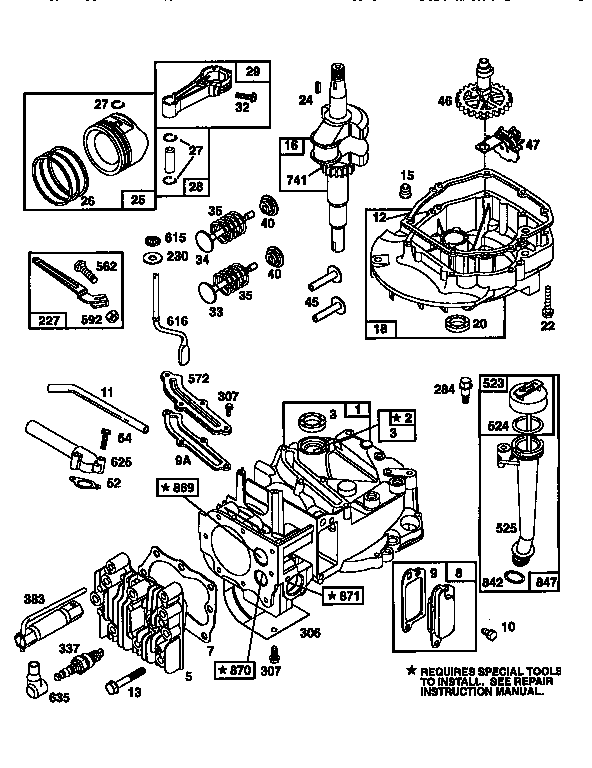

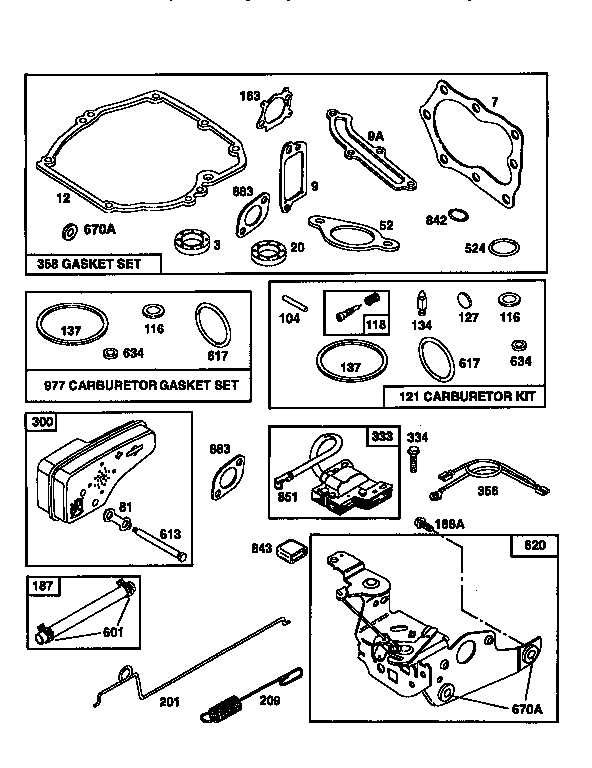

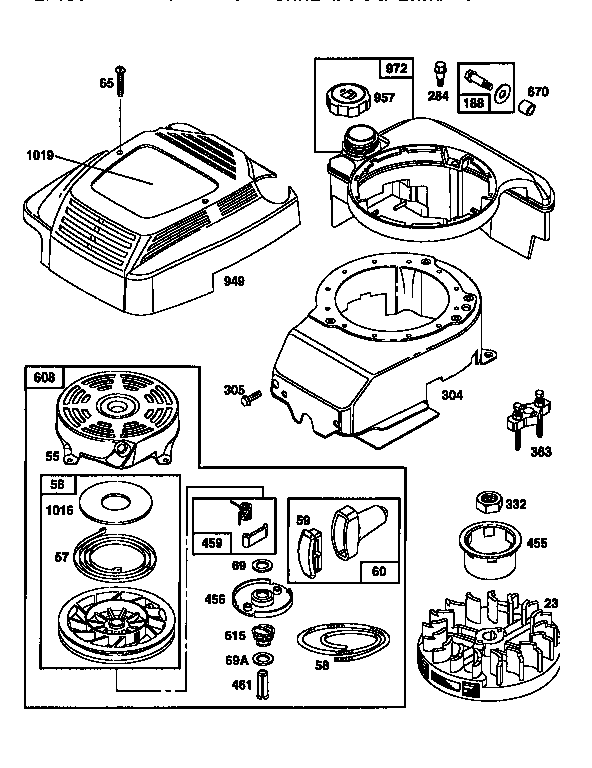

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Lawn & Garden Equipment Engine Air Filter 491588
Lawn & garden equipment engine air filter

Part #491588

Replaced by #491588S

?
Manufacturer substitution
This part replaces 491588. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.24 |
10% OFF Phone Price : $10.24
In Stock
Carburetor Primer 496115
Carburetor primer

Part #496115

Replaced by #694395

?
Manufacturer substitution
This part replaces 496115. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Carburetor 490937
Carburetor

Part #490937

Replaced by #498260

?
Manufacturer substitution
This part replaces 490937. Substitute parts can look different from the original.
BEST SELLER
$24.53 |
20% OFF Phone Price : $30.53
In Stock
Carburetor Kit 493762
Carburetor kit

Part #493762

Replaced by #498260

?
Manufacturer substitution
This part replaces 493762. Substitute parts can look different from the original.
BEST SELLER
$24.53 |
20% OFF Phone Price : $30.53
In Stock
Fuel Pipe 492790
Fuel pipe

Part #492790

Replaced by #791766

?
Manufacturer substitution
This part replaces 492790. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Tank 495224
Tank

Part #495224

Replaced by #699374

?
Manufacturer substitution
This part replaces 495224. Substitute parts can look different from the original.
BEST SELLER
$58.46 |
9% OFF Phone Price : $64.46
In Stock
Lawn & Garden Equipment Engine Carburetor Float (replaces Bs-398187) 398187
Lawn & garden equipment engine carburetor float (replaces bs-398187)

Part #398187

This item is not returnable
$11.96 |
14% OFF Phone Price : $13.96
In Stock
Muffler 496106
Muffler

Part #496106

Replaced by #692038

?
Manufacturer substitution
This part replaces 496106. Substitute parts can look different from the original.
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Oil Cap 495264
Oil cap

Part #495264

Replaced by #499621

?
Manufacturer substitution
This part replaces 495264. Substitute parts can look different from the original.
This item is not returnable
$24.80 |
19% OFF Phone Price : $30.80
In Stock
Seal Int El 270344
Seal int el

Part #270344

Replaced by #270344S

?
Manufacturer substitution
This part replaces 270344. Substitute parts can look different from the original.
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
