Electric Line Trimmer

Model # 17274533 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 17274533 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Craftsman Screw 410015
#21

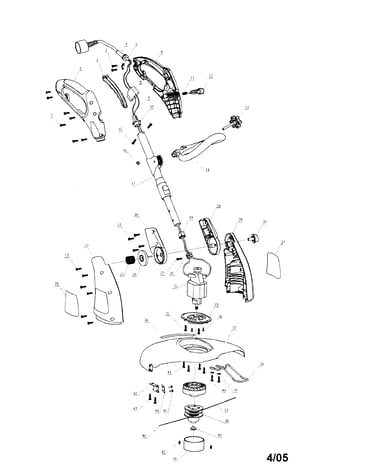

Trimmer assembly diagram

Craftsman screw

Part #410015

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Line Trimmer Cutting Line 150024
#46

Trimmer assembly diagram

Craftsman line trimmer cutting line

Part #150024

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Right Handle 110021
#1

Trimmer assembly diagram

Craftsman right handle

Part #110021

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Clamp 180020
#2

Trimmer assembly diagram

Craftsman clamp

Part #180020

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Line Trimmer Spool Assembly 130026
#50

Trimmer assembly diagram

Craftsman line trimmer spool assembly

Part #130026

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer 4 670022
#39

Trimmer assembly diagram

Craftsman washer 4

Part #670022

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Clamp 130003
#5

Trimmer assembly diagram

Craftsman clamp

Part #130003

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Plate 670021
#26

Trimmer assembly diagram

Craftsman plate

Part #670021

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 100004
#41

Trimmer assembly diagram

Craftsman screw

Part #100004

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Type+screw 420001
#34

Trimmer assembly diagram

Craftsman type+screw

Part #420001

The manufacturer no longer makes this part, and there's no substitute part
