Maytag
Microwave/Hood Combo

Model # MMV5000ADA Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMV5000ADA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

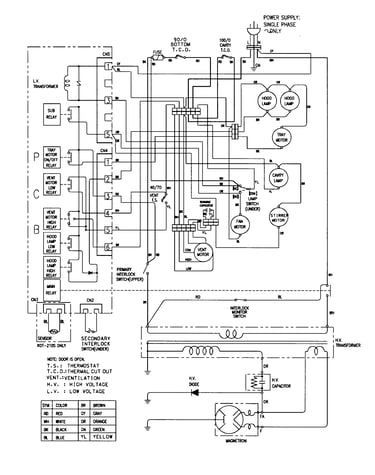

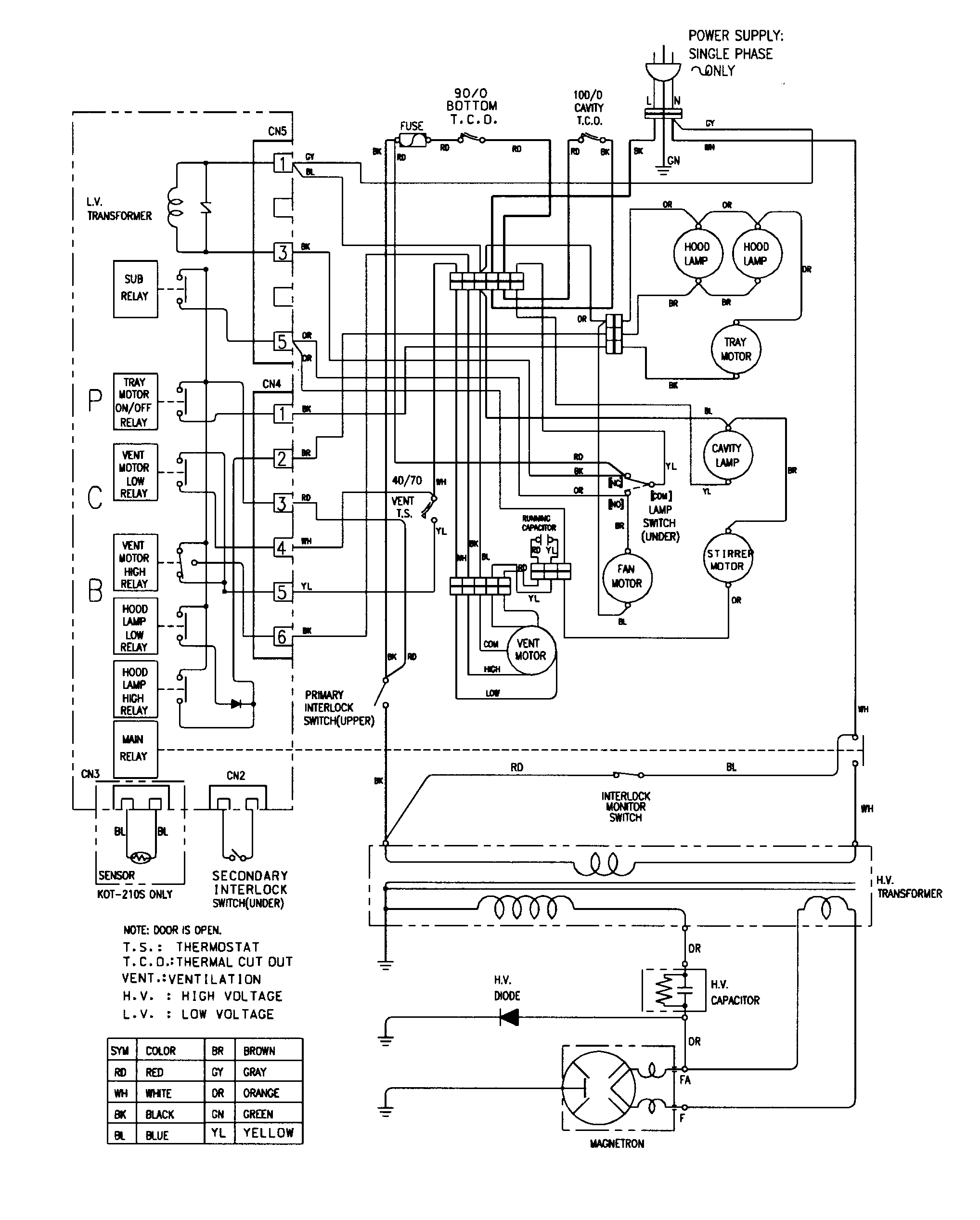

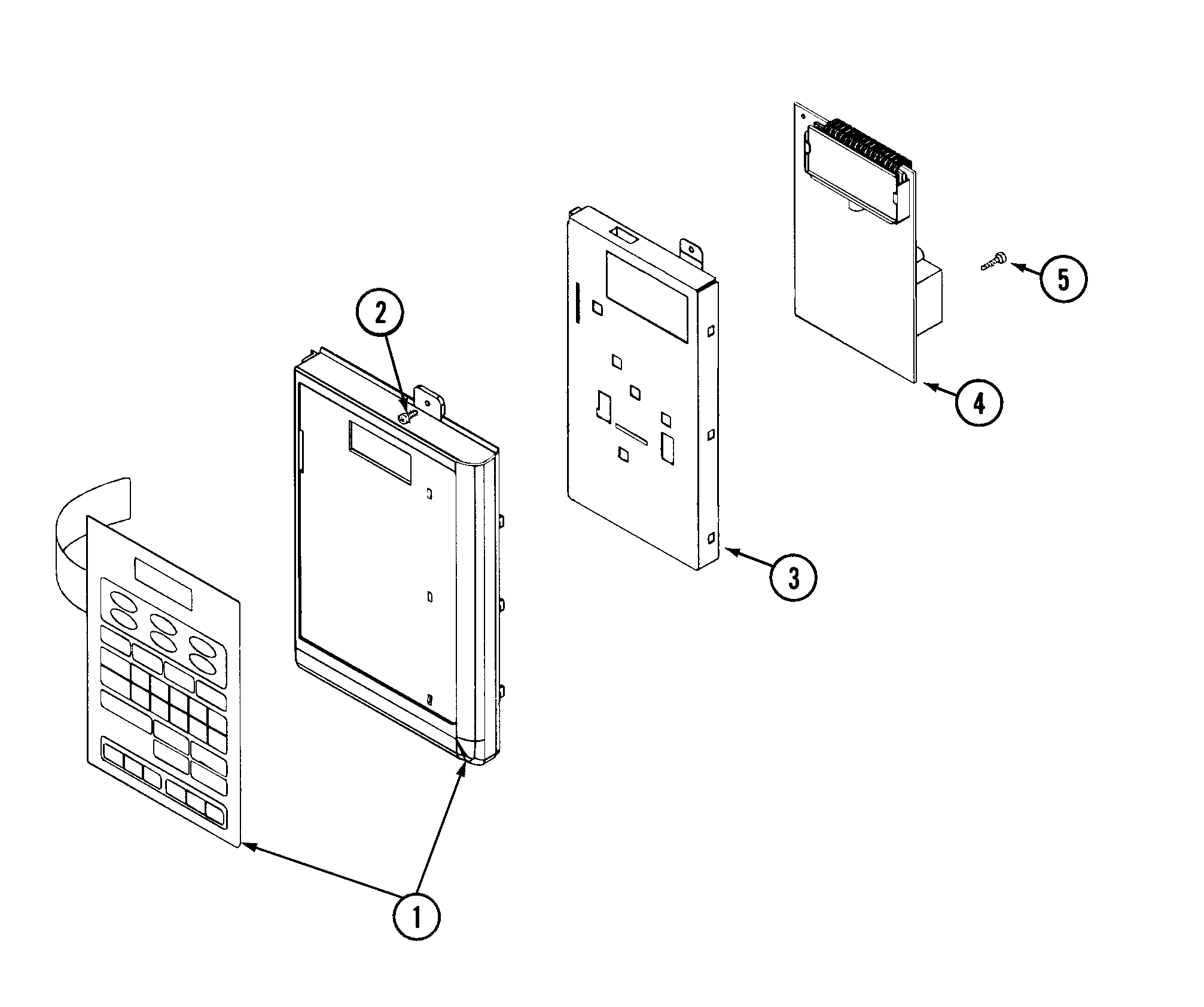

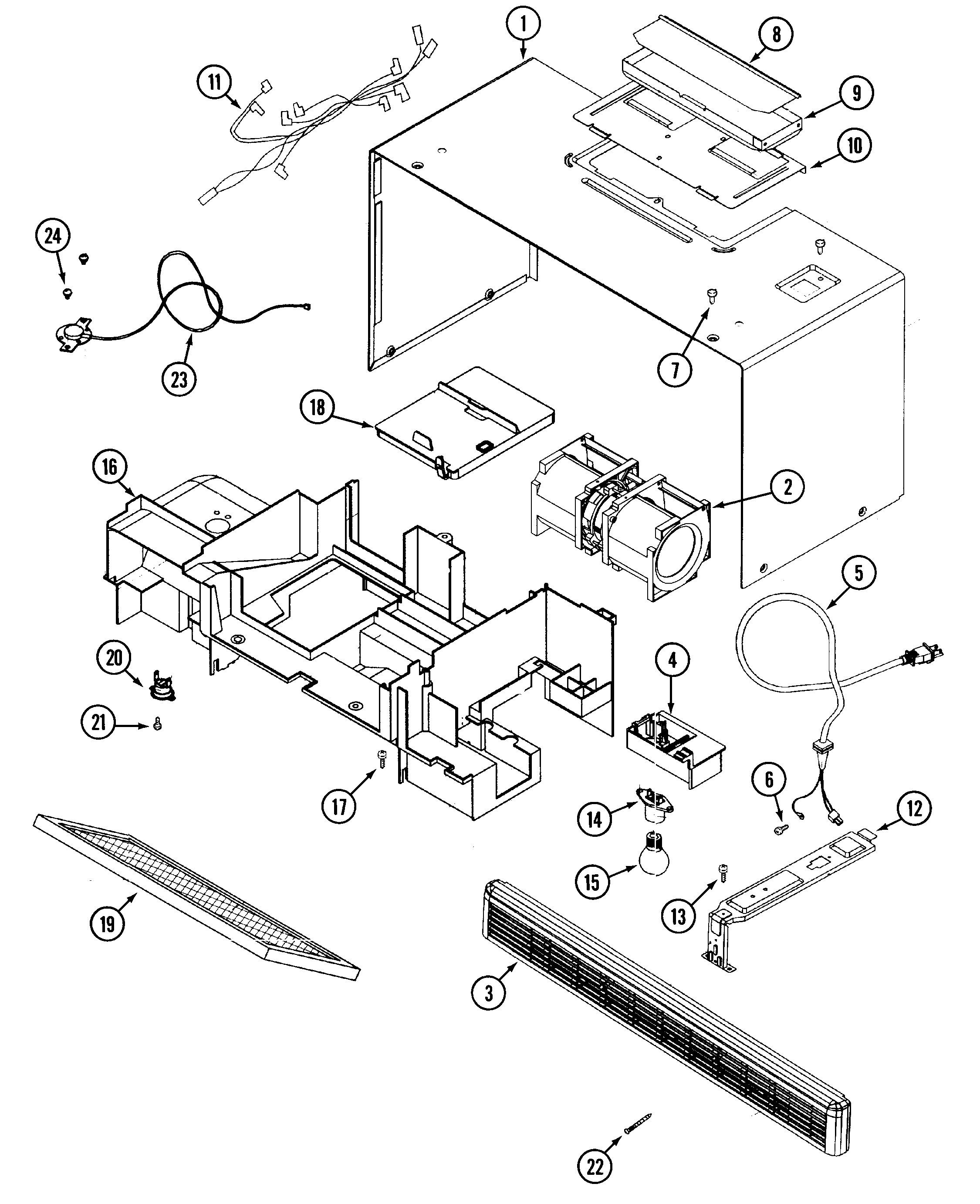

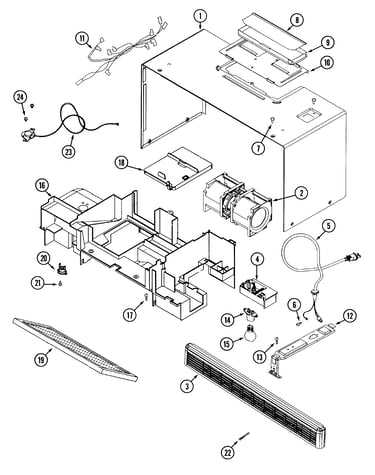

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
High-voltage Diode 56001030
#15

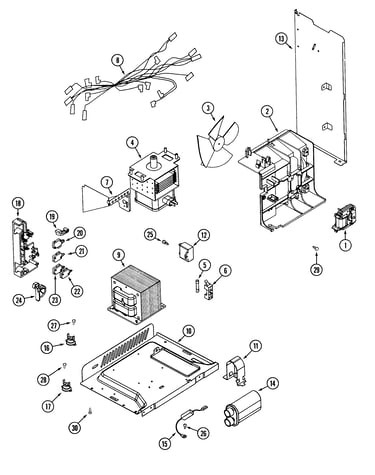

Internal controls diagram

High-voltage diode

Part #56001030

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces 56001030. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Screw (#8ab) 71001183
Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Primary Switch 56001036
#20

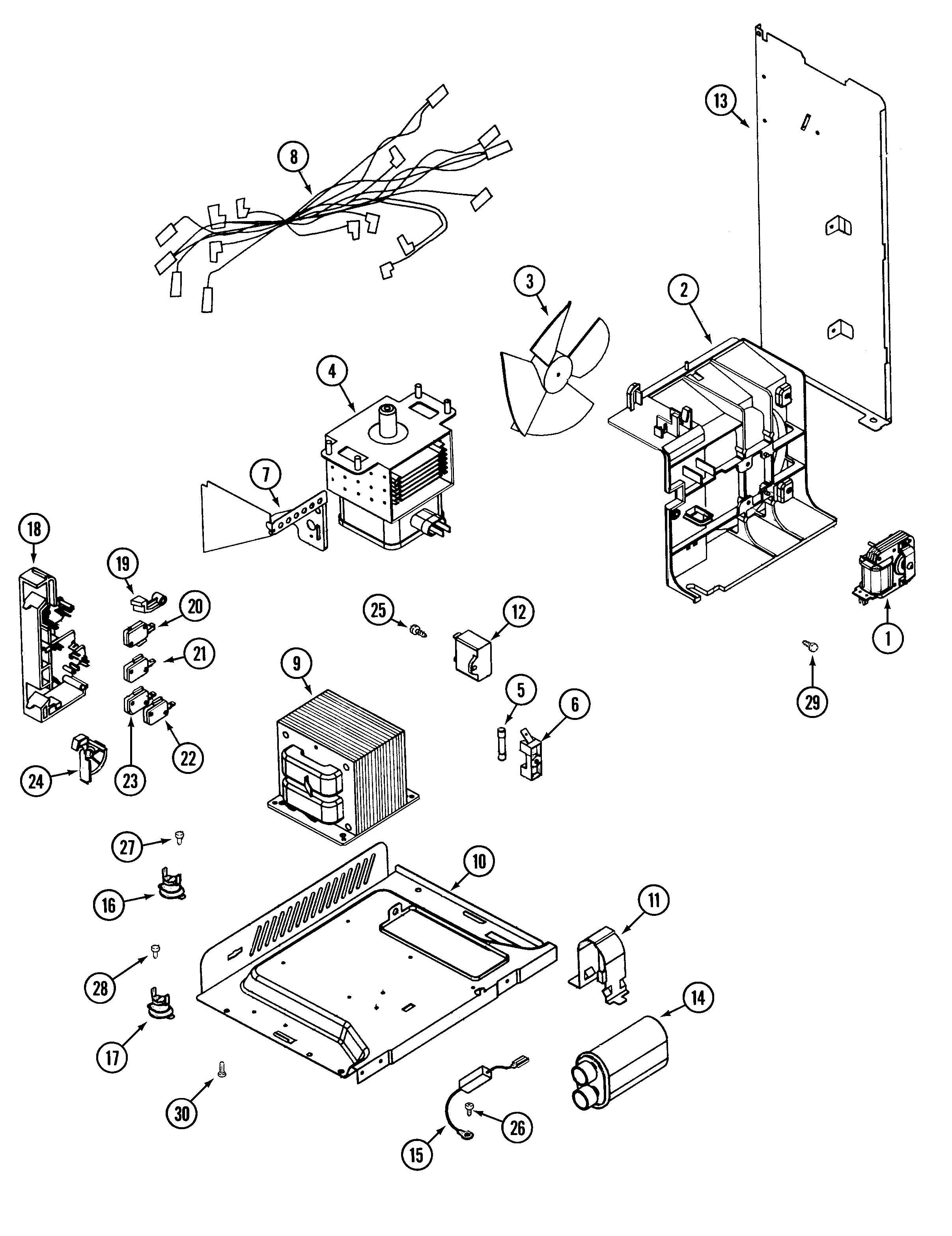

Internal controls diagram

Primary switch

Part #56001036

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces 56001036. Substitute parts can look different from the original.
$42.20
In Stock
Primary Switch 56001099
#23

Internal controls diagram

Primary switch

Part #56001099

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces 56001099. Substitute parts can look different from the original.
$42.20
In Stock
Stirrer Motor 56001077
#15

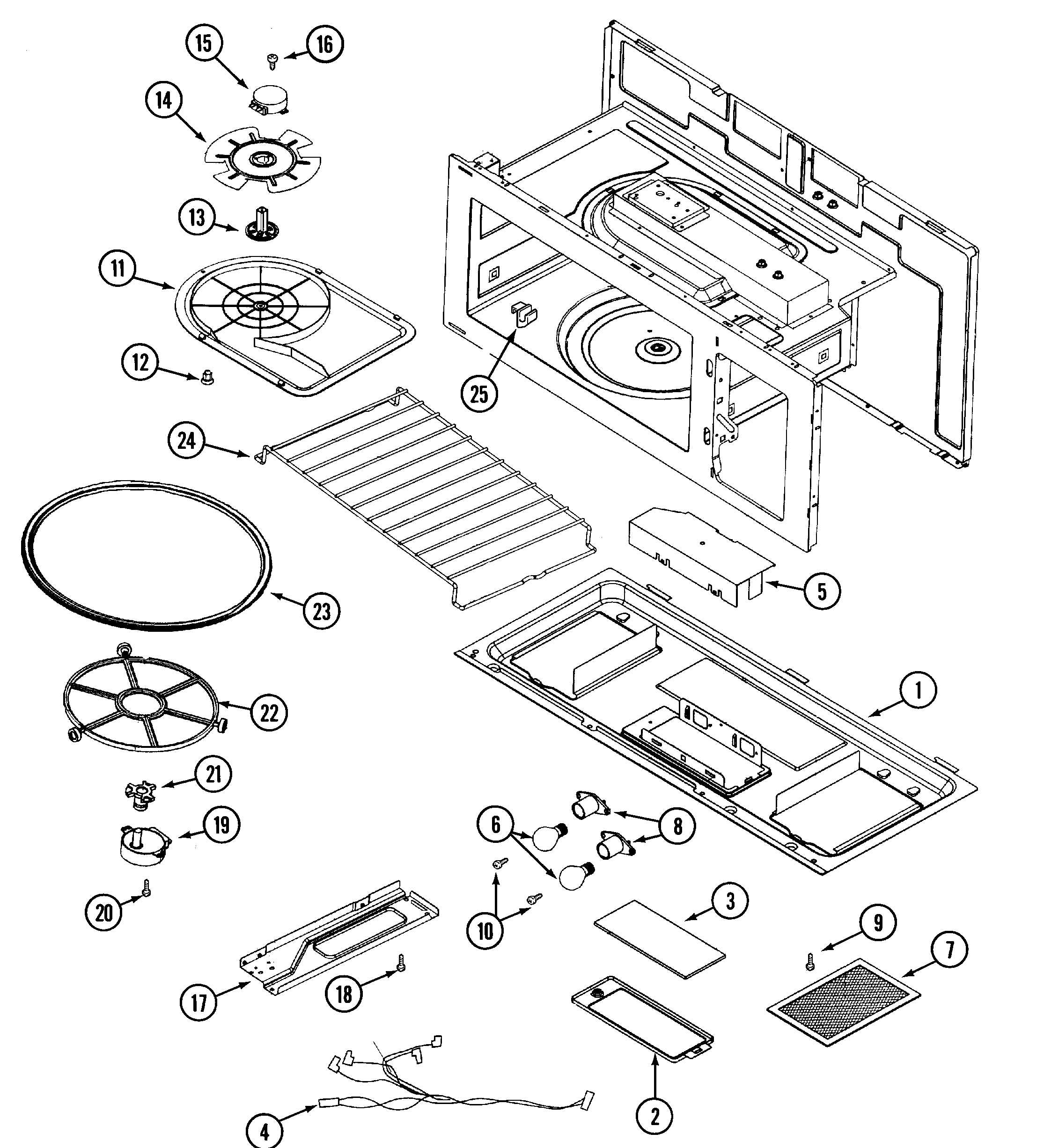

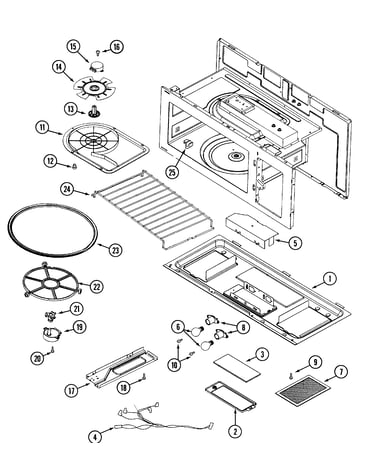

Base & cavity diagram

Stirrer motor

Part #56001077

Replaced by #56001337

?
Manufacturer substitution
This part replaces 56001077. Substitute parts can look different from the original.
$72.49 |
8% OFF Phone Price : $78.49
In Stock
Microwave Wire Harness 56001176
Microwave wire harness

Part #56001176

$65.04
In Stock
Base Plate 56001180
#1

Base & cavity diagram

Base plate

Part #56001180

$24.36
In Stock
Microwave/hood Door Handle 56001139
#1B

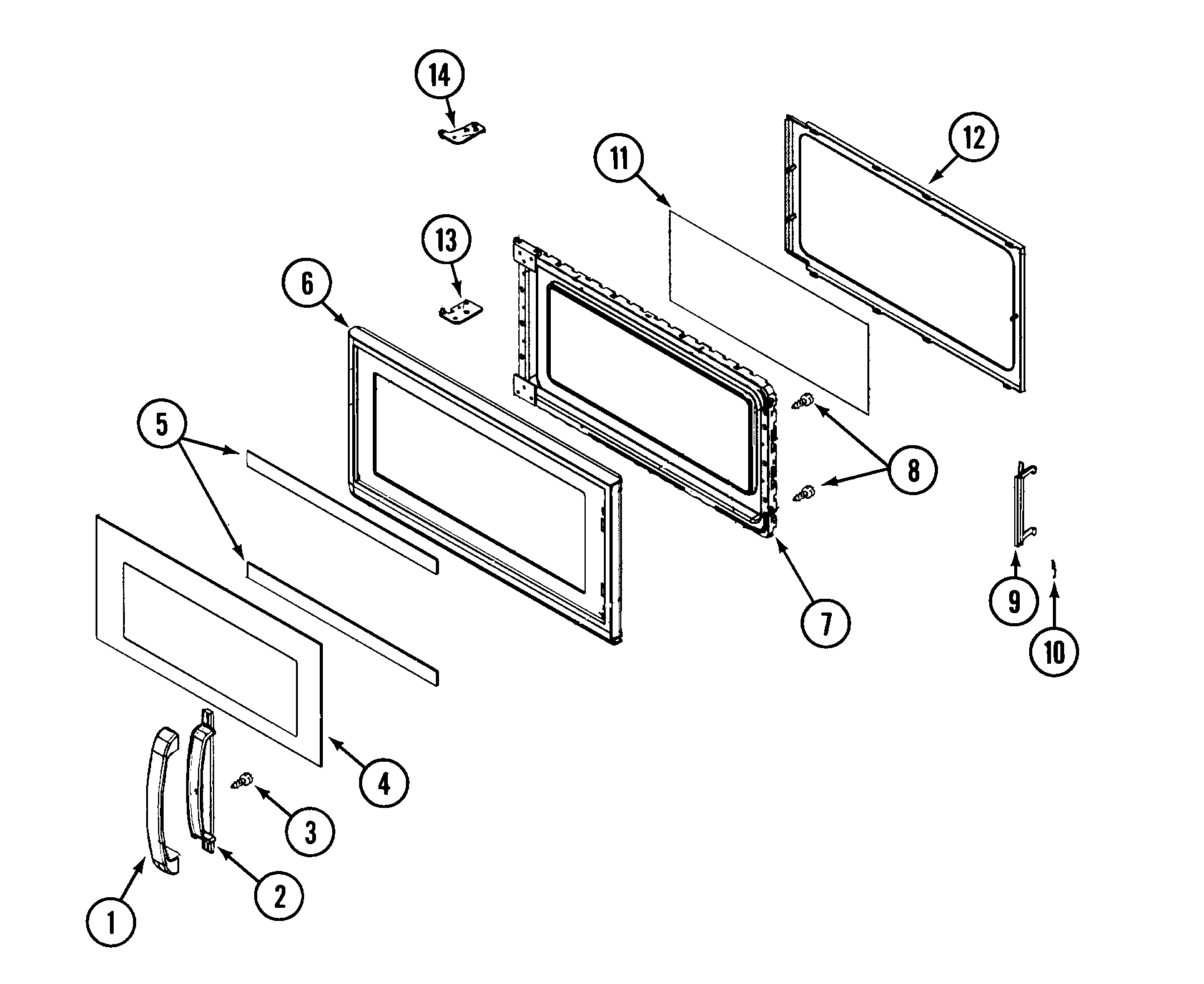

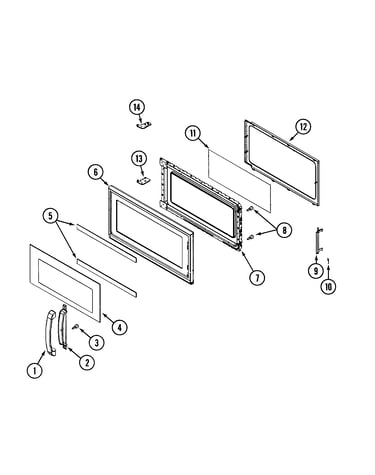

Door diagram

Microwave/hood door handle

Part #56001139

Replaced by #WP56001139

?
Manufacturer substitution
This part replaces 56001139. Substitute parts can look different from the original.
$87.49 |
6% OFF Phone Price : $93.49
In Stock
Screw 56001173
#3

Door diagram

Screw

Part #56001173

Replaced by #WP56001173

?
Manufacturer substitution
This part replaces 56001173. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Fuse Holder 56001110
#6

Internal controls diagram

Fuse holder

Part #56001110

Replaced by #W10206728

?
Manufacturer substitution
This part replaces 56001110. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
