Hoover
Upright Vacuum

Model # U6474900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U6474900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#12

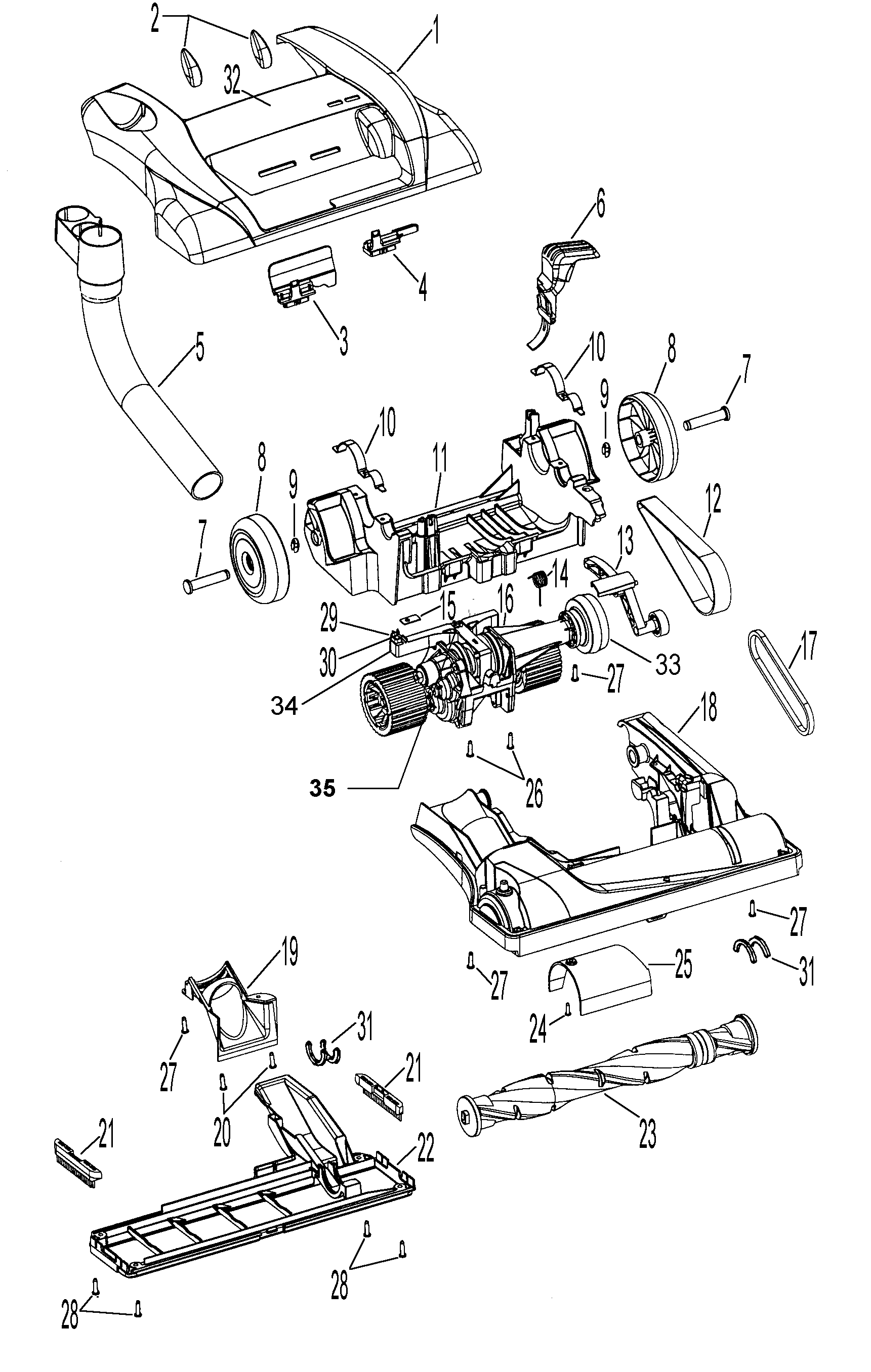

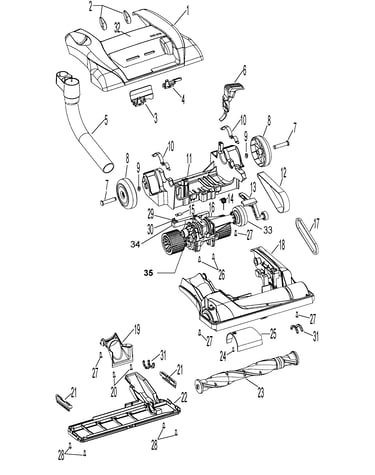

Agitator, mainbody, hood diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Grille 38769004
#24

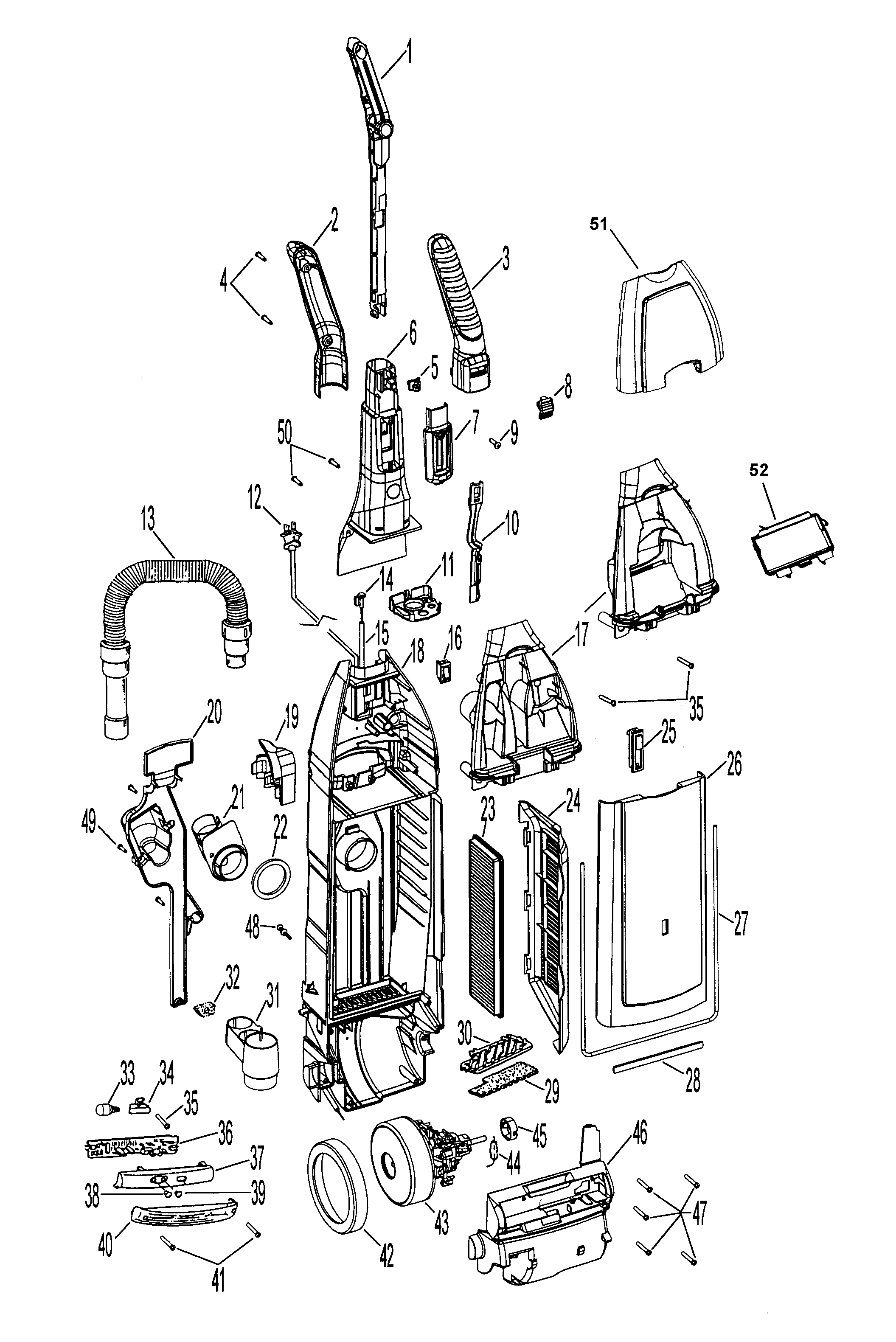

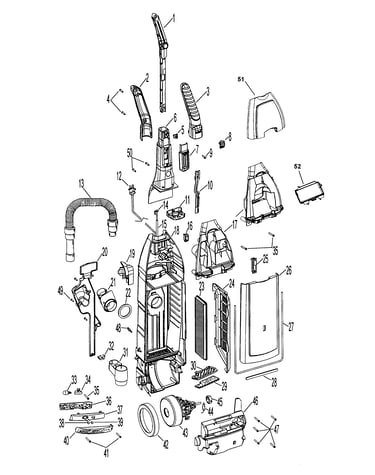

Motor, handle, hose, outerbag diagram

Grille

Part #38769004

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528037
#1

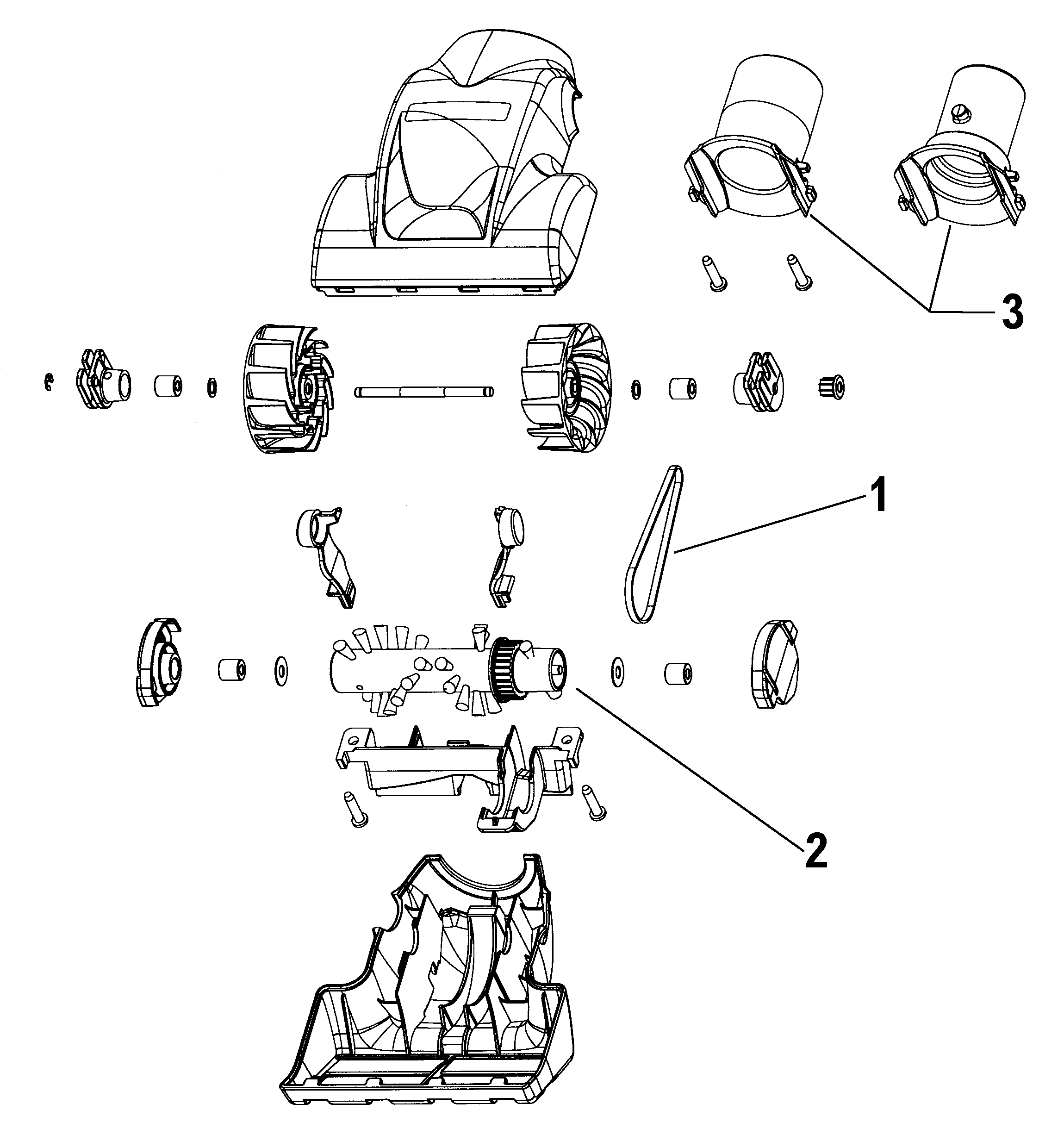

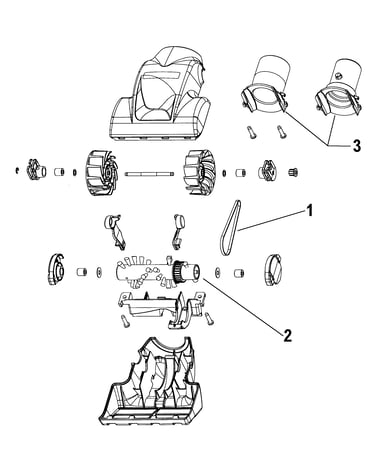

Turbinehandtool diagram

Vacuum beater bar belt

Part #38528037

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447121
#28

Agitator, mainbody, hood diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Panel 37944012
#37

Motor, handle, hose, outerbag diagram

Panel

Part #37944012

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Tool Storage Tray 36433153
#17

Motor, handle, hose, outerbag diagram

Vacuum tool storage tray

Part #36433153

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 37255010
#20

Motor, handle, hose, outerbag diagram

Vacuum cover

Part #37255010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Grip 39454068
#2

Motor, handle, hose, outerbag diagram

Vacuum handle grip

Part #39454068

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522077
#8

Agitator, mainbody, hood diagram

Vacuum wheel

Part #38522077

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Duct 38641008
#21

Motor, handle, hose, outerbag diagram

Kenmore duct

Part #38641008

The manufacturer no longer makes this part, and there's no substitute part
