Porter Cable
Band Saw

Model # 736 Official Porter Cable band saw

Here are the diagrams and repair parts for Official Porter Cable 736 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

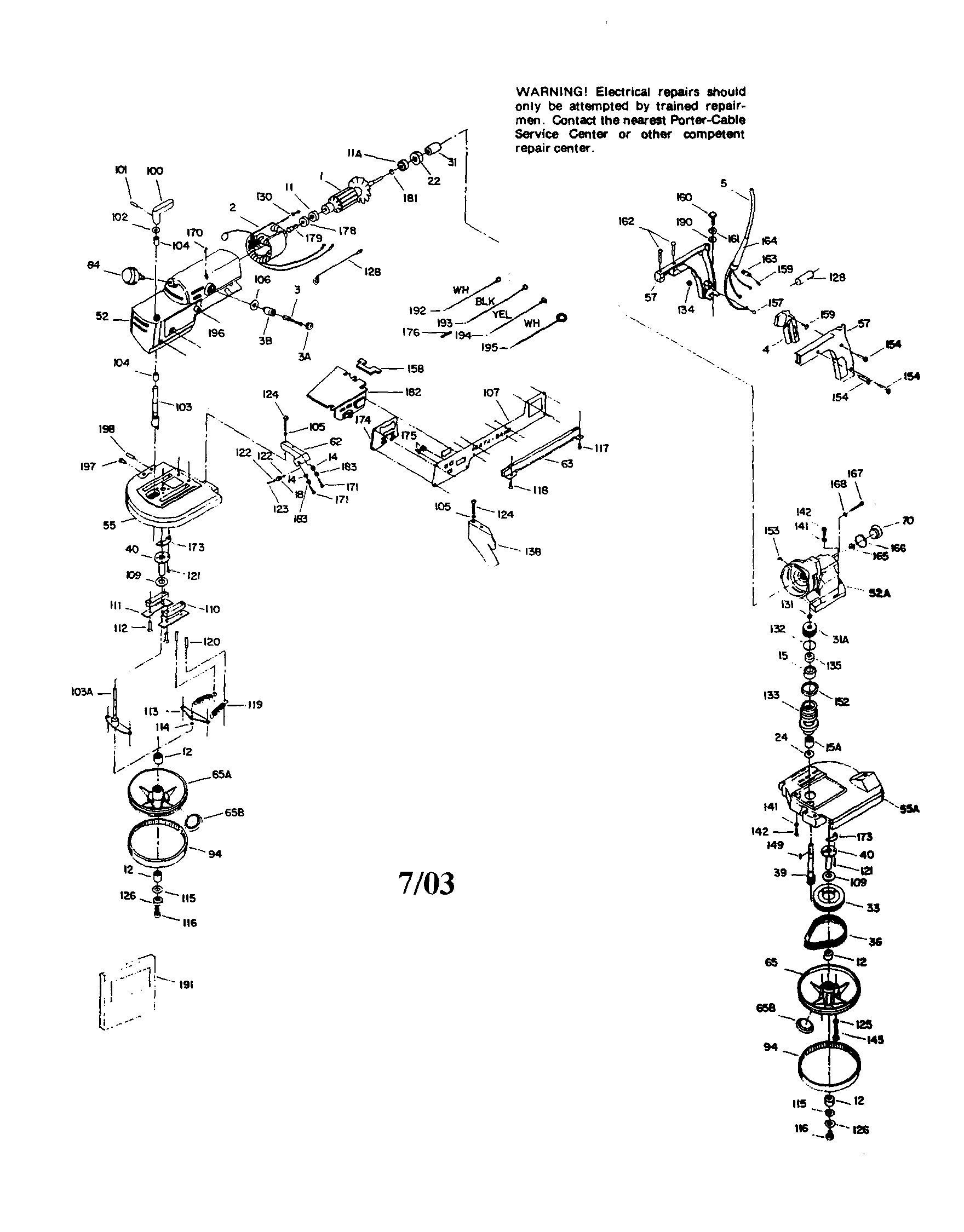

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Armature Seal T2, T3 691809
#22

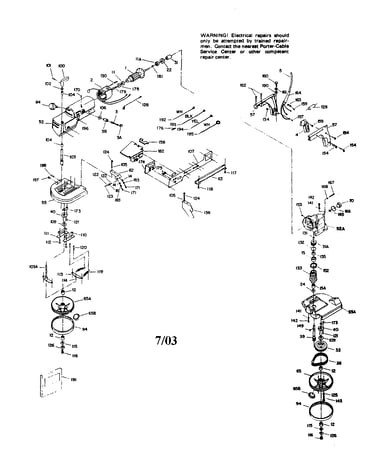

Porta- band diagram

Armature seal t2, t3

Part #691809

The manufacturer no longer makes this part, and there's no substitute part

Washer 803745
#102

Porta- band diagram

Washer

Part #803745

The manufacturer no longer makes this part, and there's no substitute part

Sears Pin 861663
#123

Porta- band diagram

Sears pin

Part #861663

The manufacturer no longer makes this part, and there's no substitute part

Blade Guide 861799
#62

Porta- band diagram

Blade guide

Part #861799

The manufacturer no longer makes this part, and there's no substitute part

Pin 802329
#101

Porta- band diagram

Pin

Part #802329

The manufacturer no longer makes this part, and there's no substitute part

O-ring 803665
#152

Porta- band diagram

O-ring

Part #803665

The manufacturer no longer makes this part, and there's no substitute part

Rr Pulley 844866
#65

Porta- band diagram

Rr pulley

Part #844866

The manufacturer no longer makes this part, and there's no substitute part

Front Guard Screw 804547
#118

Porta- band diagram

Front guard screw

Part #804547

The manufacturer no longer makes this part, and there's no substitute part

Caplug 692987
#65B

Porta- band diagram

Caplug

Part #692987

The manufacturer no longer makes this part, and there's no substitute part

Slide Block 803254
#110

Porta- band diagram

Slide block

Part #803254

The manufacturer no longer makes this part, and there's no substitute part
