Model # AC065K7A1 Official White-Westinghouse room air conditioner - lw34087200

Here are the diagrams and repair parts for Official White-Westinghouse AC065K7A1 room air conditioner - lw34087200, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw C506417
#8

Cabinet and installation parts diagram

Screw

Part #C506417

The manufacturer no longer makes this part, and there's no substitute part

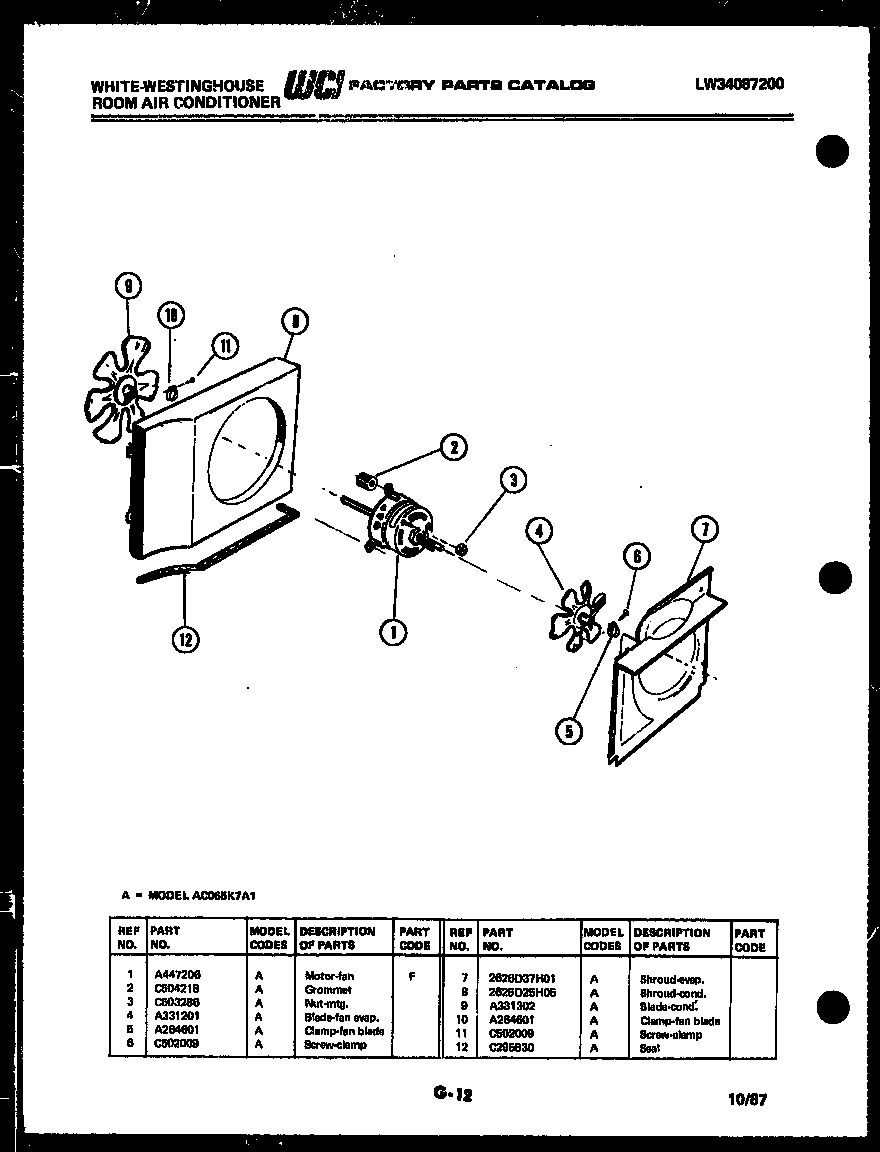

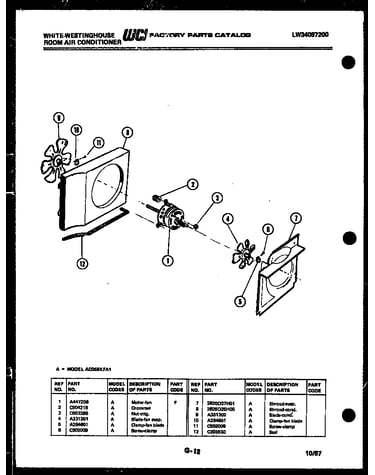

Clamp A264601
Clamp

Part #A264601

The manufacturer no longer makes this part, and there's no substitute part

Clip A135101
#7

Cabinet and installation parts diagram

Clip

Part #A135101

The manufacturer no longer makes this part, and there's no substitute part

Seal 187C393H08
#10

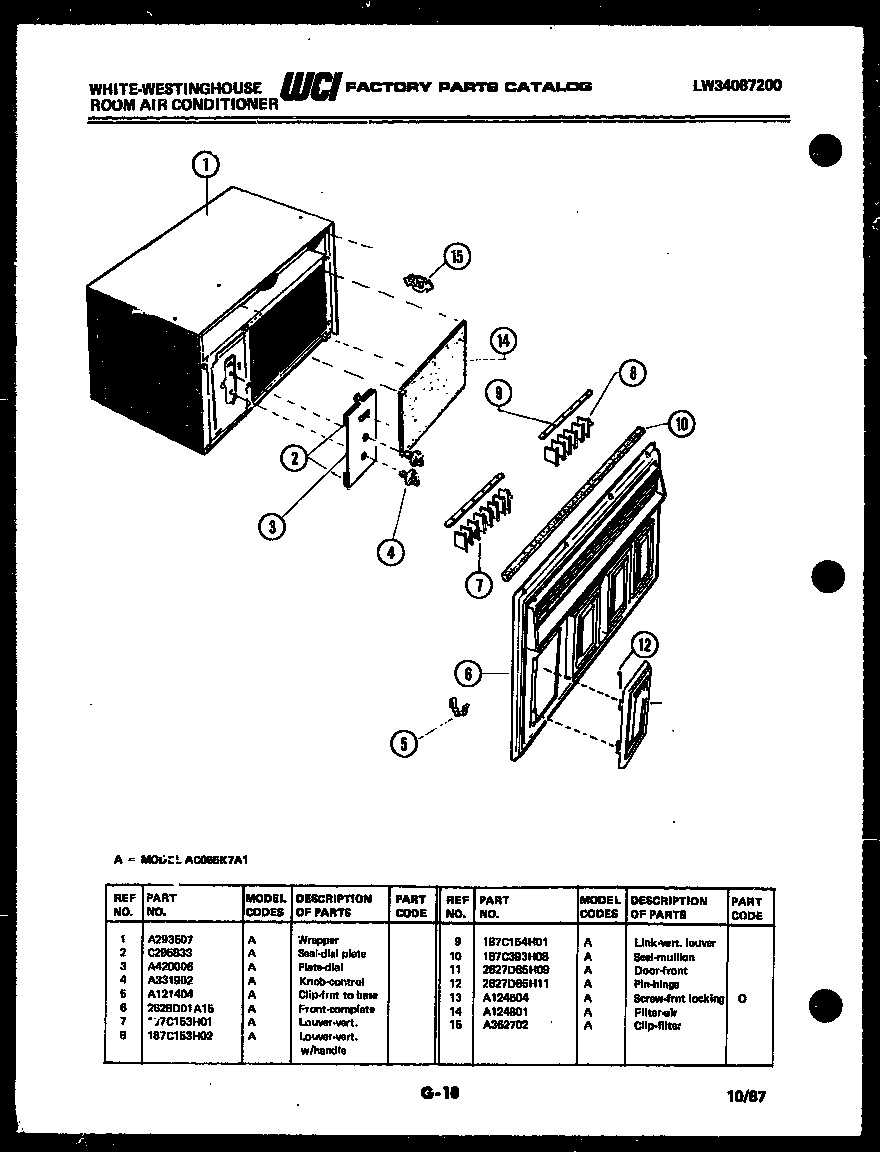

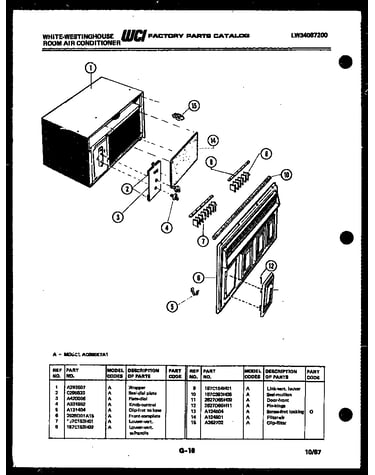

Cabinet parts diagram

Seal

Part #187C393H08

The manufacturer no longer makes this part, and there's no substitute part

Clip Sensor Bulb A362701
#11

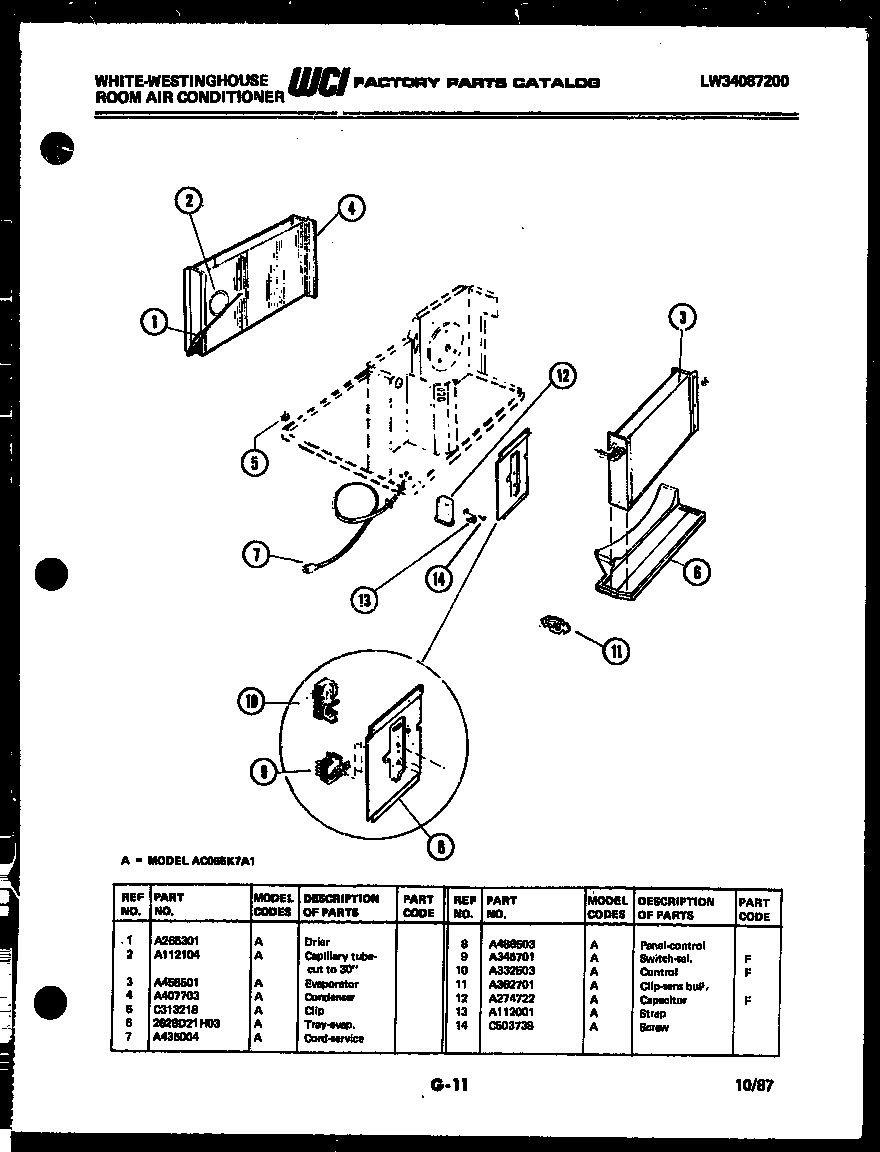

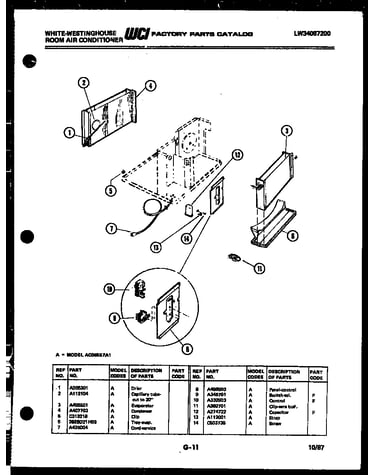

Electrical parts diagram

Clip sensor bulb

Part #A362701

The manufacturer no longer makes this part, and there's no substitute part

Switch A345701
#9

Electrical parts diagram

Switch

Part #A345701

The manufacturer no longer makes this part, and there's no substitute part

Frame Rh A452602
#5

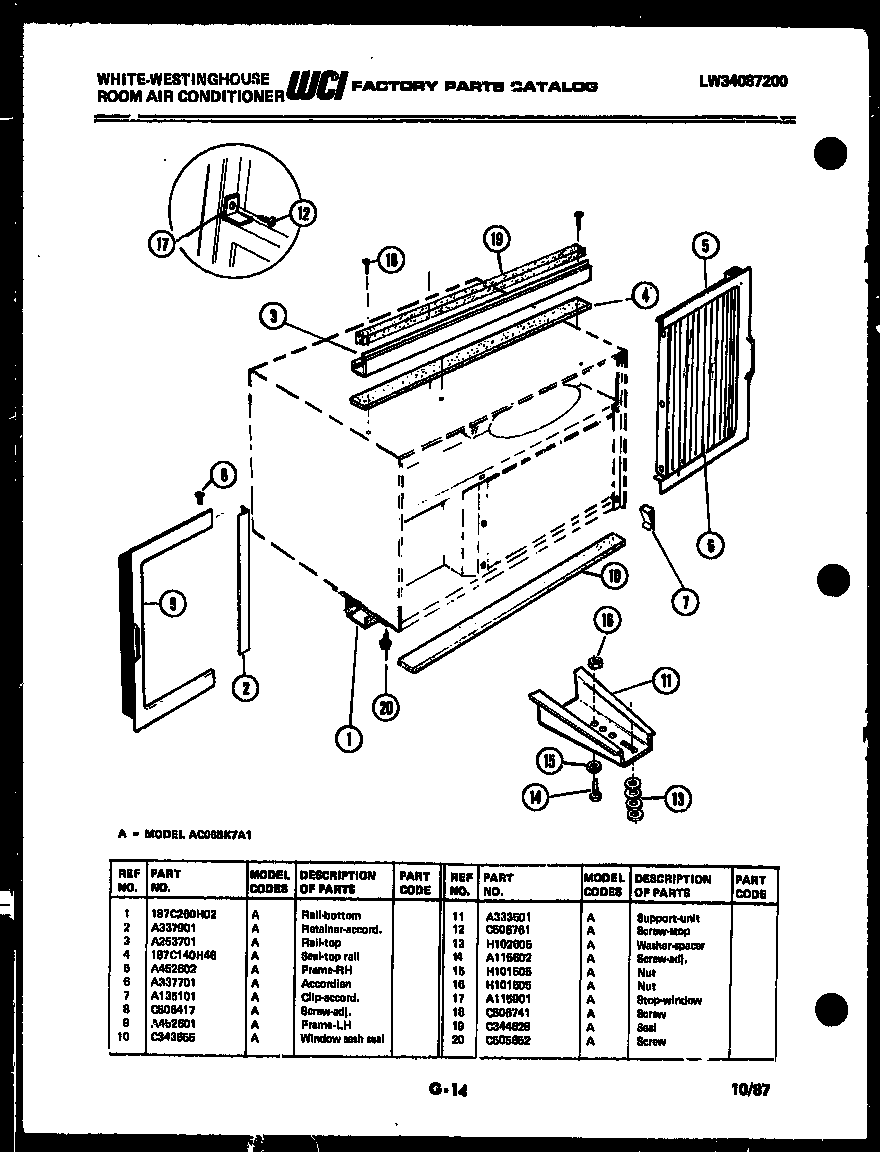

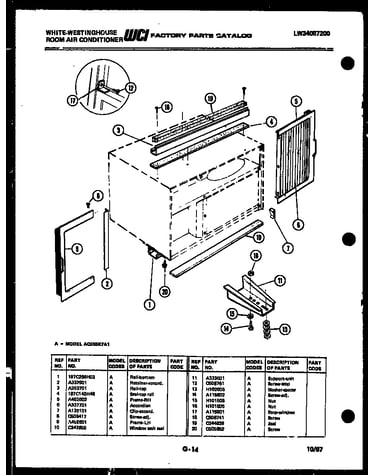

Cabinet and installation parts diagram

Frame rh

Part #A452602

The manufacturer no longer makes this part, and there's no substitute part

Cap Tube (cut To 35") A112104
#2

Electrical parts diagram

Cap tube (cut to 35")

Part #A112104

The manufacturer no longer makes this part, and there's no substitute part

Screw C503738
#14

Electrical parts diagram

Screw

Part #C503738

The manufacturer no longer makes this part, and there's no substitute part

Gasket A315302
#7

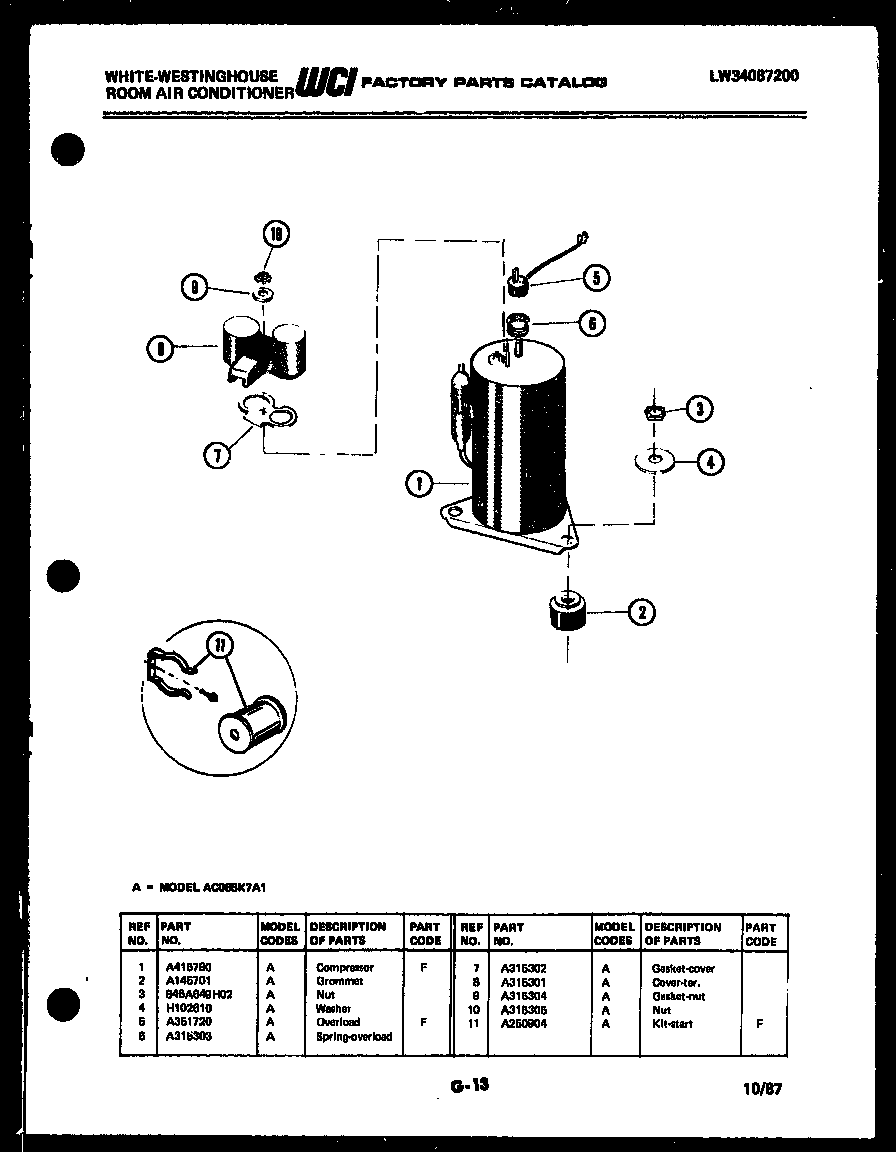

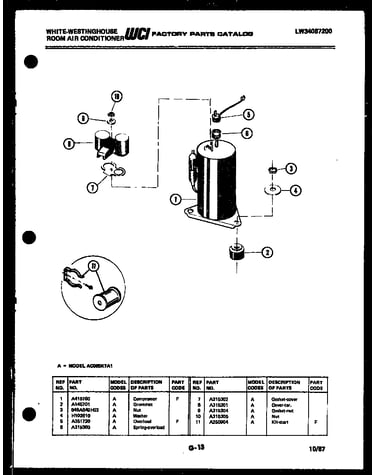

Compressor parts diagram

Gasket

Part #A315302

The manufacturer no longer makes this part, and there's no substitute part
