Model # FEM4X3600A1 Official ICP fan coil

Here are the diagrams and repair parts for Official ICP FEM4X3600A1 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Central Air Conditioner Air Filter, 21-1/2 X 19-7/8 X 1-in 1171653
#20

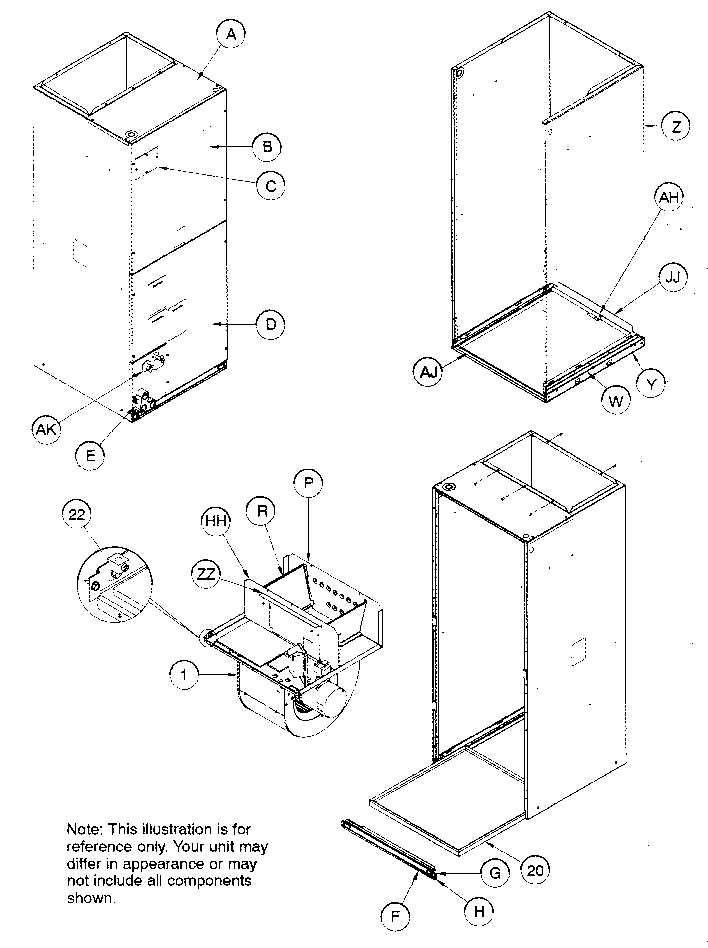

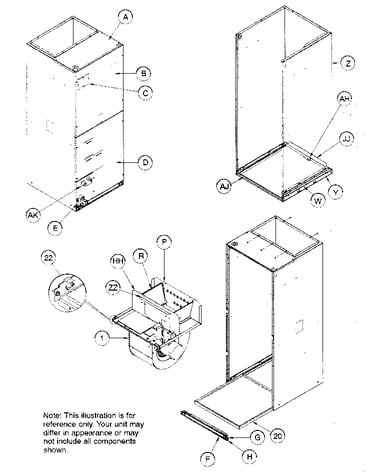

Cabinet parts diagram

Central air conditioner air filter, 21-1/2 x 19-7/8 x 1-in

Part #1171653

This item is not returnable
$47.05 |
11% OFF Phone Price : $53.05
In Stock
Button Plug 1173764
#NI

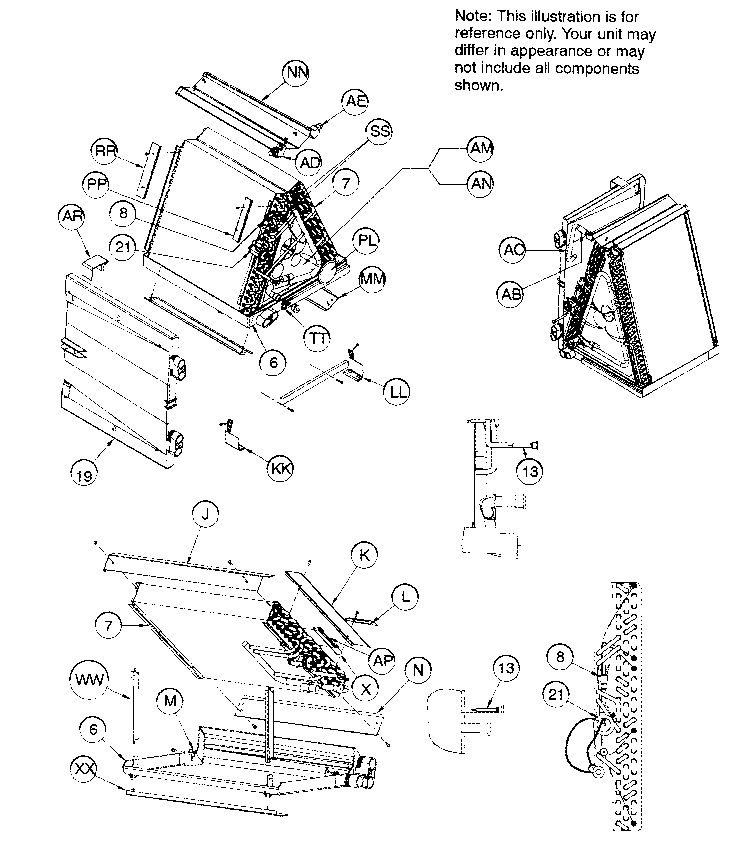

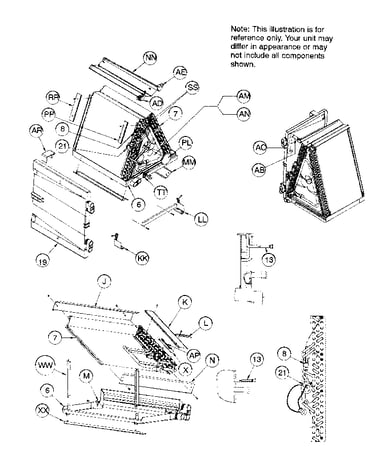

Coil assy diagram

Button plug

Part #1173764

$13.71
In Stock
Grommet 1171620
#NI

Coil assy diagram

Grommet

Part #1171620

$9.26
In Stock
Lug 1170677
#22

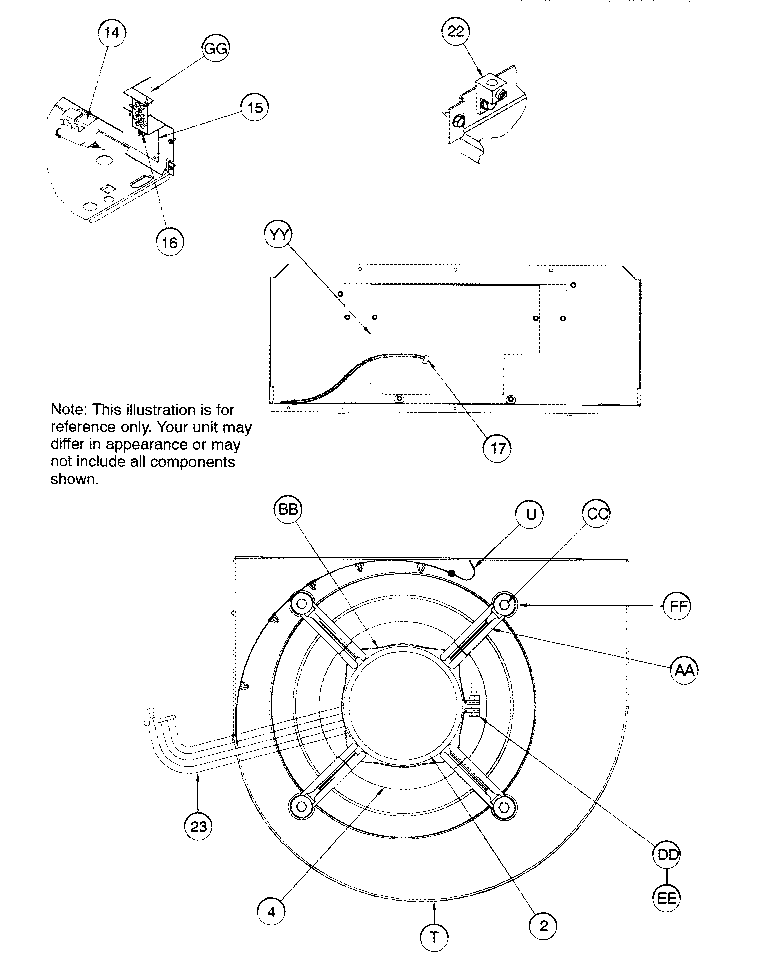

Blower assy diagram

Lug

Part #1170677

This item is not returnable
$7.17
In Stock
Central Air Conditioner Air Handler Drain Pan Connector 1171636
#AE

Coil assy diagram

Central air conditioner air handler drain pan connector

Part #1171636

$8.51
In Stock
Latch 1171573
#G

Cabinet parts diagram

Latch

Part #1171573

This item is not returnable
$2.16
In Stock
Fitting 1171635
#AD

Coil assy diagram

Fitting

Part #1171635

$8.51
In Stock
Trough Cnd 1171637
#RR

Coil assy diagram

Trough cnd

Part #1171637

$49.20
In Stock
Furnace Blower Fan Motor 1172987
#2

Blower assy diagram

Furnace blower fan motor

Part #1172987

$842.38
In Stock
Bracket 1171592
#NI

Coil assy diagram

Bracket

Part #1171592

$13.40
In Stock
