Model # JV346V1BB Official GE range hood

Here are the diagrams and repair parts for Official GE JV346V1BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Filtr Grease WB02X8391
#907

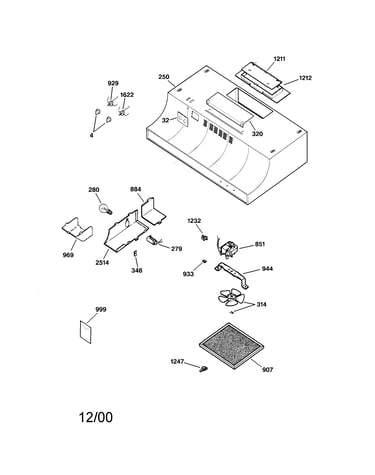

Hood diagram

Filtr grease

Part #WB02X8391

Replaced by #WB2X8391

?
Manufacturer substitution
This part replaces WB02X8391. Substitute parts can look different from the original.
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Hotpoint Range Hood Charcoal Filter Kit (replaces Wb2x8253, Wb2x8254, Wb2x8406) WB02X10700
#907

Hood diagram

Hotpoint range hood charcoal filter kit (replaces wb2x8253, wb2x8254, wb2x8406)

Part #WB02X10700

This item is not returnable
$19.11 |
9% OFF Phone Price : $21.11
In Stock
Fustat 15amp Type S OBT LOCAL
#280

Hood diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Magnetron NOT AVAIL
#250

Hood diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Knob, Sw Ad WB03X5842
#4

Hood diagram

Knob, sw ad

Part #WB03X5842

The manufacturer no longer makes this part, and there's no substitute part

Ground Plate WB02X0646
#348

Hood diagram

Ground plate

Part #WB02X0646

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef WB02X8407
#1232

Hood diagram

Strain relef

Part #WB02X8407

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket WB13X5013
#944

Hood diagram

Motor bracket

Part #WB13X5013

The manufacturer no longer makes this part, and there's no substitute part

Clip Blade F WB02X8394
#314

Hood diagram

Clip blade f

Part #WB02X8394

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover WB13X5018
#884

Hood diagram

Wire cover

Part #WB13X5018

The manufacturer no longer makes this part, and there's no substitute part
