Model # 153334740 Official Kenmore power miser 5 gas water heater
Here are the diagrams and repair parts for Official Kenmore 153334740 power miser 5 gas water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153334740 Water Heaters
#15

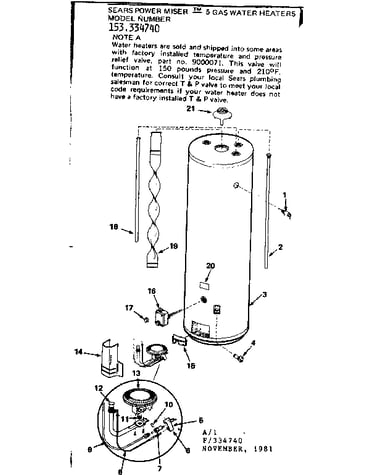

Replacement parts diagram
Water heater manifold inner door
Part #9000281
$30.00 |
17% OFF Phone Price : $36.00
In Stock
#13
Replacement parts diagram
Water heater burner
Part #9000390
Replaced by #100108399
?
Manufacturer substitution
This part replaces 9000390. Substitute parts can look different from the original.
$27.78
In Stock
#9
Replacement parts diagram
Water heater pilot tube assembly (replaces std317025, std317255)
Part #9000278
Replaced by #100108370
?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
#8
Replacement parts diagram
Thermocouple
Part #42-9231
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
#4
Replacement parts diagram
Drain
Part #9000058
Replaced by #100108269
?
Manufacturer substitution
This part replaces 9000058. Substitute parts can look different from the original.
$44.09
In Stock
#3
Replacement parts diagram
Tank w/jackt
Part #8000001
The manufacturer no longer makes this part, and there's no substitute part
#19
Replacement parts diagram
Flue baffle
Part #9000372
The manufacturer no longer makes this part, and there's no substitute part
#10
Replacement parts diagram
Orifice clip
Part #F145-0089
The manufacturer no longer makes this part, and there's no substitute part
#14
Replacement parts diagram
Manifold cover
Part #9000355
The manufacturer no longer makes this part, and there's no substitute part
#2
Replacement parts diagram
Anade rod
Part #0160102
The manufacturer no longer makes this part, and there's no substitute part
