Model # S660LP Official Weber gas grill

Here are the diagrams and repair parts for Official Weber S660LP gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Ir Brnr Bx 70338
#36

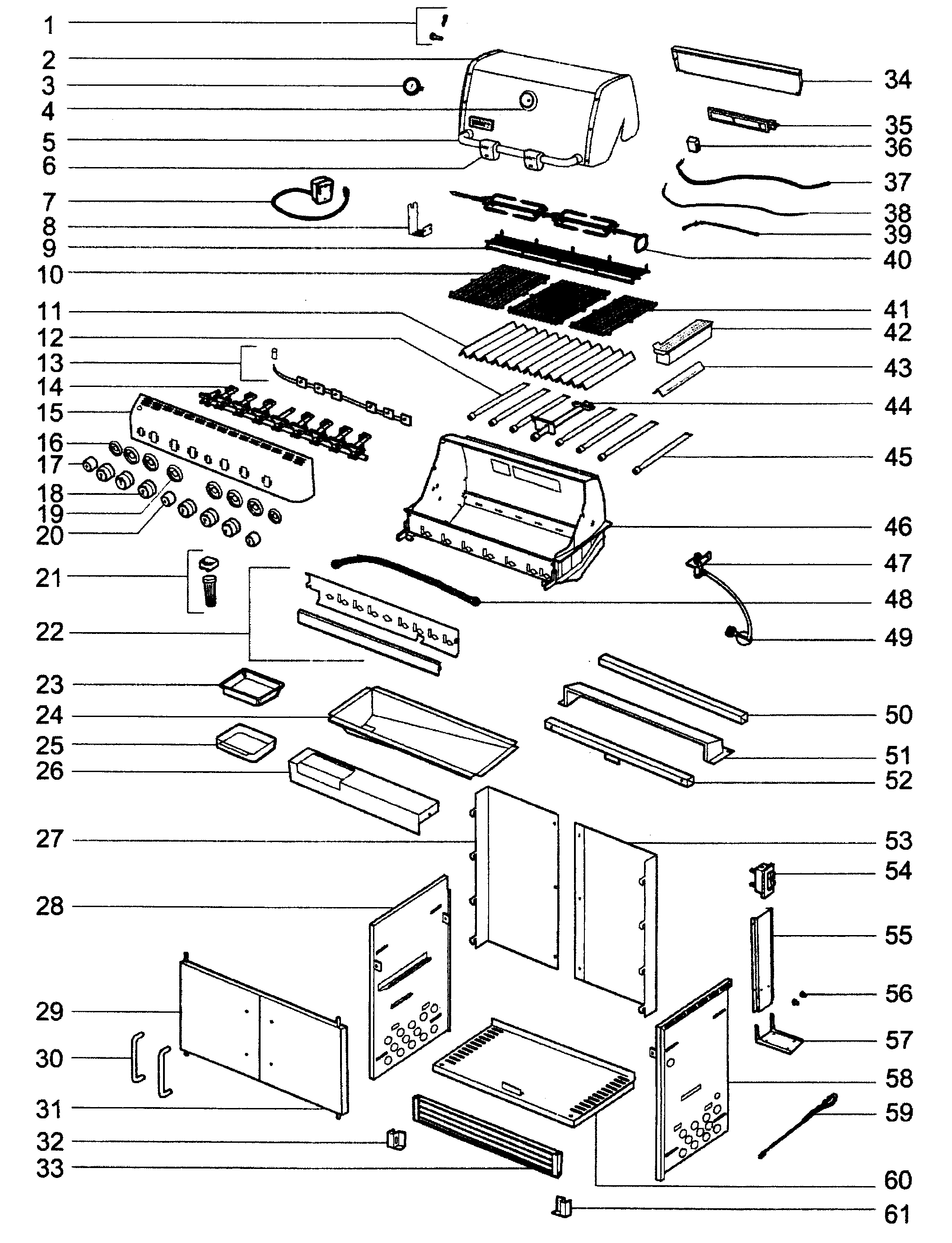

Grill assy diagram

Ir brnr bx

Part #70338

The manufacturer no longer makes this part, and there's no substitute part

Door,lhs 43061
#29

Grill assy diagram

Door,lhs

Part #43061

The manufacturer no longer makes this part, and there's no substitute part

Smoker Burner 70307
#45

Grill assy diagram

Smoker burner

Part #70307

The manufacturer no longer makes this part, and there's no substitute part

Nut 40827212
#37A

Grill assy diagram

Nut

Part #40827212

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer 70375
#11

Grill assy diagram

Gas grill flame tamer

Part #70375

The manufacturer no longer makes this part, and there's no substitute part

Smoker Box 70381
#42

Grill assy diagram

Smoker box

Part #70381

The manufacturer no longer makes this part, and there's no substitute part

Panel,rhs Side 43057
#58

Grill assy diagram

Panel,rhs side

Part #43057

The manufacturer no longer makes this part, and there's no substitute part

Bracket,rotisserie 70305
#8

Grill assy diagram

Bracket,rotisserie

Part #70305

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 70870
#15A

Grill assy diagram

Control panel

Part #70870

The manufacturer no longer makes this part, and there's no substitute part

Panel,rear-left 62273
#27

Grill assy diagram

Panel,rear-left

Part #62273

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas grills

Choose a symptom to see related gas grill repairs.

View all

Why is my gas grill not hot enough?

Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…

Read more

Why don't the burners on my gas grill get gas?

Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…

Read more

Do I have to replace a broken wheel on a gas grill?

Main cause: worn wheel…

Read more

What should I do about grease flare-ups in my gas grill?

Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…

Read more

Why won't some burners light on my gas grill?

Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
