Model # G-UA036S17A Official York evaporator coil

Here are the diagrams and repair parts for Official York G-UA036S17A evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Grommet 3/4 028-13204-000
#10

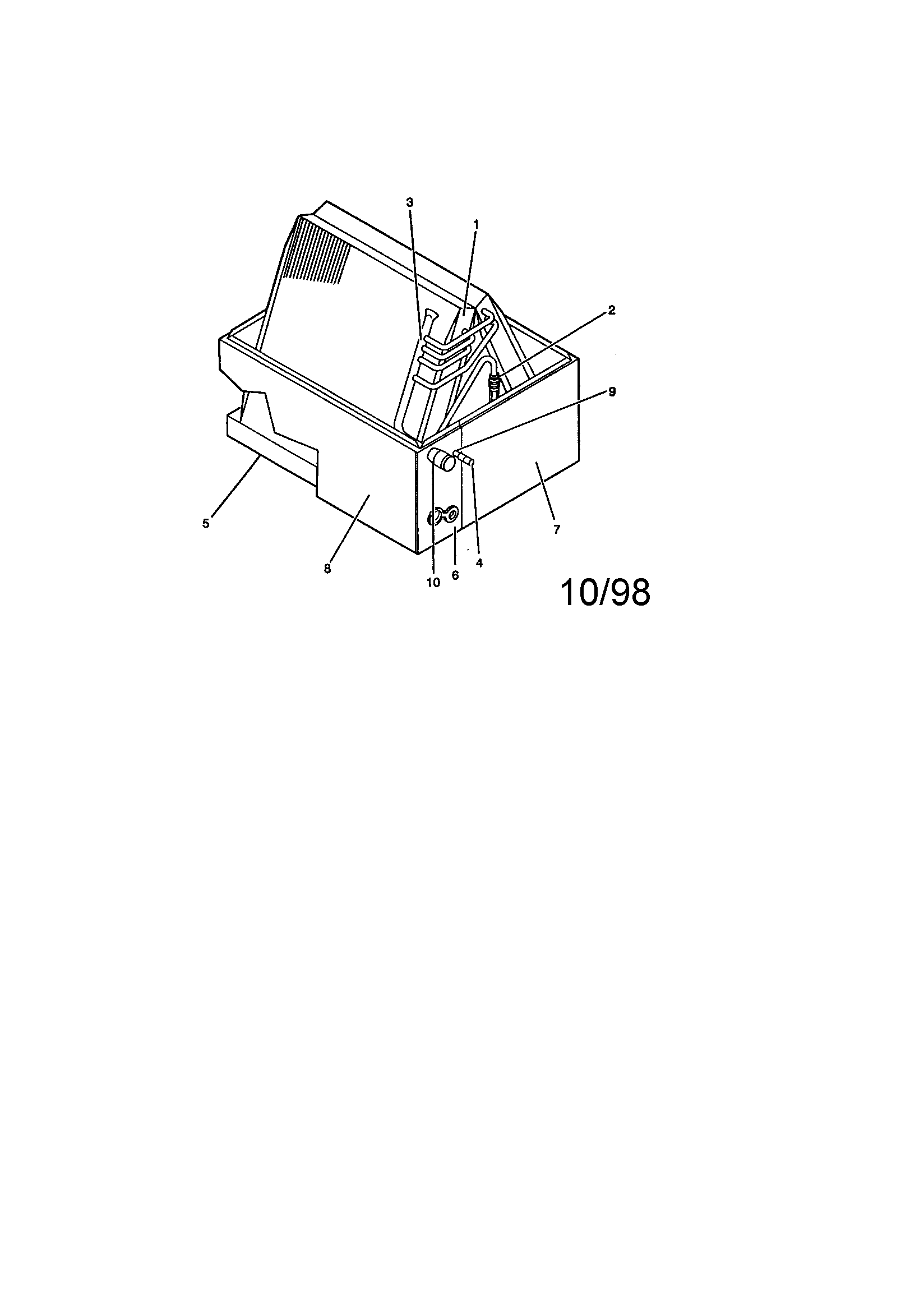

Indoor coils diagram

Grommet 3/4

Part #028-13204-000

The manufacturer no longer makes this part, and there's no substitute part

Manifold Assembly 373-15629-001
#3

Indoor coils diagram

Manifold assembly

Part #373-15629-001

The manufacturer no longer makes this part, and there's no substitute part

Front Access Panel 373-15704-002
#7

Indoor coils diagram

Front access panel

Part #373-15704-002

The manufacturer no longer makes this part, and there's no substitute part

Housing 373-15705-002
#8

Indoor coils diagram

Housing

Part #373-15705-002

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 373-16635-003
#5

Indoor coils diagram

Drain pan

Part #373-16635-003

The manufacturer no longer makes this part, and there's no substitute part

Coil, Evaporator W/drain Pan (complete Unit Must Be Purchased When Repalcing Coil) G-UA036S17
#1

Indoor coils diagram

Coil, evaporator w/drain pan (complete unit must be purchased when repalcing coil)

Part #G-UA036S17

The manufacturer no longer makes this part, and there's no substitute part

Distributor W/orifice 025-31918-073
#2A

Indoor coils diagram

Distributor w/orifice

Part #025-31918-073

The manufacturer no longer makes this part, and there's no substitute part

Cap Seal 023-10745-000
#4

Indoor coils diagram

Cap seal

Part #023-10745-000

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 373-15703-001
#6

Indoor coils diagram

Front panel

Part #373-15703-001

The manufacturer no longer makes this part, and there's no substitute part

Pan, Drain (g-ua Style "c" Units Are The Same As G-ua Style "b" Units Except For This Part) 373-106635-007
#5A

Indoor coils diagram

Pan, drain (g-ua style "c" units are the same as g-ua style "b" units except for this part)

Part #373-106635-007

The manufacturer no longer makes this part, and there's no substitute part
