Crosley
Electric Range

Model # CRE3510LWA Official Crosley electric range

Here are the diagrams and repair parts for Official Crosley CRE3510LWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

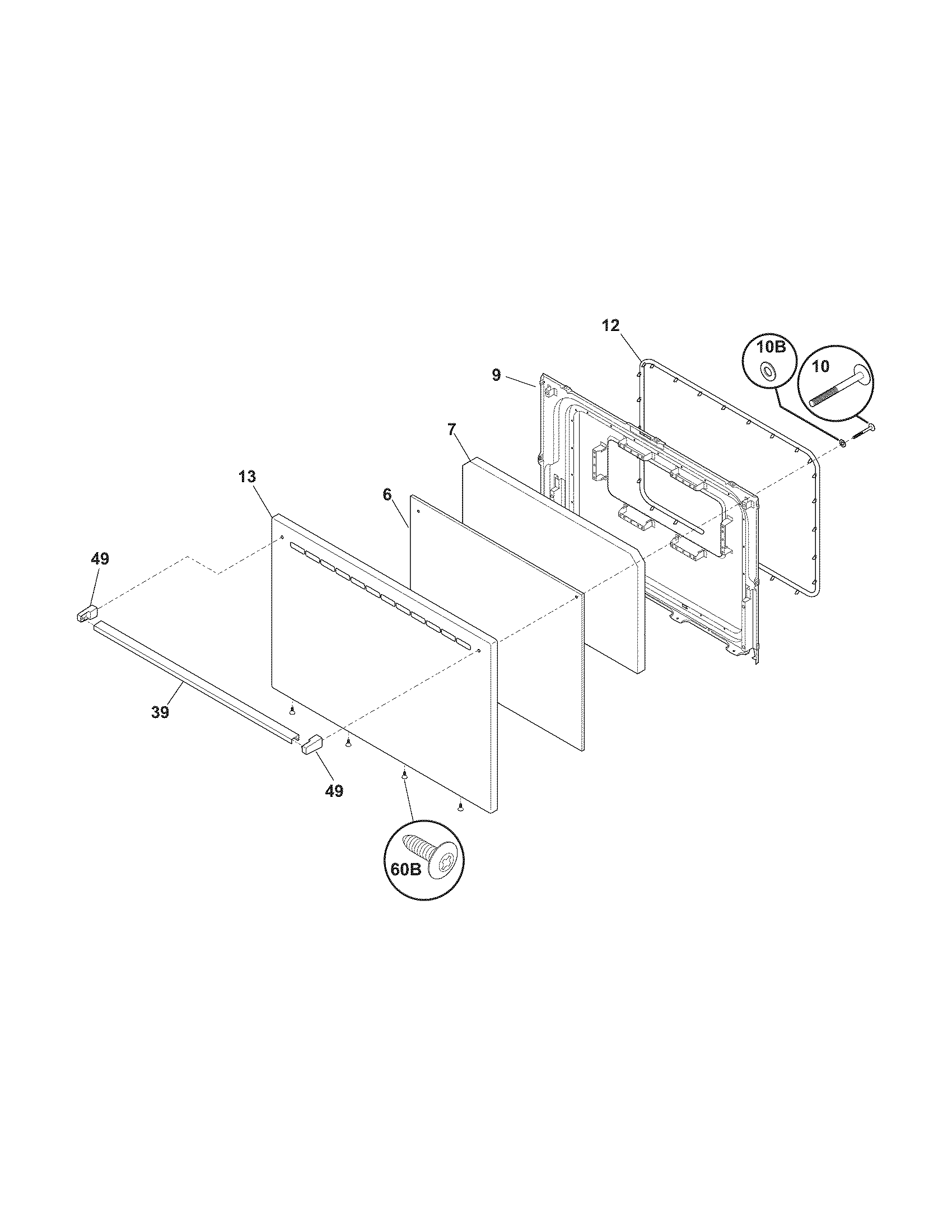

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Block 5303912666
#27

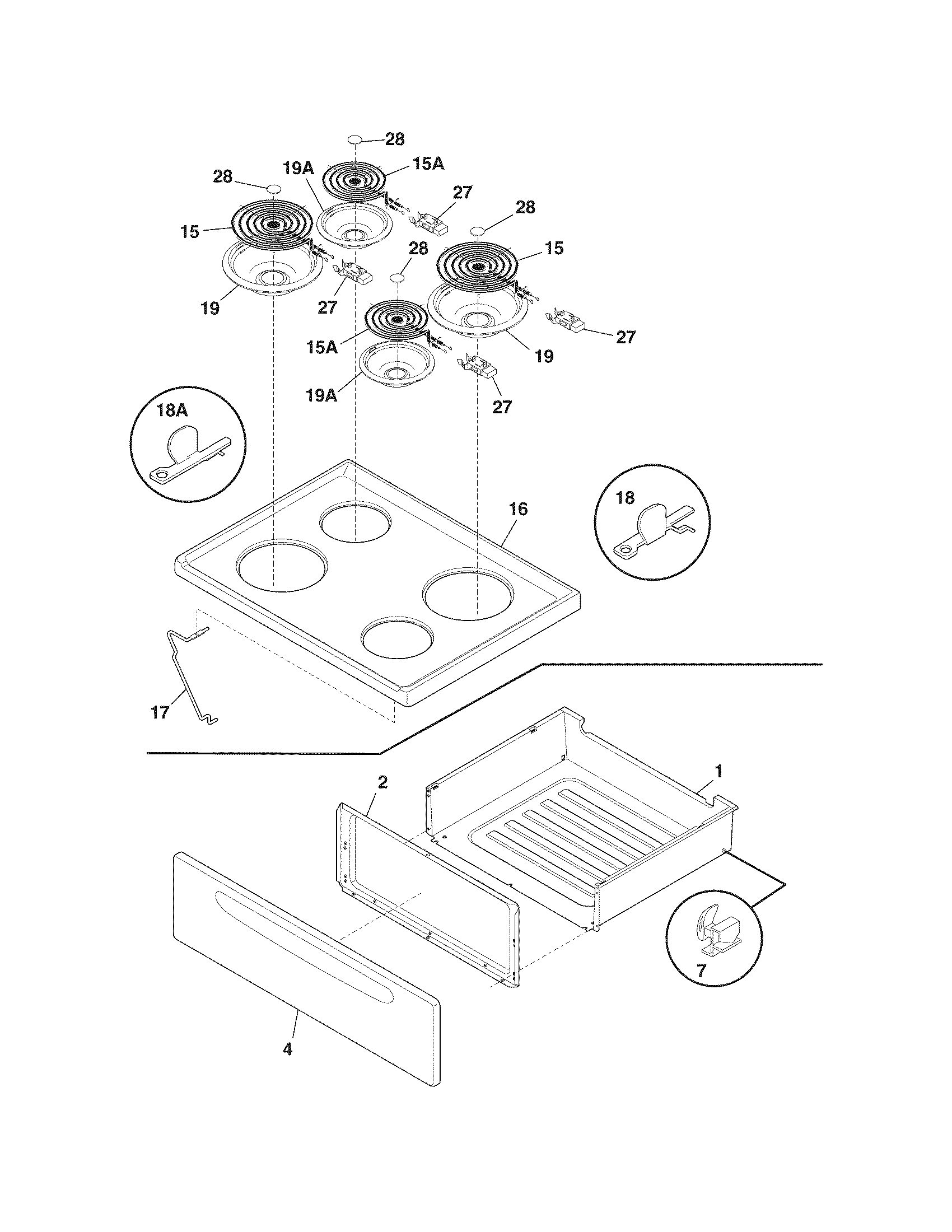

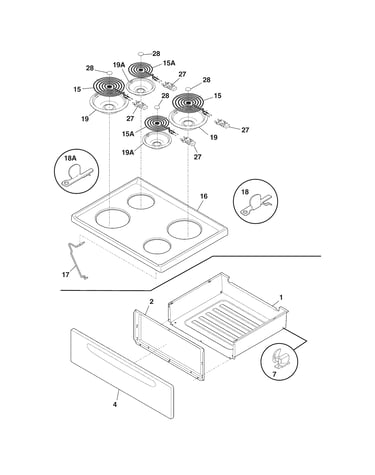

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Range Drip Pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, A316221301) 316048414
#19A

Top/drawer diagram

Range drip pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, a316221301)

Part #316048414

BEST SELLER
This item is not returnable
$5.97 |
14% OFF Phone Price : $6.97
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

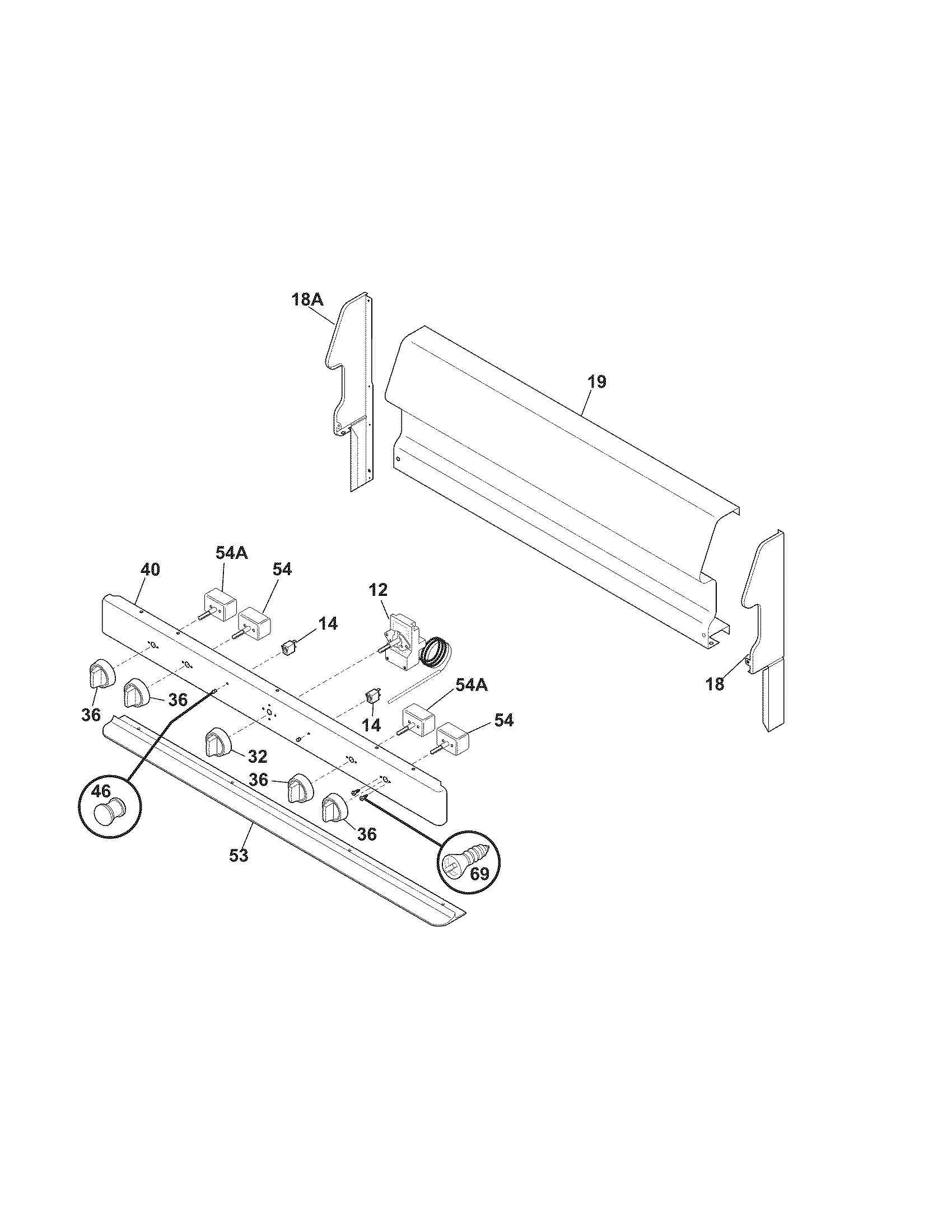

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86 |
13% OFF Phone Price : $14.86
In Stock
Range Broil Element (replaces 316199900) 316203200
#66

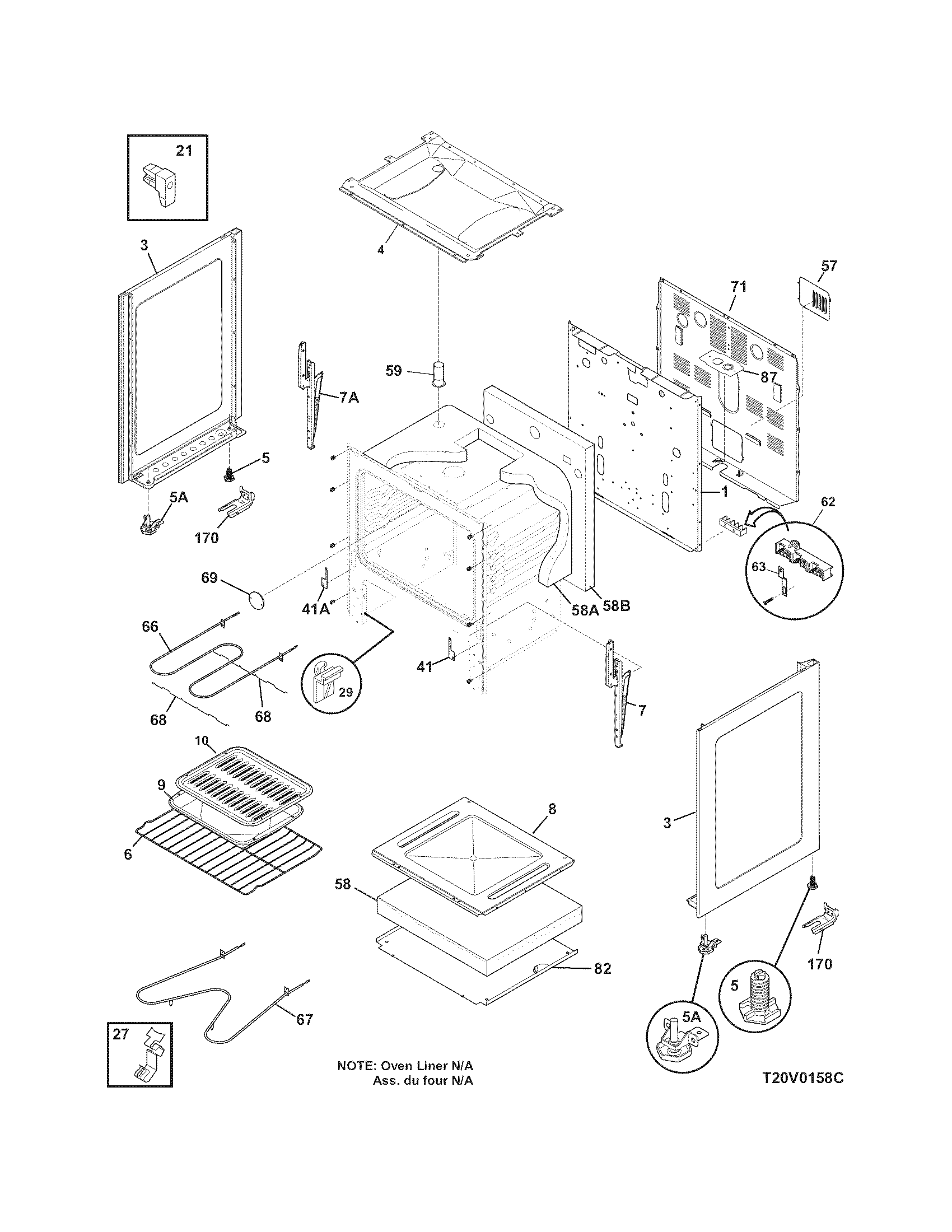

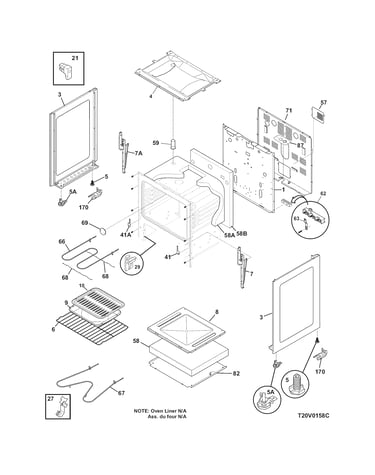

Body diagram

Range broil element (replaces 316199900)

Part #316203200

BEST SELLER
$122.39 |
9% OFF Phone Price : $134.39
In Stock
Universal/multiflex (frigidaire) Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Universal/multiflex (frigidaire) range terminal block (replaces 75303935271)

Part #5303935271

BEST SELLER
$43.74 |
12% OFF Phone Price : $49.74
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#29

Body diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Range Surface Element, 6-in 316439800
#15A

Top/drawer diagram

Range surface element, 6-in

Part #316439800

Replaced by #318372210

?
Manufacturer substitution
This part replaces 316439800. Substitute parts can look different from the original.
BEST SELLER
$26.22 |
19% OFF Phone Price : $32.22
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Range Leveling Leg 316498900
#5A

Body diagram

Range leveling leg

Part #316498900

Replaced by #5304509869

?
Manufacturer substitution
This part replaces 316498900. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
