Model # KUBR314KBS00 Official KitchenAid refrigerator, beverage center, under counter, 24 inch

Here are the diagrams and repair parts for Official KitchenAid KUBR314KBS00 refrigerator, beverage center, under counter, 24 inch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Compressor W11538055
#16

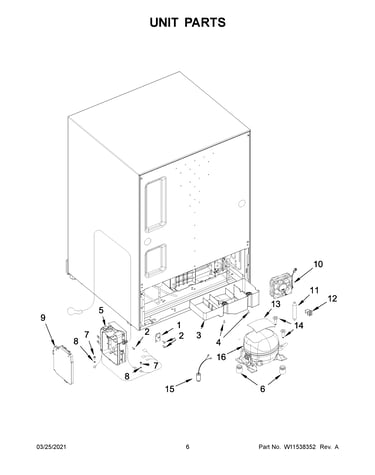

Unit parts diagram

Compressor

Part #W11538055

$345.56
In Stock
Glass Shelf W10797332
#16

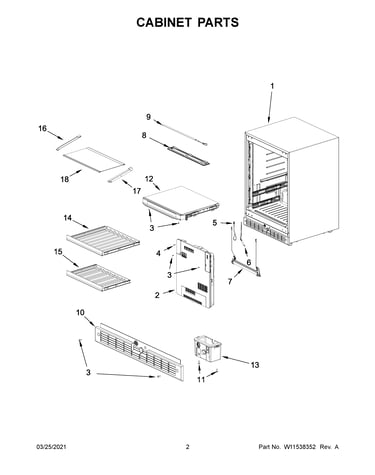

Cabinet parts diagram

Glass shelf

Part #W10797332

$16.37
In Stock
Wine Rack As W11532973
#14

Cabinet parts diagram

Wine rack as

Part #W11532973

$139.47 |
8% OFF Phone Price : $151.47
In Stock
Push Plate S W11360703
#2

Door parts diagram

Push plate s

Part #W11360703

$17.18
In Stock
Lens-light W11312450
#8

Cabinet parts diagram

Lens-light

Part #W11312450

$39.80
In Stock
Glass Shelf W10797333
#17

Cabinet parts diagram

Glass shelf

Part #W10797333

$16.37
In Stock
Sash Gasket W11360665
#6

Door parts diagram

Sash gasket

Part #W11360665

$121.47
In Stock
Door As (cmp W11532940
#1

Door parts diagram

Door as (cmp

Part #W11532940

$588.85
In Stock
Box, Pcb W11538049
#5

Unit parts diagram

Box, pcb

Part #W11538049

$300.96
In Stock
Screw W11375760
#4

Cabinet parts diagram

Screw

Part #W11375760

$11.78
In Stock
