Model # 917640A22 Official Craftsman hydro-gear assembly

Here are the diagrams and repair parts for Official Craftsman 917640A22 hydro-gear assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
O-ring 1623R
#32

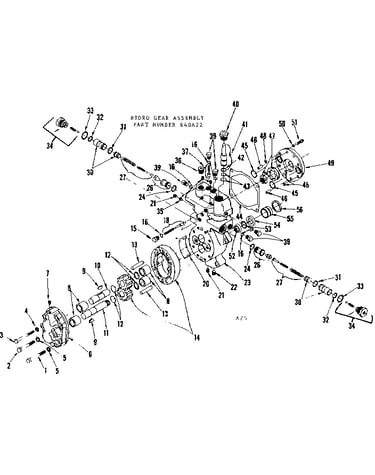

Hydro gear assembly diagram

O-ring

Part #1623R

The manufacturer no longer makes this part, and there's no substitute part

Hex Fin Bolt 3137P
#88

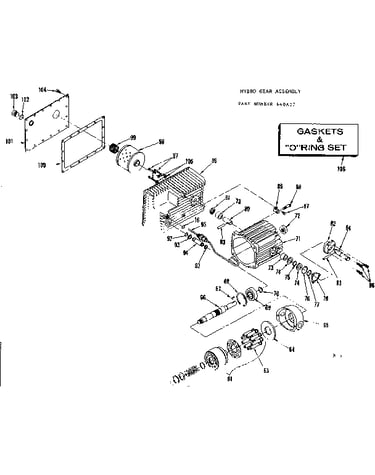

Cylinder assembly diagram

Hex fin bolt

Part #3137P

The manufacturer no longer makes this part, and there's no substitute part

Piston Sleeve 1621R
#30

Hydro gear assembly diagram

Piston sleeve

Part #1621R

The manufacturer no longer makes this part, and there's no substitute part

Spring 9342H
#99

Cylinder assembly diagram

Spring

Part #9342H

The manufacturer no longer makes this part, and there's no substitute part

Hydro Assembly 640A22
Hydro assembly

Part #640A22

The manufacturer no longer makes this part, and there's no substitute part

Seat Assembly 1620R
#27

Hydro gear assembly diagram

Seat assembly

Part #1620R

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1618R
#24

Hydro gear assembly diagram

O-ring

Part #1618R

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1657R
#77

Cylinder assembly diagram

O-ring

Part #1657R

The manufacturer no longer makes this part, and there's no substitute part

Woodruff Key 1606R
#9

Hydro gear assembly diagram

Woodruff key

Part #1606R

The manufacturer no longer makes this part, and there's no substitute part

Reservoir 9335H
#96

Cylinder assembly diagram

Reservoir

Part #9335H

The manufacturer no longer makes this part, and there's no substitute part
