Model # KFP1320AC0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid KFP1320AC0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
3-in-1 Food W11519115
#3

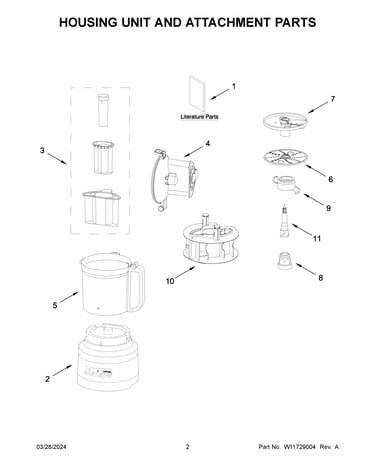

Housing unit and attachment parts diagram

3-in-1 food

Part #W11519115

$111.09
In Stock
Storage Cadd W11519130
#10

Housing unit and attachment parts diagram

Storage cadd

Part #W11519130

$85.29
In Stock
Work Bowl Cover Assy W/ Pushers W11519114
#4

Housing unit and attachment parts diagram

Work bowl cover assy w/ pushers

Part #W11519114

Replaced by #W11680388

?
Manufacturer substitution
This part replaces W11519114. Substitute parts can look different from the original.
$110.86
In Stock
13 13 Cup Work Bowl Assy W11519113
#5

Housing unit and attachment parts diagram

13 13 cup work bowl assy

Part #W11519113

Replaced by #W11685527

?
Manufacturer substitution
This part replaces W11519113. Substitute parts can look different from the original.
$107.20
In Stock
Multipurpose Blade W11519122
#9

Housing unit and attachment parts diagram

Multipurpose blade

Part #W11519122

The manufacturer no longer makes this part, and there's no substitute part

And Foot Assembly (refer To Color Variation Parts Page) BASE
#2

Housing unit and attachment parts diagram

And foot assembly (refer to color variation parts page)

Part #BASE

The manufacturer no longer makes this part, and there's no substitute part

Use & Care Guide W11462548
#1

Housing unit and attachment parts diagram

Use & care guide

Part #W11462548

The manufacturer no longer makes this part, and there's no substitute part

Externally Adjustable Slicing Disc W11519120
#7

Housing unit and attachment parts diagram

Externally adjustable slicing disc

Part #W11519120

The manufacturer no longer makes this part, and there's no substitute part

French Fry Disc W11596236
#6

Housing unit and attachment parts diagram

French fry disc

Part #W11596236

The manufacturer no longer makes this part, and there's no substitute part

Drive Adaptor (lower) W11519126
#8

Housing unit and attachment parts diagram

Drive adaptor (lower)

Part #W11519126

The manufacturer no longer makes this part, and there's no substitute part
