KitchenAid
Food Processor

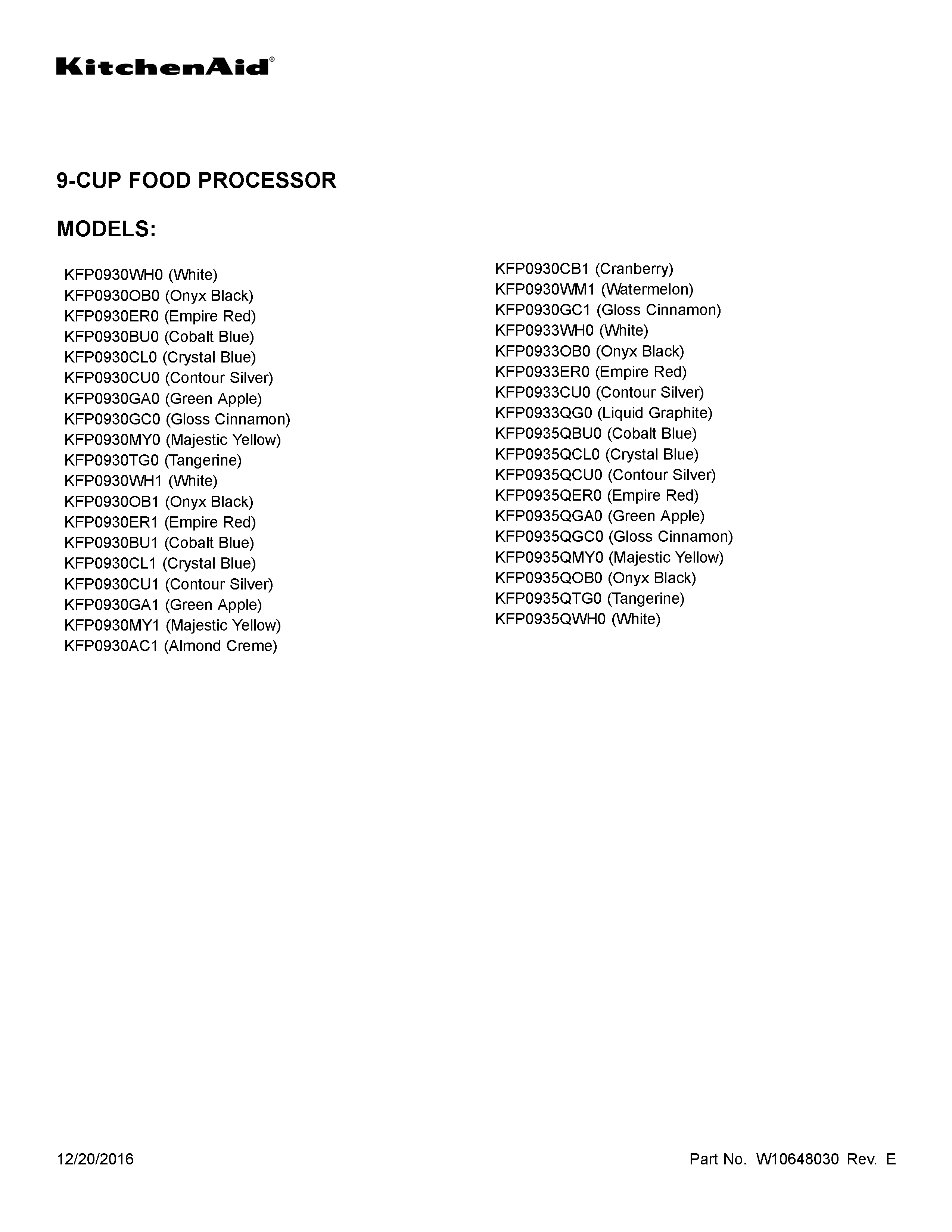

Model # KFP0930CL0 Official KitchenAid 9-cup food processor

Here are the diagrams and repair parts for Official KitchenAid KFP0930CL0 9-cup food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Pusher W10466876
#9

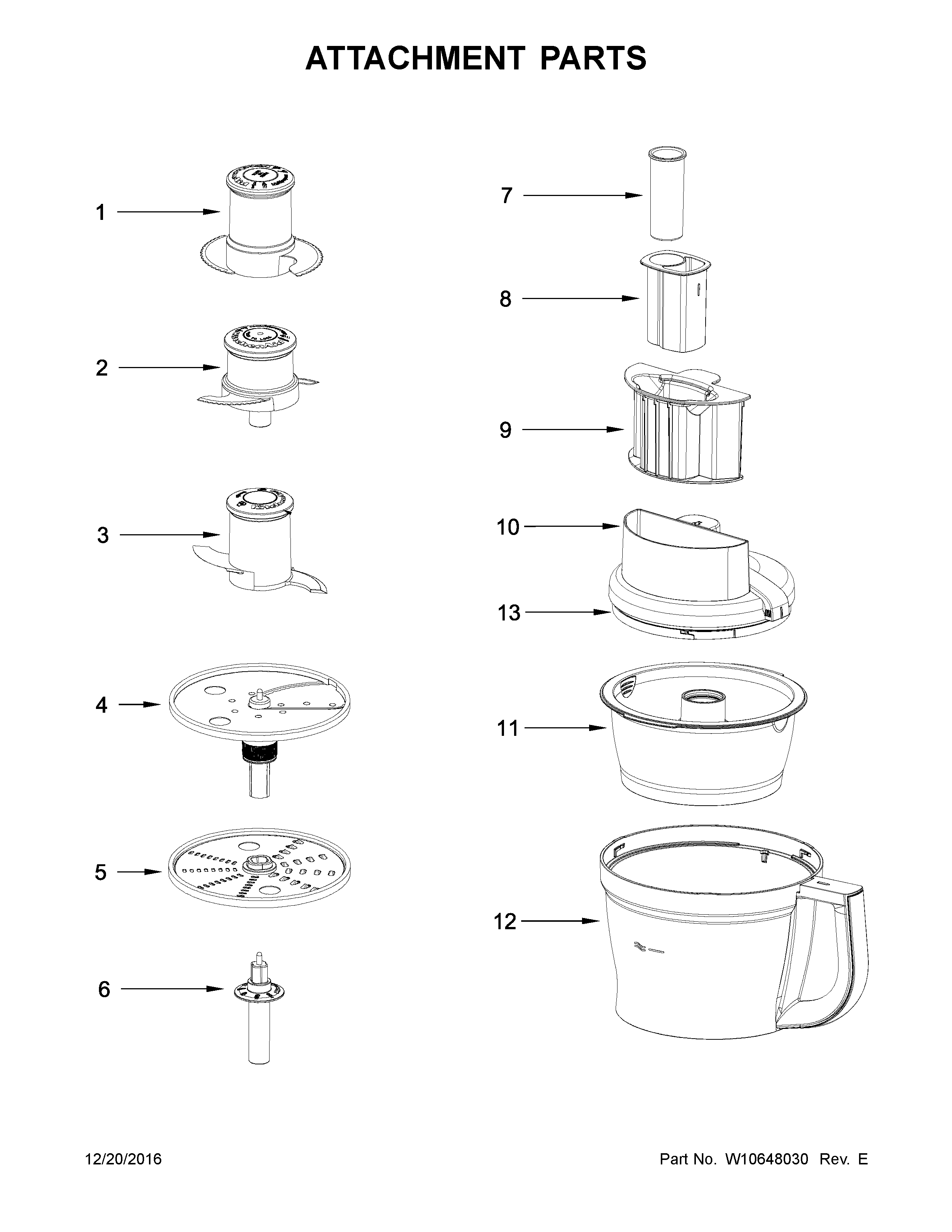

Attachment parts diagram

Pusher

Part #W10466876

Replaced by #W11027645

?
Manufacturer substitution
This part replaces W10466876. Substitute parts can look different from the original.
$37.16 |
14% OFF Phone Price : $43.16
In Stock
Pusher W10466847
#7

Attachment parts diagram

Pusher

Part #W10466847

Replaced by #WPW10466847

?
Manufacturer substitution
This part replaces W10466847. Substitute parts can look different from the original.
$25.39 |
19% OFF Phone Price : $31.39
In Stock
Adapter W10466843
#6

Attachment parts diagram

Adapter

Part #W10466843

Replaced by #WPW10466843

?
Manufacturer substitution
This part replaces W10466843. Substitute parts can look different from the original.
This item is not returnable
$21.50 |
22% OFF Phone Price : $27.50
In Stock
French Fry Cutting Disc W10633132
#NI

Attachment parts diagram

French fry cutting disc

Part #W10633132

$76.99 |
7% OFF Phone Price : $82.99
In Stock
Sleeve Shaft W10648624
#4

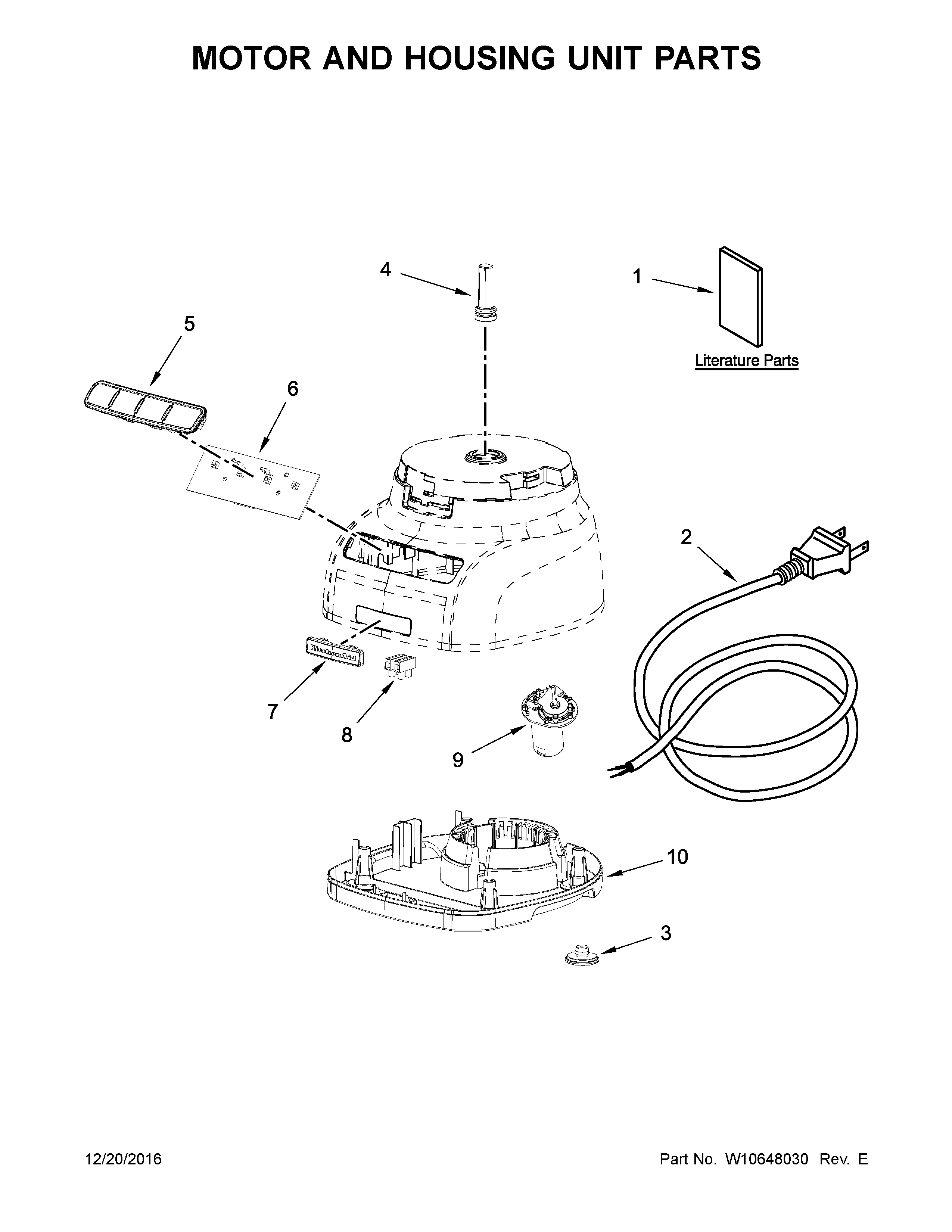

Motor and housing unit parts diagram

Sleeve shaft

Part #W10648624

$26.49
In Stock
Overlay W10466886
#5

Motor and housing unit parts diagram

Overlay

Part #W10466886

$43.16
In Stock
Food Processor Shredder Disc W10648621
#5

Attachment parts diagram

Food processor shredder disc

Part #W10648621

$60.92 |
9% OFF Phone Price : $66.92
In Stock
Blade W10648620
#4

Attachment parts diagram

Blade

Part #W10648620

$55.09
In Stock
Food Processor 2-prong Power Cord (black) W10451329
#2

Motor and housing unit parts diagram

Food processor 2-prong power cord (black)

Part #W10451329

$32.09
In Stock
Food Processor Storage Box W10721068
#NI

Attachment parts diagram

Food processor storage box

Part #W10721068

$70.39 |
8% OFF Phone Price : $76.39
In Stock
