Model # RF267ACWP/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF267ACWP-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

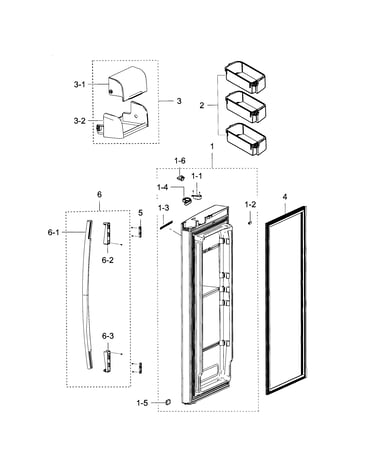

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 369 parts  |
Refrigerator Ice Maker Assembly DA97-05422A
#5

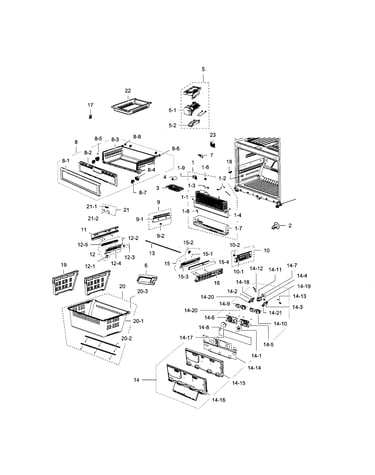

Freezer diagram

Refrigerator ice maker assembly

Part #DA97-05422A

BEST SELLER
$168.81 |
7% OFF Phone Price : $180.81
In Stock
Refrigerator Freezer Door Gasket (replaces Da63-06541a) DA63-06541D
#2

Freezer door diagram

Refrigerator freezer door gasket (replaces da63-06541a)

Part #DA63-06541D

BEST SELLER
$110.99 |
10% OFF Phone Price : $122.99
In Stock
Refrigerator Pantry Drawer Door (replaces Da97-05383a, Da97-07020a) DA97-07020C
#17

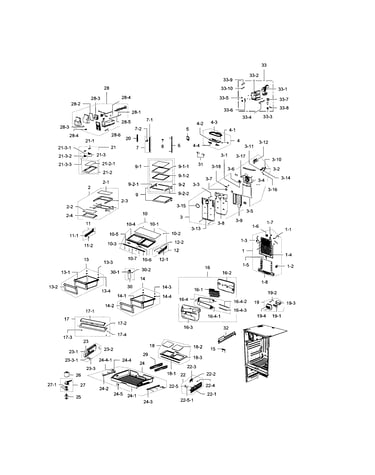

Refrigerator diagram

Refrigerator pantry drawer door (replaces da97-05383a, da97-07020a)

Part #DA97-07020C

BEST SELLER
$110.54 |
10% OFF Phone Price : $122.54
In Stock
Refrigerator Spring (replaces Da61-07471a, Da81-01345a) DA81-01345B
#3-7

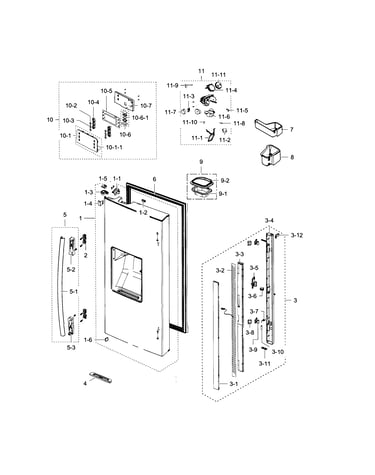

Refrigerator door l diagram

Refrigerator spring (replaces da61-07471a, da81-01345a)

Part #DA81-01345B

BEST SELLER
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Refrigerator Water Filter Head (replaces Da97-06317e) DA97-06317A
#27

Refrigerator diagram

Refrigerator water filter head (replaces da97-06317e)

Part #DA97-06317A

BEST SELLER
$92.21 |
6% OFF Phone Price : $98.21
In Stock
Refrigerator Compressor MK172DR2U/E09
#19-1

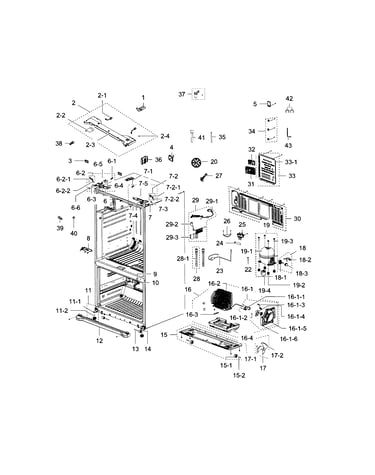

Cabinet diagram

Refrigerator compressor

Part #MK172DR2U/E09

Replaced by #MSE166CL1H/ASH

?
Manufacturer substitution
This part replaces MK172DR2U/E09. Substitute parts can look different from the original.
BEST SELLER
$265.82 |
6% OFF Was : $282.79
In Stock
Refrigerator Compressor MK172DR2U/SM1
#19

Cabinet diagram

Refrigerator compressor

Part #MK172DR2U/SM1

Replaced by #MSE166CL1H/ASH

?
Manufacturer substitution
This part replaces MK172DR2U/SM1. Substitute parts can look different from the original.
BEST SELLER
$265.82 |
6% OFF Was : $282.79
In Stock
Refrigerator Condenser Fan (replaces Da31-00220a) DA31-00146B
#1614

Cabinet diagram

Refrigerator condenser fan (replaces da31-00220a)

Part #DA31-00146B

BEST SELLER
$87.94 |
6% OFF Phone Price : $93.94
In Stock
Refrigerator Pantry Drawer Air Damper Assembly DA97-07189E
#19

Refrigerator diagram

Refrigerator pantry drawer air damper assembly

Part #DA97-07189E

$128.08 |
9% OFF Phone Price : $140.08
In Stock
Refrigerator Pantry Drawer Thermistor DA32-00006R
#19-2

Refrigerator diagram

Refrigerator pantry drawer thermistor

Part #DA32-00006R

This item is not returnable
$22.11 |
21% OFF Phone Price : $28.11
In Stock
