Magic Chef
Gas Range

Model # 31JN-2KLX-ON Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 31JN-2KLX-ON gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Panel Screw 7101P041-60
#13

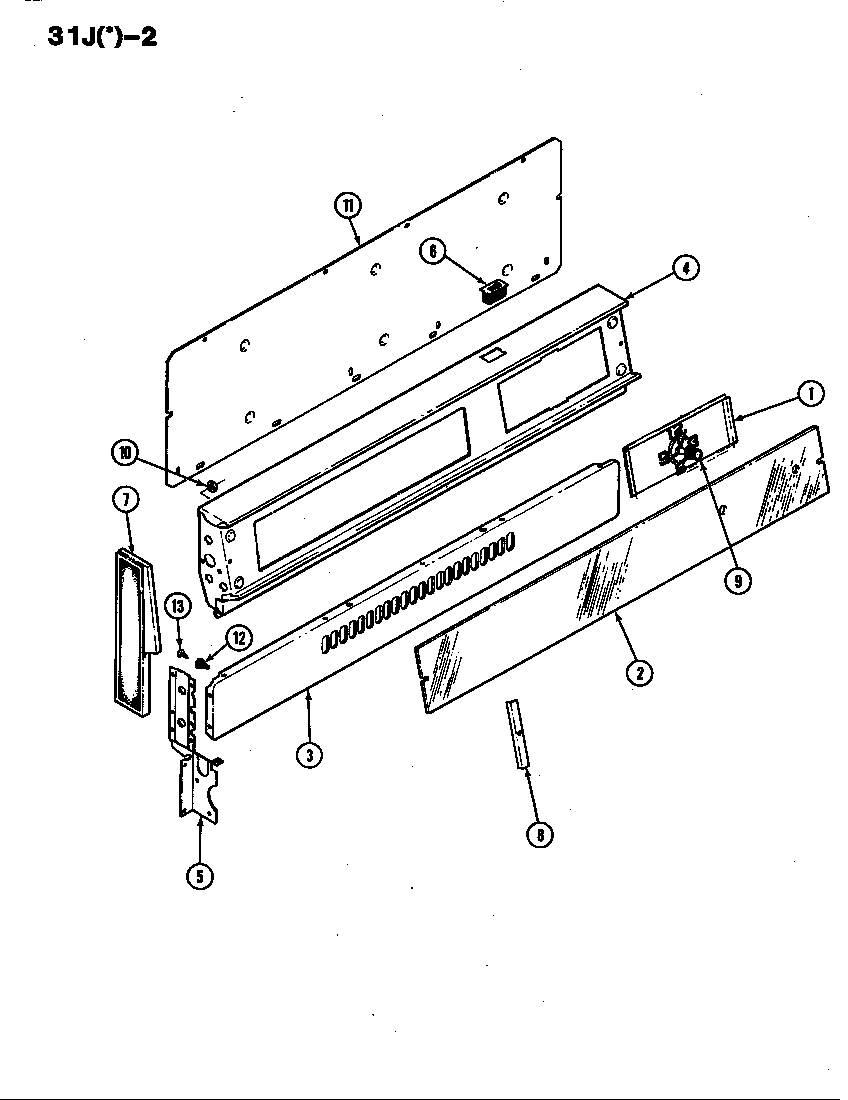

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Insert 3413F002-23
Broiler insert

Part #3413F002-23

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F002-23. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 3401F004-23
Broiler pan

Part #3401F004-23

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F004-23. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Rocker Switch 7403P102-60
Rocker switch

Part #7403P102-60

Replaced by #7403P067-60

?
Manufacturer substitution
This part replaces 7403P102-60. Substitute parts can look different from the original.
$40.49
In Stock
Range Wing Nut 7103P030-60
#8

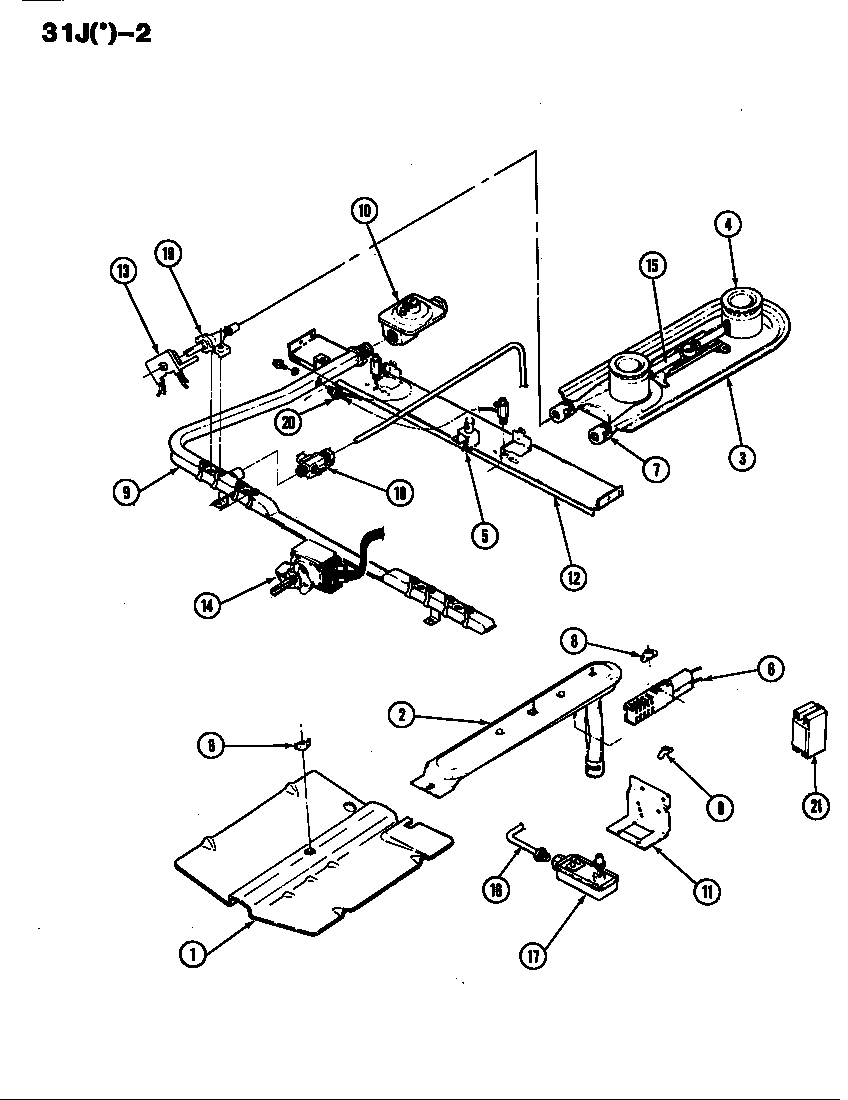

Control system diagram

Range wing nut

Part #7103P030-60

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Valve Knob 7733P027-60
#31

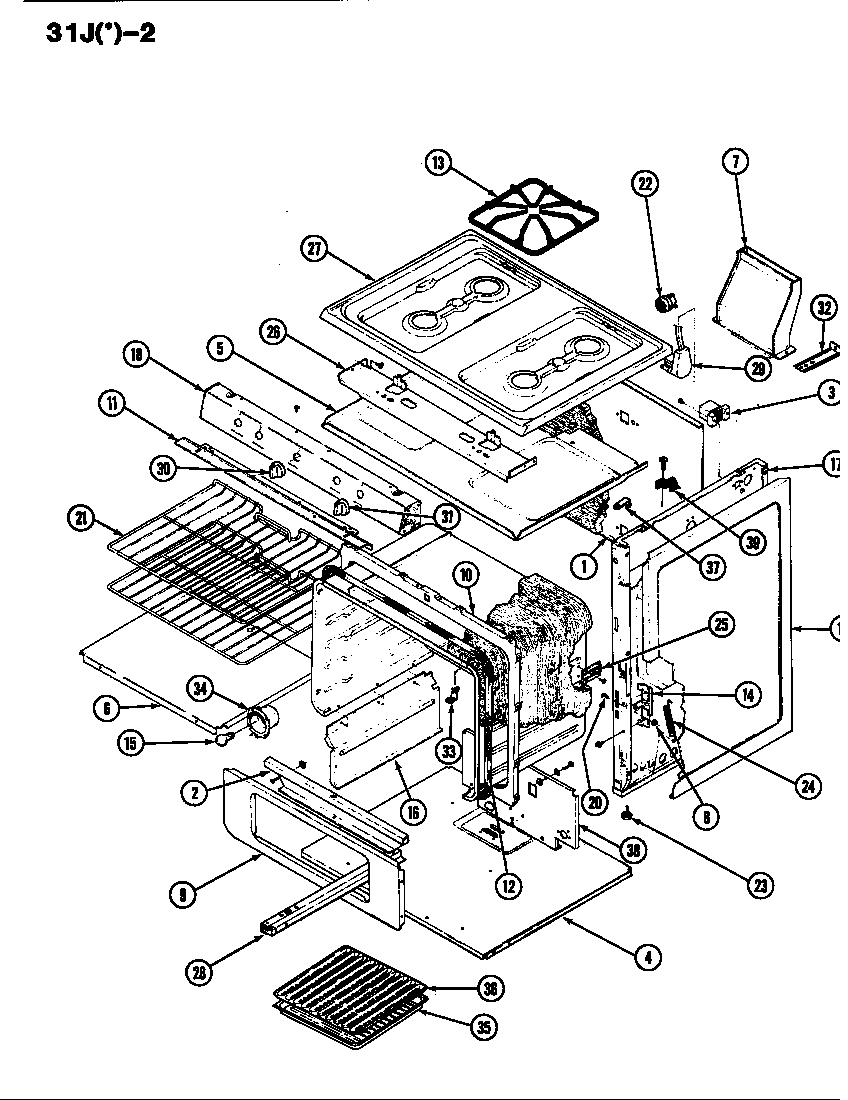

Body diagram

Valve knob

Part #7733P027-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7733P027-60. Substitute parts can look different from the original.
This item is not returnable
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Spring, Ov D 7803P055-60
#24

Body diagram

Spring, ov d

Part #7803P055-60

Replaced by #WP7803P058-60

?
Manufacturer substitution
This part replaces 7803P055-60. Substitute parts can look different from the original.
This item is not returnable
$11.16 |
15% OFF Phone Price : $13.16
In Stock
Screw 7101P061-60
Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P076-60
#20

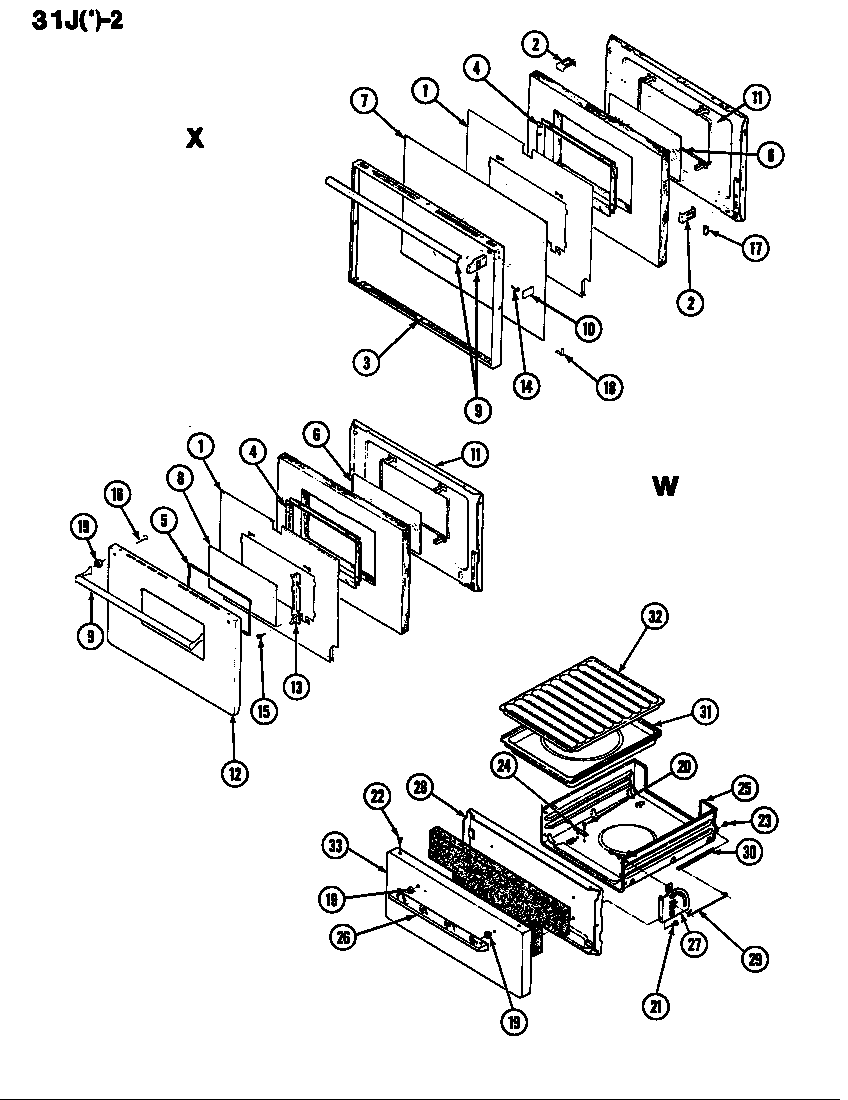

Door diagram

Screw

Part #7101P076-60

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 7101P076-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P058-60
#22

Door diagram

Screw

Part #7101P058-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P058-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
