Model # 66513834K602 Official Kenmore undercounter dishwasher

Here are the diagrams and repair parts for Official Kenmore 66513834K602 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

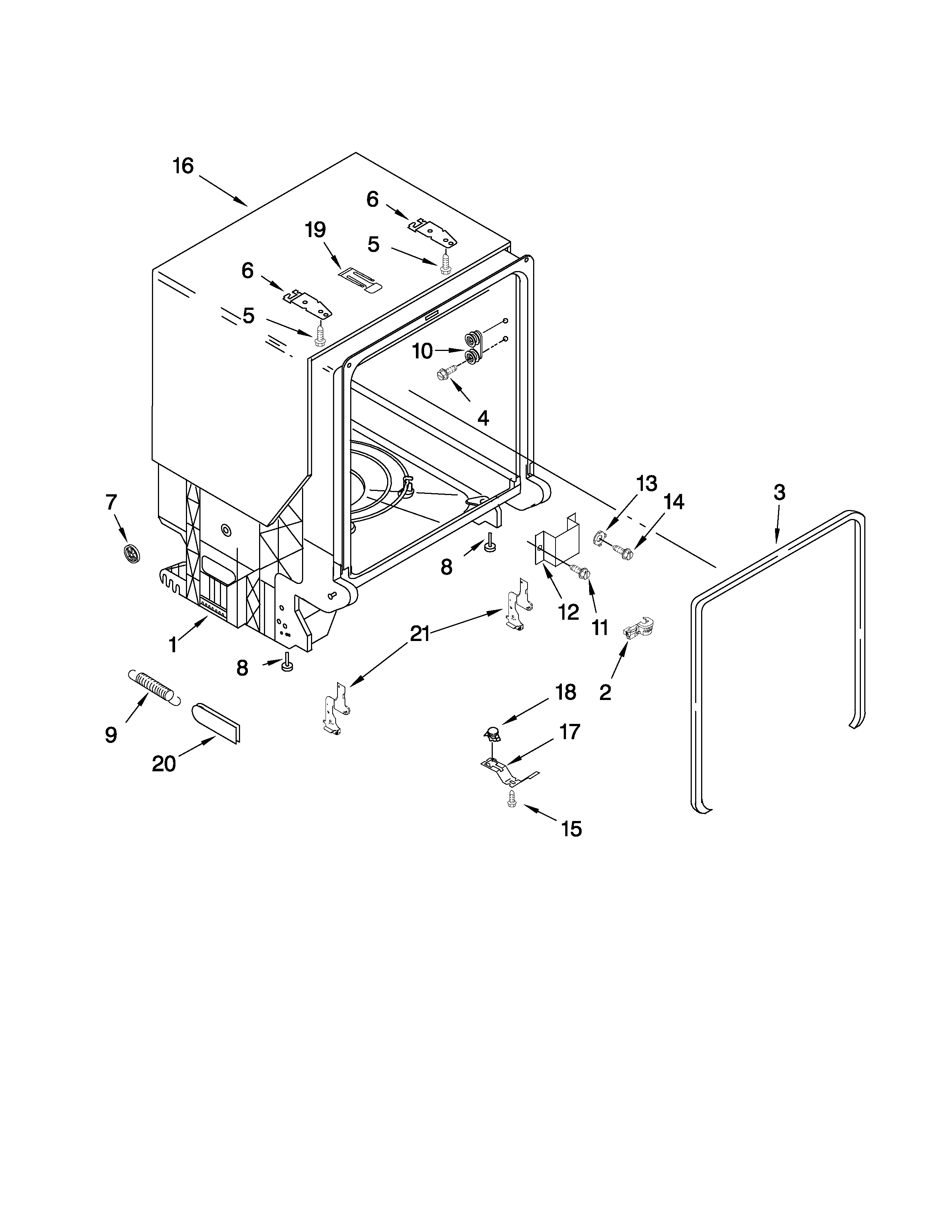

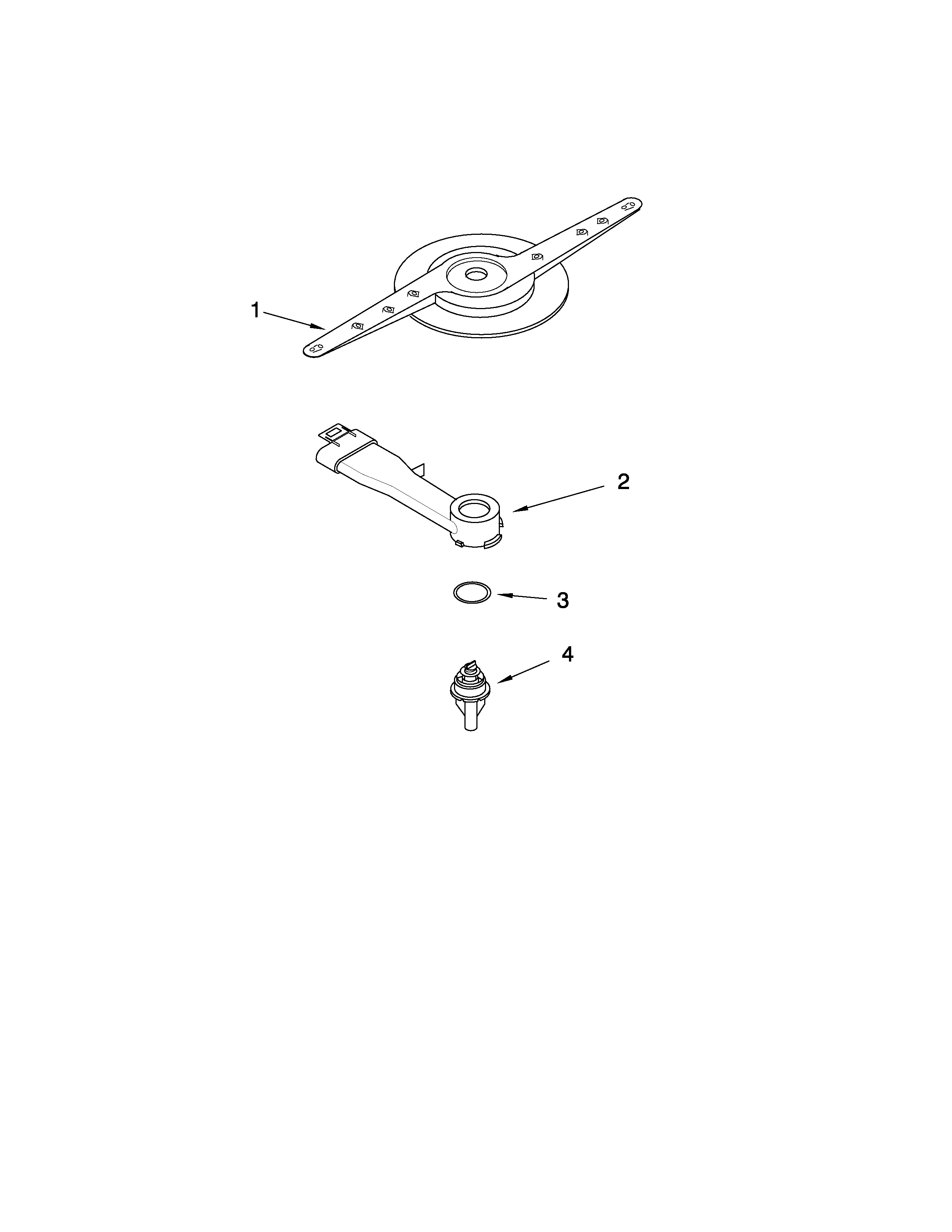

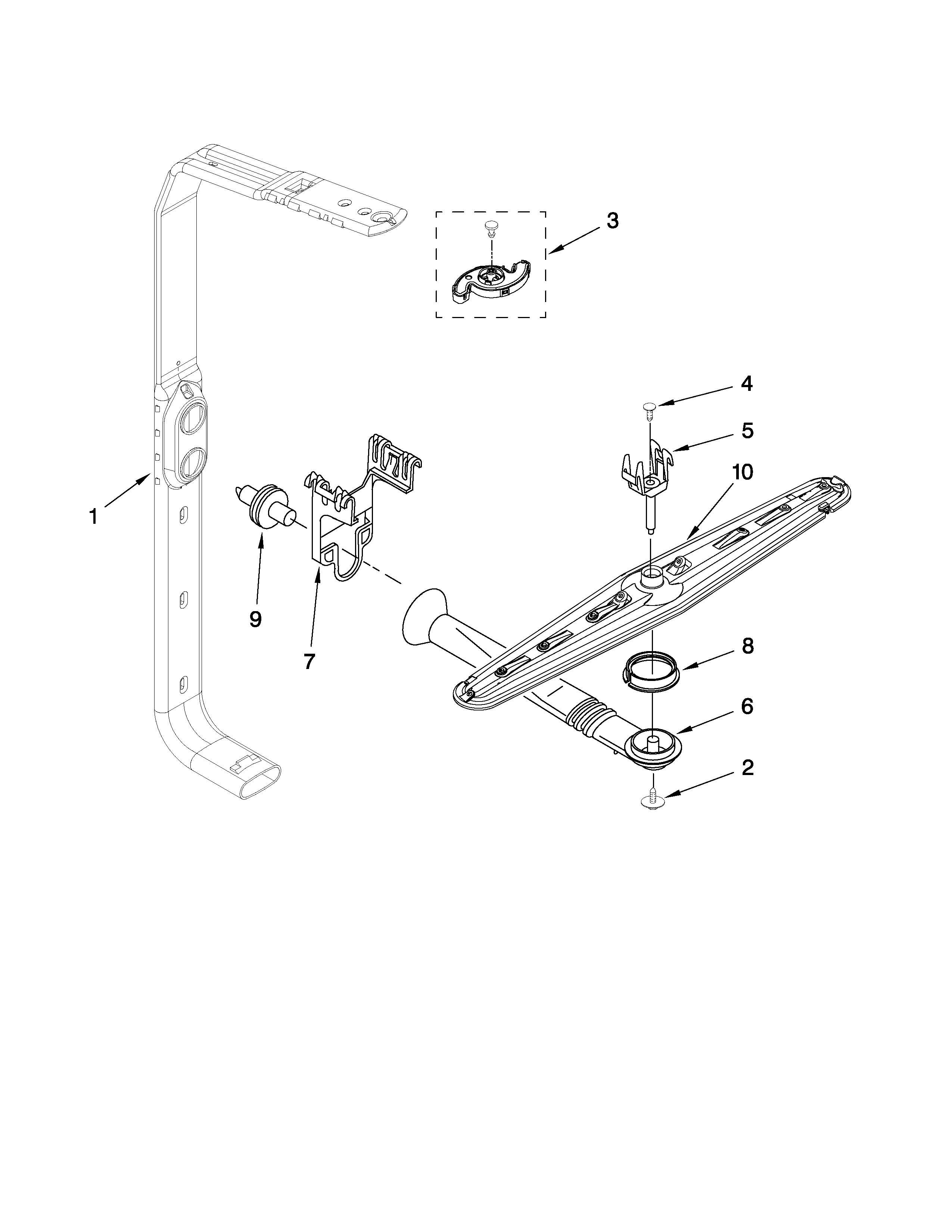

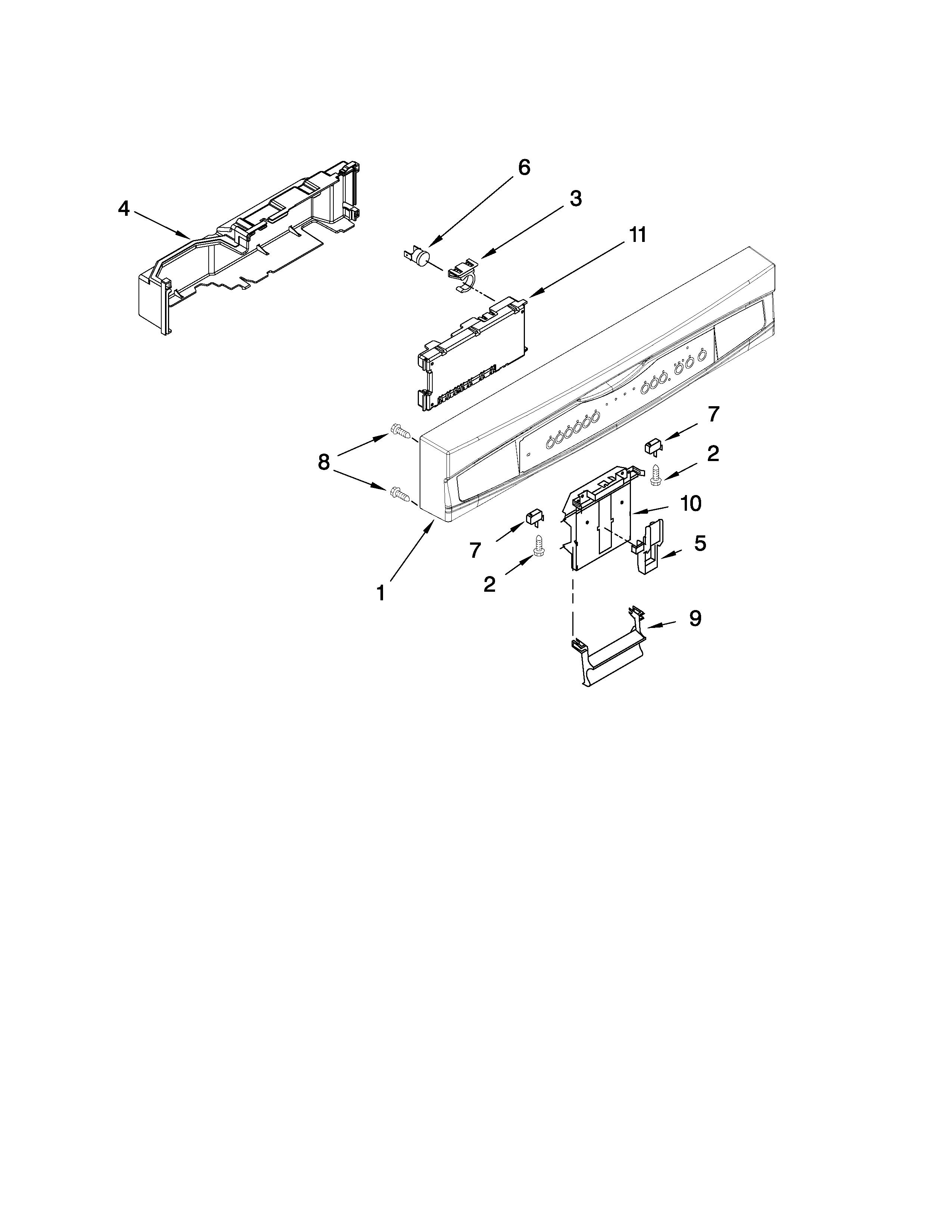

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Dishwasher Heating Element W10134009
#1

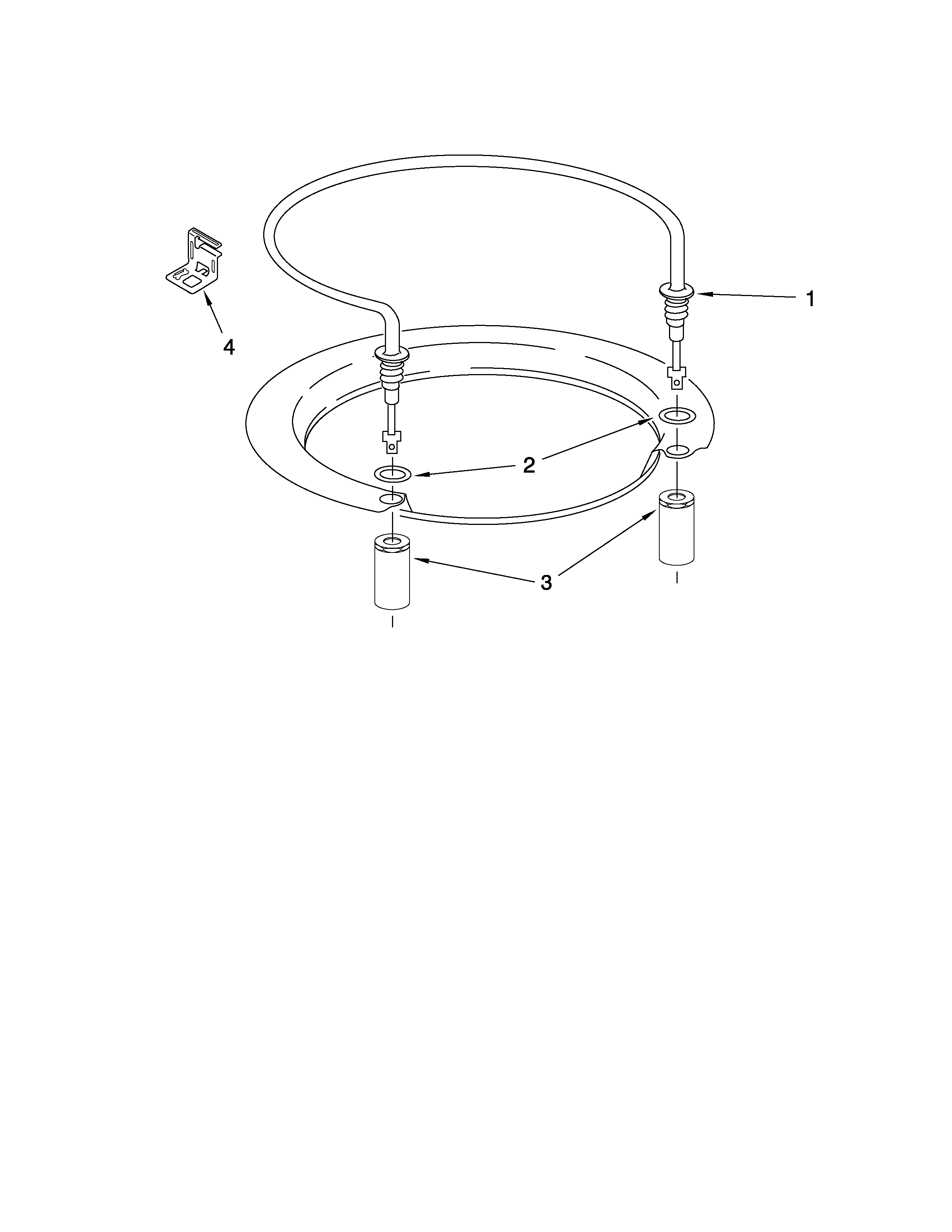

Heater parts diagram

Dishwasher heating element

Part #W10134009

Replaced by #W10518394

?
Manufacturer substitution
This part replaces W10134009. Substitute parts can look different from the original.
BEST SELLER
$58.31 |
9% OFF Phone Price : $64.31
In Stock
Dishwasher Drain Pump 661662
#15

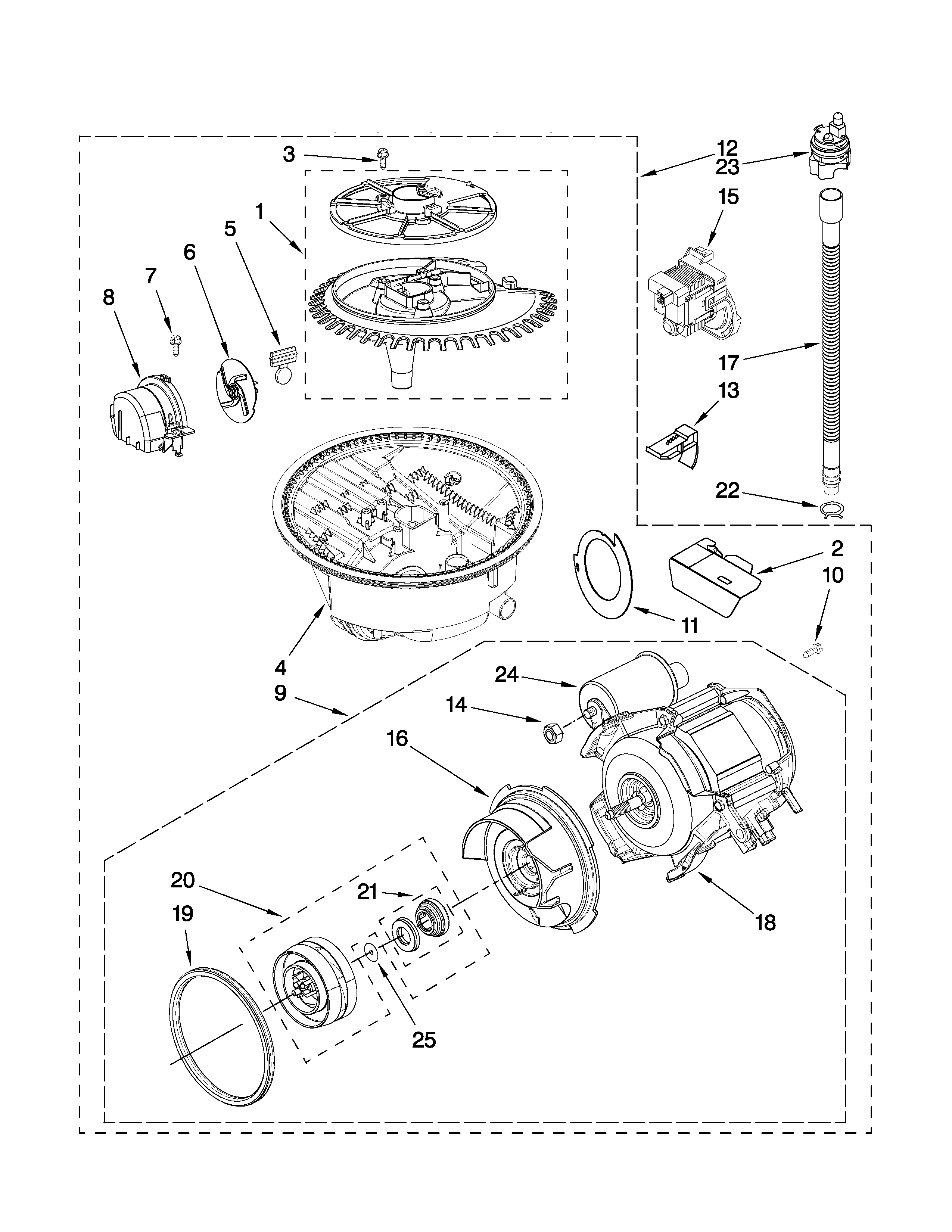

Pump and motor parts diagram

Dishwasher drain pump

Part #661662

Replaced by #WPW10348269

?
Manufacturer substitution
This part replaces 661662. Substitute parts can look different from the original.
BEST SELLER
$65.25 |
8% OFF Phone Price : $71.25
In Stock
Dishwasher Silverware Basket 8562086
#6

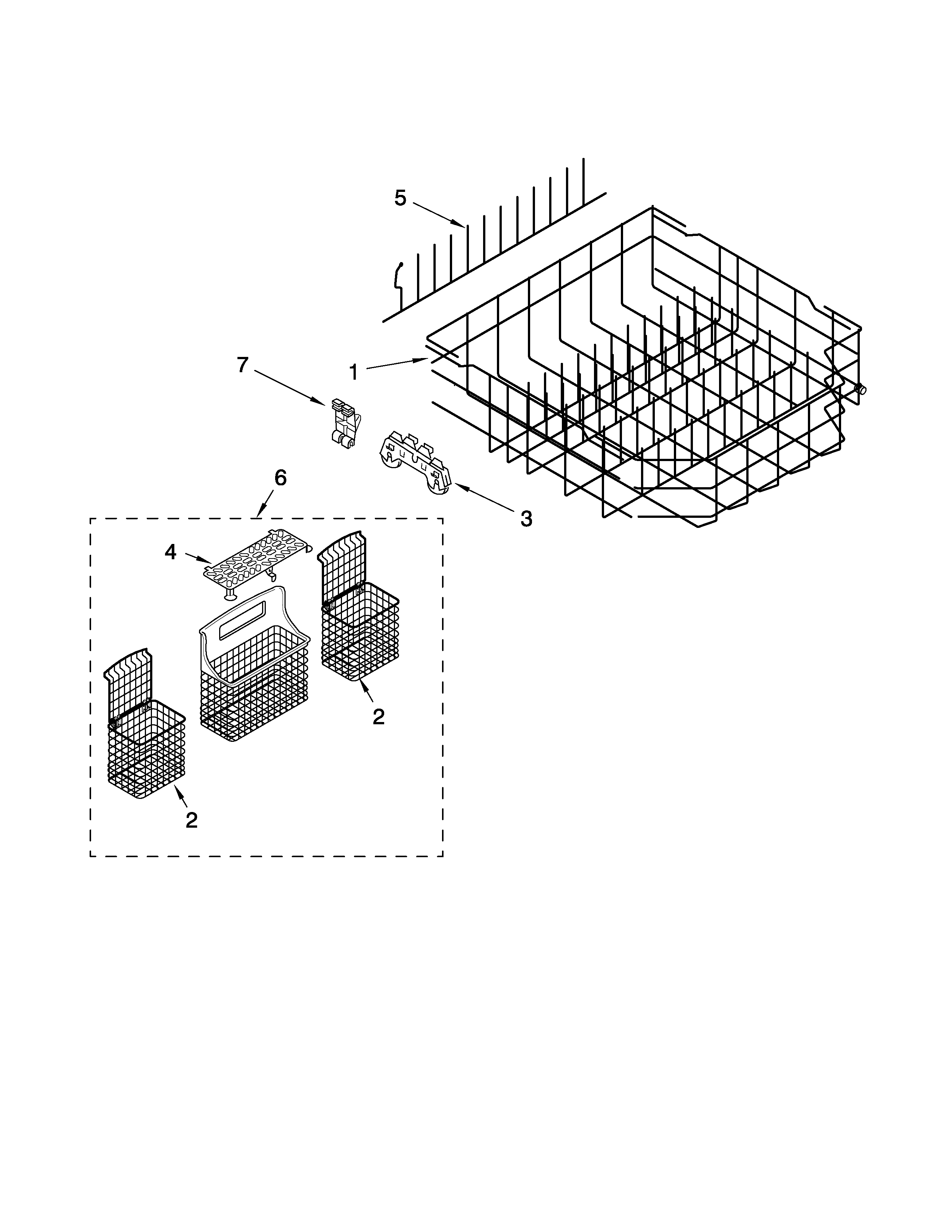

Lower rack parts diagram

Dishwasher silverware basket

Part #8562086

Replaced by #W10807920

?
Manufacturer substitution
This part replaces 8562086. Substitute parts can look different from the original.
BEST SELLER
$57.74 |
9% OFF Phone Price : $63.74
In Stock
Stop 8565920
#20

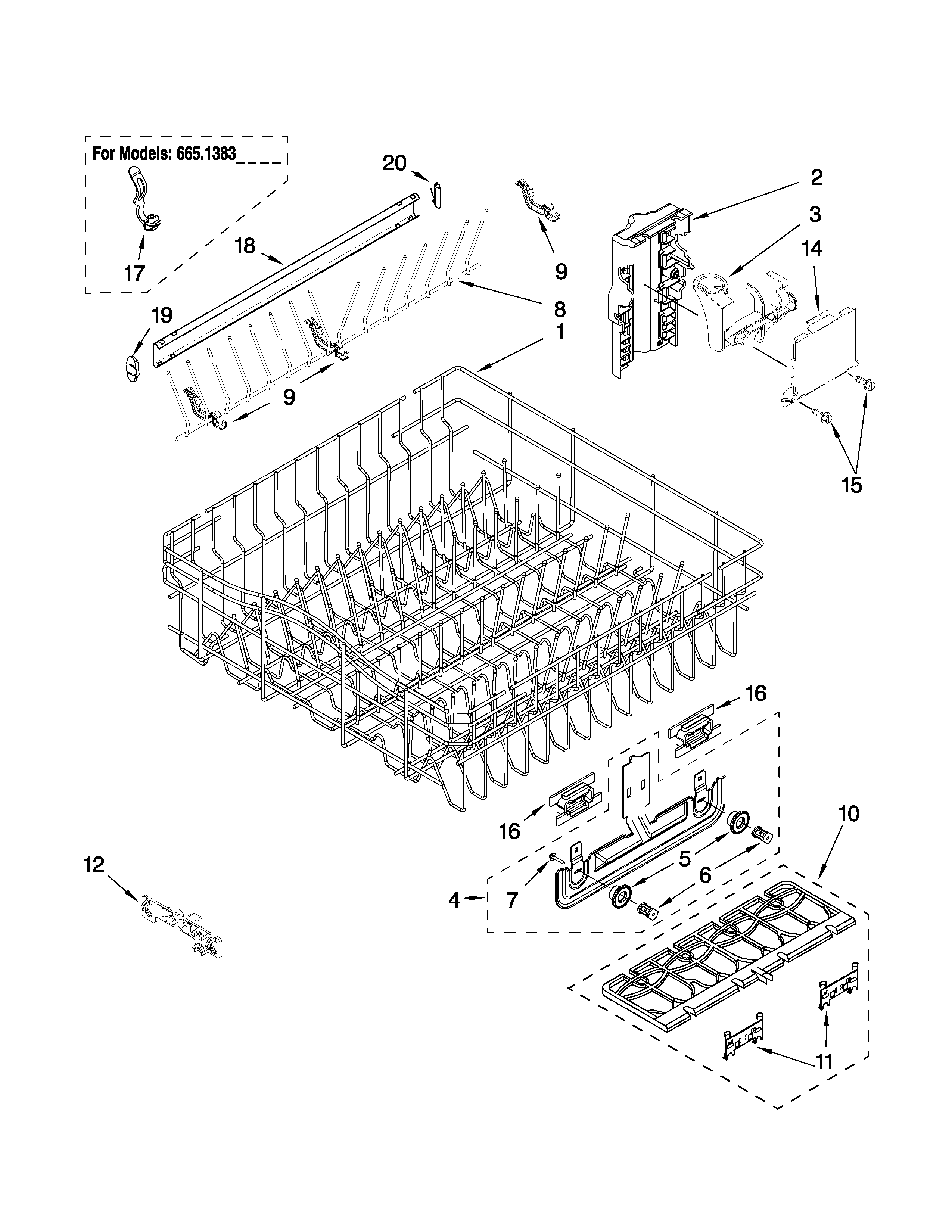

Upper rack and track parts diagram

Stop

Part #8565920

Replaced by #WP8565925

?
Manufacturer substitution
This part replaces 8565920. Substitute parts can look different from the original.
BEST SELLER
$8.34 |
11% OFF Phone Price : $9.34
In Stock
Pump Motor W10237166
#12

Pump and motor parts diagram

Pump motor

Part #W10237166

Replaced by #WPW10780877

?
Manufacturer substitution
This part replaces W10237166. Substitute parts can look different from the original.
BEST SELLER
$218.79 |
5% OFF Phone Price : $230.79
In Stock
Dishwasher Drain Hose 8269144
#17

Pump and motor parts diagram

Dishwasher drain hose

Part #8269144

Replaced by #8269144A

?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
BEST SELLER
$21.25 |
22% OFF Phone Price : $27.25
In Stock
Dishwasher Drain Hose W10137608
#9

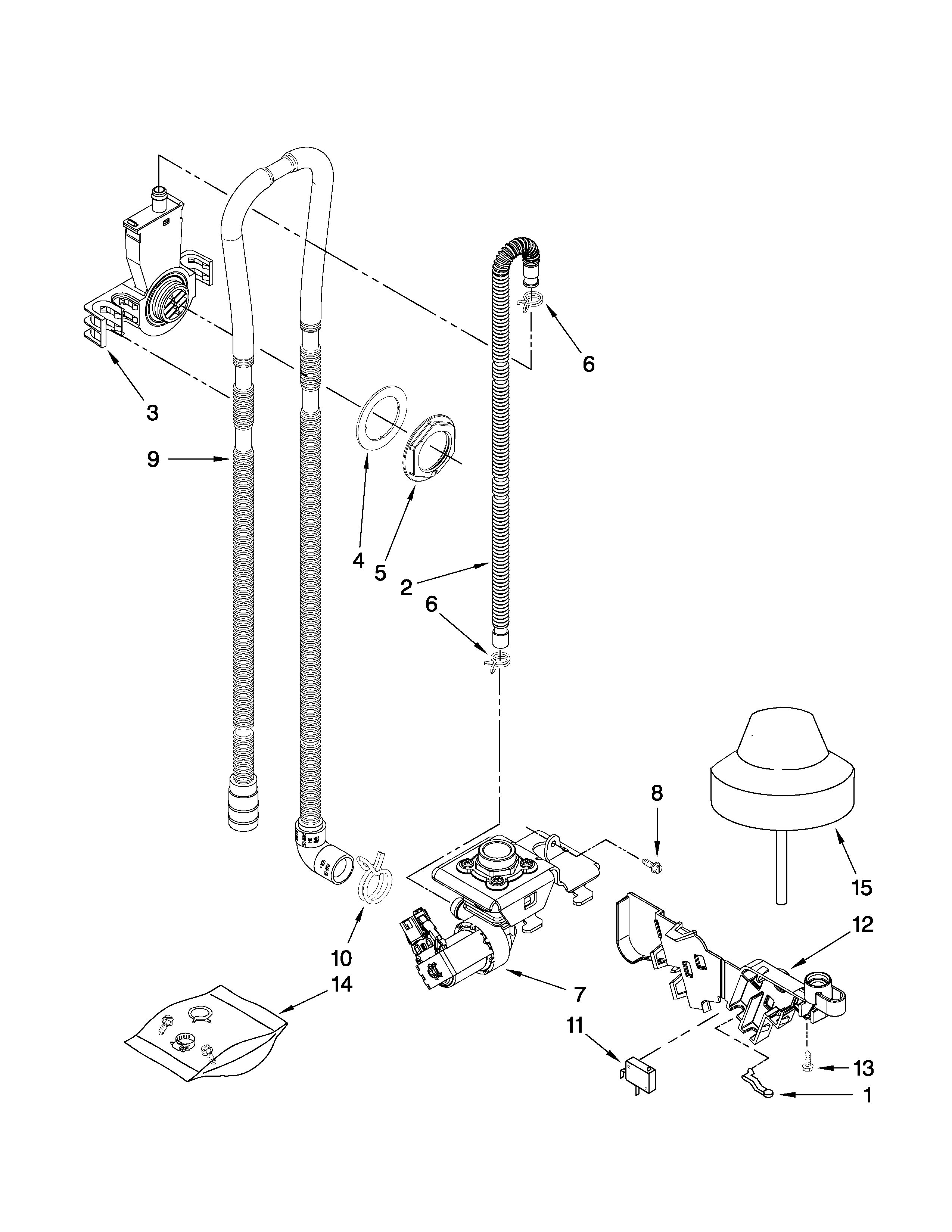

Fill, overflow and drain parts diagram

Dishwasher drain hose

Part #W10137608

Replaced by #WPW10545278

?
Manufacturer substitution
This part replaces W10137608. Substitute parts can look different from the original.
BEST SELLER
$41.40 |
13% OFF Phone Price : $47.40
In Stock
Dishwasher Turbidity Sensor W10134017
#23

Pump and motor parts diagram

Dishwasher turbidity sensor

Part #W10134017

Replaced by #WPW10705575

?
Manufacturer substitution
This part replaces W10134017. Substitute parts can look different from the original.
BEST SELLER
$22.13 |
21% OFF Phone Price : $28.13
In Stock
Seal 8269110
#NI

Optional parts (not included) diagram

Seal

Part #8269110

Replaced by #W10864081

?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
BEST SELLER
$54.57 |
10% OFF Phone Price : $60.57
In Stock
Dishwasher Vent Gasket 8269259
#6

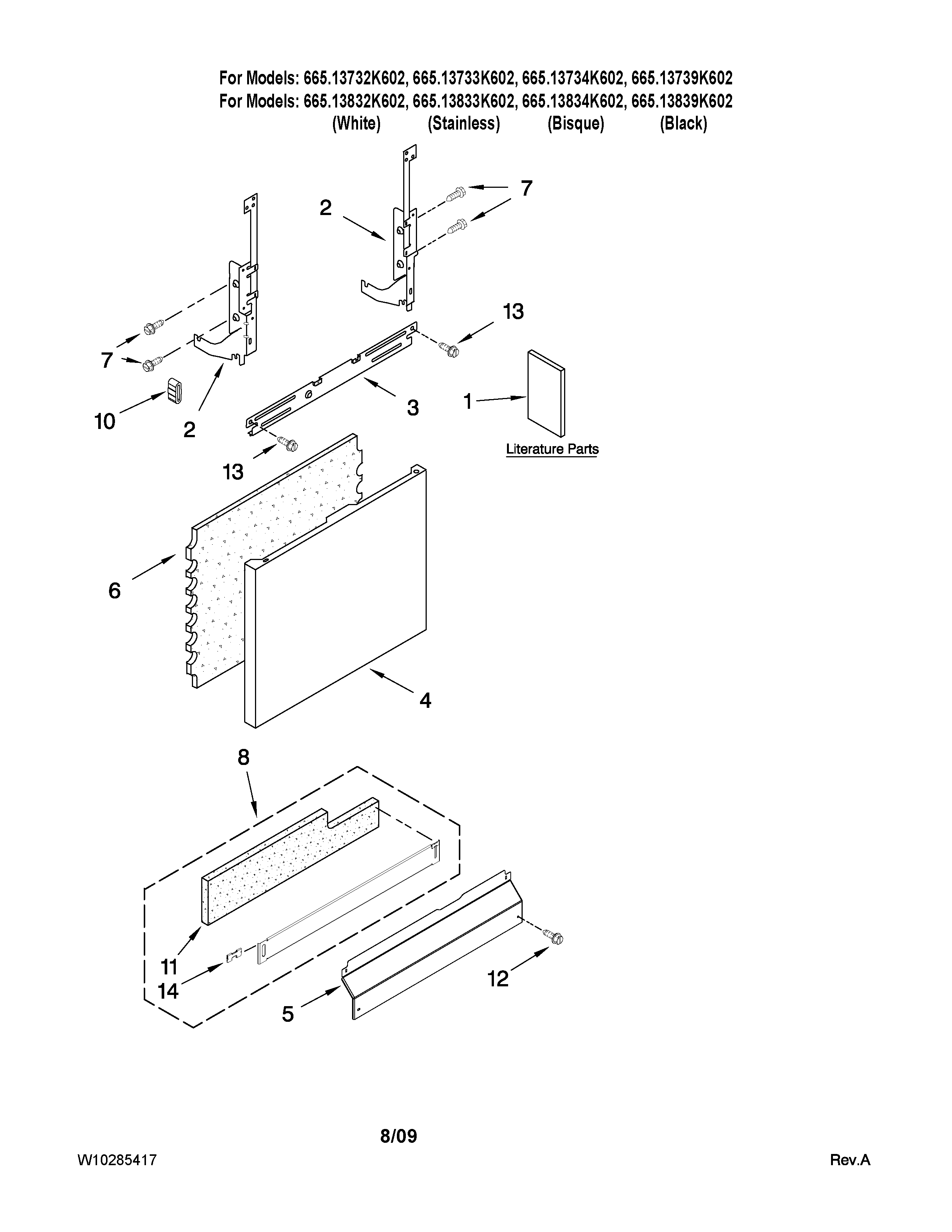

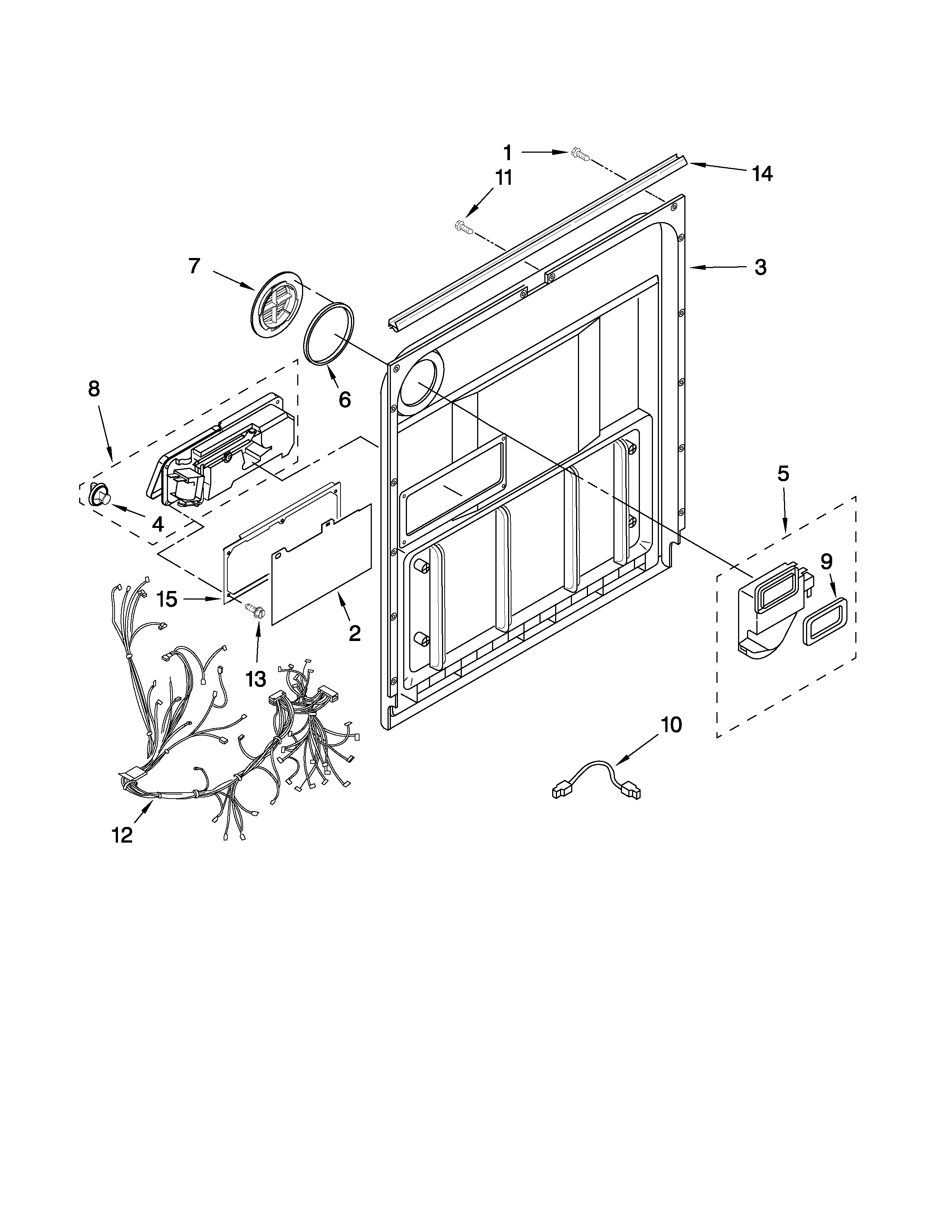

Door and latch parts diagram

Dishwasher vent gasket

Part #8269259

Replaced by #WP8269259

?
Manufacturer substitution
This part replaces 8269259. Substitute parts can look different from the original.
BEST SELLER
$31.73 |
16% OFF Phone Price : $37.73
In Stock
