Jenn-Air
Water & Ice System

Model # IMT100B/M7X26A Official Jenn-Air ice maker kit

Here are the diagrams and repair parts for Official Jenn-Air IMT100B-M7X26A ice maker kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Refrigerator Screw 400084-103
#4

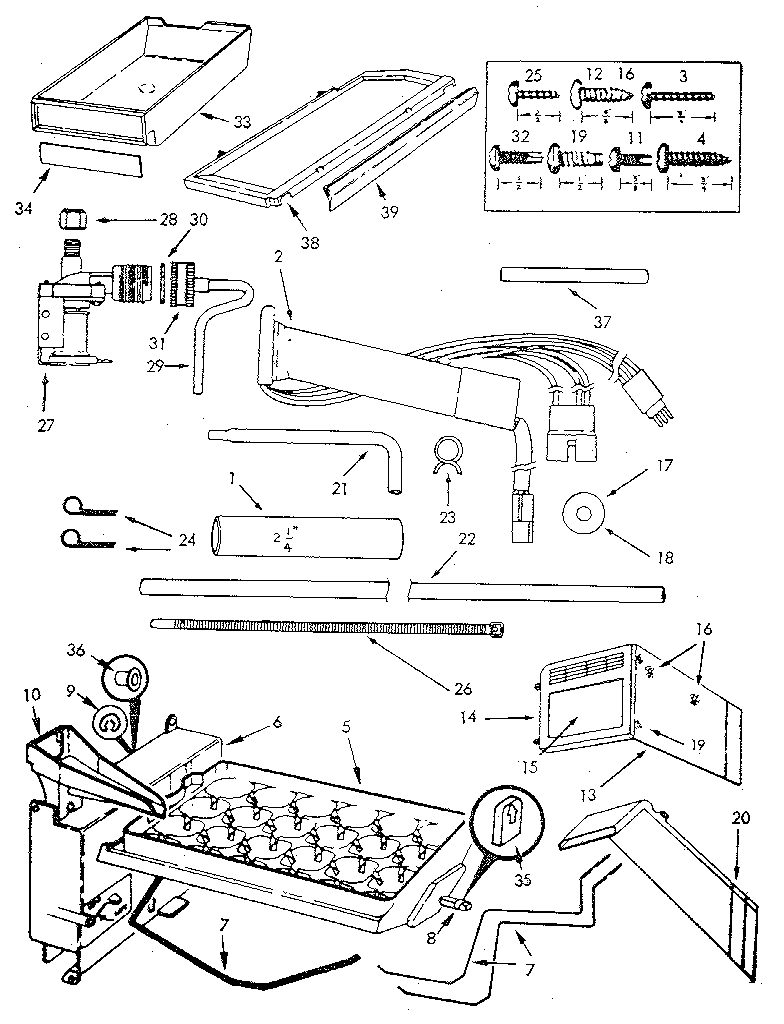

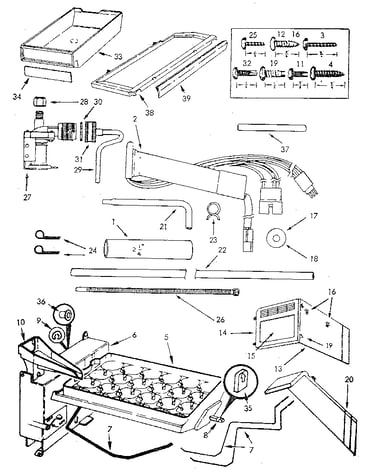

Icemaker diagram

Refrigerator screw

Part #400084-103

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 400084-103. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Tube 55602-1
#22

Icemaker diagram

Refrigerator tube

Part #55602-1

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 55602-1. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Screw 400016-1
#25

Icemaker diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 400022-1
#3

Icemaker diagram

Refrigerator screw

Part #400022-1

The manufacturer no longer makes this part, and there's no substitute part

Icecube Tray 59688-1
#5

Icemaker diagram

Icecube tray

Part #59688-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 24685-5
#30

Icemaker diagram

Washer

Part #24685-5

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 24685-5. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Water Valve 60184-1
#27

Icemaker diagram

Refrigerator water valve

Part #60184-1

Replaced by #4318047

?
Manufacturer substitution
This part replaces 60184-1. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Refrigerator Wire Tie 57576-1
#26

Icemaker diagram

Refrigerator wire tie

Part #57576-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Fill Tube 58461-3
#1

Icemaker diagram

Refrigerator fill tube

Part #58461-3

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Use And Care Guide 104169-1

#NI

All parts diagram

Refrigerator use and care guide

Part #104169-1

The manufacturer no longer makes this part, and there's no substitute part
