Model # FRA122CT115 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRA122CT115 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 44 parts |

Room Air Conditioner Blower Wheel 5304485443

#30

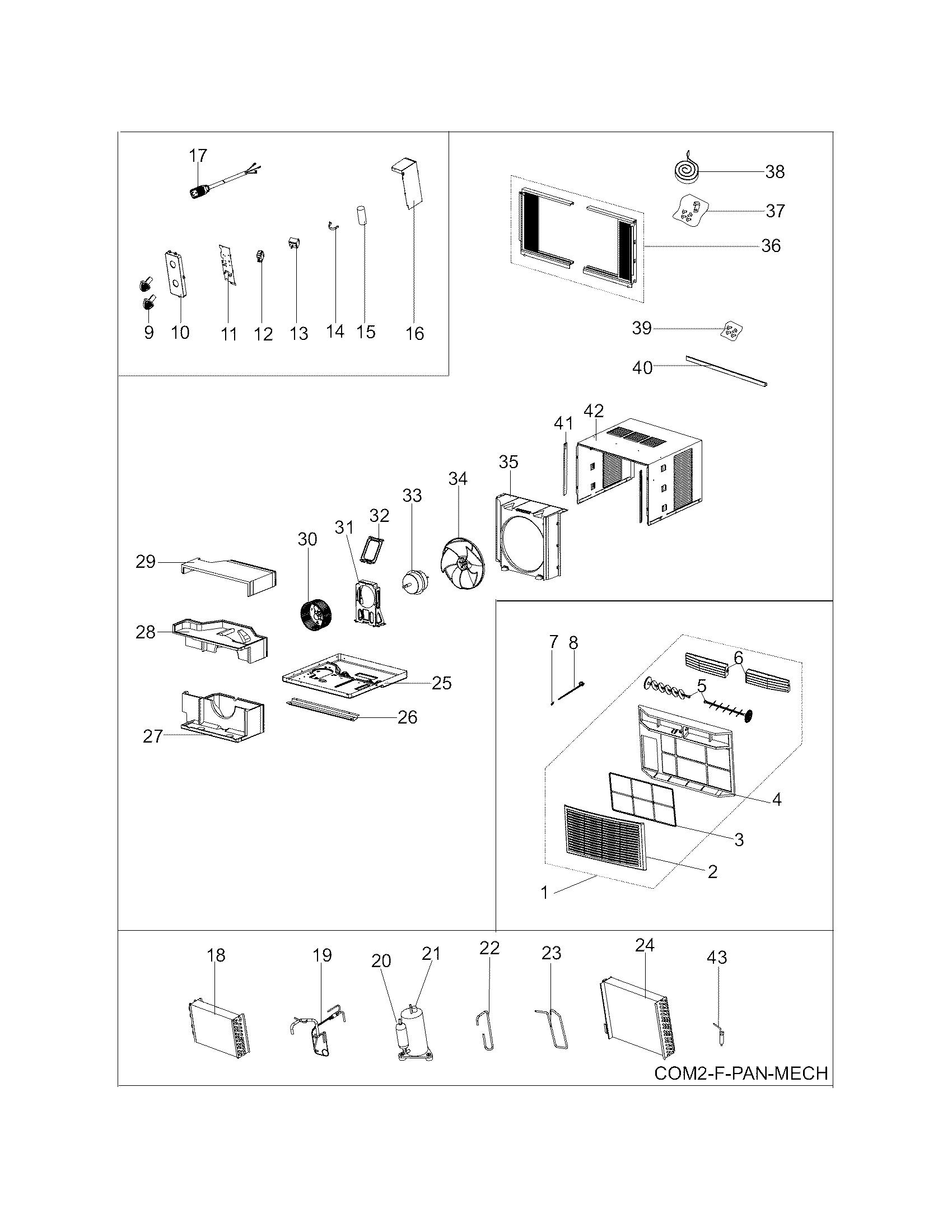

Recommended spare parts diagram

Room air conditioner blower wheel

Part #5304485443

$53.54 |

10% OFF Phone Price : $59.54

In Stock

Qty

Room Air Conditioner Filter Dryer 5304476201

#43

Recommended spare parts diagram

Room air conditioner filter dryer

Part #5304476201

$33.53 |

15% OFF Phone Price : $39.53

In Stock

Qty

Room Air Conditioner Fan Motor Capacitor 5304476066

#15

Recommended spare parts diagram

Room air conditioner fan motor capacitor

Part #5304476066

$108.78

In Stock

Qty

Recommended spare parts diagram

Sleeve

Part #5304476179

$13.29

In Stock

Qty

Room Air Conditioner Condenser Fan Blade (replaces 201100300031) 5304476059

#34

Recommended spare parts diagram

Room air conditioner condenser fan blade (replaces 201100300031)

Part #5304476059

$69.92 |

8% OFF Phone Price : $75.92

In Stock

Qty

Recommended spare parts diagram

Panel

Part #5304482738

$22.23

In Stock

Qty

#27

Recommended spare parts diagram

Scroll

Part #5304485967

$28.96

In Stock

Qty

#42

Recommended spare parts diagram

Cabinet

Part #5304476840

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Power Cord 5304476768

#17

Recommended spare parts diagram

Room air conditioner power cord

Part #5304476768

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Rotary Switch 5304476766

#13

Recommended spare parts diagram

Room air conditioner rotary switch

Part #5304476766

The manufacturer no longer makes this part, and there's no substitute part
