Model # 90871202 Official Craftsman battery charger

Here are the diagrams and repair parts for Official Craftsman 90871202 battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
#6 X 5/8 Pan Phillip Screw SC0005-1
#16

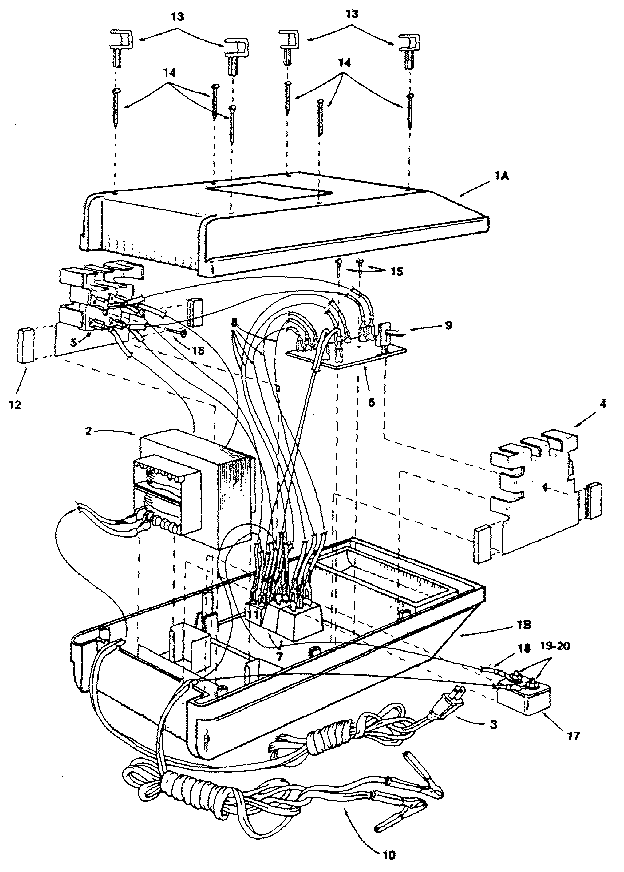

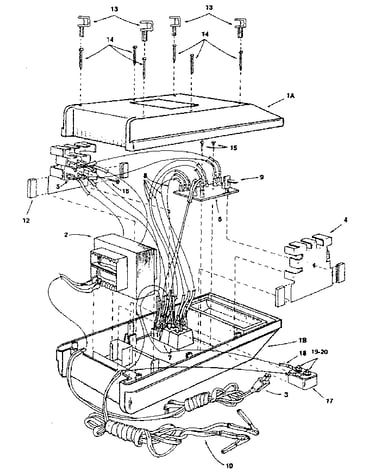

10 amp/2 amp/50 amp regular/deep cycle diagram

#6 x 5/8 pan phillip screw

Part #SC0005-1

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink HS0002-1
#4

10 amp/2 amp/50 amp regular/deep cycle diagram

Heat sink

Part #HS0002-1

The manufacturer no longer makes this part, and there's no substitute part

Bridg Rectfr BR0025-1
#5

10 amp/2 amp/50 amp regular/deep cycle diagram

Bridg rectfr

Part #BR0025-1

The manufacturer no longer makes this part, and there's no substitute part

Cable Holder CT0001-1
#13

10 amp/2 amp/50 amp regular/deep cycle diagram

Cable holder

Part #CT0001-1

The manufacturer no longer makes this part, and there's no substitute part

Wire W/250 Tab + Ring AFL1248-1
#18

10 amp/2 amp/50 amp regular/deep cycle diagram

Wire w/250 tab + ring

Part #AFL1248-1

The manufacturer no longer makes this part, and there's no substitute part

38x11/4p Sc SC0001-1
#14

10 amp/2 amp/50 amp regular/deep cycle diagram

38x11/4p sc

Part #SC0001-1

The manufacturer no longer makes this part, and there's no substitute part

Transformer ATR006-1
#2

10 amp/2 amp/50 amp regular/deep cycle diagram

Transformer

Part #ATR006-1

The manufacturer no longer makes this part, and there's no substitute part

A/c Cord AML001-1
#3

10 amp/2 amp/50 amp regular/deep cycle diagram

A/c cord

Part #AML001-1

The manufacturer no longer makes this part, and there's no substitute part

Output Cord W/clips AOL1248-1
#10

10 amp/2 amp/50 amp regular/deep cycle diagram

Output cord w/clips

Part #AOL1248-1

The manufacturer no longer makes this part, and there's no substitute part

Wire W/250 Series Tabs AFL1222-1
#8

10 amp/2 amp/50 amp regular/deep cycle diagram

Wire w/250 series tabs

Part #AFL1222-1

The manufacturer no longer makes this part, and there's no substitute part
