Kenmore
Upright Vacuum

Model # 11634612304 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 11634612304 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Vacuum Drive Belt 4369591
#29

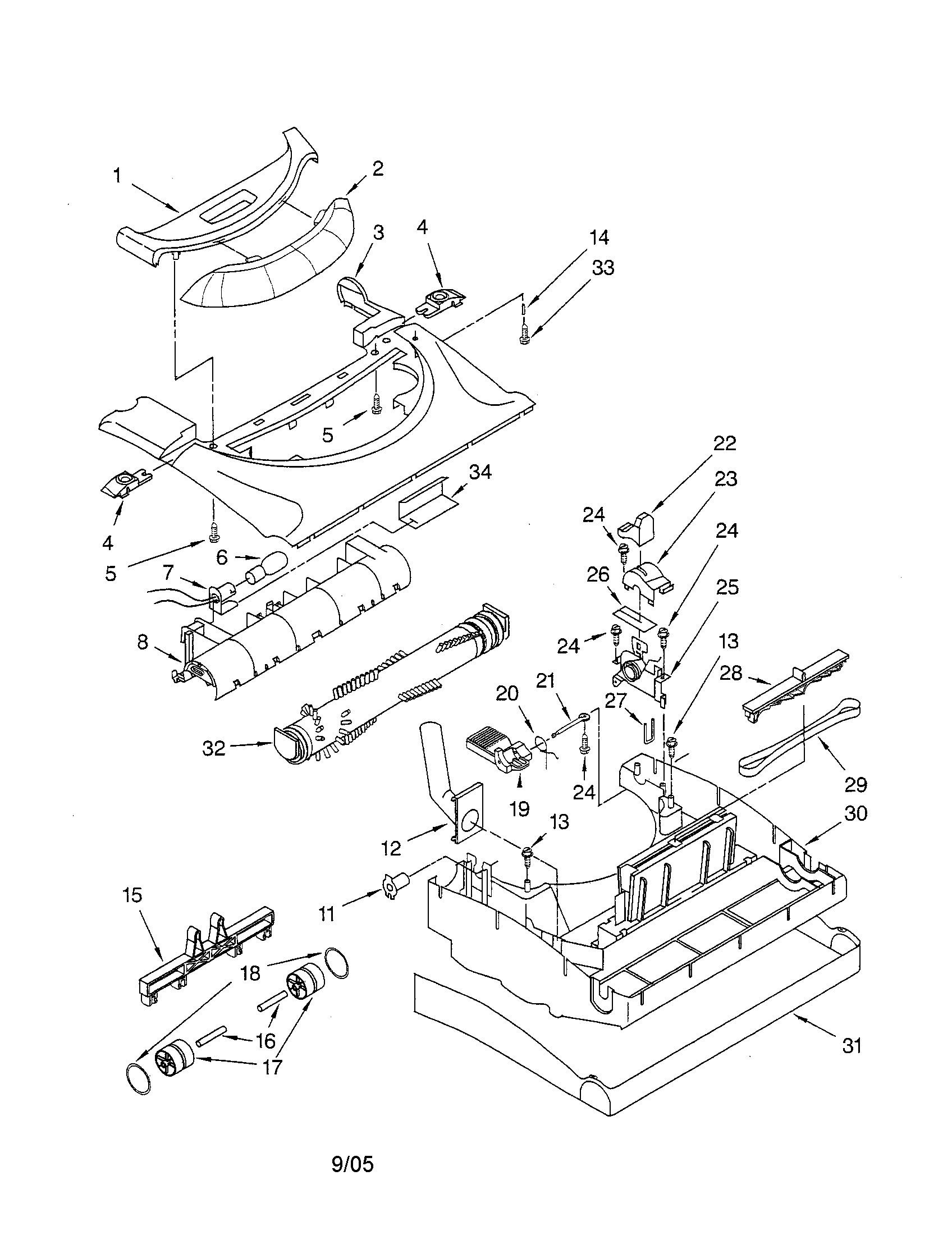

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

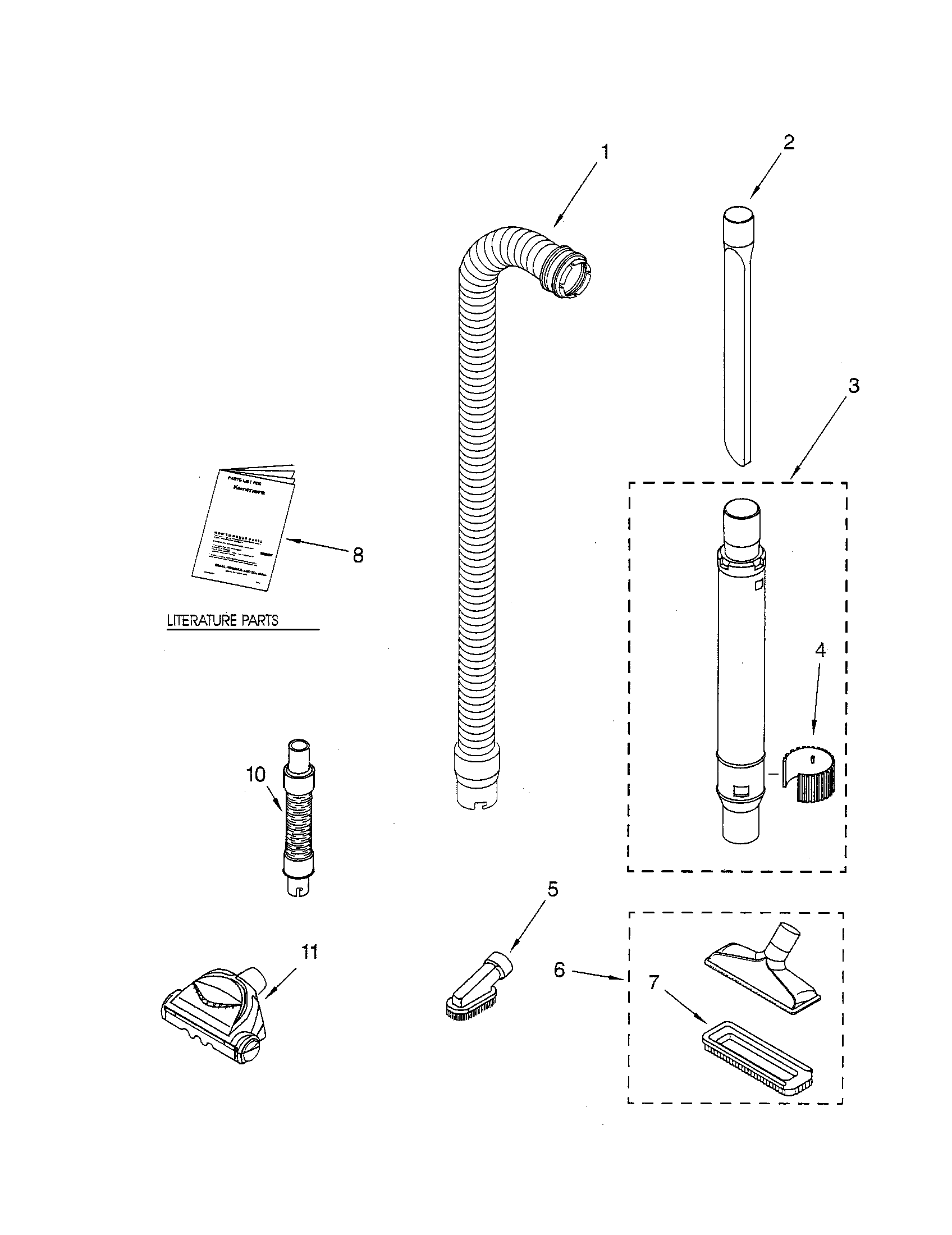

Hose and attachments diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#3

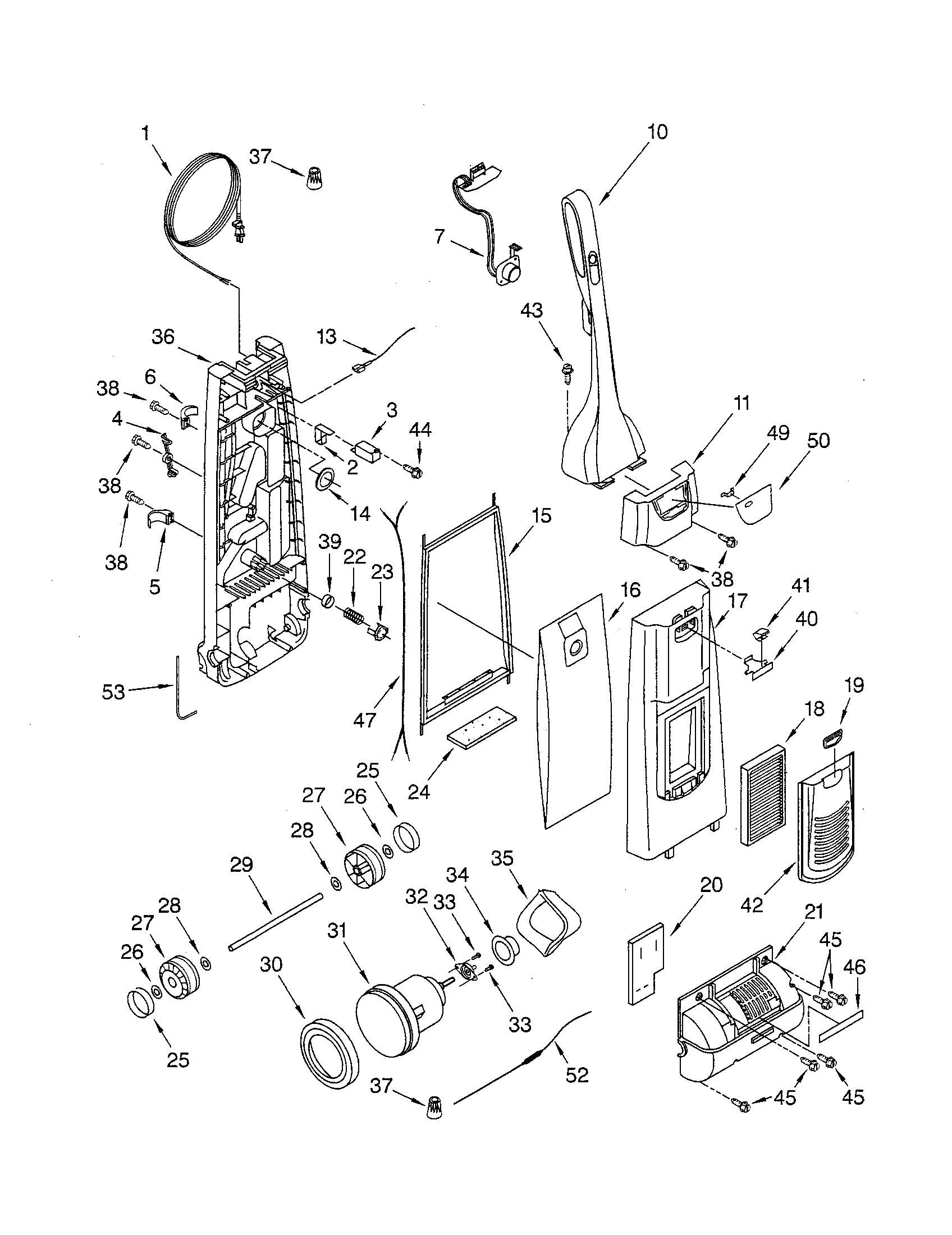

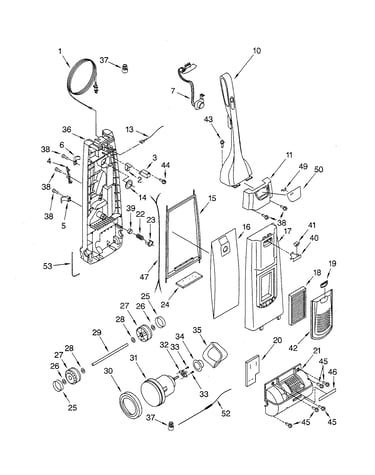

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Window-lgt 8174863
#1

Nozzle diagram

Window-lgt

Part #8174863

The manufacturer no longer makes this part, and there's no substitute part

Packing 4370544
#26

Nozzle diagram

Packing

Part #4370544

The manufacturer no longer makes this part, and there's no substitute part

Screw 8191785
#33

Dust compartment and motor diagram

Screw

Part #8191785

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4370182
#17

Nozzle diagram

Vacuum wheel

Part #4370182

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Latch 4370411
#4

Nozzle diagram

Nozzle latch

Part #4370411

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand Lock Clip 4370392
#6

Dust compartment and motor diagram

Vacuum wand lock clip

Part #4370392

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…

Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…

Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…

Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
