GE
Gas Wall Oven

Model # JGRS14BEW6BB Official GE gas wall oven

Here are the diagrams and repair parts for Official GE JGRS14BEW6BB gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Igniter WB02X9154
#316

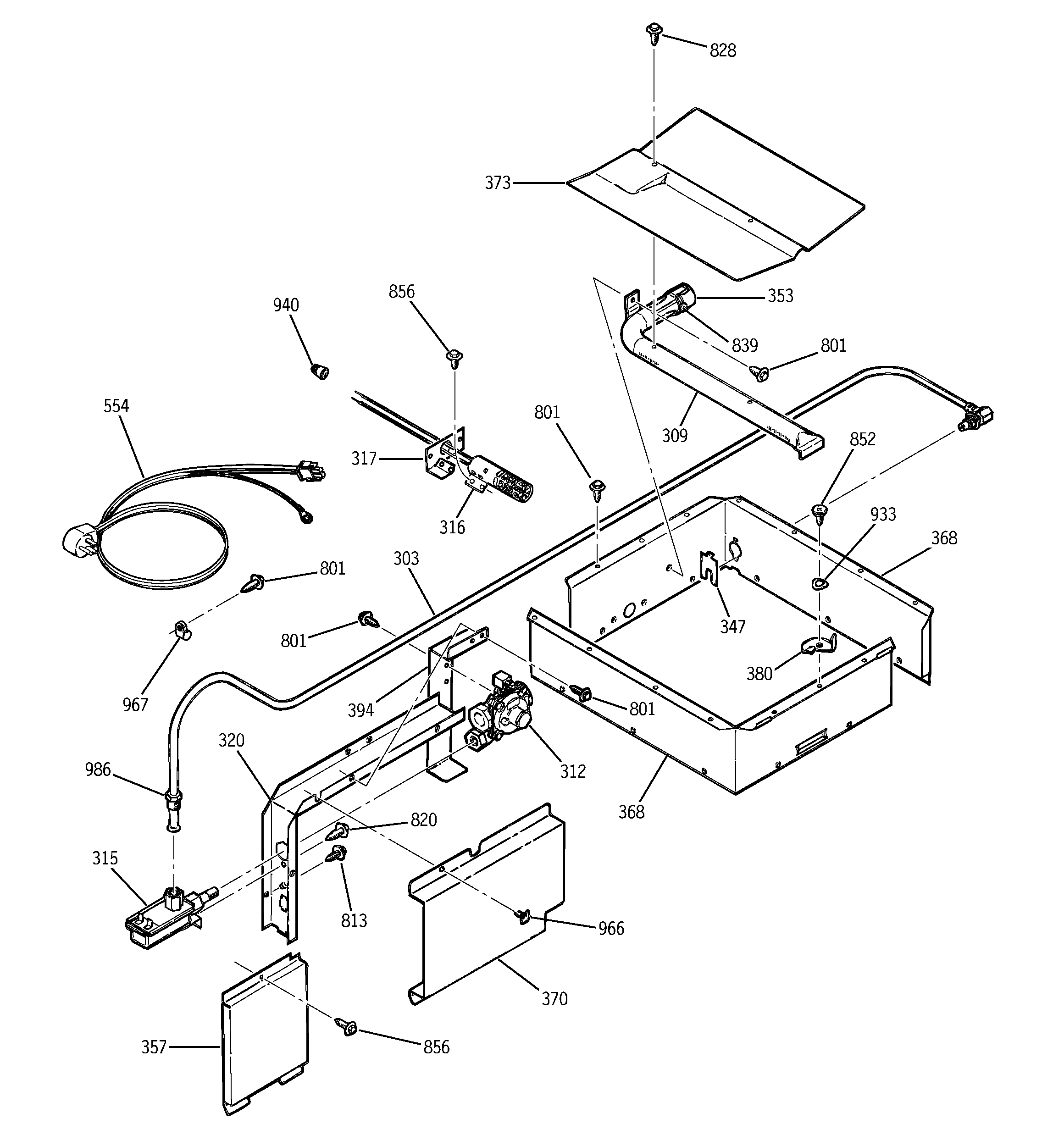

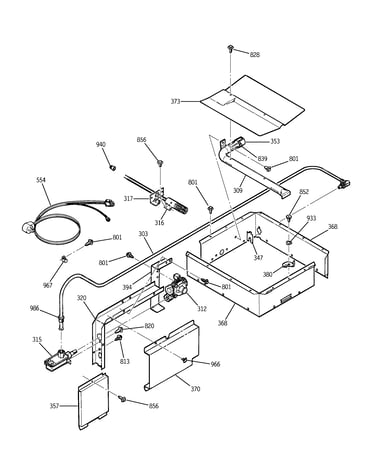

Gas & burner parts diagram

Igniter

Part #WB02X9154

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB02X9154. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
Back Order
Sensor WB21X5347
#253

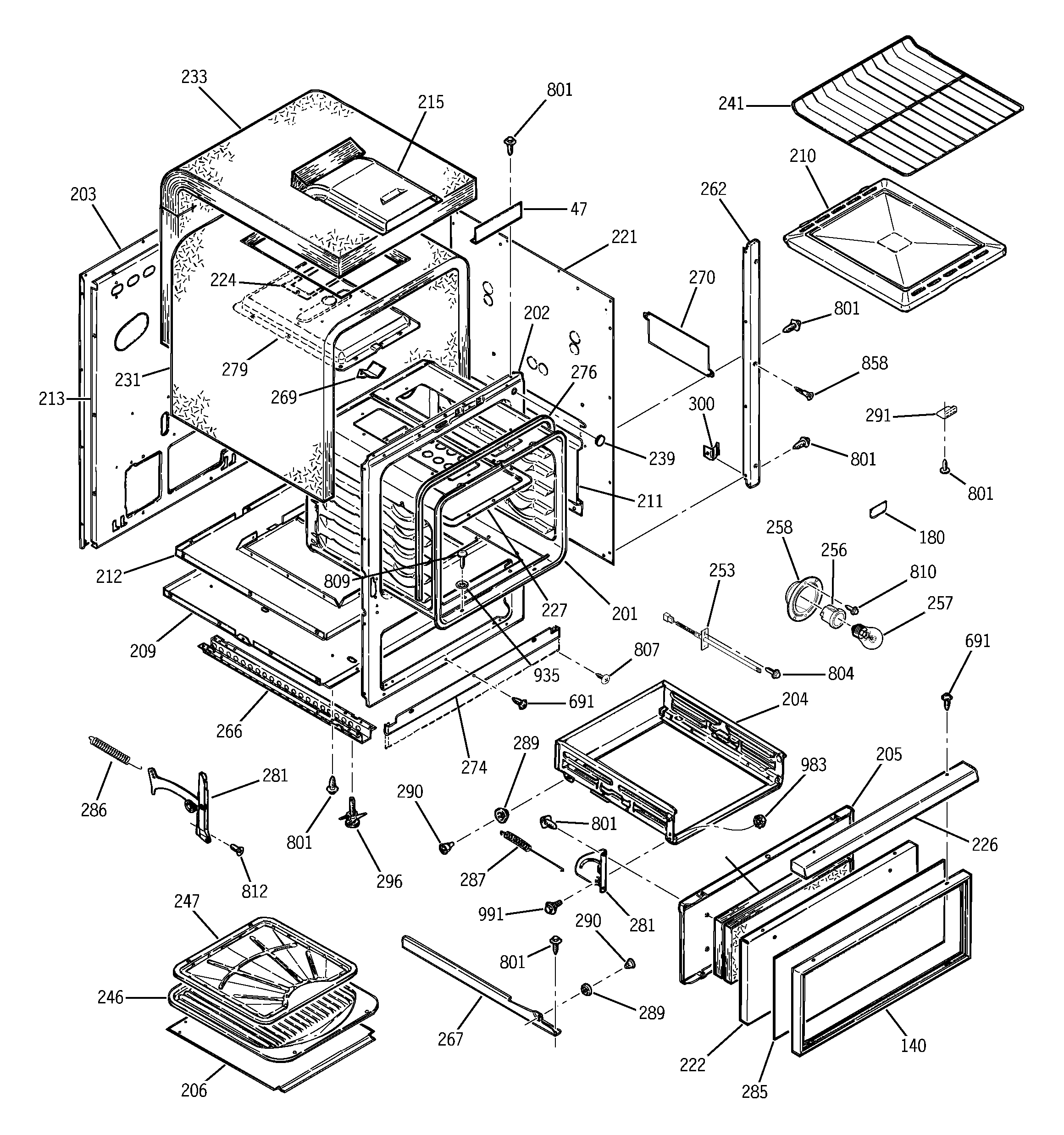

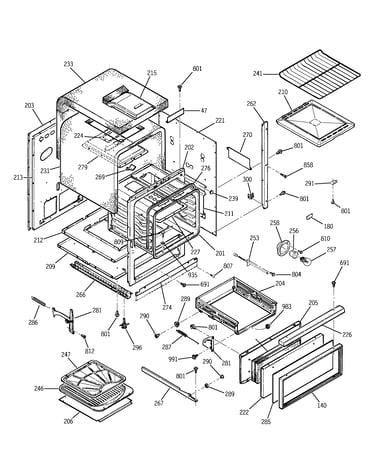

Body parts diagram

Sensor

Part #WB21X5347

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Oven Rack WB48X0218
#241

Body parts diagram

Oven rack

Part #WB48X0218

Replaced by #WB48T10094

?
Manufacturer substitution
This part replaces WB48X0218. Substitute parts can look different from the original.
$30.47 |
16% OFF Phone Price : $36.47
Back Order
Screw WB01X1293
#856

Gas & burner parts diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Handle WB07T10420
#397

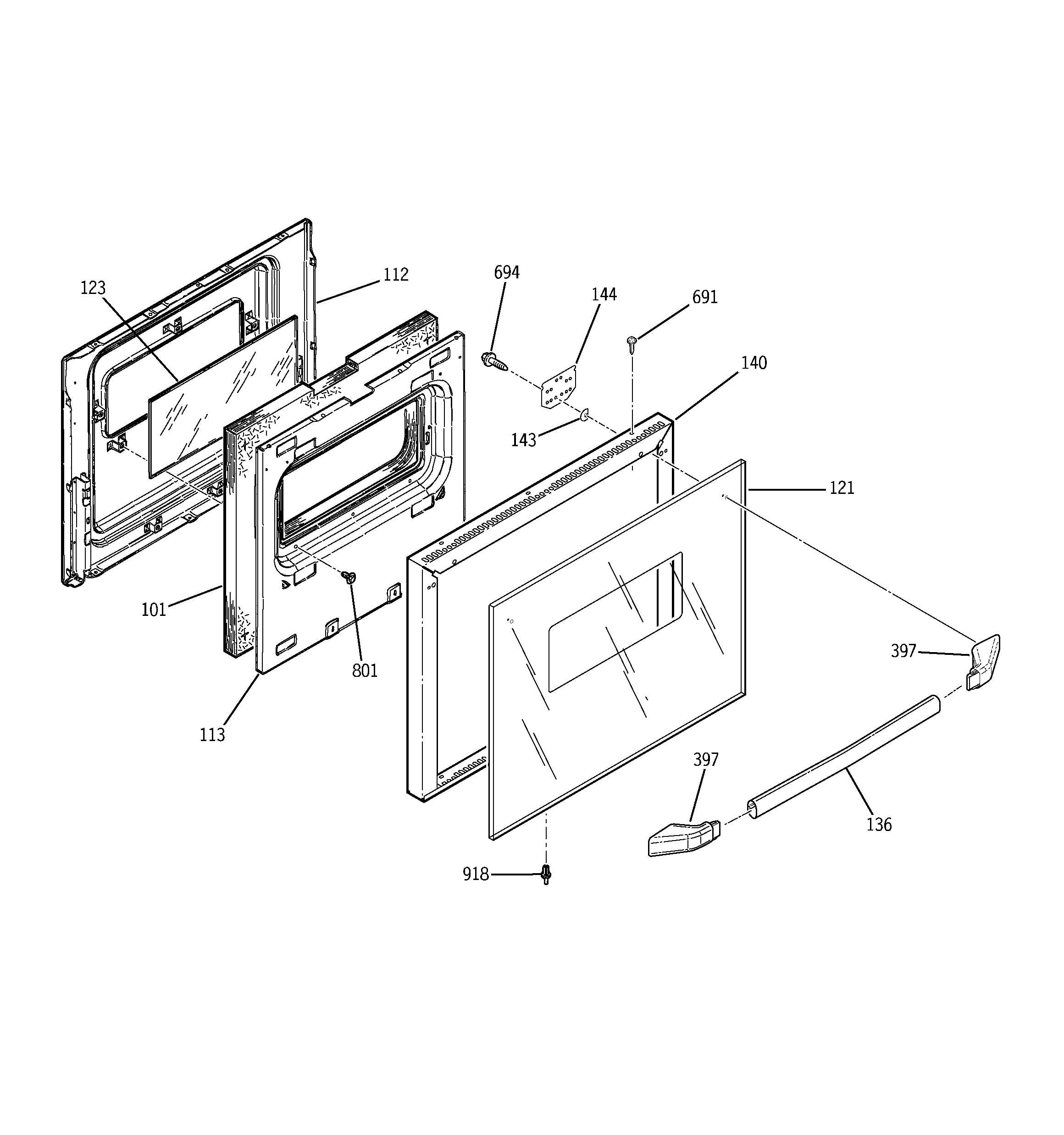

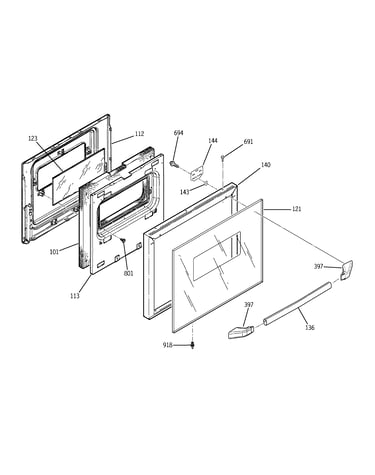

Door diagram

Door handle

Part #WB07T10420

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB07T10420. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Wall Oven Door Outer Panel (black) (replaces Wb57k5060, Wb57k5258) WB57K5256
#121

Door diagram

Wall oven door outer panel (black) (replaces wb57k5060, wb57k5258)

Part #WB57K5256

$67.37 |
8% OFF Phone Price : $73.37
In Stock
Range Oven Bottom Panel WB63T10019
#210

Body parts diagram

Range oven bottom panel

Part #WB63T10019

$64.20 |
9% OFF Phone Price : $70.20
In Stock
Pressure Regulator WB19K5032
#312

Gas & burner parts diagram

Pressure regulator

Part #WB19K5032

Replaced by #WB19T10079

?
Manufacturer substitution
This part replaces WB19K5032. Substitute parts can look different from the original.
$75.12 |
7% OFF Phone Price : $81.12
In Stock
Screw WB01K5028
#760

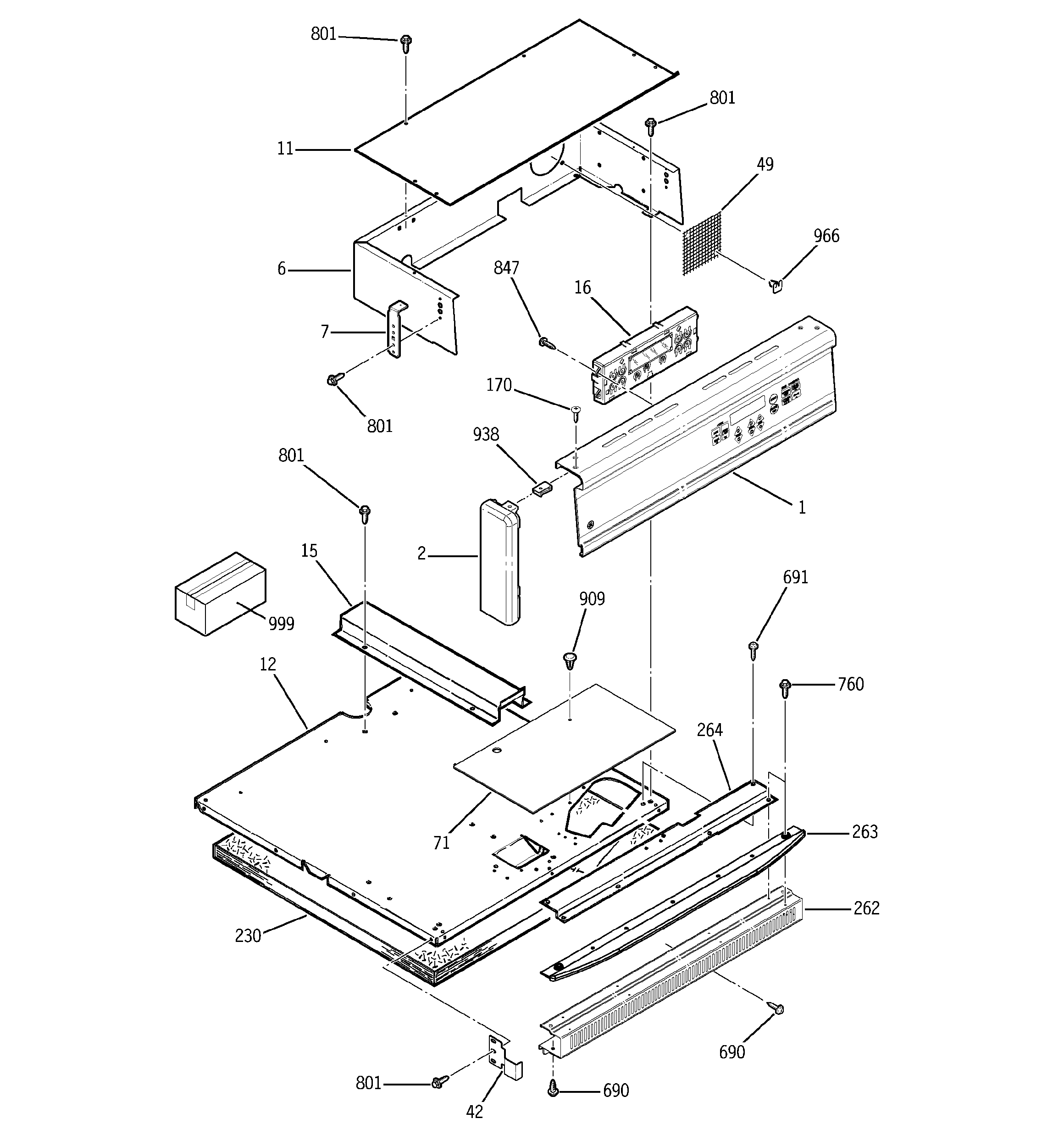

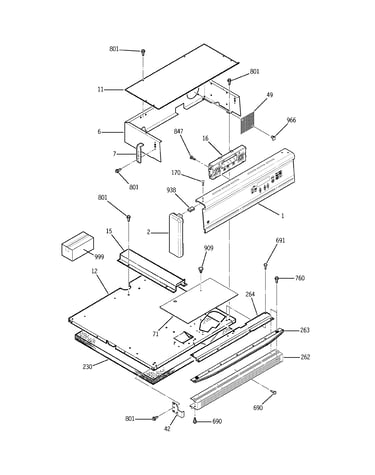

Control panel diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
