Electric Cooktop

Model # ZHU36RSP1SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE ZHU36RSP1SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

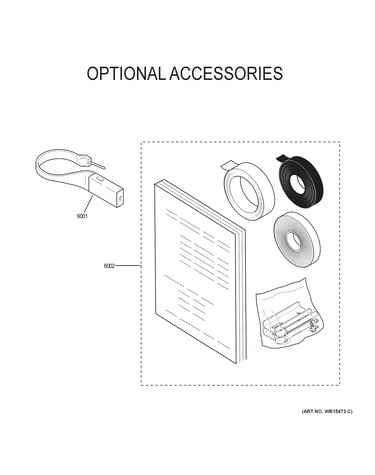

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Induction Assembly WB27X27184
#7

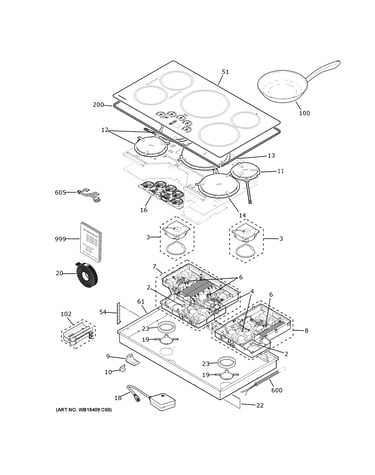

Control panel & cooktop diagram

Induction assembly

Part #WB27X27184

$409.80
In Stock
Element Induction 3700w WB30X38227
#13

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X38227

$111.10
In Stock
Element Induction 2500w WB30X38226
#12

Control panel & cooktop diagram

Element induction 2500w

Part #WB30X38226

$100.60
In Stock
Induction Assembly WB27X27185
#8

Control panel & cooktop diagram

Induction assembly

Part #WB27X27185

Replaced by #WB27X33086

?
Manufacturer substitution
This part replaces WB27X27185. Substitute parts can look different from the original.
$372.30 |
$12.00 OFF Phone Price : $384.30
In Stock
Tub Insulation WB35X24125
#200

Control panel & cooktop diagram

Tub insulation

Part #WB35X24125

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Cooktop Induction Element, 1,800-watt WB30X38225
#11

Control panel & cooktop diagram

Cooktop induction element, 1,800-watt

Part #WB30X38225

$72.11
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Display Board WB27X40286
#16

Control panel & cooktop diagram

Display board

Part #WB27X40286

$291.33
In Stock
Baffle WB02X26802
#22

Control panel & cooktop diagram

Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Board Rj45 C WB27X24119
#10

Control panel & cooktop diagram

Board rj45 c

Part #WB27X24119

$28.71 |
17% OFF Phone Price : $34.71
In Stock
