Samsung
Countertop Microwave

Model # MS1040BB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MS1040BB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Microwave Diode DE91-70063A
#3

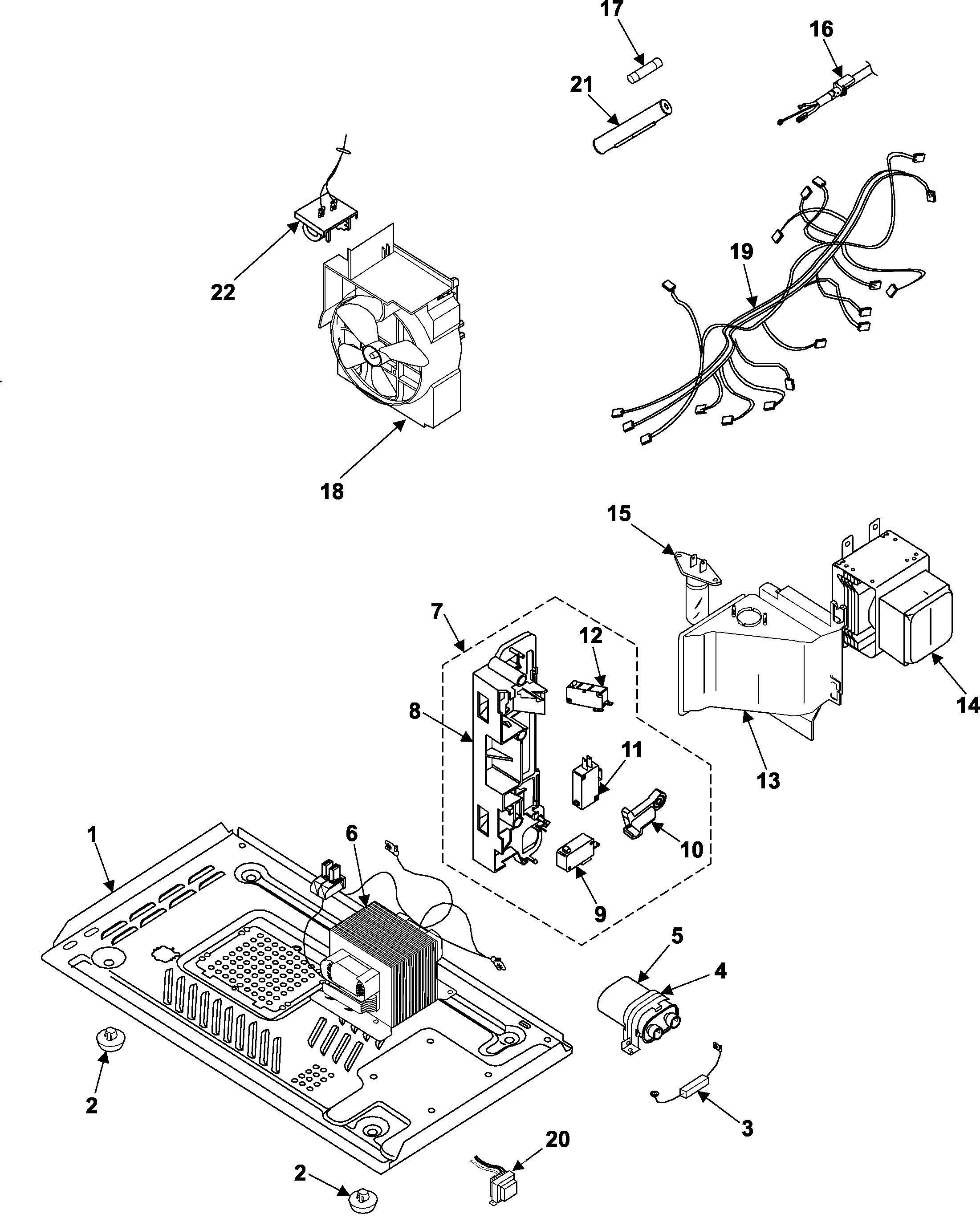

Internal control/latch assy/base diagram

Microwave diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Switch 3405-001042
#9

Internal control/latch assy/base diagram

Switch

Part #3405-001042

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
Back Order
Microwave Door Micro-switch 3405-001033
#11

Internal control/latch assy/base diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave High-voltage Capacitor 2501-001016
#5

Internal control/latch assy/base diagram

Microwave high-voltage capacitor

Part #2501-001016

$57.07 |
10% OFF Phone Price : $63.07
In Stock
Microwave Glass Turntable Tray DE74-20015G
#3

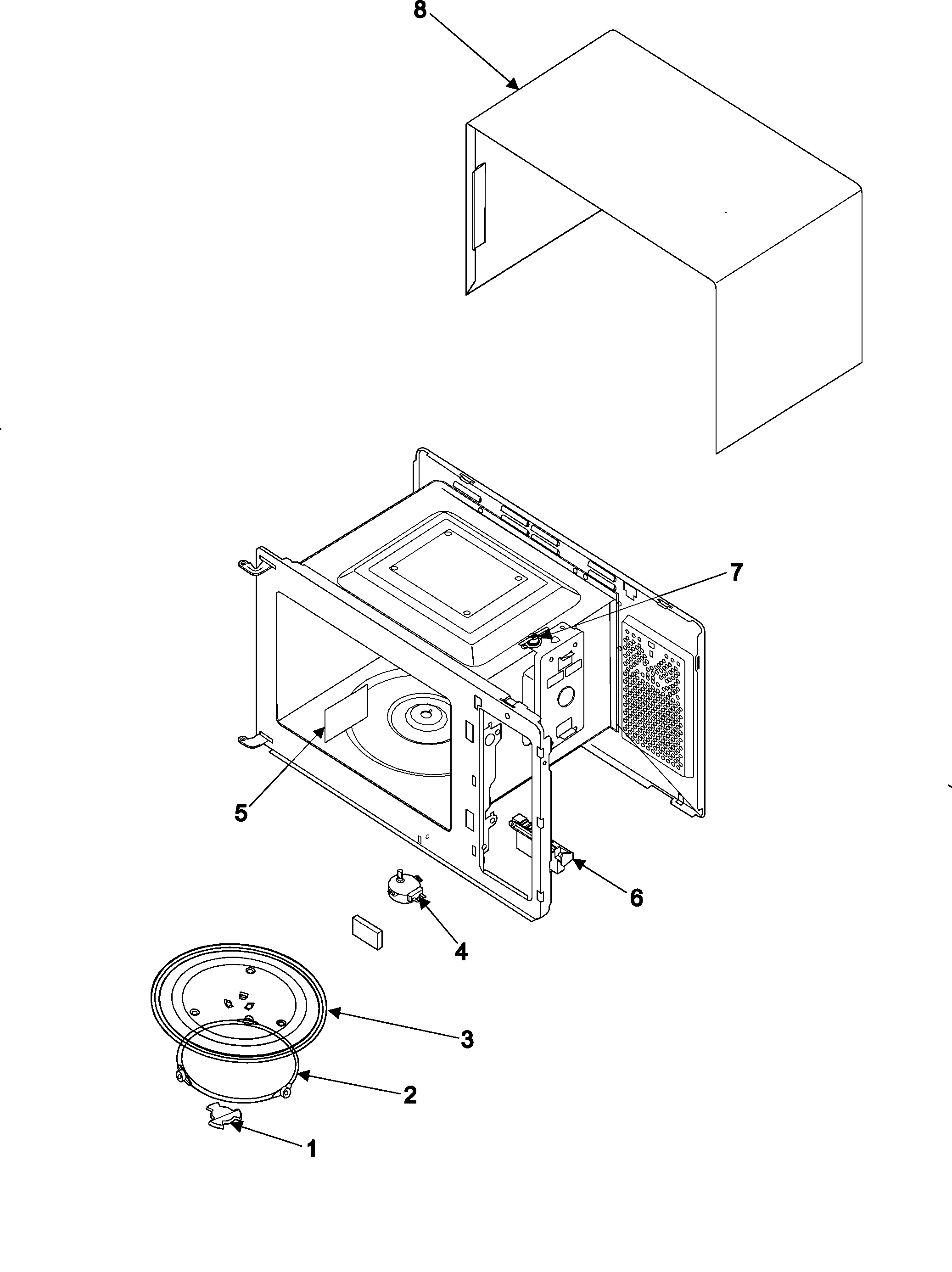

Body/cavity/elements diagram

Microwave glass turntable tray

Part #DE74-20015G

$45.98 |
12% OFF Phone Price : $51.98
In Stock
Lever DE66-90113A
#6

Body/cavity/elements diagram

Lever

Part #DE66-90113A

$24.93
In Stock
Holder DE47-40025A
#21

Internal control/latch assy/base diagram

Holder

Part #DE47-40025A

$14.51
In Stock
Door Panel DE64-40012A
#7

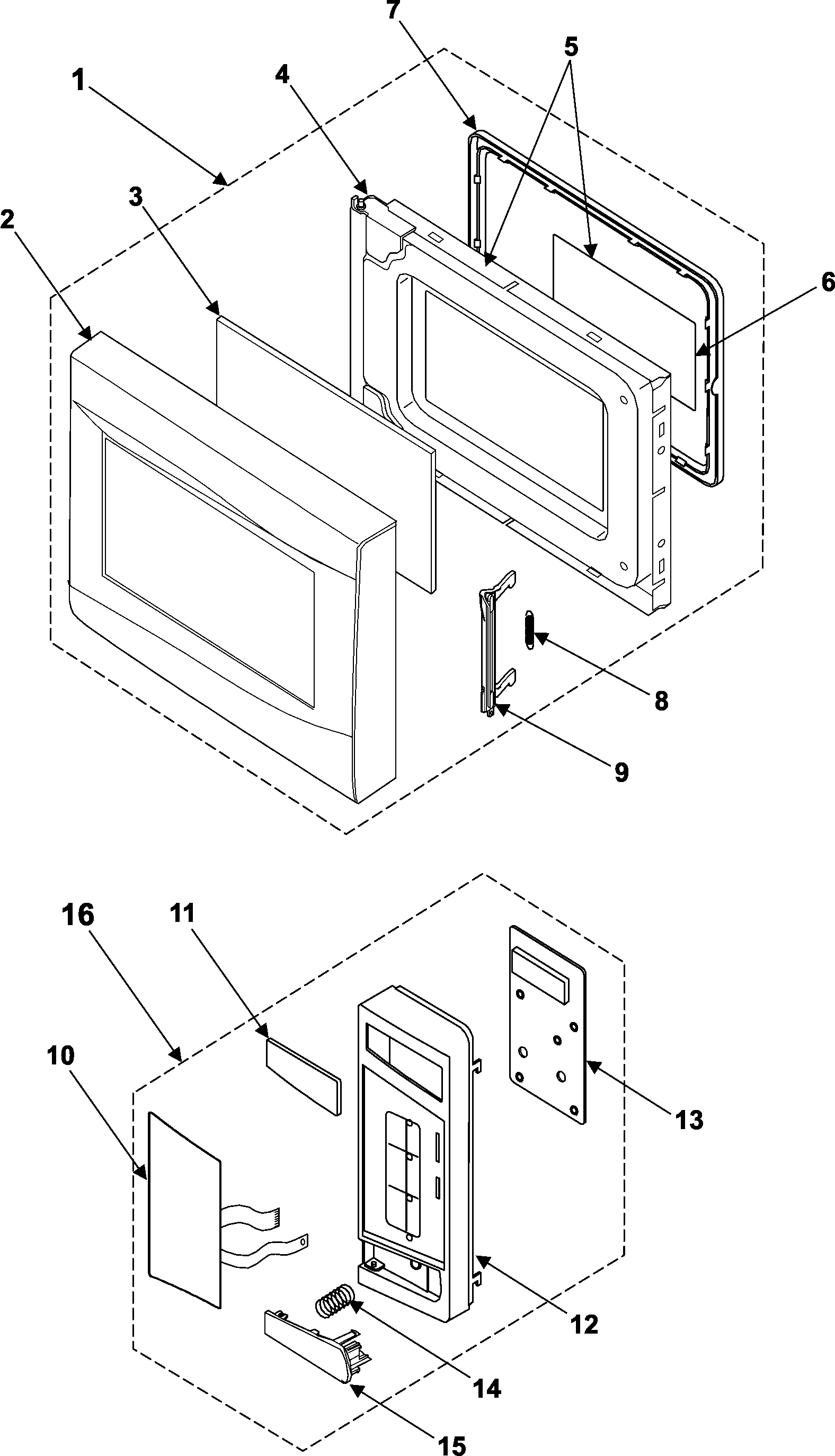

Control panel/door assembly diagram

Door panel

Part #DE64-40012A

$14.51
In Stock
Choke Cover DE01-00118A
#6

Control panel/door assembly diagram

Choke cover

Part #DE01-00118A

$12.40 |
14% OFF Phone Price : $14.40
In Stock
Lever DE66-00088A
#10

Internal control/latch assy/base diagram

Lever

Part #DE66-00088A

$16.94
In Stock
