Model # RHA60A3B/P1180225C Official Amana air conditioner & heater

Here are the diagrams and repair parts for Official Amana RHA60A3B-P1180225C air conditioner & heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

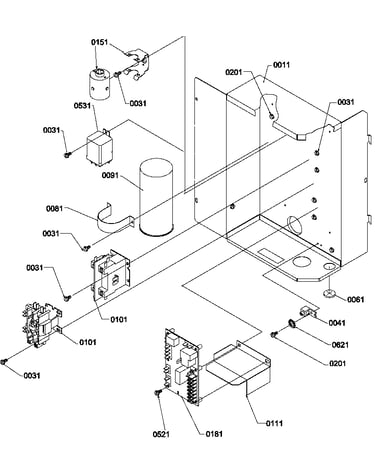

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Condenser Fan 10625707
#2031

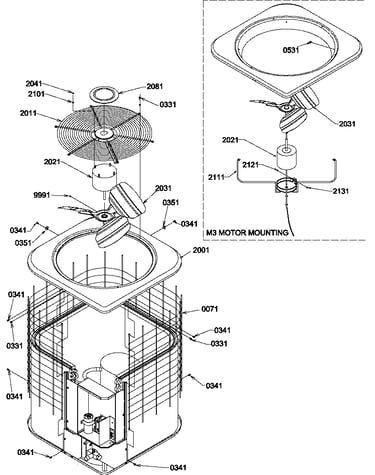

Cabinet diagram

Condenser fan

Part #10625707

$119.74
In Stock
Cover, Compressor Terminal C6304901
#9882

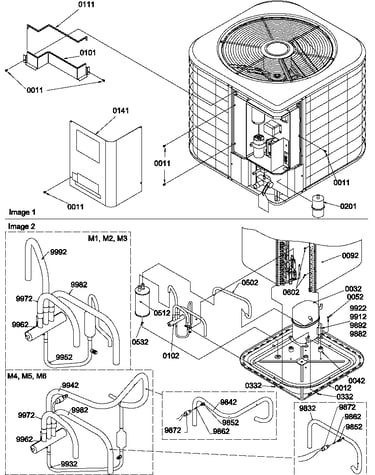

Outer cabinet/compressor/tubing diagram

Cover, compressor terminal

Part #C6304901

The manufacturer no longer makes this part, and there's no substitute part

Comp-tc Avd5545exn 10679710
#32

Outer cabinet/compressor/tubing diagram

Comp-tc avd5545exn

Part #10679710

The manufacturer no longer makes this part, and there's no substitute part

Gage Port 10808421
#541

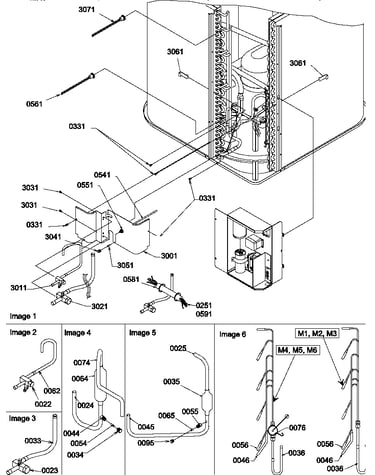

Tubing diagram

Gage port

Part #10808421

The manufacturer no longer makes this part, and there's no substitute part

Condenser Fan 10625710
#2031

Cabinet diagram

Condenser fan

Part #10625710

The manufacturer no longer makes this part, and there's no substitute part

Filler-control 10597406
#101

Outer cabinet/compressor/tubing diagram

Filler-control

Part #10597406

The manufacturer no longer makes this part, and there's no substitute part

Rha48a3b-spec Sht 10767398

#NI

All parts diagram

Rha48a3b-spec sht

Part #10767398

The manufacturer no longer makes this part, and there's no substitute part

Tube-muffler/comp 11027301
#74

Tubing diagram

Tube-muffler/comp

Part #11027301

The manufacturer no longer makes this part, and there's no substitute part

Harness-comp 10651509
#251

Tubing diagram

Harness-comp

Part #10651509

The manufacturer no longer makes this part, and there's no substitute part

Rvlv/comp 20037601
#9942

Outer cabinet/compressor/tubing diagram

Rvlv/comp

Part #20037601

The manufacturer no longer makes this part, and there's no substitute part
