Model # 25354674300 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 25354674300 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

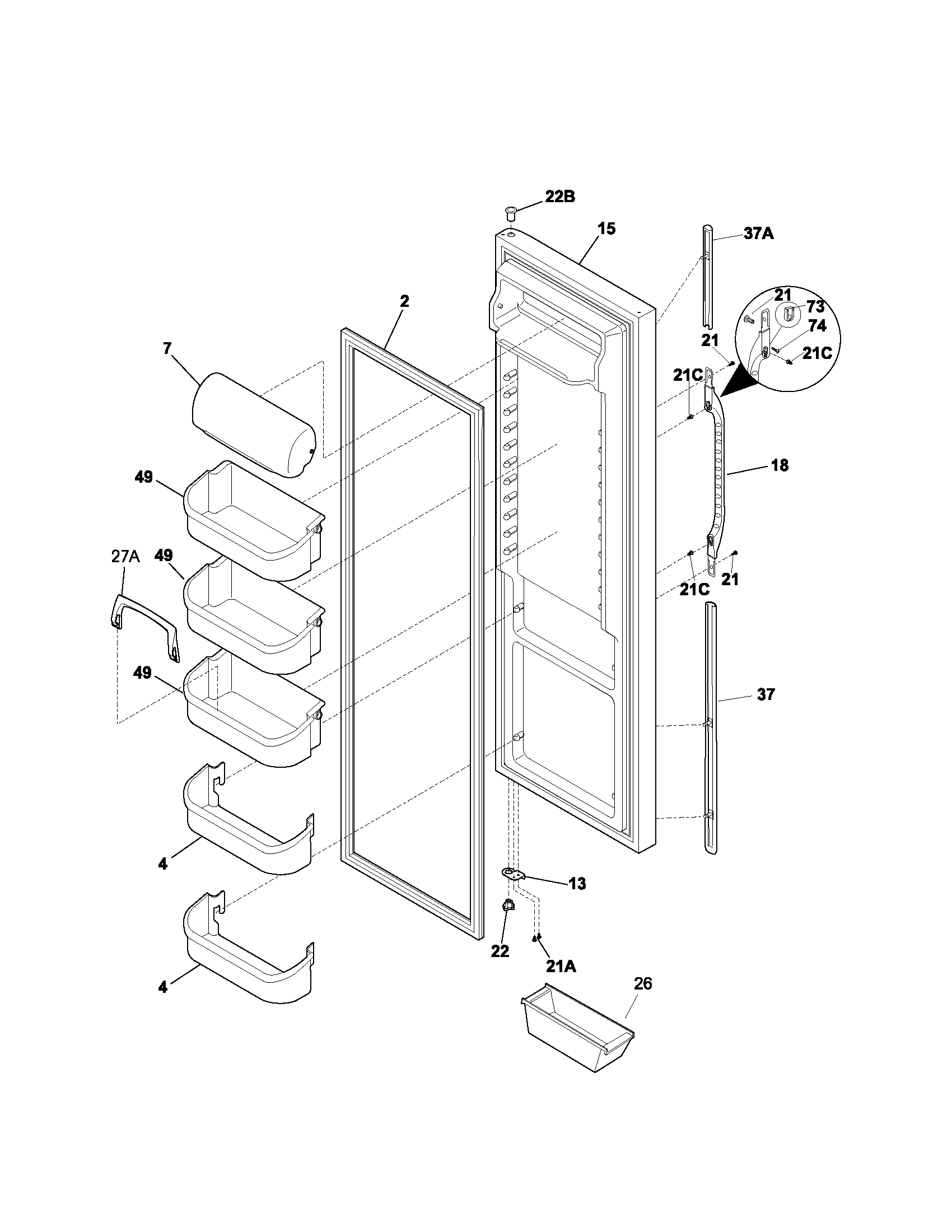

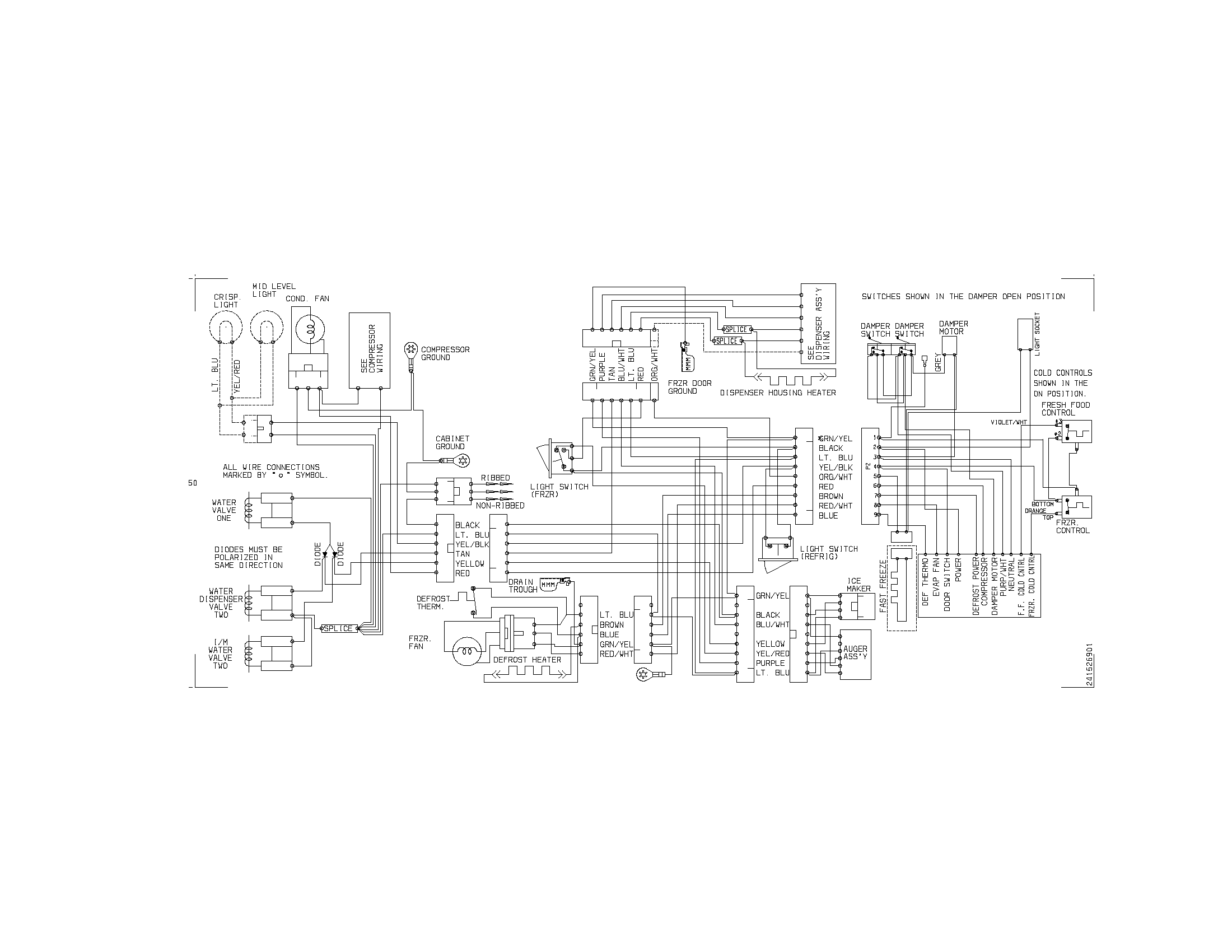

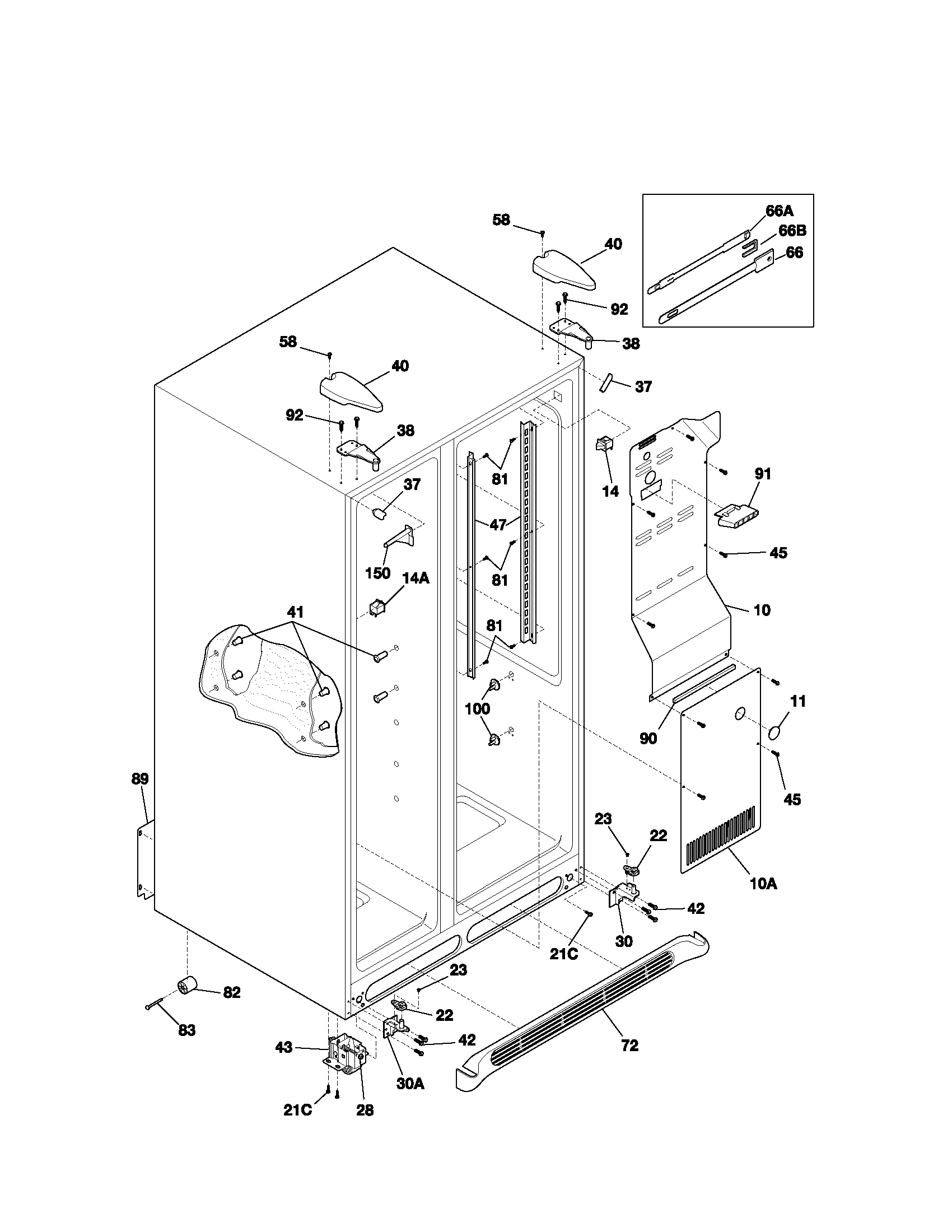

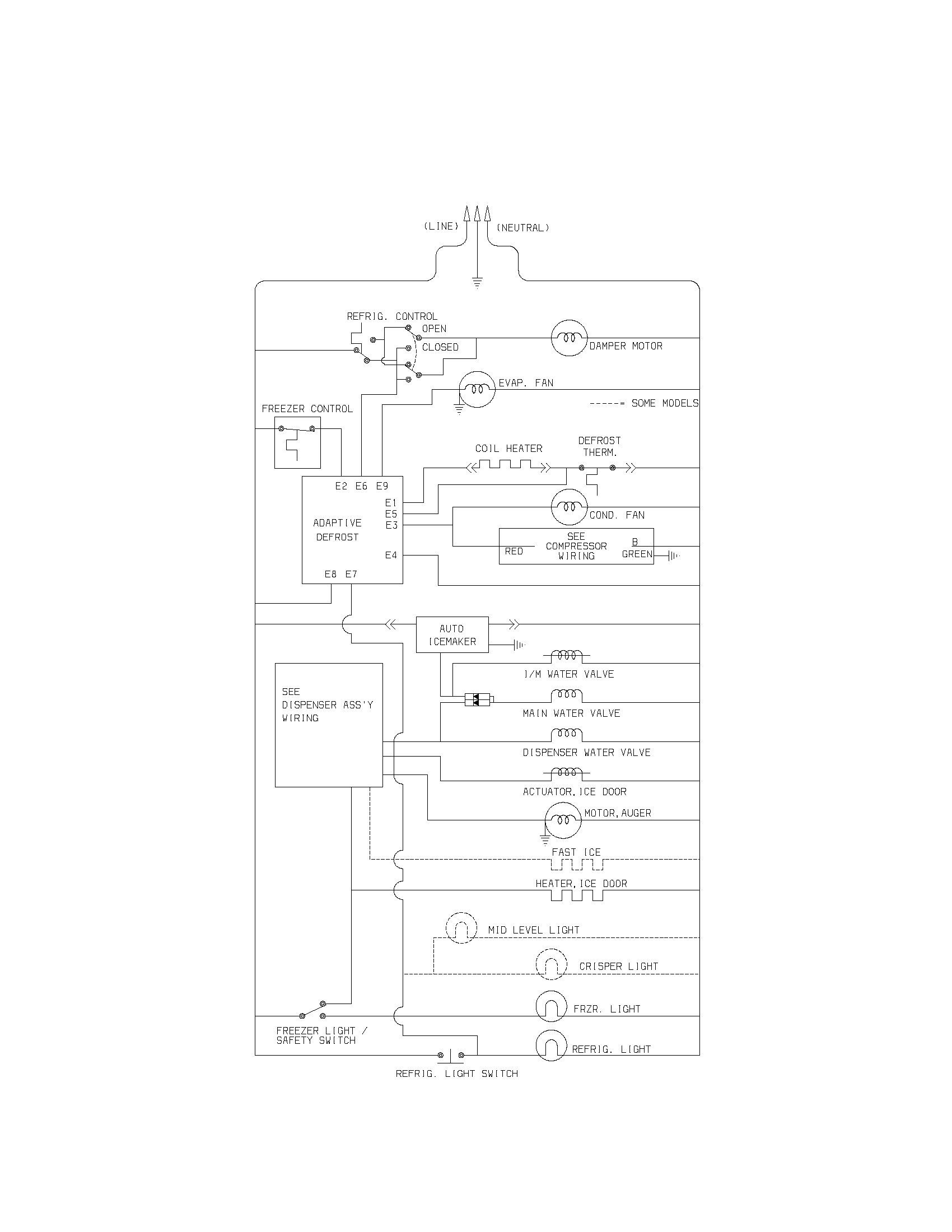

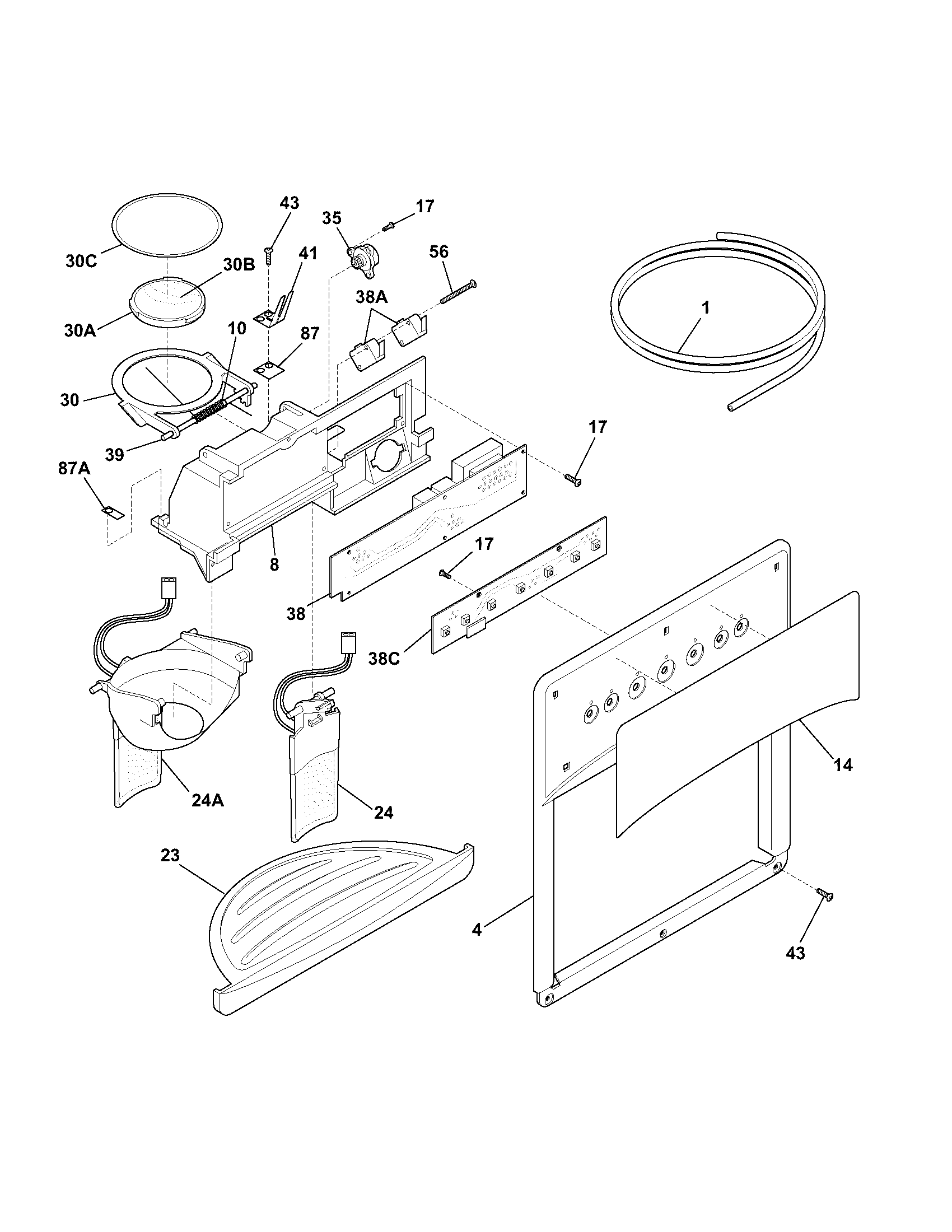

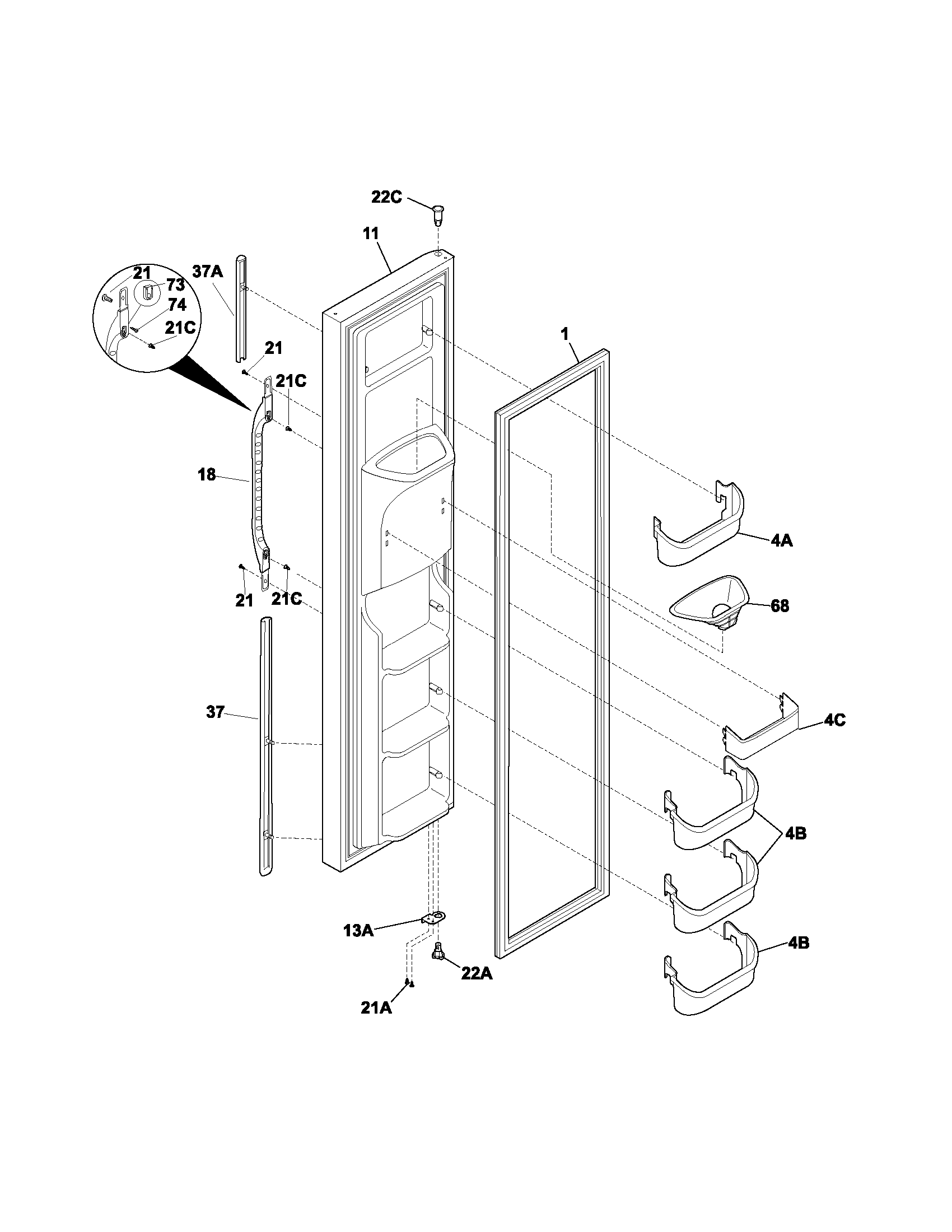

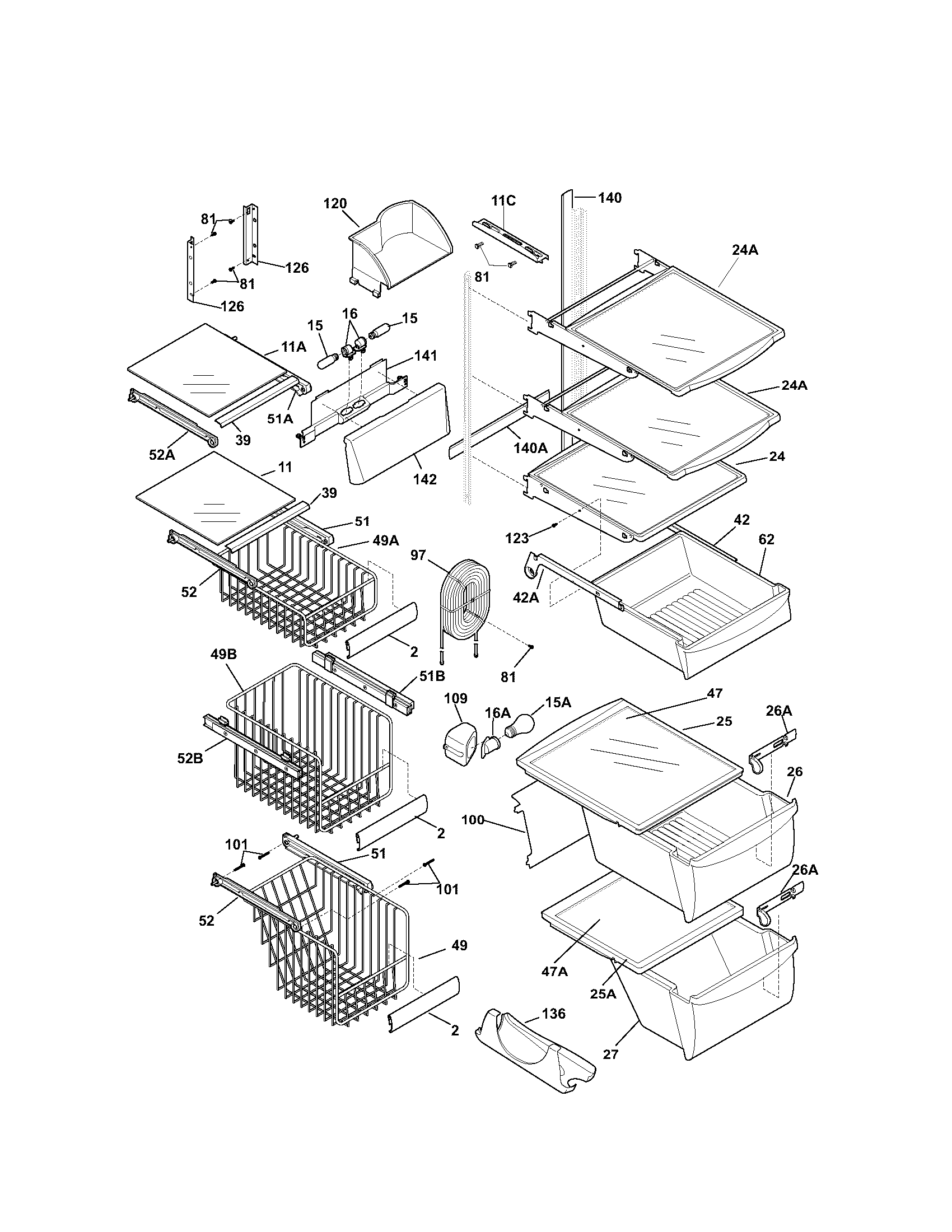

SELECT DIAGRAM
Browse Parts for
25354674300 Refrigerators
#17

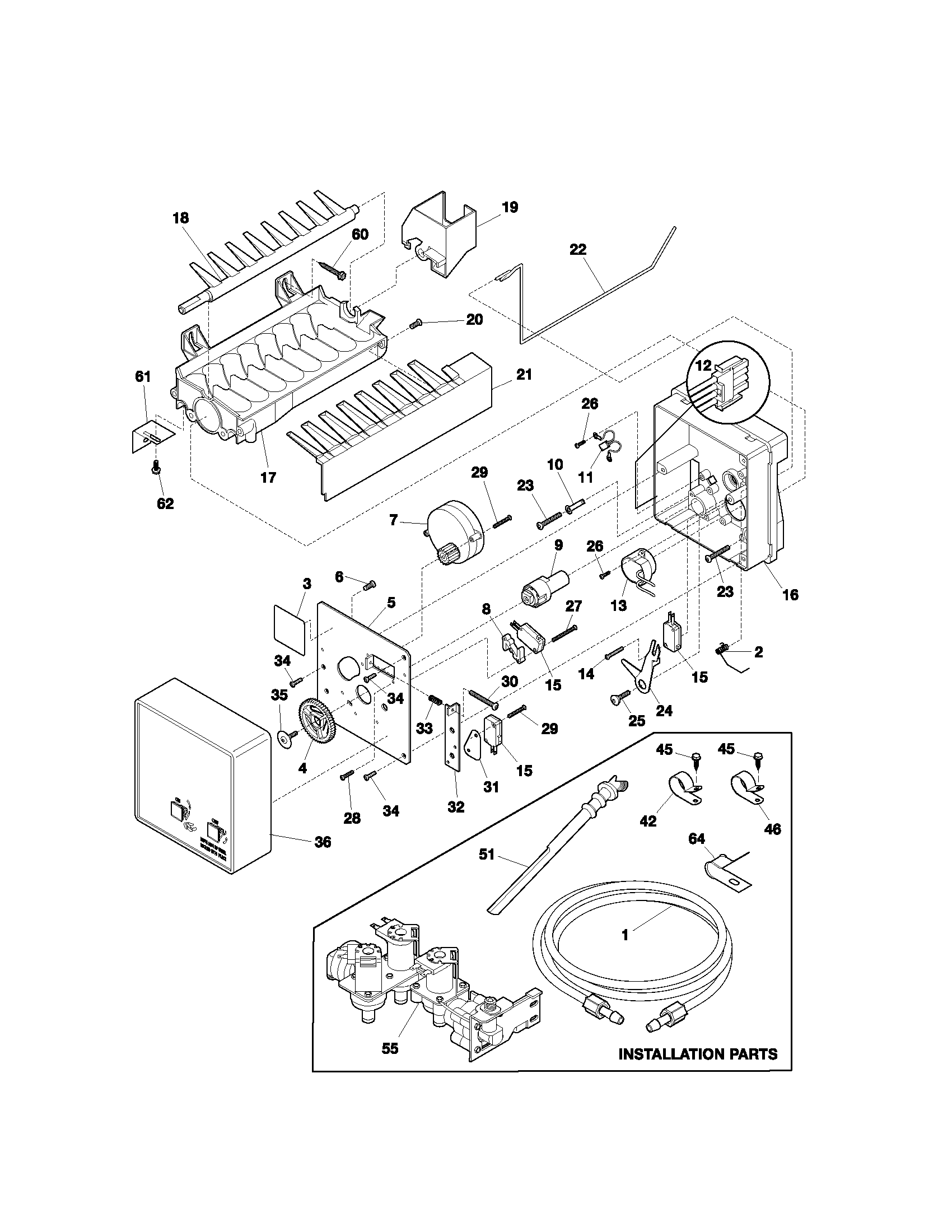

Ice maker diagram
Ice maker mold
Part #5303320545
Replaced by #241798231
?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
$109.48 |
10% OFF Phone Price : $121.48
In Stock
#4

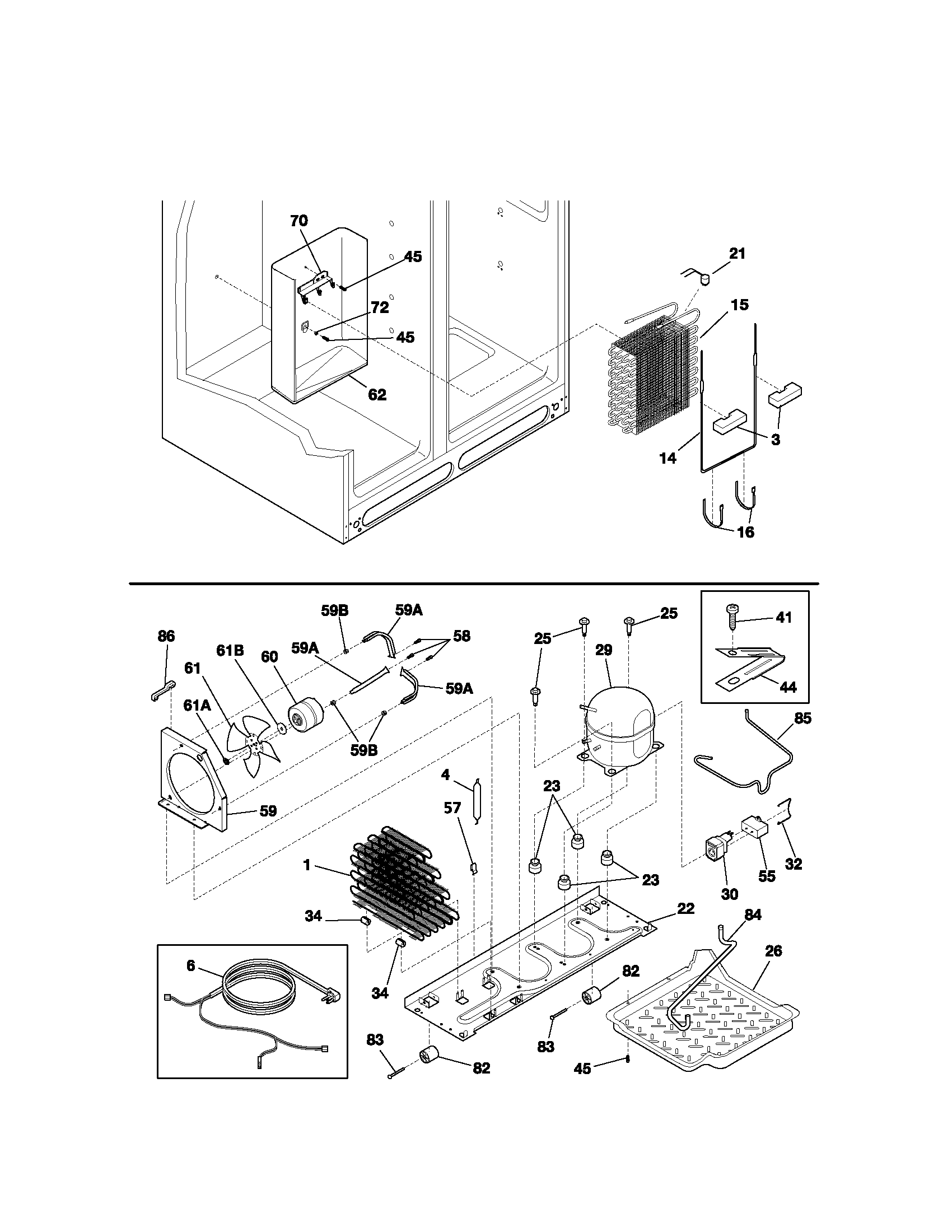

System diagram
Refrigerator filter drier
Part #218944001
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
$12.71 |
14% OFF Phone Price : $14.71
In Stock
#55
Ice maker diagram
Refrigerator water inlet valve assembly
Part #240531101
Replaced by #242252702
?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
$55.13 |
10% OFF Phone Price : $61.13
In Stock
#15

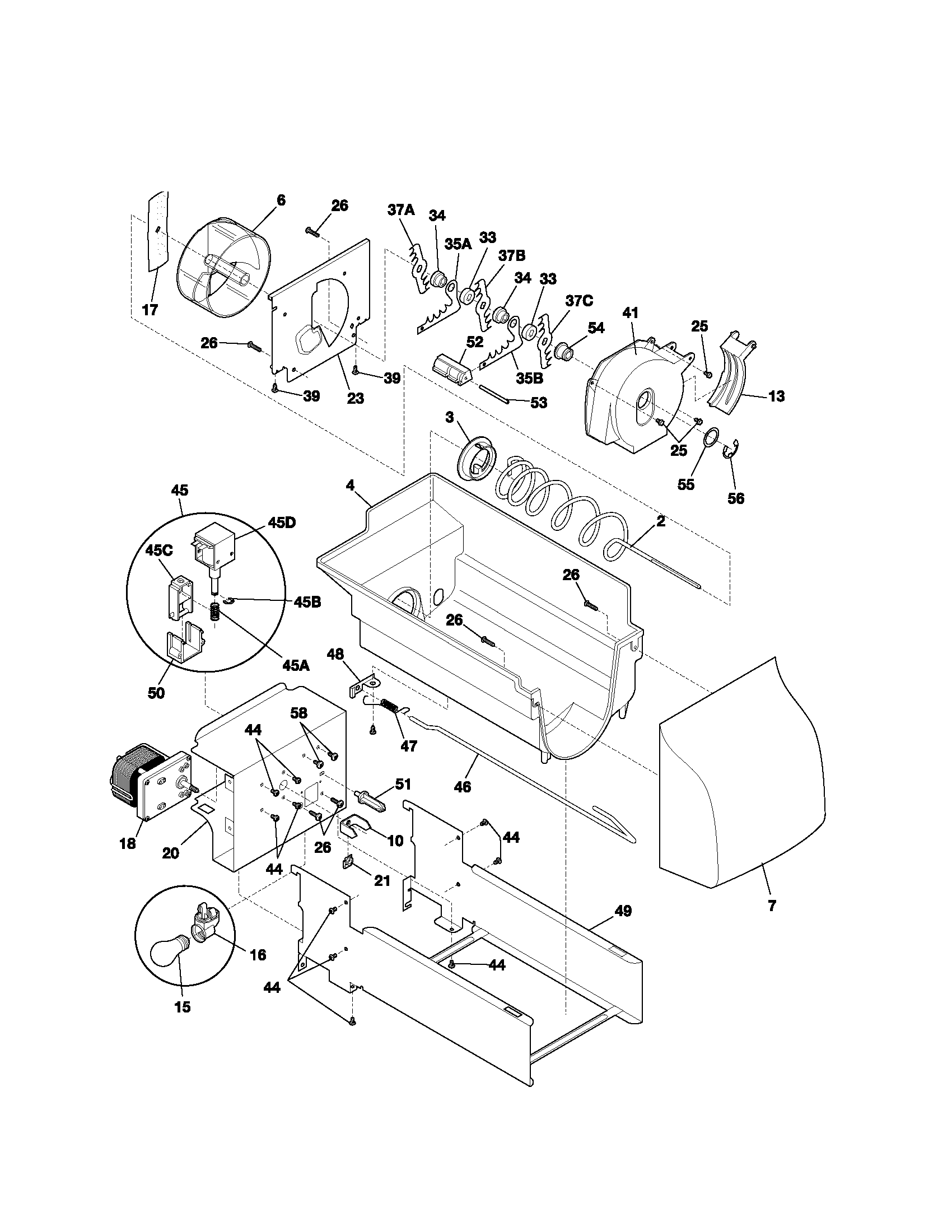

Ice container diagram
Appliance light bulb, 40-watt
Part #5303001179
Replaced by #316538904
?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
$16.47 |
11% OFF Phone Price : $18.47
In Stock
Refrigerator light bulb (replaces 240436701)
Part #240436702
Replaced by #316538904
?
Manufacturer substitution
This part replaces 240436702. Substitute parts can look different from the original.
$16.47 |
11% OFF Phone Price : $18.47
In Stock
#137

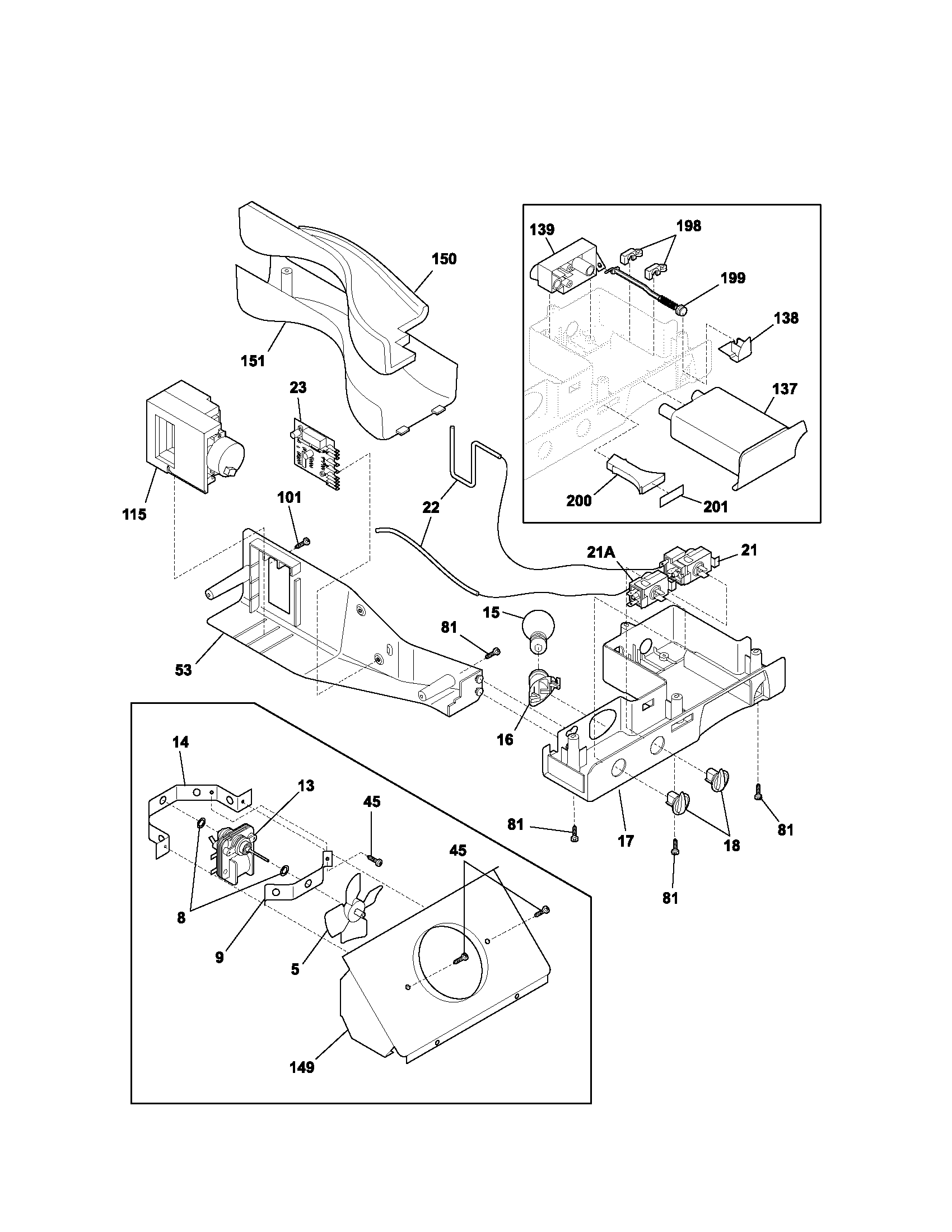

Controls diagram
Genuine kenmore refrigerator water filter
Part #9911
Replaced by #WF2CB
?
Manufacturer substitution
This part replaces 9911. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$50.55 |
11% OFF Phone Price : $56.55
Back Order
#21
System diagram
Refrigerator defrost bi-metal thermostat (replaces 75303918214)
Part #5303918214
$24.57 |
20% OFF Phone Price : $30.57
In Stock
#5
Controls diagram
Refrigerator evaporator fan blade
Part #5308000010
$40.93 |
13% OFF Phone Price : $46.93
In Stock
#15
System diagram
Refrigerator evaporator (replaces 5303918216, 75303918284)
Part #5303918284
$340.02 |
$12.00 OFF Phone Price : $352.02
In Stock
#13
Controls diagram
Evaporator motor
Part #240315802
Replaced by #5303918549
?
Manufacturer substitution
This part replaces 240315802. Substitute parts can look different from the original.
$71.50 |
8% OFF Phone Price : $77.50
In Stock
