Model # JV694SBB Official GE range hood

Here are the diagrams and repair parts for Official GE JV694SBB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Filter WB02X8379
#43

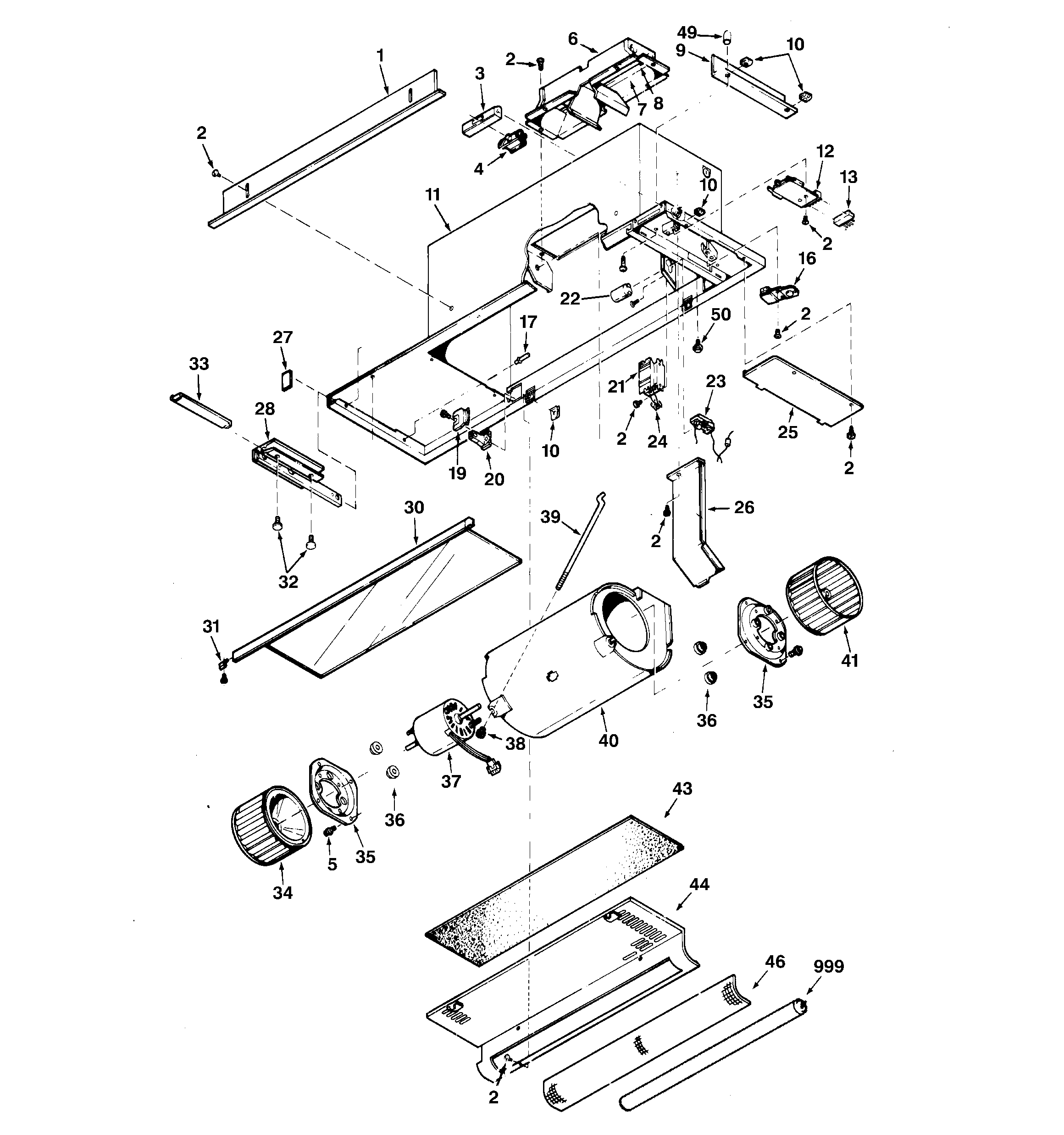

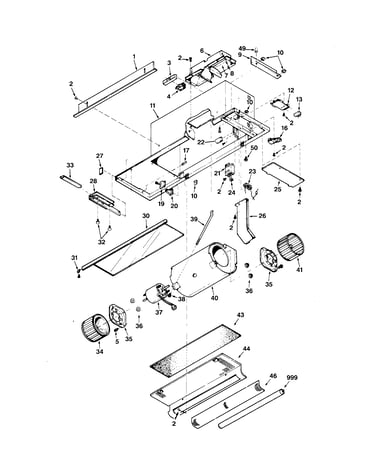

Range hood diagram

Filter

Part #WB02X8379

Replaced by #WB2X8379

?
Manufacturer substitution
This part replaces WB02X8379. Substitute parts can look different from the original.
$35.25 |
15% OFF Phone Price : $41.25
In Stock
Rubber Mtrmt WB02X8376
#36

Range hood diagram

Rubber mtrmt

Part #WB02X8376

Replaced by #WB2X8376

?
Manufacturer substitution
This part replaces WB02X8376. Substitute parts can look different from the original.
$9.07
In Stock
Ctrl Knob Bl WB03X5812
#4

Range hood diagram

Ctrl knob bl

Part #WB03X5812

The manufacturer no longer makes this part, and there's no substitute part

Cap WB02X8384
#49

Range hood diagram

Cap

Part #WB02X8384

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Light Switch WB24X5325
#16

Range hood diagram

Range hood blower light switch

Part #WB24X5325

The manufacturer no longer makes this part, and there's no substitute part

Bushing WB02X4497
#24

Range hood diagram

Bushing

Part #WB02X4497

The manufacturer no longer makes this part, and there's no substitute part

Lh Mtg Brack WB02X10843
#9

Range hood diagram

Lh mtg brack

Part #WB02X10843

The manufacturer no longer makes this part, and there's no substitute part

Vent Cover WB02X8383
#49

Range hood diagram

Vent cover

Part #WB02X8383

The manufacturer no longer makes this part, and there's no substitute part

Knob WB02X4499
#8

Range hood diagram

Knob

Part #WB02X4499

The manufacturer no longer makes this part, and there's no substitute part

Light Harness WB18X10181
#23

Range hood diagram

Light harness

Part #WB18X10181

The manufacturer no longer makes this part, and there's no substitute part
