Model # 143559032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143559032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

Gasket 27110
#20

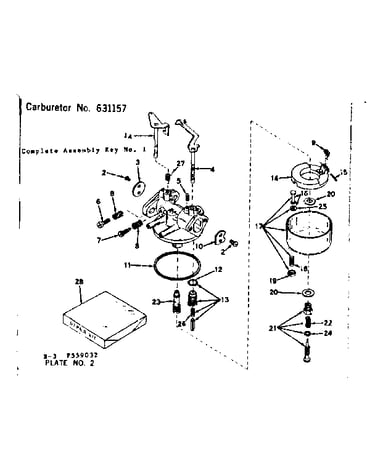

Carburetor no. 631157 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#32

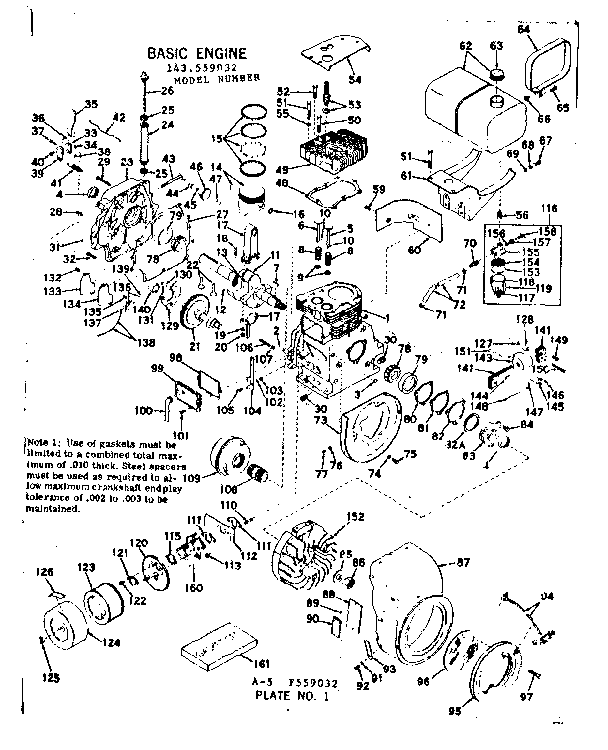

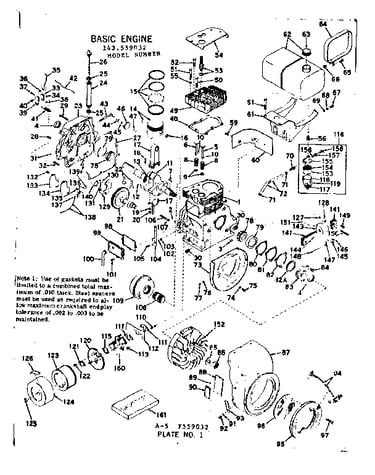

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#122

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 31980
#95

Basic engine diagram

Start pulley

Part #31980

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor no. 631157 diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Spring 27114
#8

Carburetor no. 631157 diagram

Spring

Part #27114

The manufacturer no longer makes this part, and there's no substitute part

Screw 28547
#77

Basic engine diagram

Screw

Part #28547

The manufacturer no longer makes this part, and there's no substitute part

Pin 20810
#10

Basic engine diagram

Pin

Part #20810

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin 32002
#14A

Basic engine diagram

Piston pin

Part #32002

The manufacturer no longer makes this part, and there's no substitute part

Needle 27112
#7

Carburetor no. 631157 diagram

Needle

Part #27112

The manufacturer no longer makes this part, and there's no substitute part
