Craftsman
Gas Walk-Behind Mower

Model # 917388934 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388934 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Lock Nut 83923
#61

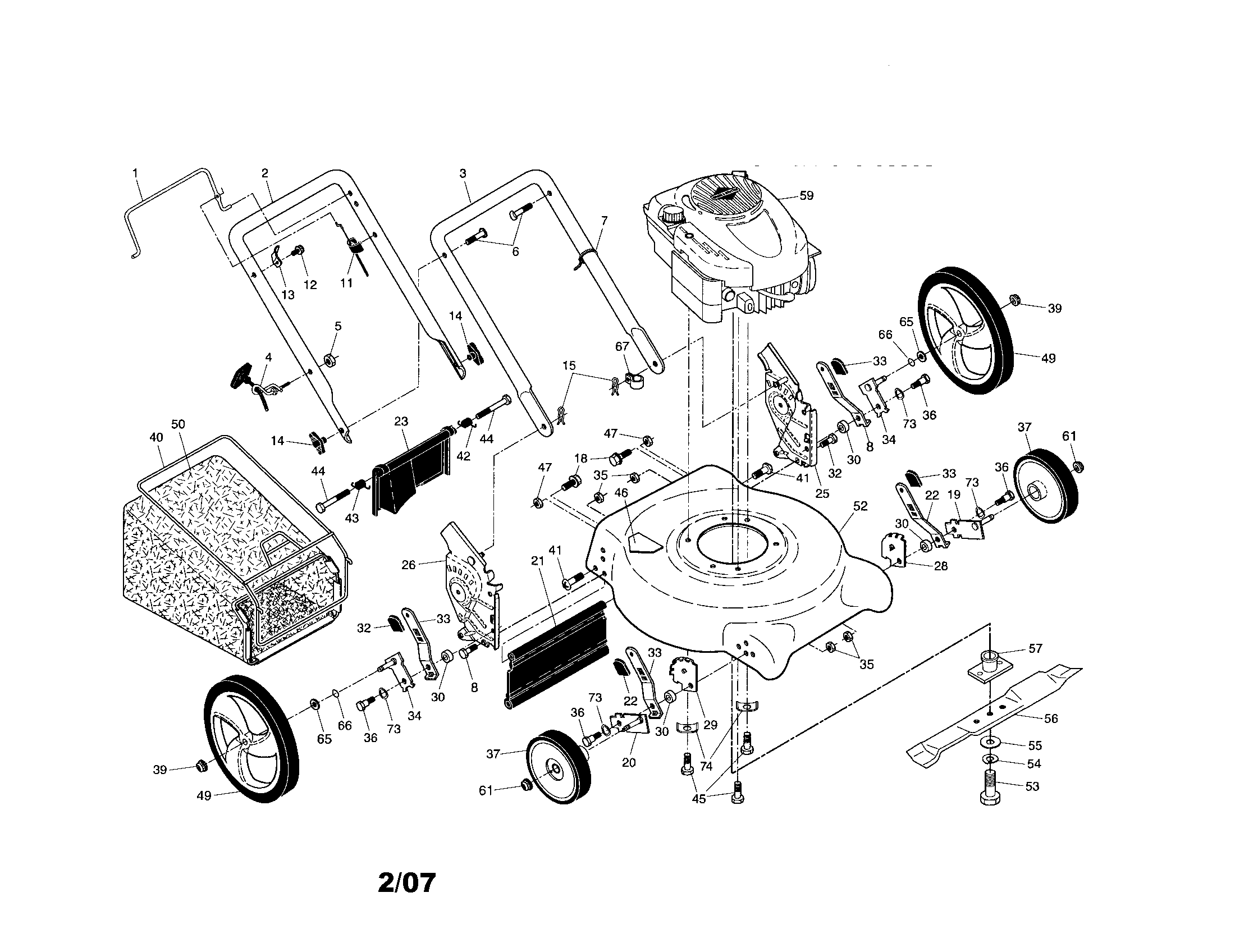

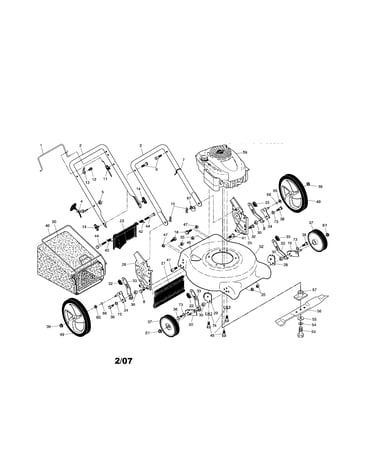

Lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#39

Lawn mower diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rear Door Assembly 401814X428
#23

Lawn mower diagram

Rear door assembly

Part #401814X428

Replaced by #532401814

?
Manufacturer substitution
This part replaces 401814X428. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Height Spacer 401629
#30

Lawn mower diagram

Height spacer

Part #401629

Replaced by #532401629

?
Manufacturer substitution
This part replaces 401629. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Husqvarna Bracket 400628X479
#26

Lawn mower diagram

Husqvarna bracket

Part #400628X479

$11.99
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Lawn mower diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Gbag.2061012 401705
#50

Lawn mower diagram

Gbag.2061012

Part #401705

Replaced by #532410666

?
Manufacturer substitution
This part replaces 401705. Substitute parts can look different from the original.
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Danger Decal 404763
#46

Lawn mower diagram

Danger decal

Part #404763

Replaced by #581724301

?
Manufacturer substitution
This part replaces 404763. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Bolt 191574
#6

Lawn mower diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
