Model # RJ742*T6 Official Hotpoint electric oven

Here are the diagrams and repair parts for Official Hotpoint RJ742T6 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Range Bake Element (replaces Wb44x0200, Wb44x160) WB44X200
#250A

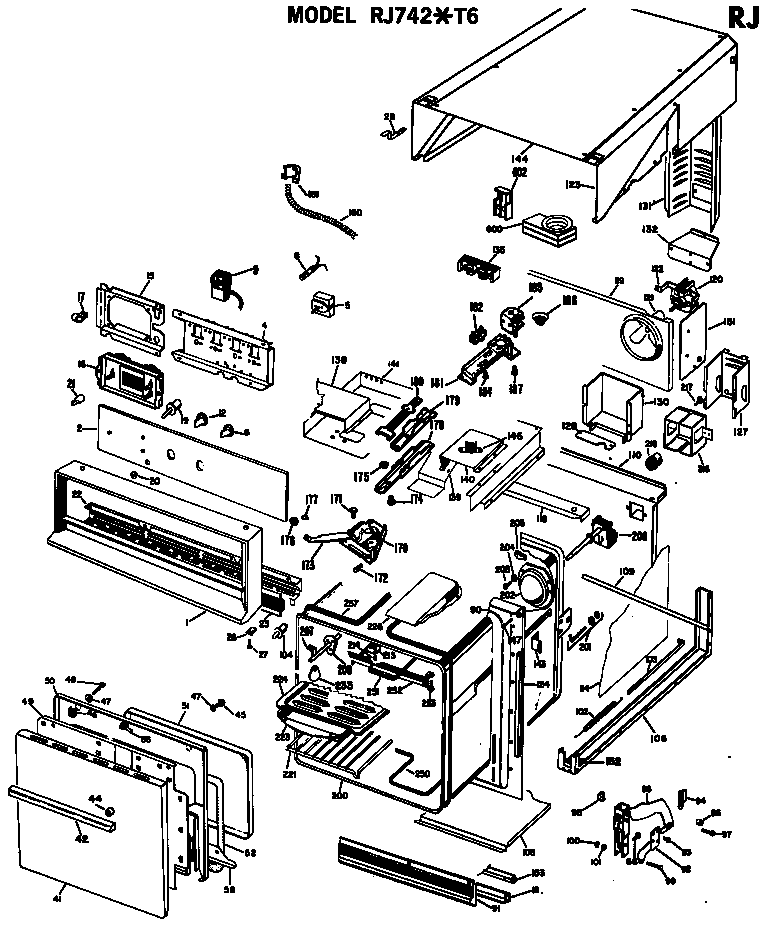

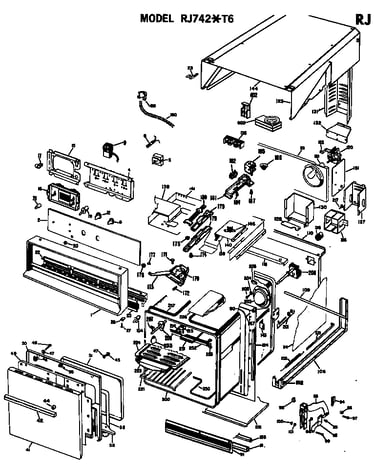

Oven assembly diagram

Range bake element (replaces wb44x0200, wb44x160)

Part #WB44X200

BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Broil Unit WB44X185
#251A

Oven assembly diagram

Broil unit

Part #WB44X185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#202

Oven assembly diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Timer WB19X5231
#16A

Oven assembly diagram

Timer

Part #WB19X5231

Replaced by #WB19X10006

?
Manufacturer substitution
This part replaces WB19X5231. Substitute parts can look different from the original.
$231.84 |
5% OFF Phone Price : $243.84
In Stock
Washer, 12-pack WB2X1847
#204

Oven assembly diagram

Washer, 12-pack

Part #WB2X1847

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB2X1847. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Broil Support WB2X1810
#252

Oven assembly diagram

Broil support

Part #WB2X1810

Replaced by #WB2X1452

?
Manufacturer substitution
This part replaces WB2X1810. Substitute parts can look different from the original.
$26.02 |
19% OFF Phone Price : $32.02
In Stock
Washer WB1X119
#47

Oven assembly diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Door Gasket WB2X2940
#52

Oven assembly diagram

Door gasket

Part #WB2X2940

Replaced by #WB2X3138

?
Manufacturer substitution
This part replaces WB2X2940. Substitute parts can look different from the original.
$120.27 |
9% OFF Phone Price : $132.27
In Stock
Screw WB1X458
#181B

Oven assembly diagram

Screw

Part #WB1X458

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X458. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Pan Rack WB48X5002
#224

Oven assembly diagram

Broil pan rack

Part #WB48X5002

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5002. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
