Model # 580320962 Official Craftsman 3000-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580320962 3000-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Binding Post 25367
#15

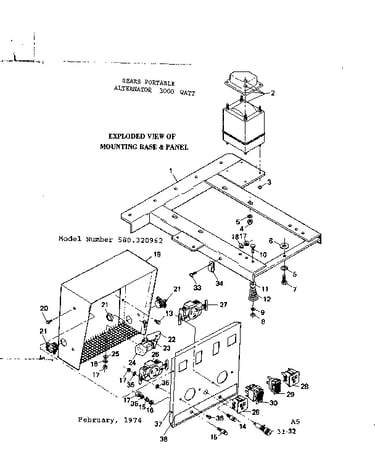

Mounting base & panel diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
In Stock
Outlet 37807
#27

Mounting base & panel diagram

Outlet

Part #37807

Replaced by #705932

?
Manufacturer substitution
This part replaces 37807. Substitute parts can look different from the original.
In Stock
Screw 24419
#18

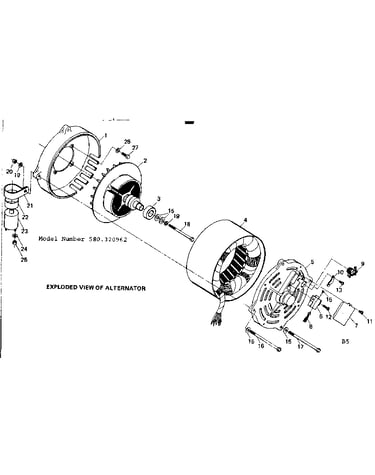

Alternator diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
In Stock
Cap Screw 38272
#16

Alternator diagram

Cap screw

Part #38272

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
#12

Mounting base & panel diagram

Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Housing 38634
#1

Alternator diagram

Housing

Part #38634

The manufacturer no longer makes this part, and there's no substitute part

Plug Boot 38271
#11

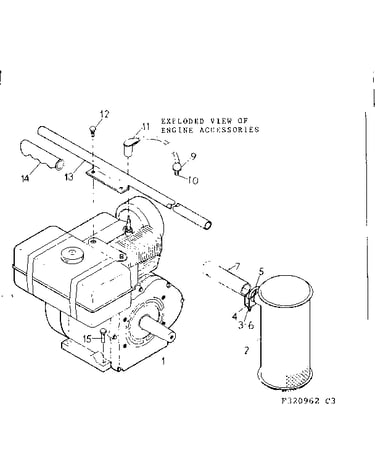

Engine accessories diagram

Plug boot

Part #38271

The manufacturer no longer makes this part, and there's no substitute part

Panel 38268
#37

Mounting base & panel diagram

Panel

Part #38268

The manufacturer no longer makes this part, and there's no substitute part

Rocker 37808
#30

Mounting base & panel diagram

Rocker

Part #37808

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 24726
#12

Engine accessories diagram

Cap screw

Part #24726

The manufacturer no longer makes this part, and there's no substitute part
