Model # MH7115XBZ6 Official Whirlpool over-the-range microwave

Here are the diagrams and repair parts for Official Whirlpool MH7115XBZ6 over-the-range microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

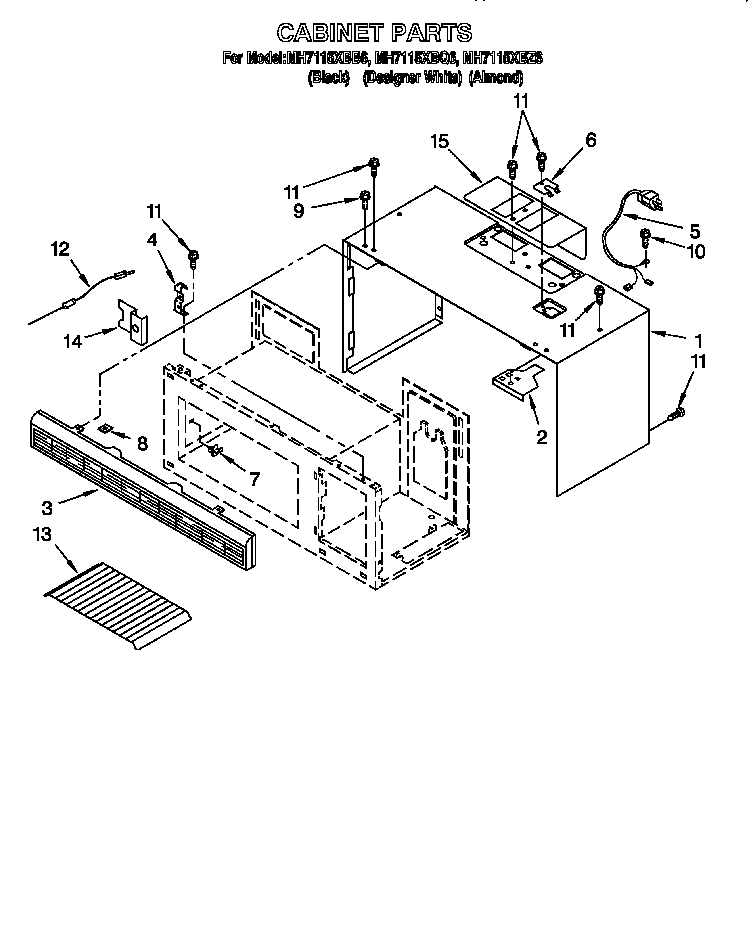

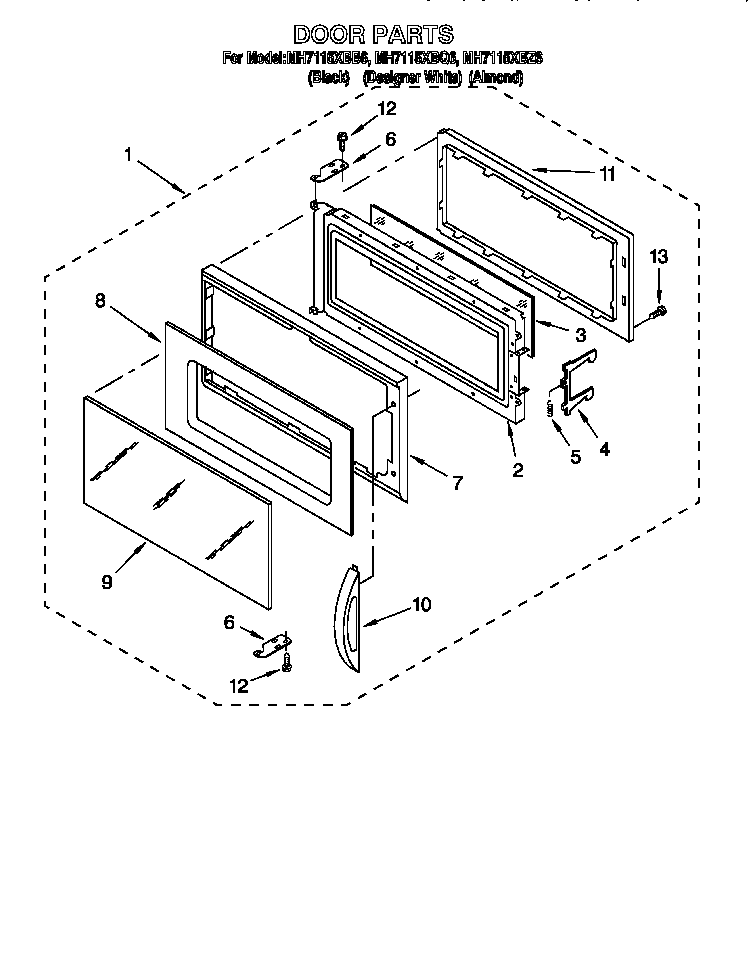

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Screw 4158321
#3

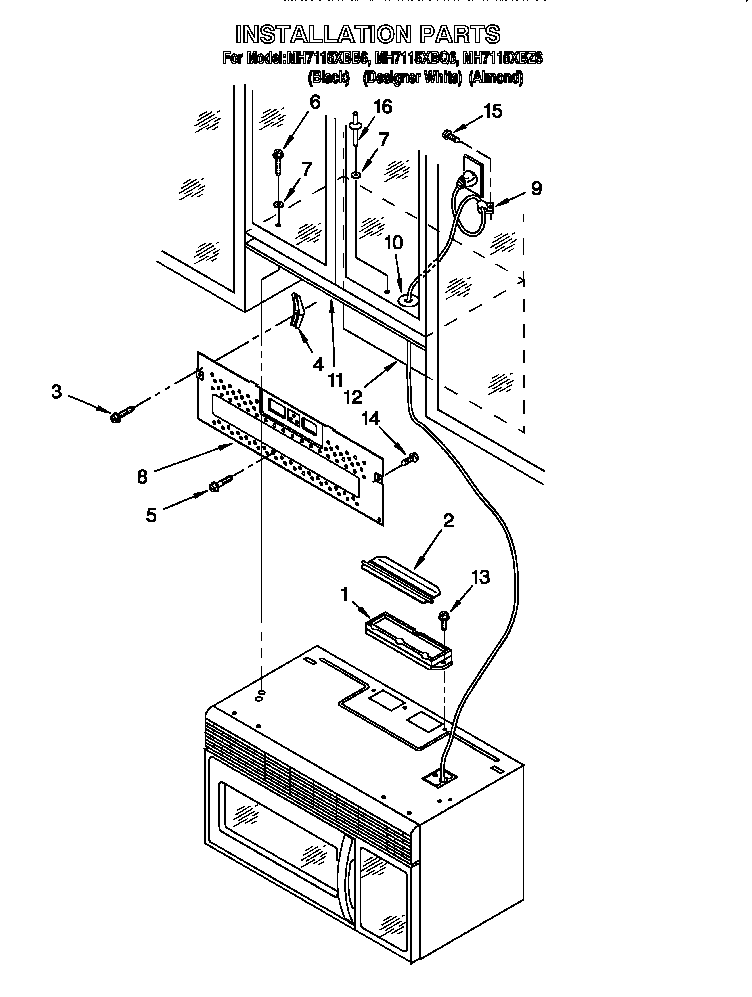

Installation diagram

Screw

Part #4158321

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Microwave Air Filter 4358853
#8

Ventilation diagram

Microwave air filter

Part #4358853

This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Light Bulb 4158344
Light bulb

Part #4158344

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158344. Substitute parts can look different from the original.
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Screw 4358064
#23

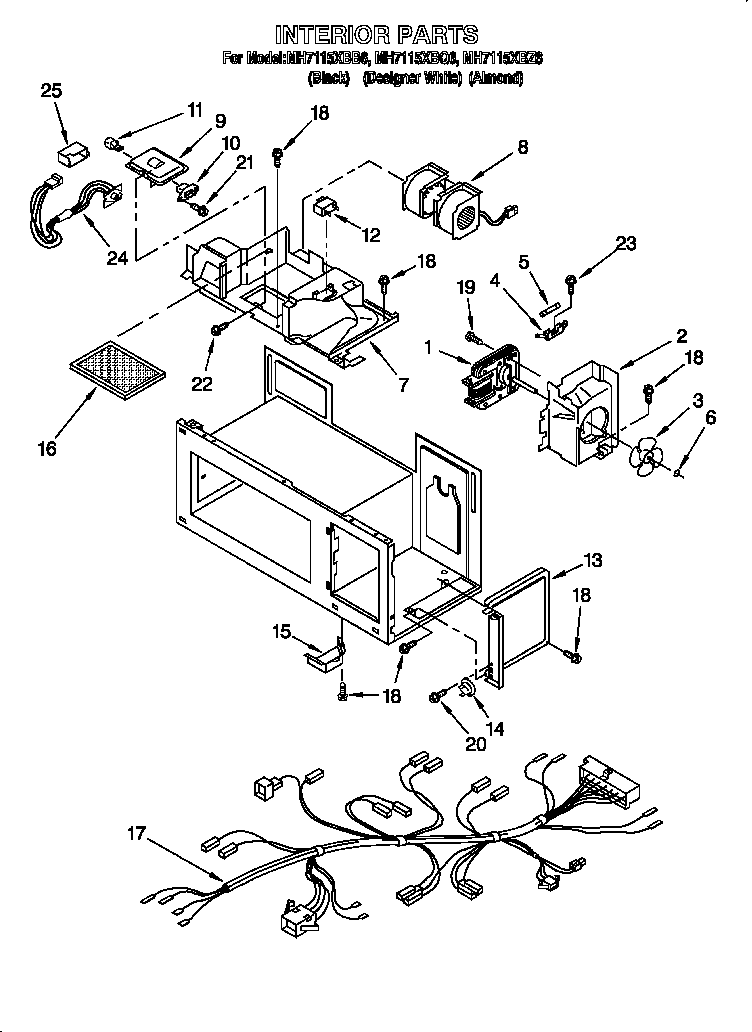

Interior diagram

Screw

Part #4358064

Replaced by #W10815455

?
Manufacturer substitution
This part replaces 4358064. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Switch 4158941
#4

Latch board diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Microwave Screw 4358489
Microwave screw

Part #4358489

Replaced by #4344826

?
Manufacturer substitution
This part replaces 4358489. Substitute parts can look different from the original.
$12.49
In Stock
Fan Motor 4358784
#1

Interior diagram

Fan motor

Part #4358784

Replaced by #WP4358784

?
Manufacturer substitution
This part replaces 4358784. Substitute parts can look different from the original.
$83.79 |
7% OFF Phone Price : $89.79
In Stock
Switch 4158940
#2

Latch board diagram

Switch

Part #4158940

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158940. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4158747
#20

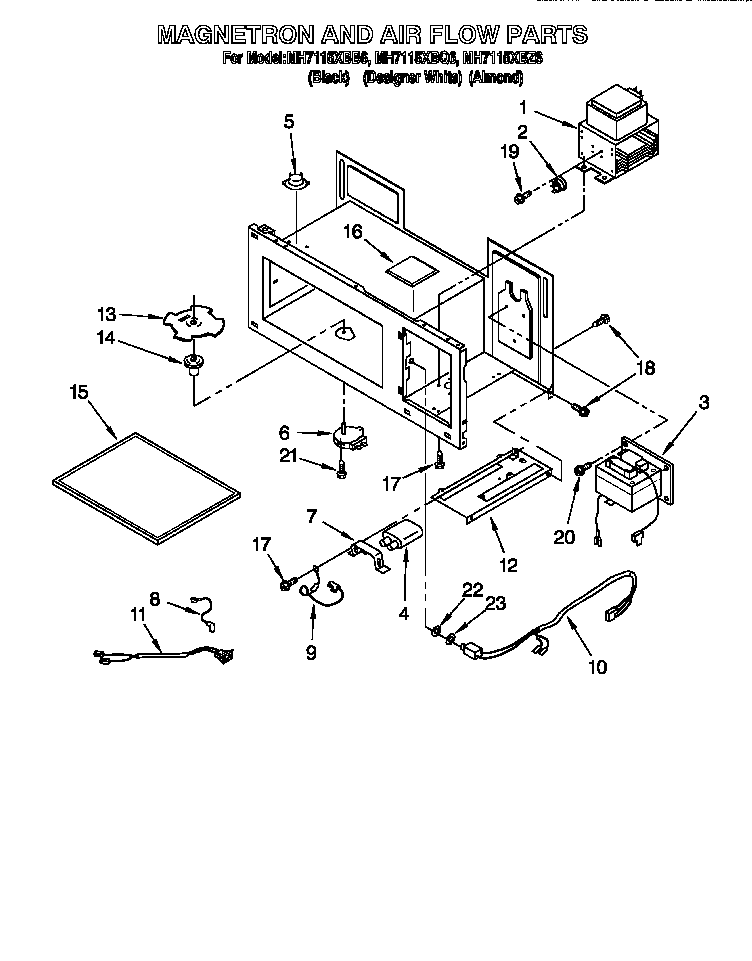

Magnetron and air flow diagram

Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Switch 4358269
#3

Latch board diagram

Switch

Part #4358269

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4358269. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
