Model # BWE12A Official Black & Decker air conditioner

Here are the diagrams and repair parts for Official Black & Decker BWE12A air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Shroud Fan AC-6500-56
#4

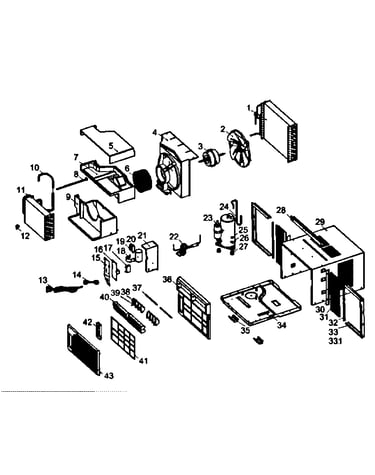

Cabinet parts diagram

Shroud fan

Part #AC-6500-56

$26.99
In Stock
Slide, Cur AC-6540-01
#30

Cabinet parts diagram

Slide, cur

Part #AC-6540-01

This item is not returnable
$3.20
In Stock
Air Conditioner Lever AC-4200-09
#8

Cabinet parts diagram

Air conditioner lever

Part #AC-4200-09

This item is not returnable
$2.99
In Stock
Cover Element AC-1950-383
#15

Cabinet parts diagram

Cover element

Part #AC-1950-383

This item is not returnable
$2.99
In Stock
Black & Decker Compressor AC-1750-256
#23

Cabinet parts diagram

Black & decker compressor

Part #AC-1750-256

$306.49
In Stock
Pipe Disc AC-5255-478
#24

Cabinet parts diagram

Pipe disc

Part #AC-5255-478

This item is not returnable
$4.49
In Stock
Wire AC-8070-15
#14

Cabinet parts diagram

Wire

Part #AC-8070-15

This item is not returnable
$2.99
In Stock
Guide AC-3300-34
#35

Cabinet parts diagram

Guide

Part #AC-3300-34

This item is not returnable
$3.49
In Stock
Capacitor AC-1400-187
#17

Cabinet parts diagram

Capacitor

Part #AC-1400-187

$19.49
In Stock
Transformer AC-7550-40
#20

Cabinet parts diagram

Transformer

Part #AC-7550-40

$19.99
In Stock
