Model # 4ED20ZKXFN00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 4ED20ZKXFN00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

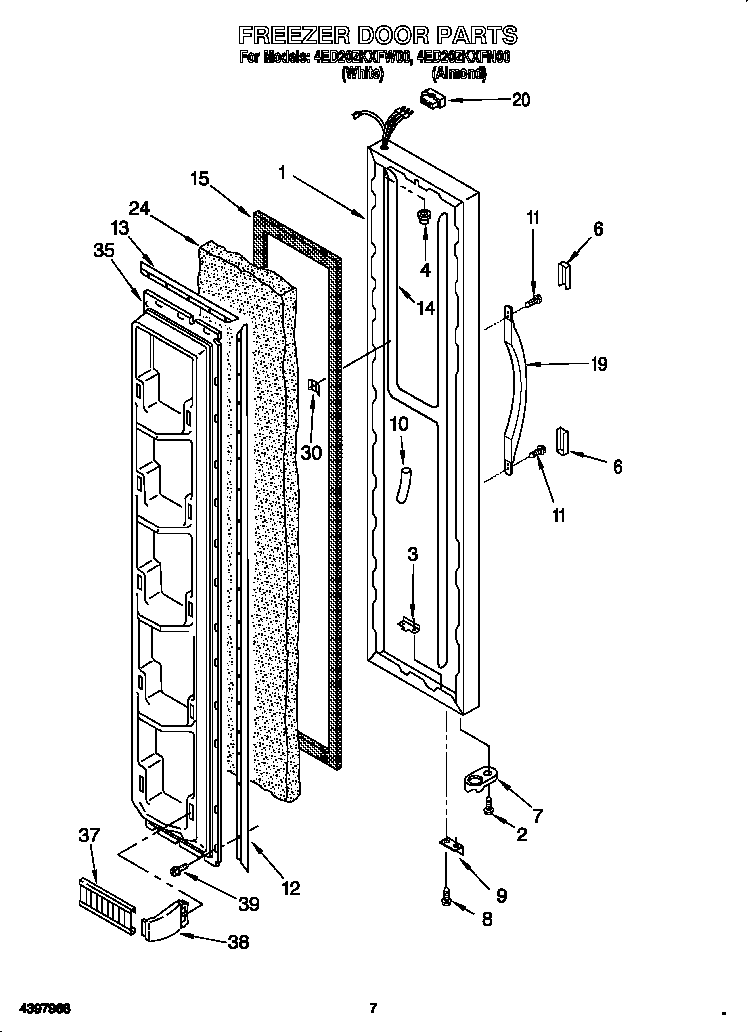

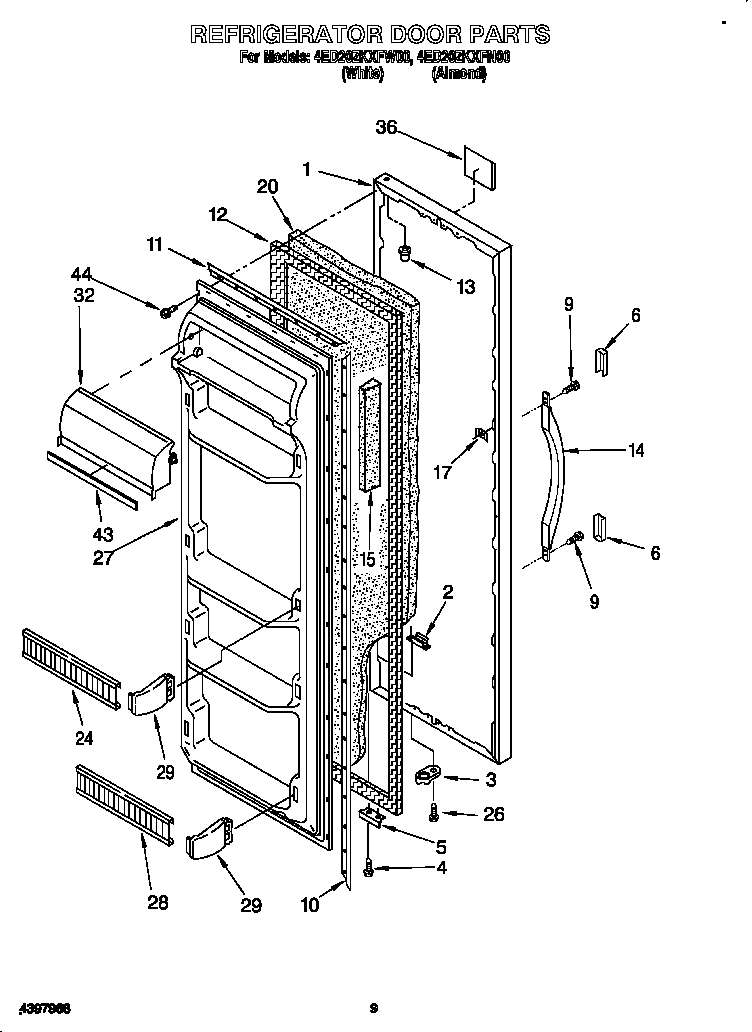

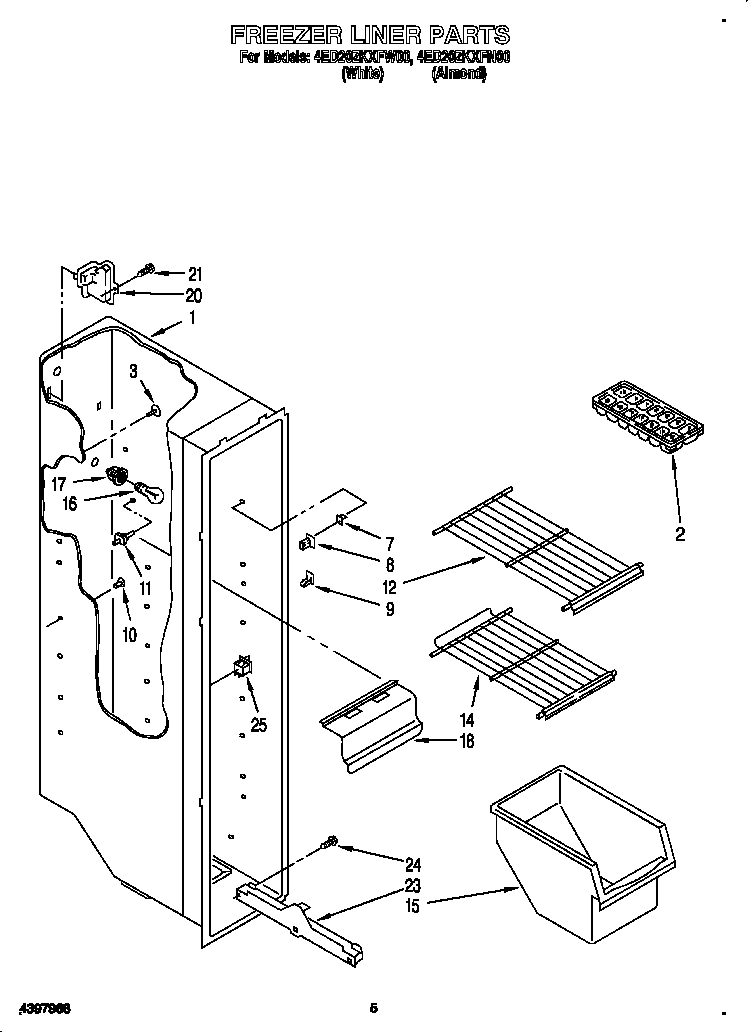

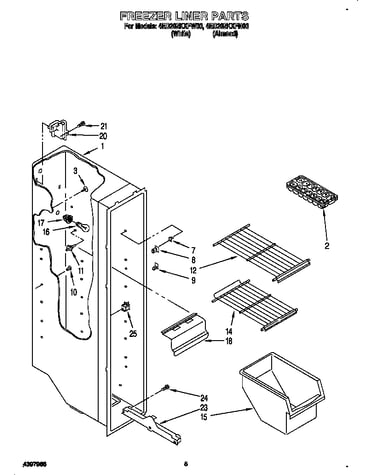

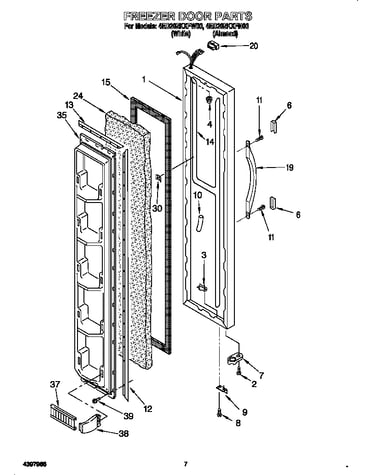

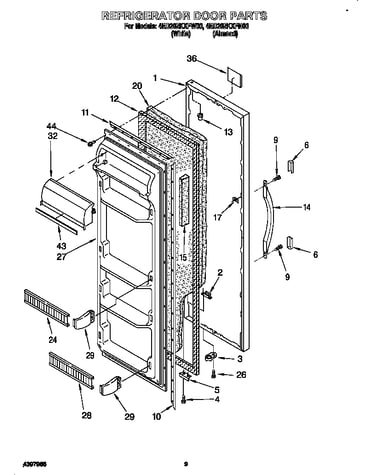

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Refrigerator Crisper Pan 2174109
#19

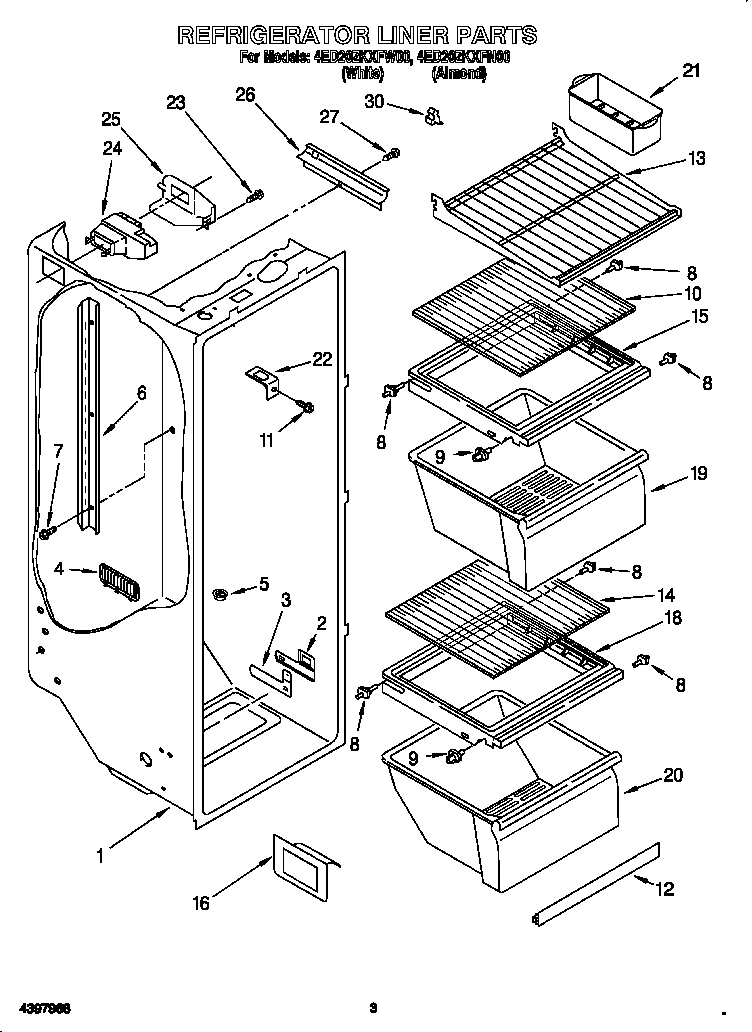

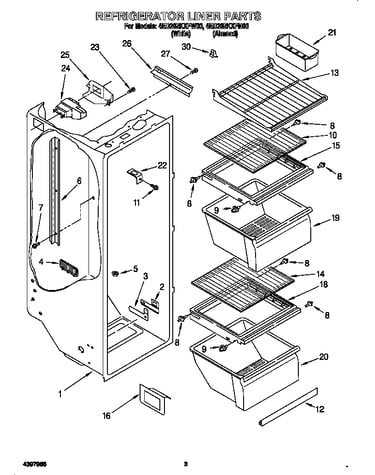

Refrigerator liner diagram

Refrigerator crisper pan

Part #2174109

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2174109. Substitute parts can look different from the original.
BEST SELLER
$69.66 |
8% OFF Phone Price : $75.66
In Stock
Refrigerator Thermostat 2198201
#9

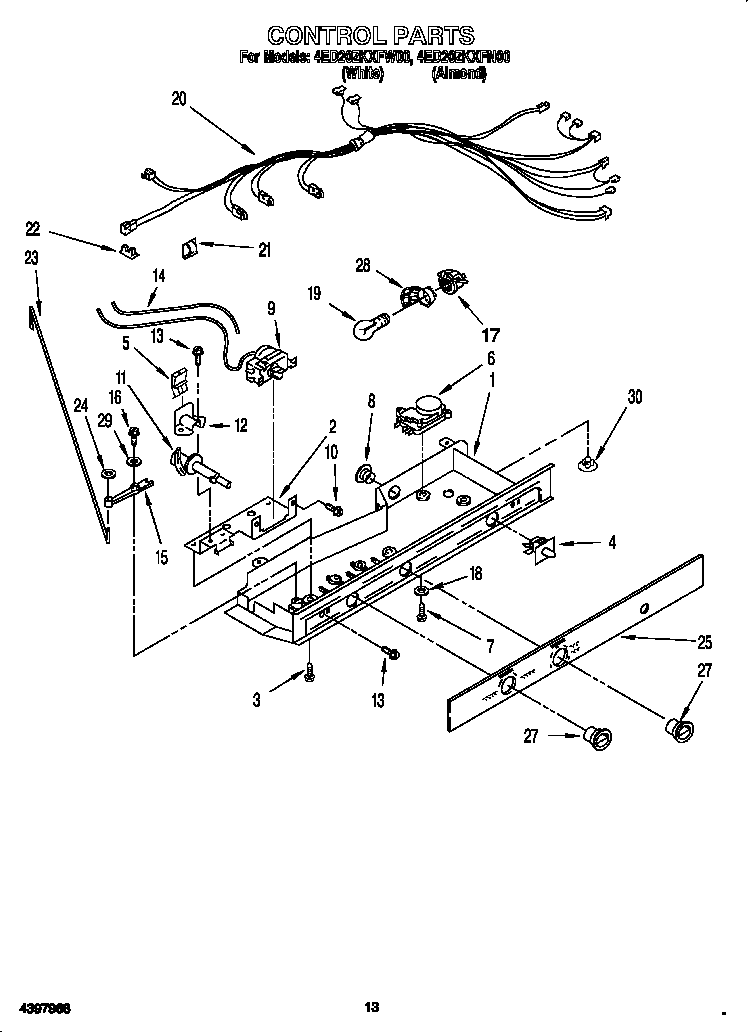

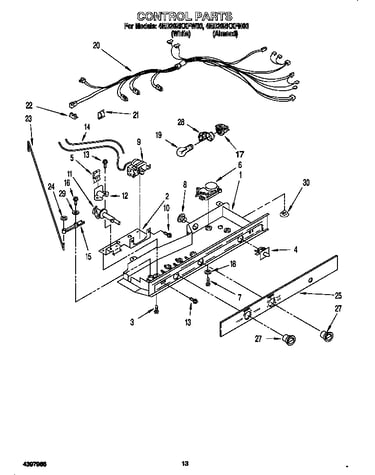

Control diagram

Refrigerator thermostat

Part #2198201

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198201. Substitute parts can look different from the original.
BEST SELLER
$73.25 |
8% OFF Phone Price : $79.25
In Stock
Refrigerator Defrost Bi-metal 2176066
#35

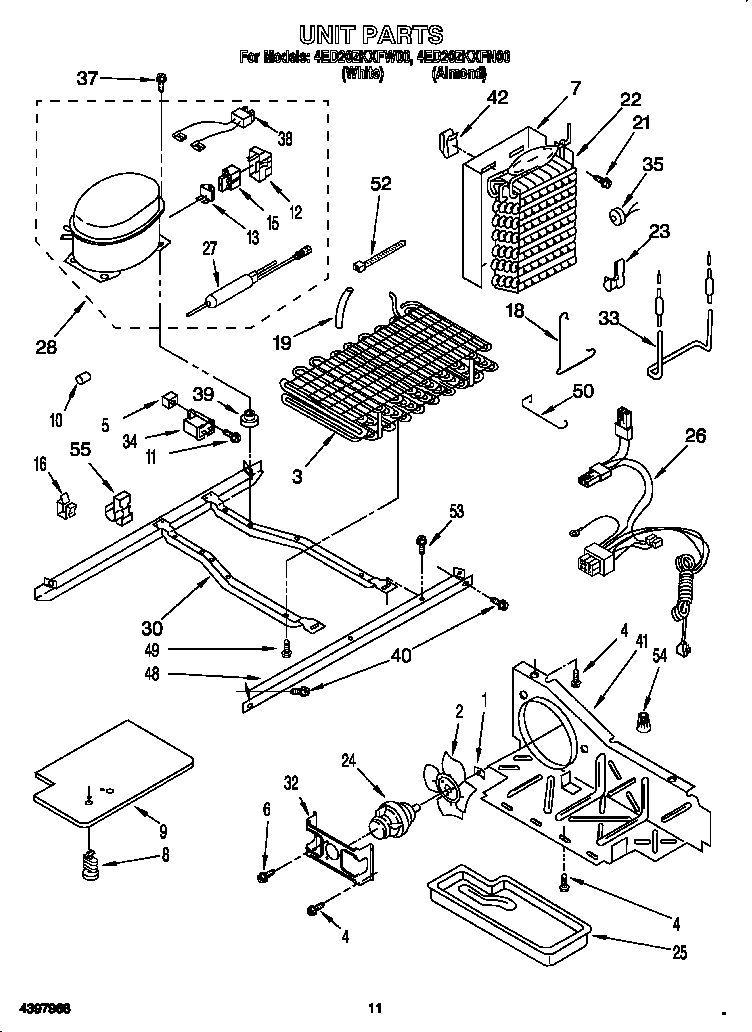

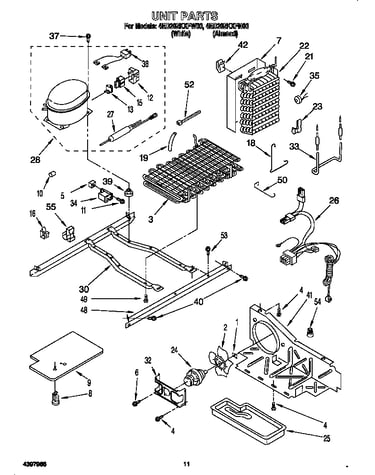

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Refrigerator Door Closer Cam 2155311
#6

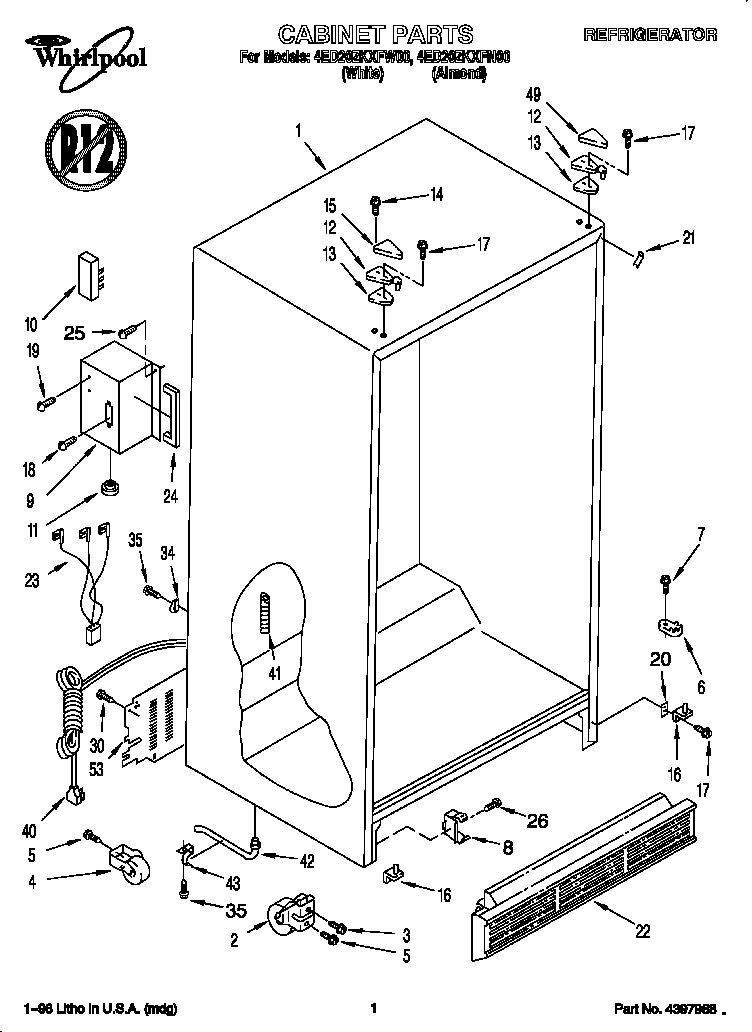

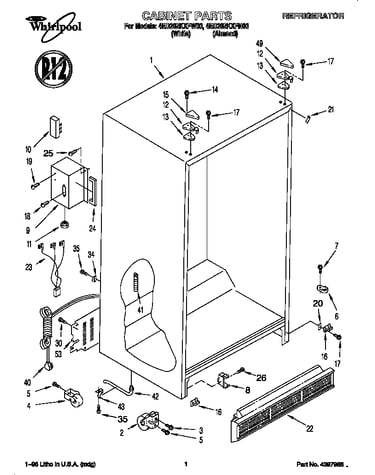

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.86 |
16% OFF Phone Price : $12.86
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

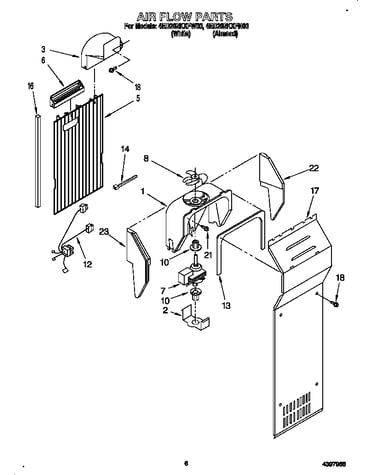

Air flow diagram
