Model # 59670089000 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 59670089000 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

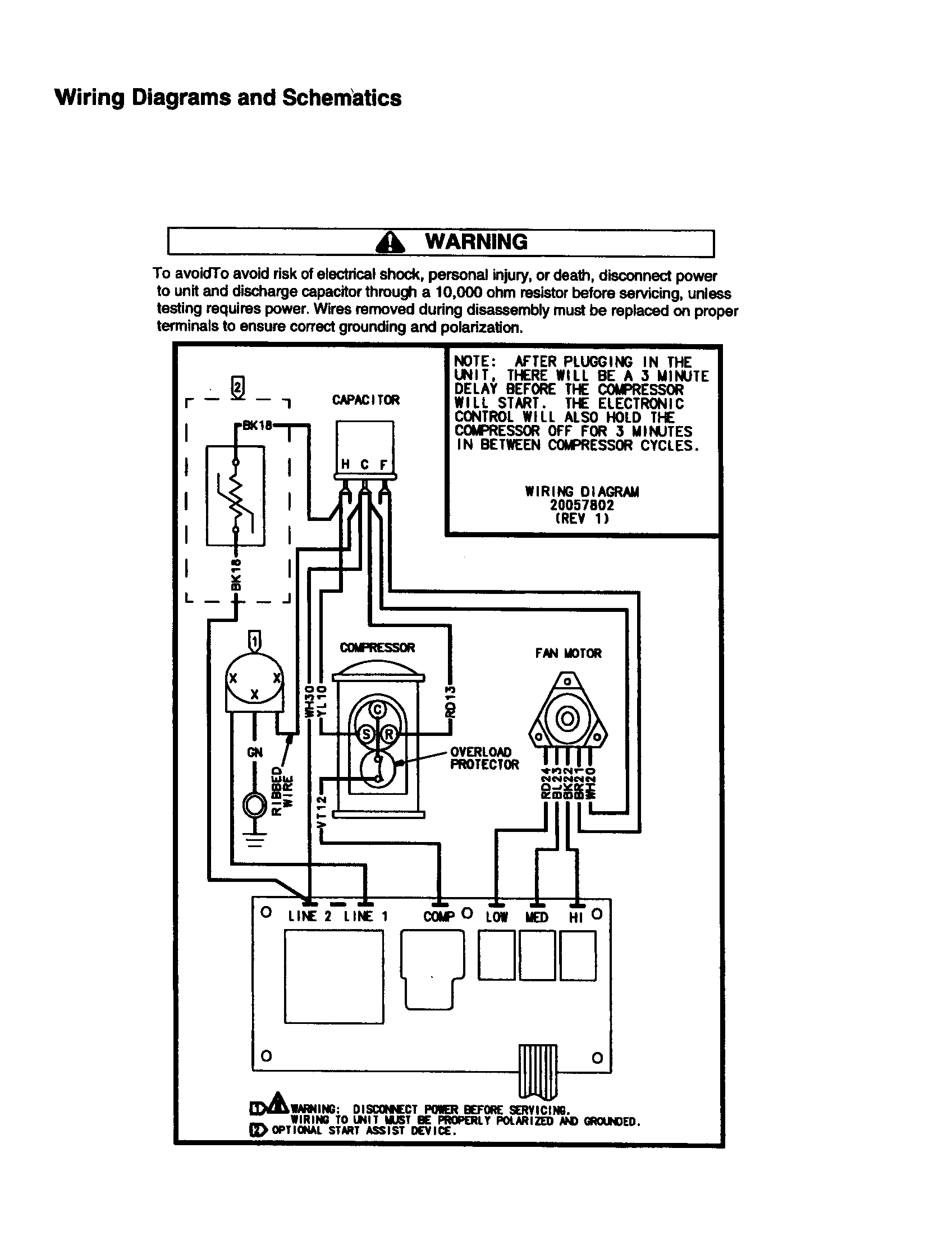

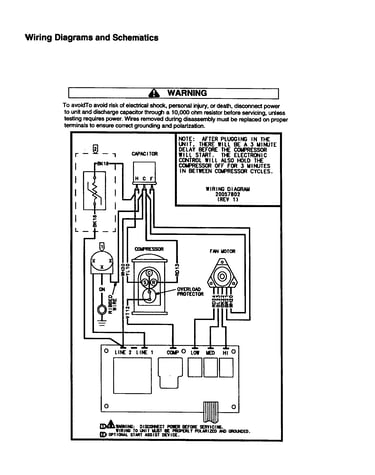

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Screw M0219730
#4111

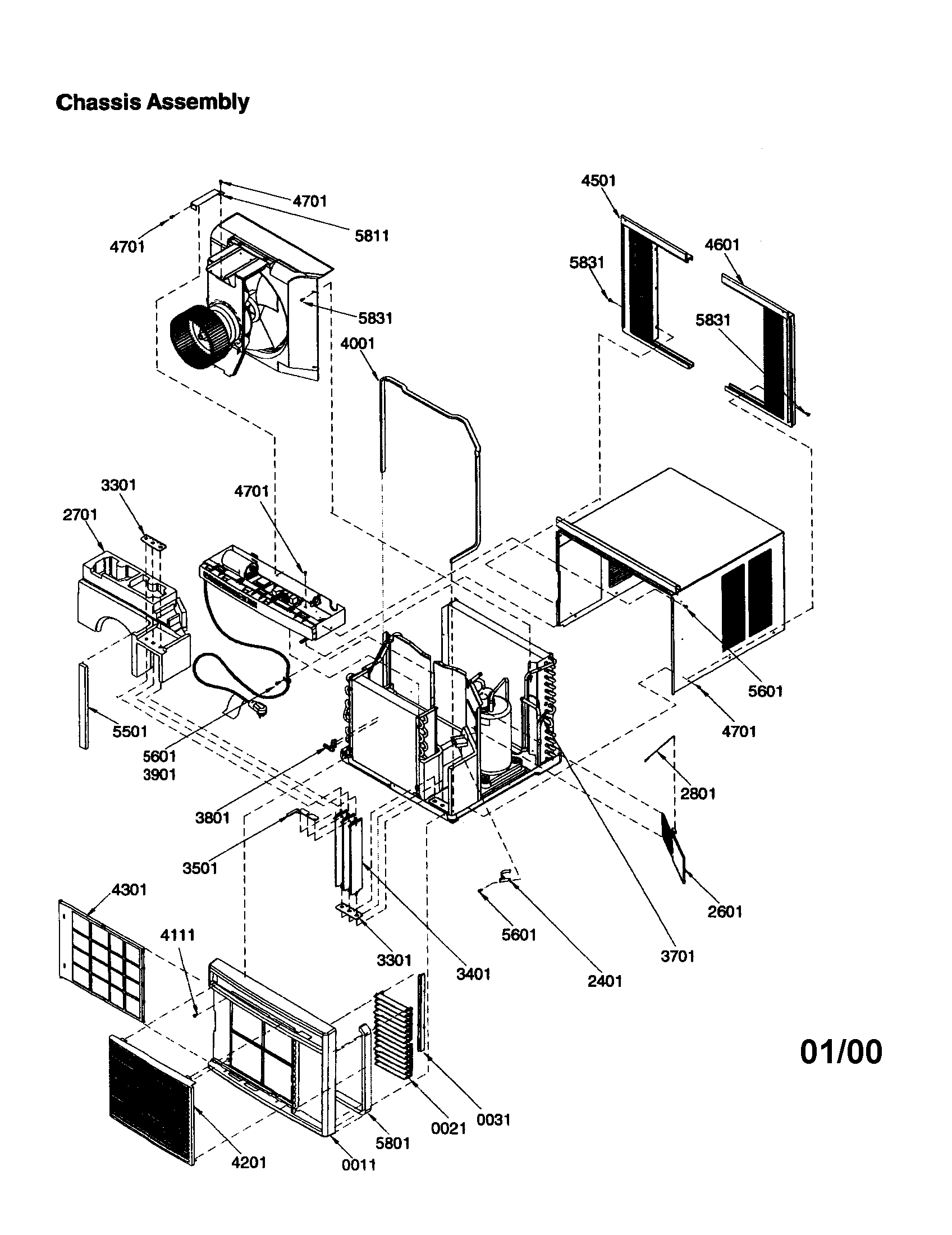

Chassis assembly diagram

Screw

Part #M0219730

Replaced by #WPM0219730

?
Manufacturer substitution
This part replaces M0219730. Substitute parts can look different from the original.
This item is not returnable
$8.00
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211017
#51

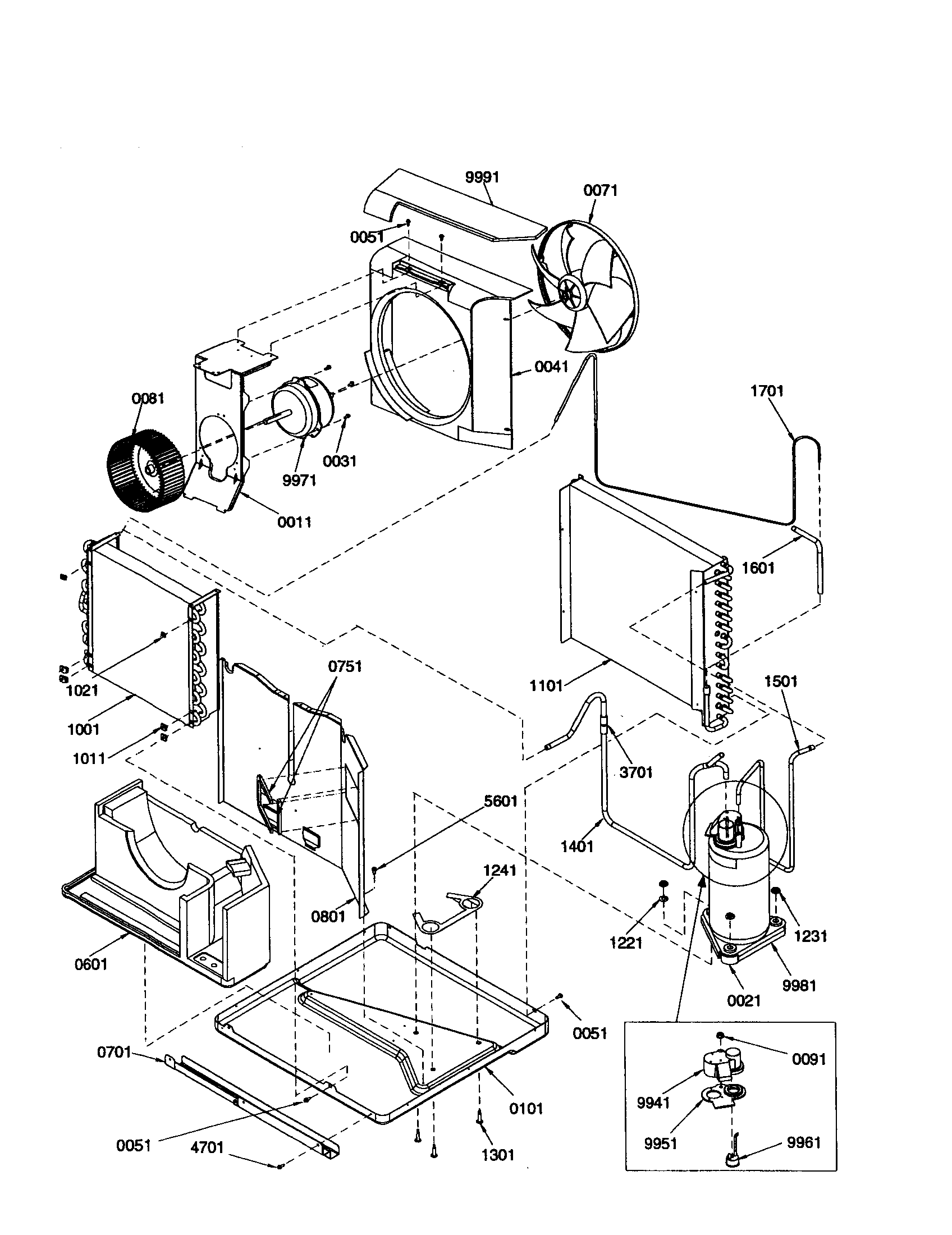

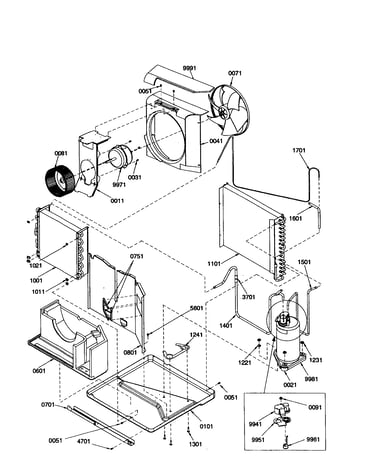

Compressor diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0254830
#31

Compressor diagram

Screw

Part #M0254830

Replaced by #WP308544

?
Manufacturer substitution
This part replaces M0254830. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Insert 20059601
#52

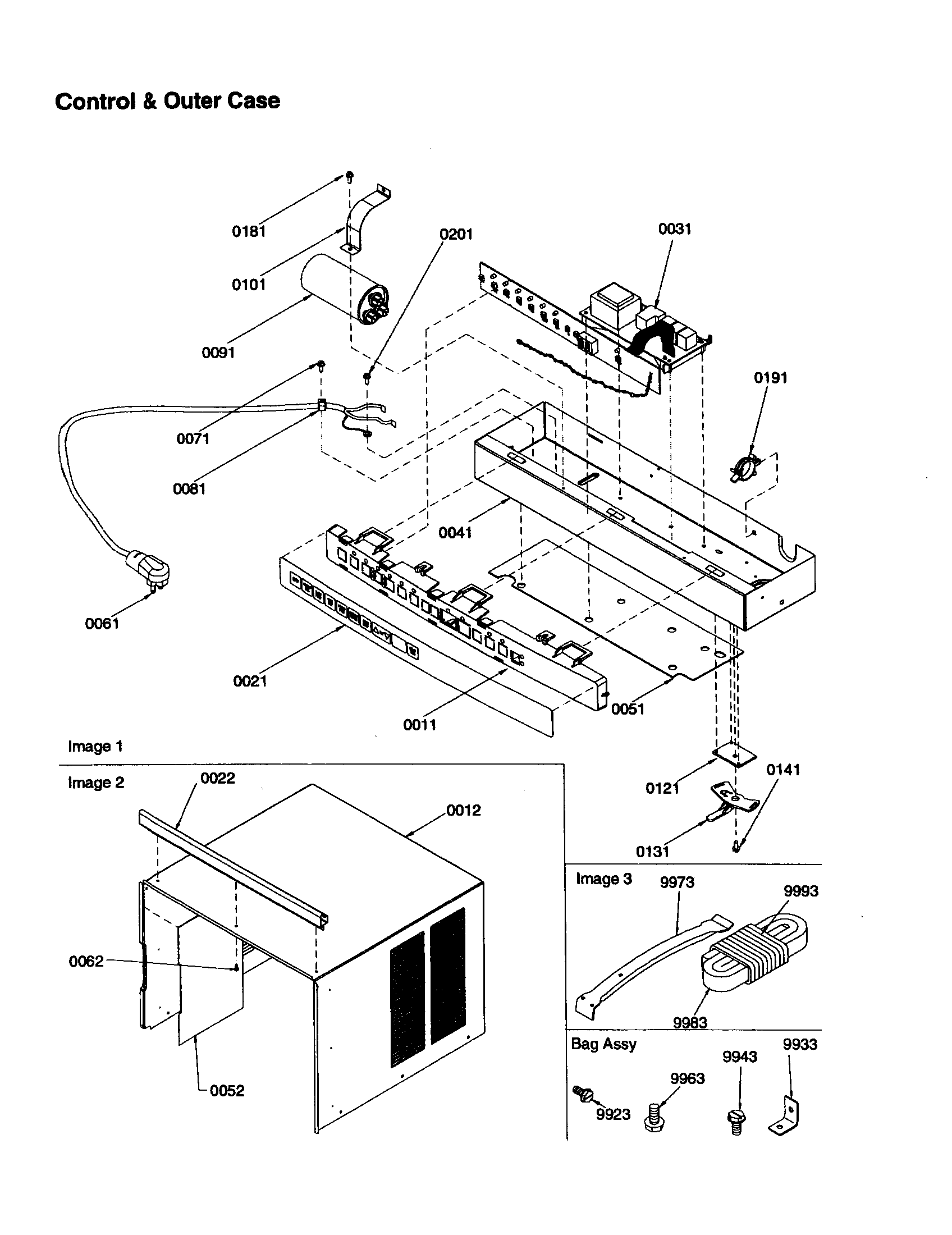

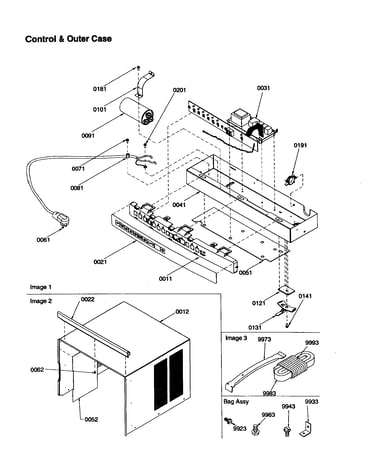

Control and outer case diagram

Insert

Part #20059601

The manufacturer no longer makes this part, and there's no substitute part

Filter 20055901
#4301

Chassis assembly diagram

Filter

Part #20055901

The manufacturer no longer makes this part, and there's no substitute part

Nut A9036601
#91

Compressor diagram

Nut

Part #A9036601

The manufacturer no longer makes this part, and there's no substitute part

Spring 20055502
#2401

Chassis assembly diagram

Spring

Part #20055502

The manufacturer no longer makes this part, and there's no substitute part

Frame 20055001
#4501

Chassis assembly diagram

Frame

Part #20055001

The manufacturer no longer makes this part, and there's no substitute part

Repair Pts Lst-70089 20120801

#NI

All parts diagram

Repair pts lst-70089

Part #20120801

The manufacturer no longer makes this part, and there's no substitute part
