Model # 550DVX-R LPG Official Williams wall furnace

Here are the diagrams and repair parts for Official Williams 550DVX-R-LPG wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 71 parts |

#45A

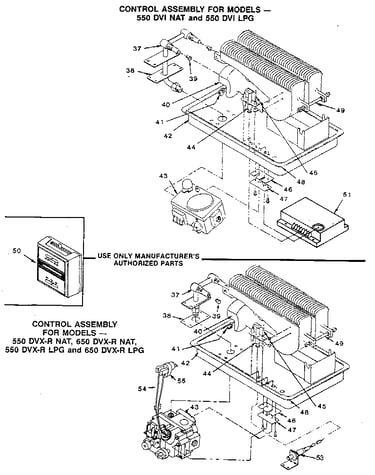

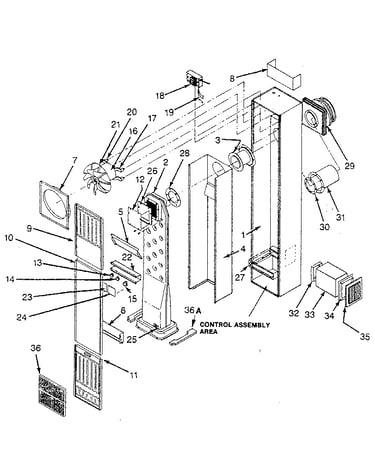

All parts diagram

Furnace burner flame sensor

Part #P271100

The manufacturer no longer makes this part, and there's no substitute part

#12

All parts diagram

Cover assembly

Part #11A103

The manufacturer no longer makes this part, and there's no substitute part

#47

All parts diagram

Tube seal

Part #11A41

The manufacturer no longer makes this part, and there's no substitute part

All parts diagram

Tubing assembly

Part #11C37

The manufacturer no longer makes this part, and there's no substitute part

All parts diagram

Baffle hndl

Part #11C63

The manufacturer no longer makes this part, and there's no substitute part

#10

All parts diagram

Center front panel

Part #11C59

The manufacturer no longer makes this part, and there's no substitute part

#27

All parts diagram

Gasket

Part #P151900

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Owner's manual

Part #P321004

The manufacturer no longer makes this part, and there's no substitute part

#14

All parts diagram

Select switch

Part #P200400

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Wire bridle

Part #31B036

The manufacturer no longer makes this part, and there's no substitute part
