Model # 5KSB4054EBK0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB4054EBK0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Plug, Coupler W11219397
#3

Unit parts diagram

Plug, coupler

Part #W11219397

Replaced by #W11486757

?
Manufacturer substitution
This part replaces W11219397. Substitute parts can look different from the original.
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Seal - Motor W11211960
#16

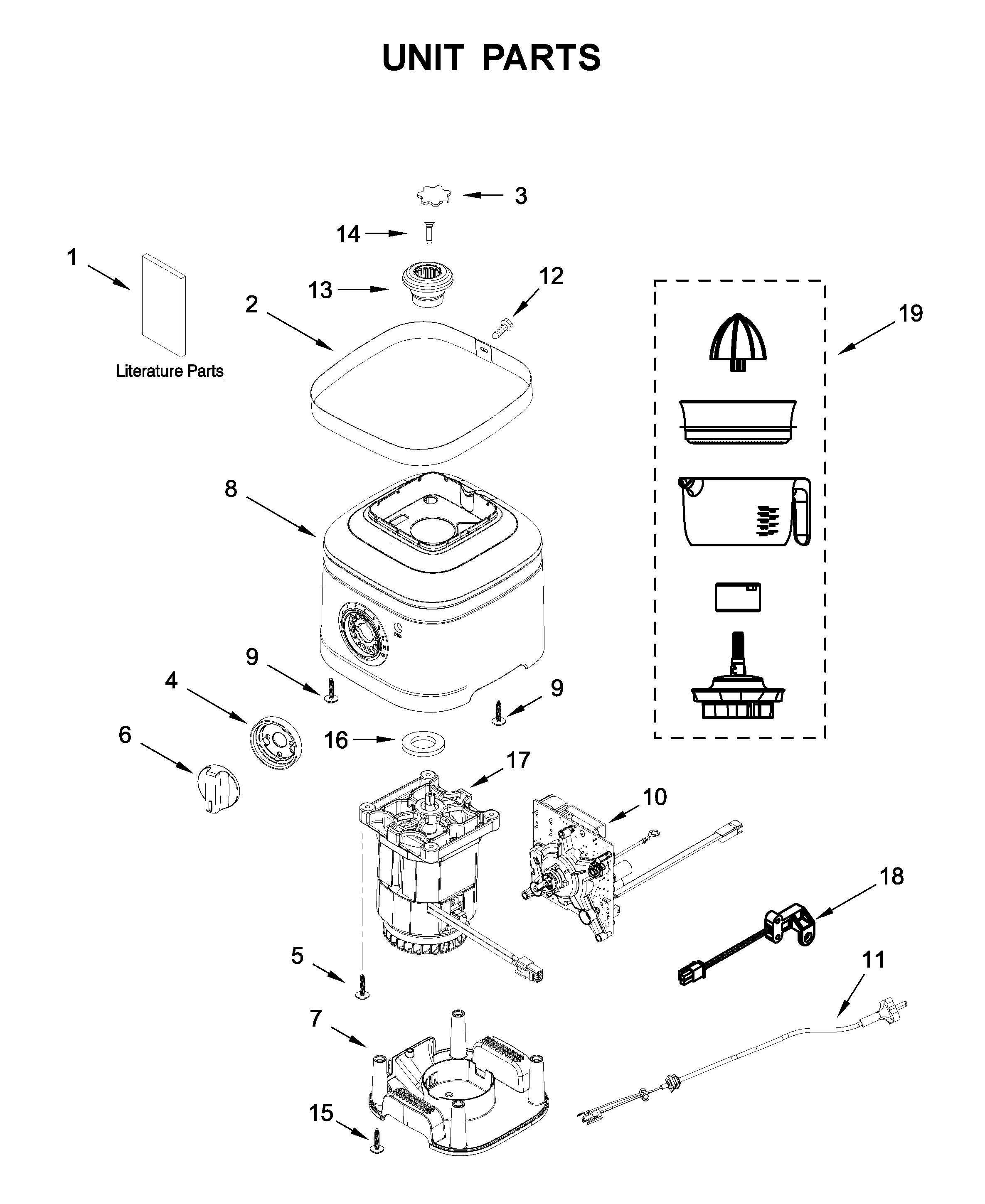

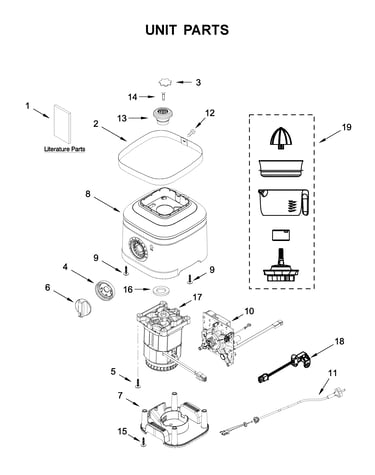

Unit parts diagram

Seal - motor

Part #W11211960

$15.39
12% OFF Phone Price : $17.39
In Stock
Upper Base (imperial Black) W11328603
#8

Unit parts diagram

Upper base (imperial black)

Part #W11328603

In Stock
Lid Assembly W11422070
#1

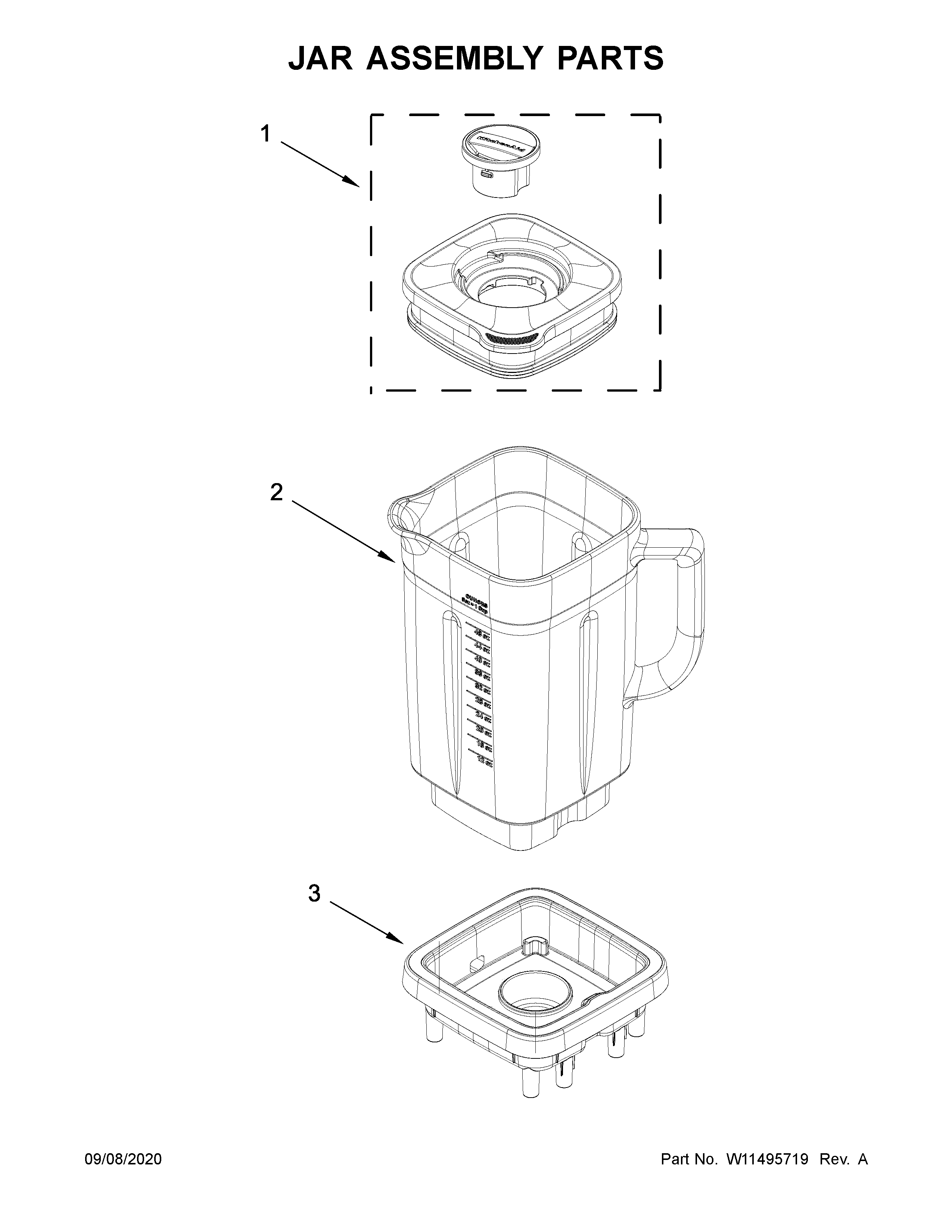

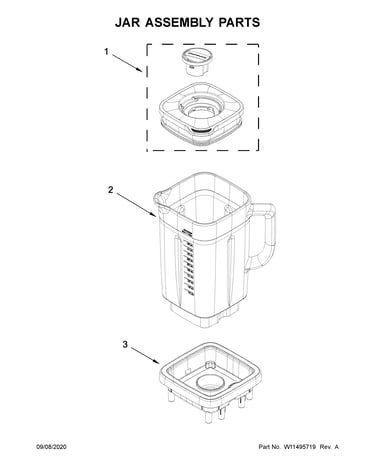

Jar assembly parts diagram

Lid assembly

Part #W11422070

In Stock
Trimband W11354596
#2

Unit parts diagram

Trimband

Part #W11354596

In Stock
Screw 3400617
#12

Unit parts diagram

Screw

Part #3400617

This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Citrus Press Assembly W11222428
#19

Unit parts diagram

Citrus press assembly

Part #W11222428

$113.19
10% OFF Phone Price : $125.19
In Stock
Upper Base (candy Apple) W11328602
#8A

Unit parts diagram

Upper base (candy apple)

Part #W11328602

In Stock
Glass Jar As W11279763
#2

Jar assembly parts diagram

Glass jar as

Part #W11279763

Replaced by #W11445480

?
Manufacturer substitution
This part replaces W11279763. Substitute parts can look different from the original.
In Stock
Reed Switch W11238803
#18

Unit parts diagram

Reed switch

Part #W11238803

Replaced by #W11627538

?
Manufacturer substitution
This part replaces W11238803. Substitute parts can look different from the original.
In Stock
