Universal/Multiflex (Frigidaire)
Electric Range

Model # MEF302PBDH Official Universal/Multiflex (Frigidaire) electric range - 5995289401

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MEF302PBDH electric range - 5995289401, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

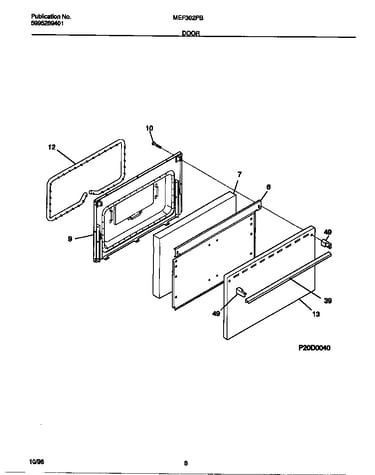

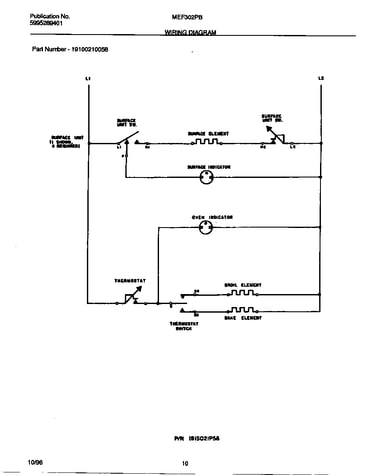

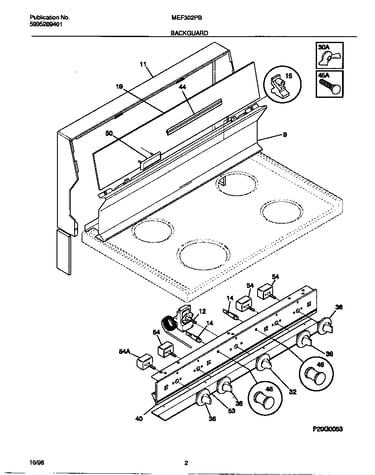

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Bake Element 316075102
#67

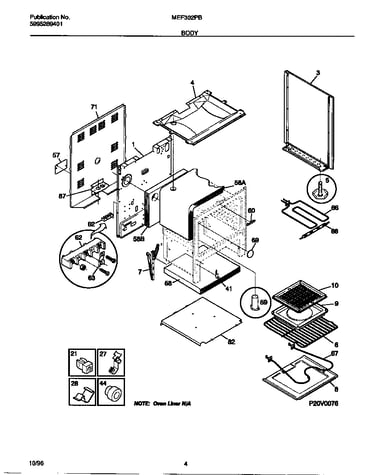

Body diagram

Bake element

Part #316075102

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075102. Substitute parts can look different from the original.
BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Block 5303912666
#27

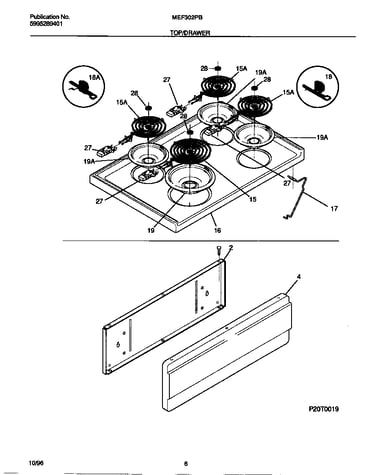

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan 5303935054
#19

Top/drawer diagram

Range drip pan

Part #5303935054

Replaced by #316048413

?
Manufacturer substitution
This part replaces 5303935054. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Coil Surface Element, 8-in 5303015715
#15

Top/drawer diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Range Coil Surface Element, 6-in 5303015716
#15

Top/drawer diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$26.22 |
19% OFF Phone Price : $32.22
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105

#NI

All parts diagram

Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Oven Rack 316067901
#6

Body diagram

Oven rack

Part #316067901

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 316067901. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Insert Broil 3205234
#10

Body diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
$13.29
In Stock
