Craftsman
Electric Leaf Blower

Model # 944516710 Official Craftsman blower

Here are the diagrams and repair parts for Official Craftsman 944516710 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Lock Nut 545006201
#10

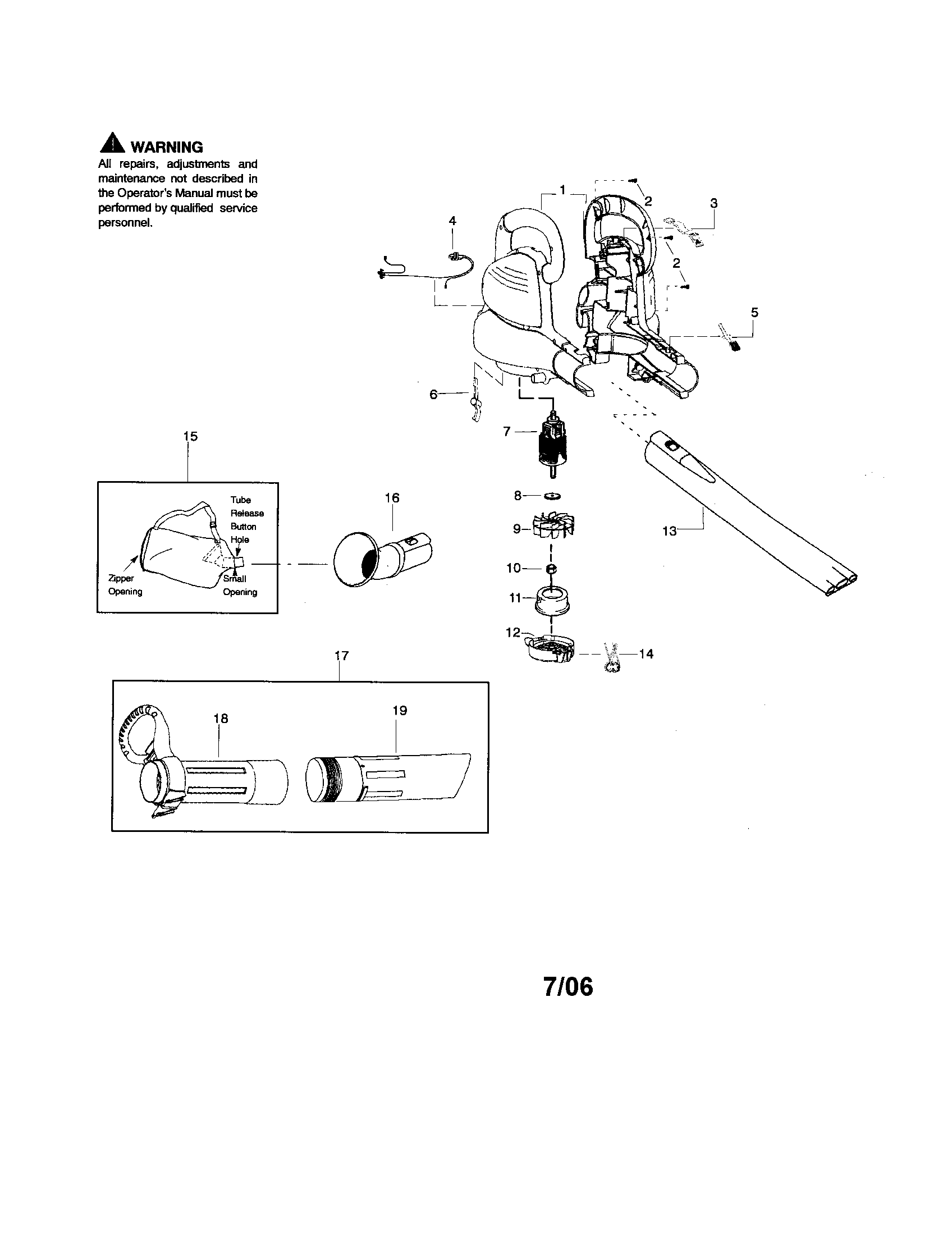

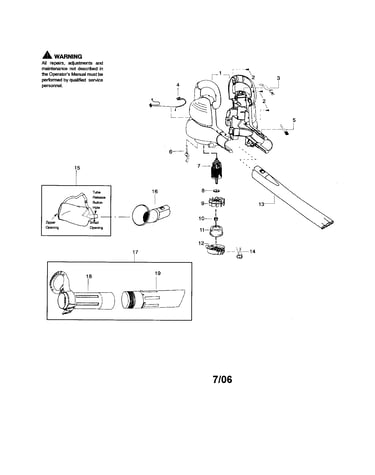

Blower diagram

Lock nut

Part #545006201

Replaced by #545162101

?
Manufacturer substitution
This part replaces 545006201. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Vacuum Bag 530095599
#15

Blower diagram

Vacuum bag

Part #530095599

Replaced by #530095564

?
Manufacturer substitution
This part replaces 530095599. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$34.19 |
15% OFF Phone Price : $40.19
In Stock
Leaf Blower Inlet Restrictor 530403791
#11

Blower diagram

Leaf blower inlet restrictor

Part #530403791

The manufacturer no longer makes this part, and there's no substitute part

Latch Button 530403775
#5

Blower diagram

Latch button

Part #530403775

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 530403833
#14

Blower diagram

Door spring

Part #530403833

The manufacturer no longer makes this part, and there's no substitute part

Decal-warning 545103301

#NI02

All parts diagram

Decal-warning

Part #545103301

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Vacuum Door 530403788
#12

Blower diagram

Leaf blower vacuum door

Part #530403788

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 530016120
#2

Blower diagram

Lawn & garden equipment screw

Part #530016120

The manufacturer no longer makes this part, and there's no substitute part

Assy-hsg & T 530404141
#1

Blower diagram

Assy-hsg & t

Part #530404141

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Tube (replaces 530404358) 530403765
#13

Blower diagram

Leaf blower tube (replaces 530404358)

Part #530403765

The manufacturer no longer makes this part, and there's no substitute part
